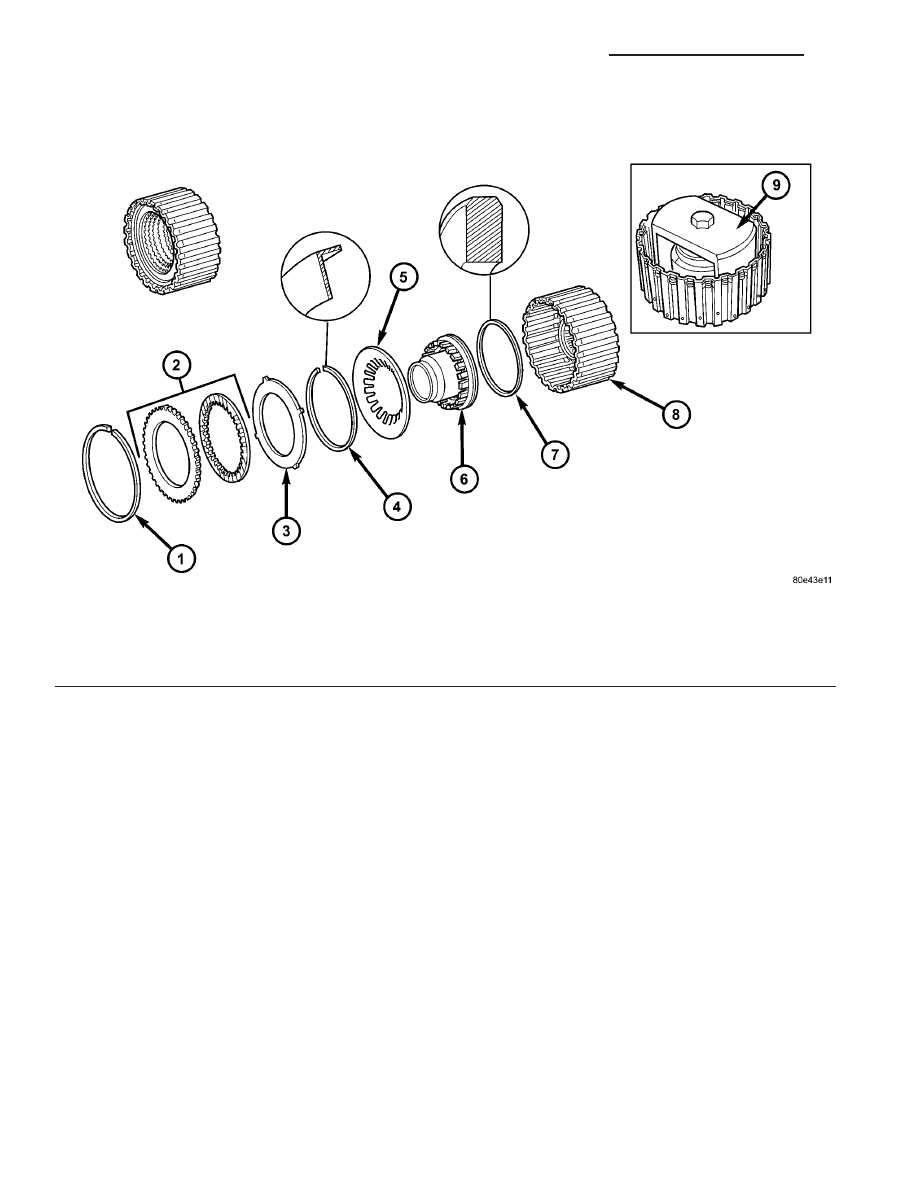

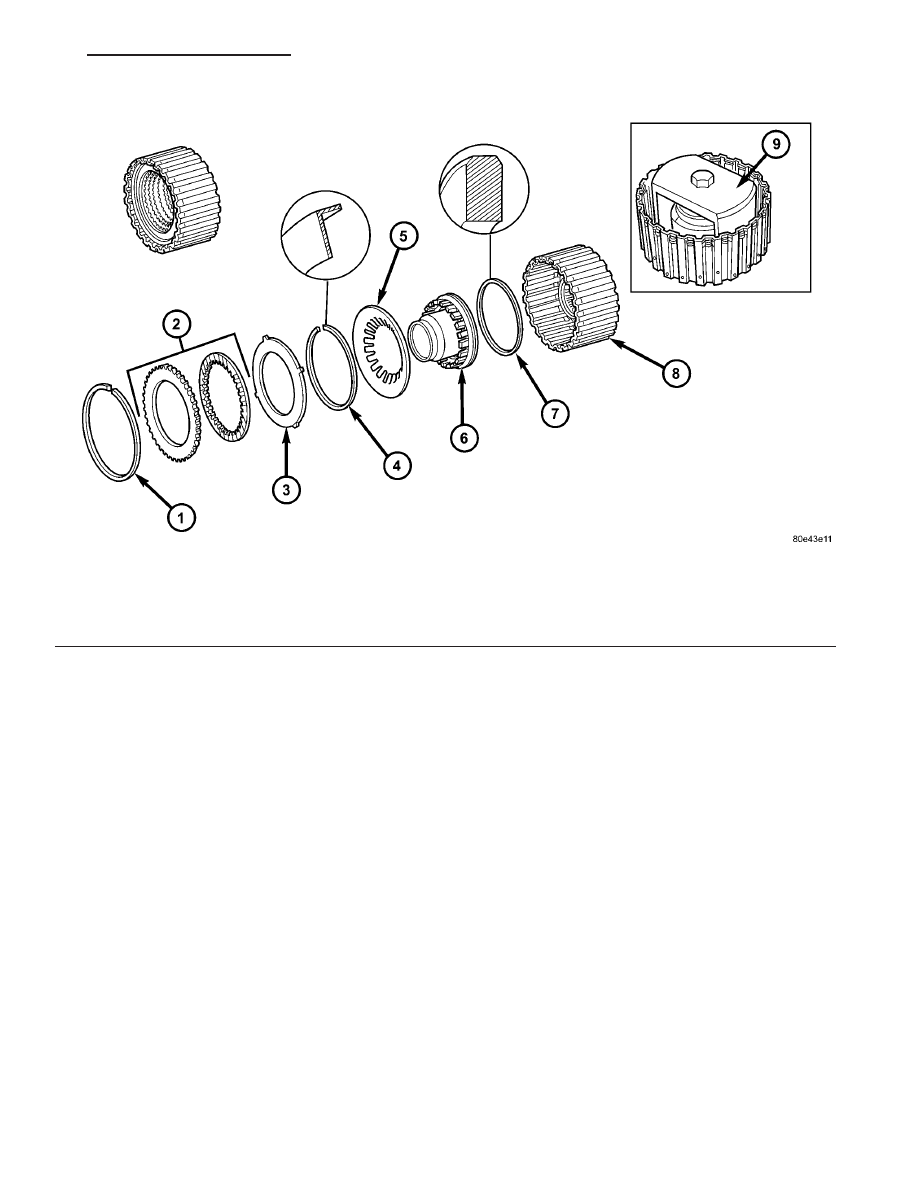

INPUT CLUTCH K3 DISASSEMBLY (1) Remove snap-ring (1) (Fig. 94) from outer mul- tiple-disc carrier. (2) Remove multiple-disc pack (2) and disk spring (3) from outer multiple-disc carrier. Note which (3) Place Multi-use Spring Compressor 8900 (9) (Fig. 94) on disc spring (5) and compress the spring (4) Remove snap-ring (4). outer multiple-disc carrier. Fig. 94 Input Clutch K3 Components 1 - SNAP-RING 6 - PISTON 2 - MULTIPLE DISC PACK 7 - SEALING RING 3 - DISC SPRING 8 - OUTER DISC CARRIER 4 - SNAP-RING 9 - MULTI-USE SPRING COMPRESSOR 8900 5 - SPRING PLATE 21 - 102 AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION VA |
