Dodge Ram Truck 1500-2500-3500. Manual - part 1754





P2769-TRANSMISSION TCC CONTROL CIRCUIT LOW

21 - 948

AUTOMATIC TRANSMISSION - 48RE - DIESEL - ELECTRICAL DIAGNOSTICS

DR/DH

P2769-TRANSMISSION TCC CONTROL CIRCUIT LOW (CONTINUED)

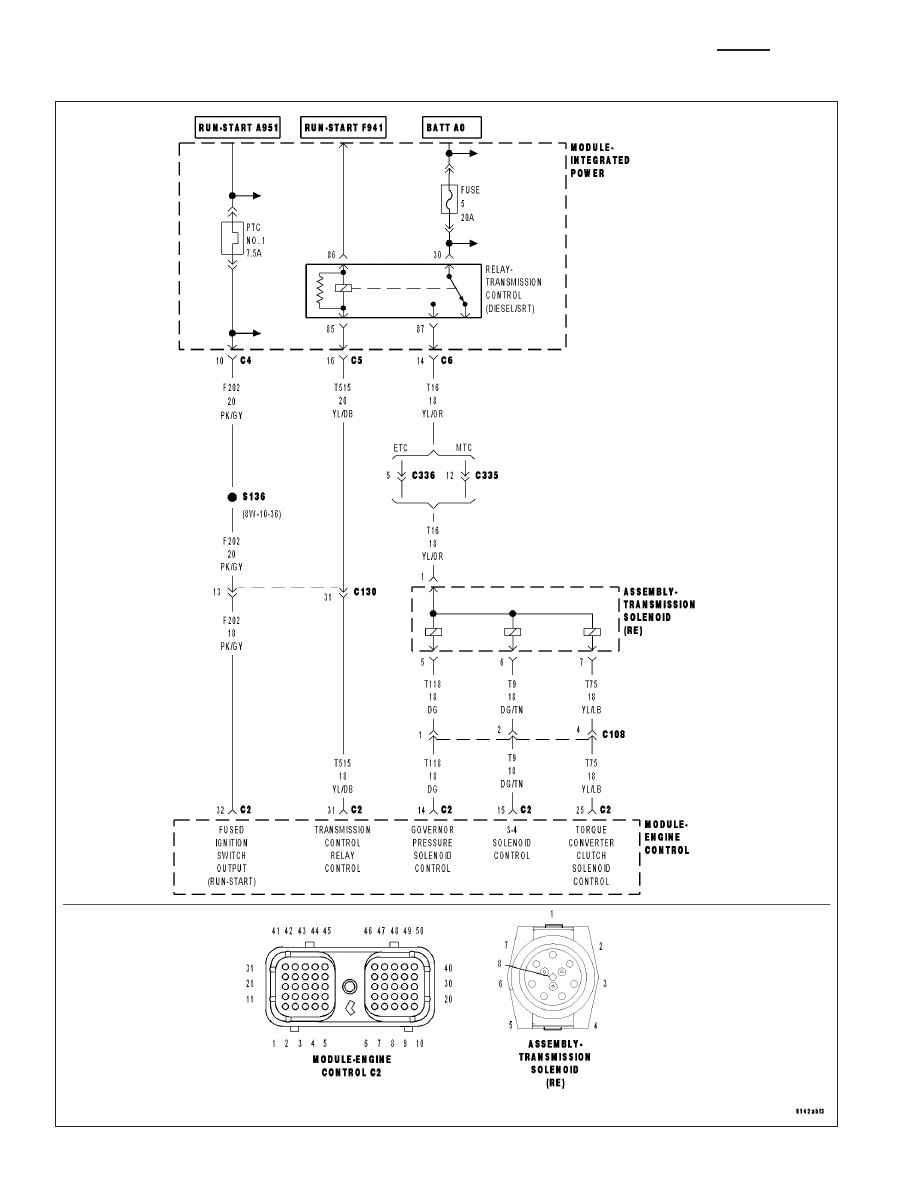

For the Transmission circuit diagram (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 48RE - SCHE-
MATICS AND DIAGRAMS)

For a complete wiring diagramRefer to Section 8W

Theory of Operation

The Torque Converter Clutch (TCC) solenoid is used to engage the TCC which improves fuel economy.

When Monitored:
Continuously with the ignition on.

Set Condition:
This DTC will set if the voltage detected by the ECM for the Torque Converter Clutch Solenoid Control circuit
is different than the expected voltage. Note: To clear this DTC it is necessary to drive the vehicle at a sus-
tained speed which would allow the TCC and/or Overdrive Clutch to operate.

Possible Causes

TRANSMISSION CONTROL RELAY DTCS PRESENT

(F941) FUSED IGNITION SWITCH OUTPUT CIRCUIT (RUN-START) OPEN

(T16) TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT OPEN

(T16) TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT SHORT TO GROUND

(T75) TCC SOLENOID CONTROL CIRCUIT SHORT TO GROUND

(T75) TCC SOLENOID CONTROL CIRCUIT SHORT TO OTHER CIRCUITS

TRANSMISSION CONTROL RELAY - POOR CONTACTS

TORQUE CONVERTER CLUTCH SOLENOID

ENGINE CONTROL MODULE

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 48RE - STANDARD PROCEDURE)

Diagnostic Test

1.

CHECK IF THERE ANY TRANSMISSION CONTROL RELAY DTCS PRESENT

Ignition on, engine not running.

With the scan tool, read Engine DTCs.

Are there any Transmission Control Relay DTCs also present?

Yes

>> Refer to the Transmission category and perform the appropriate symptom(s). (Refer to 21 - TRANS-

MISSION/TRANSAXLE/AUTOMATIC - 48RE - DIAGNOSIS AND TESTING)

No

>> Go To 2

DR/DH

AUTOMATIC TRANSMISSION - 48RE - DIESEL - ELECTRICAL DIAGNOSTICS

21 - 949

P2769-TRANSMISSION TCC CONTROL CIRCUIT LOW (CONTINUED)

2.

CHECK IF THE DTC IS CURRENT

With the scan tool, read Engine DTCs.

Record the Freeze Frame data for the reported DTC.

With the scan tool, erase DTCs.

Turn the ignition off to the lock position.

Using the Freeze Frame data recorded earlier, try to duplicate the conditions in which the DTC originally set.

NOTE: It may be necessary to road test the vehicle to duplicate the original set conditions.
With the scan tool, read Engine DTCs.

Did the DTC reset?

Yes

>> Go To 3

No

>> Go To 11

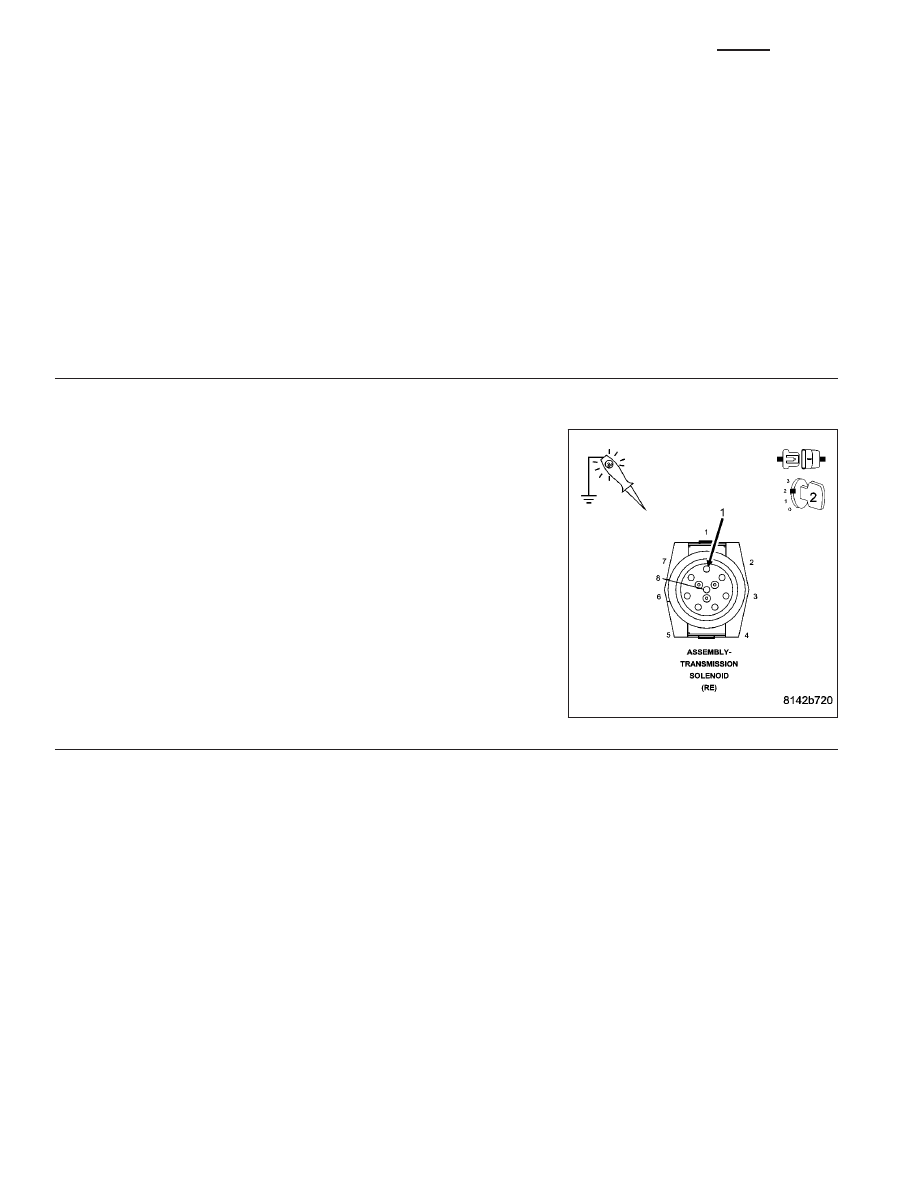

3.

CHECK THE (T16) TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT

Turn the ignition off to the lock position.

Disconnect the Transmission Solenoid Assembly harness connector.

NOTE: Check connectors - Clean/repair as necessary.
Ignition on, engine not running.

With the scan tool, actuate the Transmission Control Relay.

Using a 12-volt test light connected to ground, check the (T16) Trans-
mission Control Relay Output circuit in the Transmission Solenoid
Assembly harness connector.

NOTE: The test light must illuminate brightly. Compare the bright-
ness to that of a direct connection to the battery.

Does the test light cycle on and off and illuminate brightly?

Yes

>> Go To 4

No

>> Go To 8

21 - 950

AUTOMATIC TRANSMISSION - 48RE - DIESEL - ELECTRICAL DIAGNOSTICS

DR/DH

P2769-TRANSMISSION TCC CONTROL CIRCUIT LOW (CONTINUED)

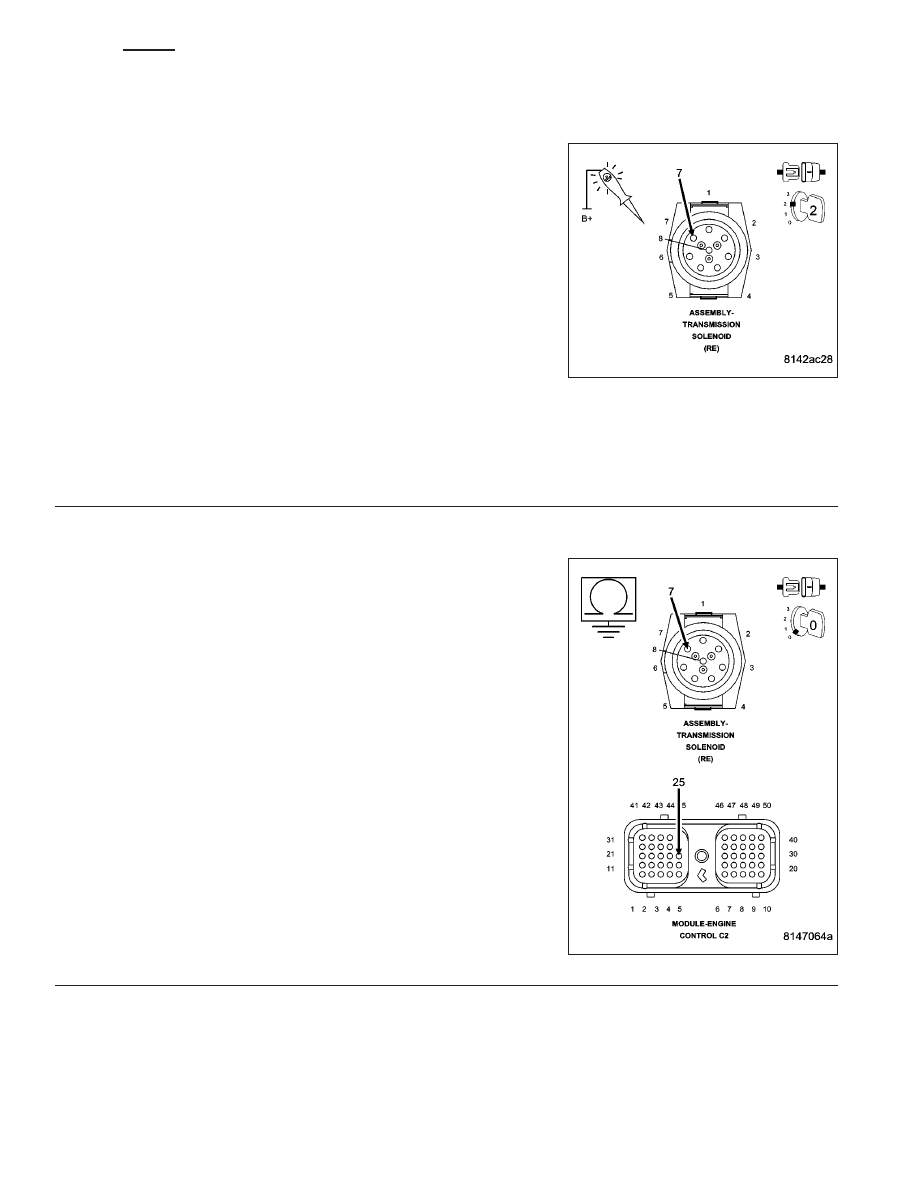

4.

CHECK THE (T75) TORQUE CONVERTER CLUTCH SOLENOID CIRCUIT

Turn the ignition off to the lock position.

Disconnect the Transmission Solenoid Assembly harness connector.

Ignition on, engine not running.

With the scan tool, actuate the TCC Solenoid.

Using a 12-volt test light connected to 12-volts, check the (T75) TCC
Solenoid Control circuit in the Transmission Solenoid Assembly har-
ness connector.

NOTE: The test light must illuminate brightly. Compare the bright-
ness to that of a direct connection to the battery.

Does the test light cycle on and off and illuminate brightly?

Yes

>> Check all internal wiring pertaining to the (T75) TCC Sole-

noid for an open, short, and bent or broken terminals. If no
internal wiring problems are found, replace the Transmission Solenoid Assembly per the Service Infor-
mation. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 48RE/VALVE BODY - REMOVAL)

Perform RE TRANSMISSION VERIFICATION TEST VER - 1 (DIESEL). (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 48RE - STANDARD PROCEDURE)

No

>> Go To 5

5.

(T75) TCC SOLENOID CONTROL CIRCUIT SHORT TO GROUND

Turn the ignition off to the lock position.

Disconnect the ECM harness connectors.

Measure the resistance between ground and the (T75) TCC Solenoid
Control circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (T75) TCC Solenoid Control circuit for a short

to ground.

Perform RE TRANSMISSION VERIFICATION TEST VER -
1 (DIESEL). (Refer to 21 - TRANSMISSION/TRANSAXLE/
AUTOMATIC - 48RE - STANDARD PROCEDURE)

No

>> Go To 6

DR/DH

AUTOMATIC TRANSMISSION - 48RE - DIESEL - ELECTRICAL DIAGNOSTICS

21 - 951
