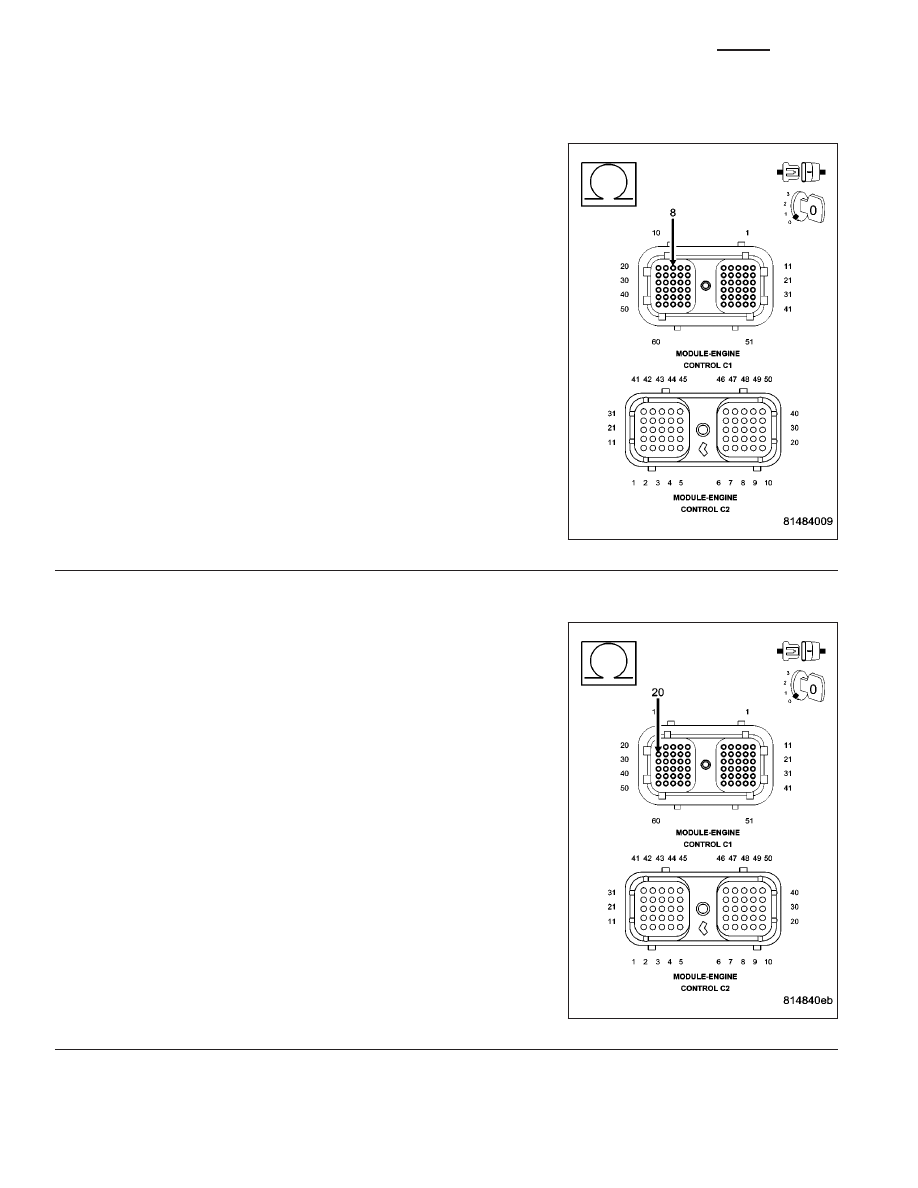

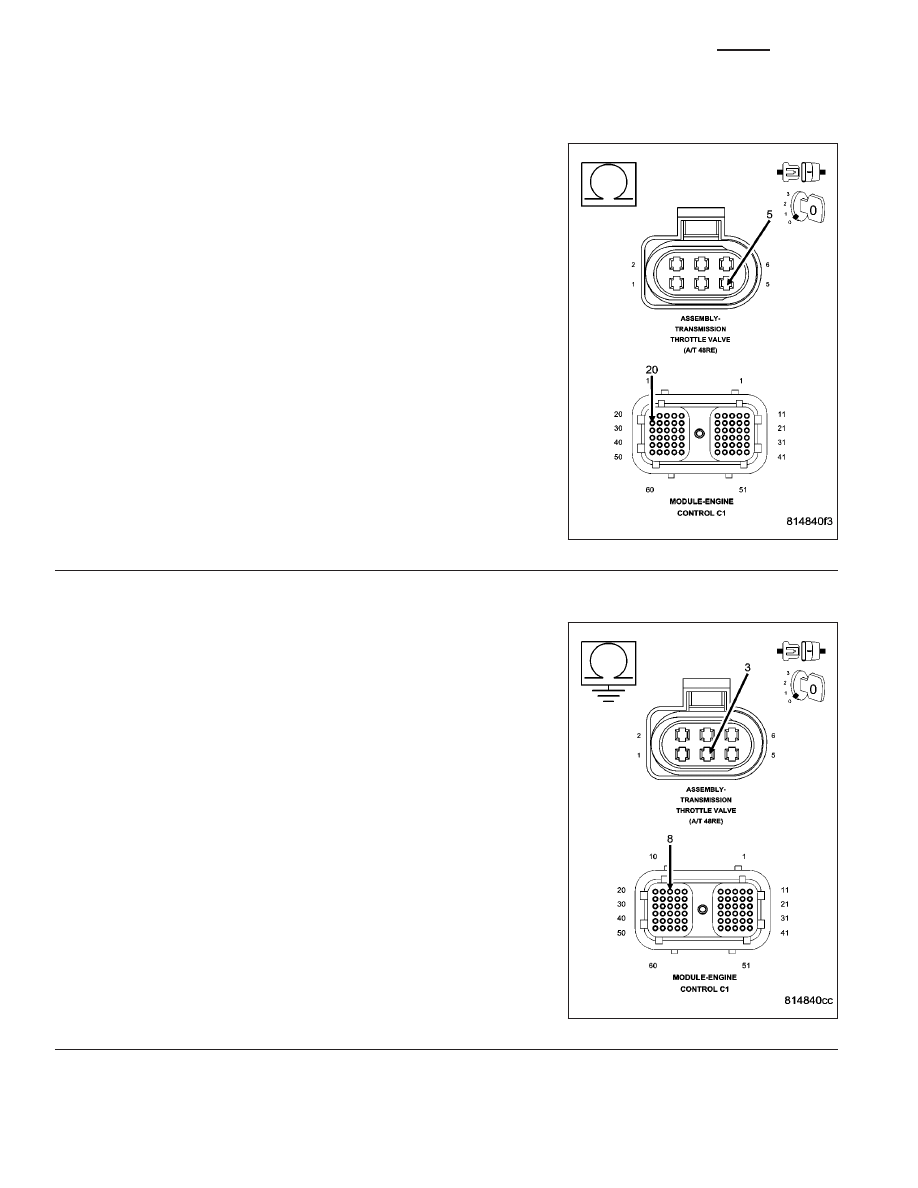

P1755-TRANSMISSION THROTTLE VALVE CONTROL CIRCUIT (CONTINUED) 5. CHECK THE (K315) TTVA MOTOR (-) CIRCUIT FOR AN OPEN Measure the resistance of the (K315) TTVA Motor (-) circuit between Is the resistance below 5.0 ohms? Yes >> Go To 6 No >> Repair the (K315) TTVA Motor (-) circuit for an open. Perform RE TRANSMISSION VERIFICATION TEST VER - 6. CHECK THE (K314) TTVA MOTOR (+) CIRCUIT FOR A SHORT TO GROUND Measure the resistance between ground and the (K314) TTVA Motor Is the resistance below 5.0 ohms? Yes >> Repair the (K314) TTVA Motor (+) circuit for a short to ground. Perform RE TRANSMISSION VERIFICATION TEST VER - No >> Go To 7 21 - 924 AUTOMATIC TRANSMISSION - 48RE - DIESEL - ELECTRICAL DIAGNOSTICS DR/DH |
