ASSEMBLY

Use petrolatum on all seals to ease assembly of

components.

(1) Using an arbor press, install input shaft to

input shaft hub (Fig. 229).

(2) Install input shaft snap ring (Fig. 230).

(3) Using an arbor press and Tool 6057, Install

OD/Reverse piston return spring and snap ring (Fig.
231) (Fig. 232).

(4) Install the OD/Reverse piston assembly to the

input clutch retainer as shown in (Fig. 233).

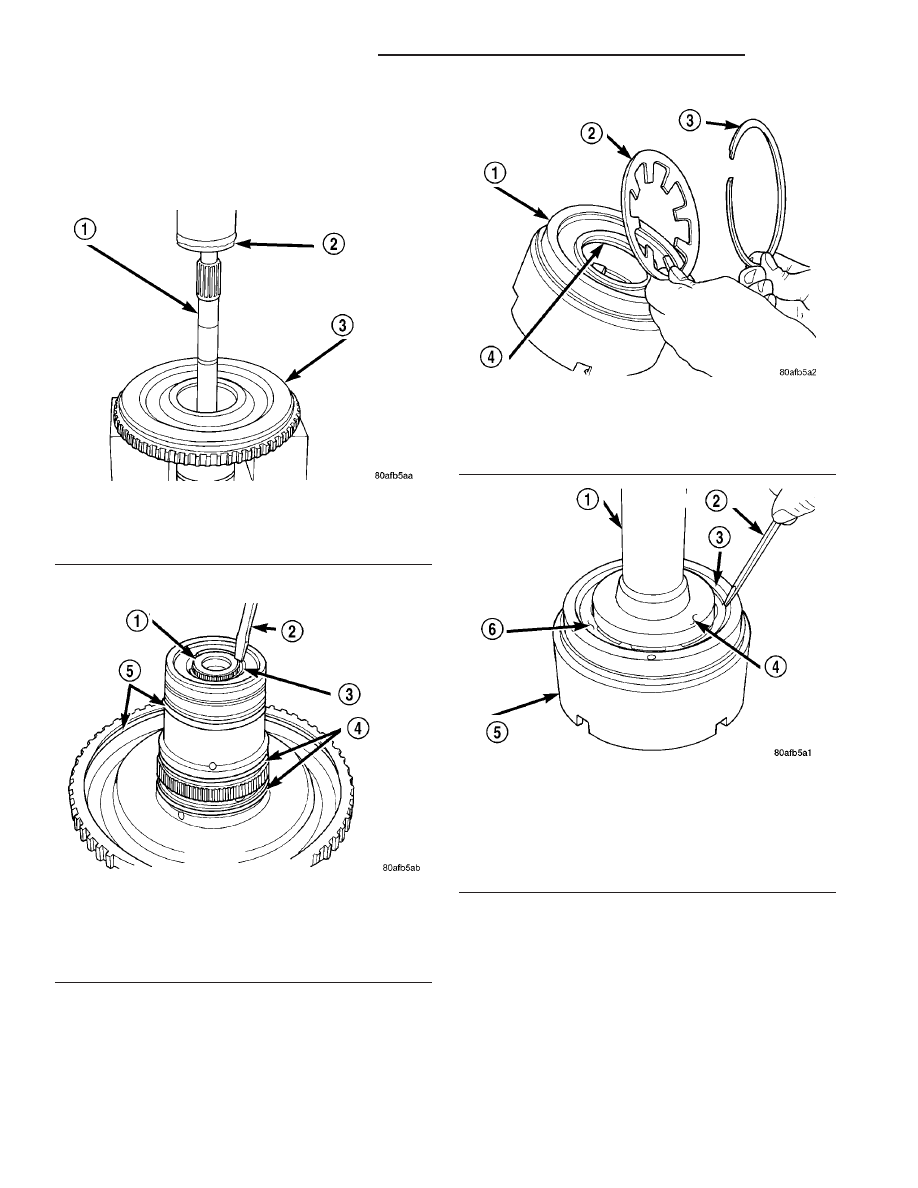

Fig. 229 Install Input Shaft

1 - INPUT SHAFT
2 - ARBOR PRESS RAM
3 - INPUT SHAFT HUB ASSEMBLY

Fig. 230 Install Input Shaft Snap Ring

1 - INPUT SHAFT
2 - SCREWDRIVER (DO NOT SCRATCH BEARING SURFACE)
3 - SNAP RING
4 - O-RINGS
5 - SEALS

Fig. 231 Return Spring and Snap Ring

1 - OD/REVERSE PISTON
2 - RETURN SPRING
3 - SNAP RING
4 - O-RING

Fig. 232 Install Snap Ring

1 - ARBOR PRESS RAM (COMPRESS RETURN SPRING JUST
ENOUGH TO REMOVE OR INSTALL SNAP RING)
2 - SCREWDRIVER
3 - SNAP RING
4 - SPECIAL TOOL 6057
5 - OD/REVERSE PISTON
6 - RETURN SPRING

21 - 232

40TE AUTOMATIC TRANSAXLE

PL/SRT-4

INPUT CLUTCH ASSEMBLY (Continued)

(5) Install the input hub/shaft assy. to the OD/Re-

verse piston/clutch retainer assy. (Fig. 234).

(6) Install input hub tapered snap ring (Fig. 235)

(Fig. 236).

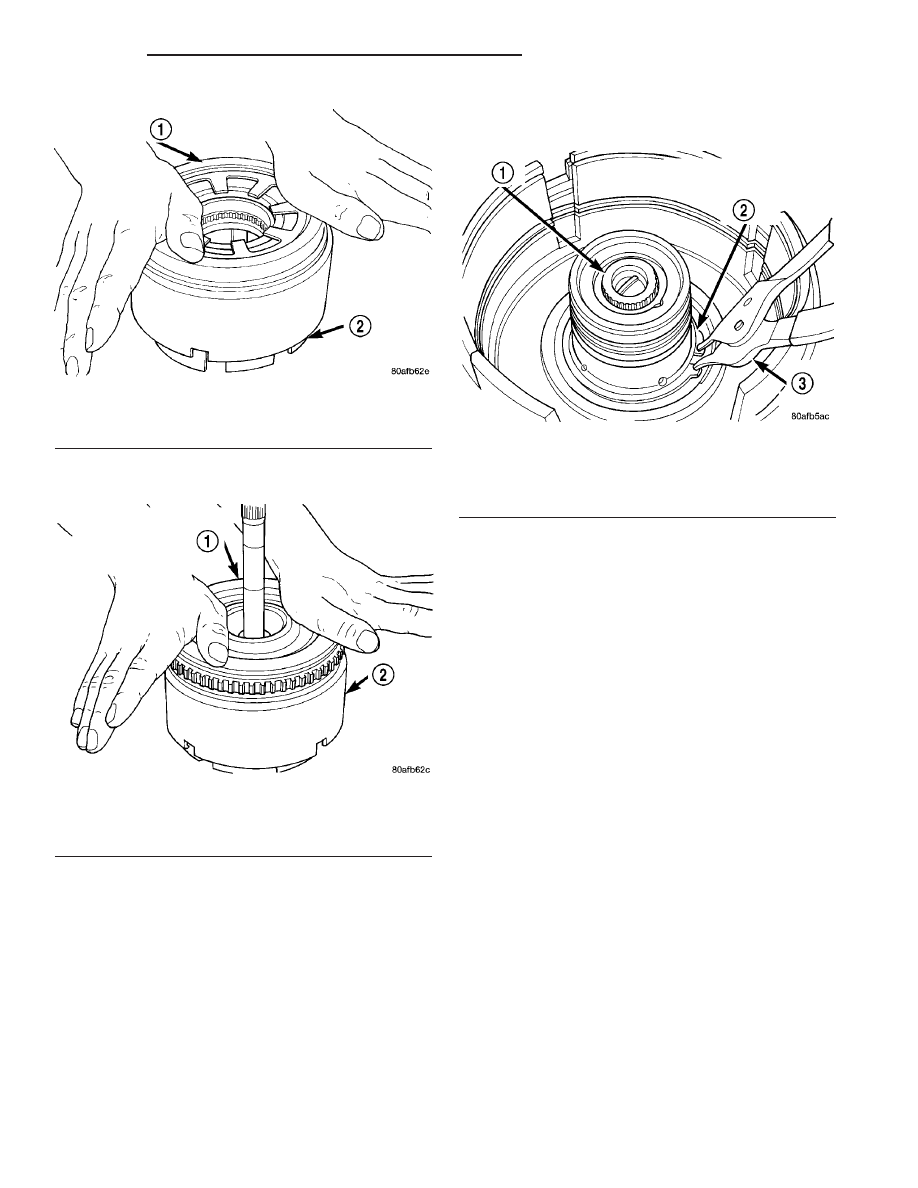

Fig. 233 Install OD/Reverse Piston

1 - PUSH DOWN TO INSTALL OVERDRIVE/REVERSE PISTON
2 - INPUT CLUTCHES RETAINER

Fig. 234 Install Input Shaft Hub Assembly

1 - PUSH DOWN TO INSTALL INPUT SHAFT HUB ASSEMBLY
(ROTATE TO ALIGN SPLINES)
2 - OD/REV. PISTON

Fig. 235 Install Input Hub Tapered Snap Ring

1 - INPUT SHAFT
2 - INPUT HUB SNAP RING (TAPERED SIDE UP WITH TABS IN
CAVITY)
3 - SNAP RING PLIERS

PL/SRT-4

40TE AUTOMATIC TRANSAXLE

21 - 233

INPUT CLUTCH ASSEMBLY (Continued)

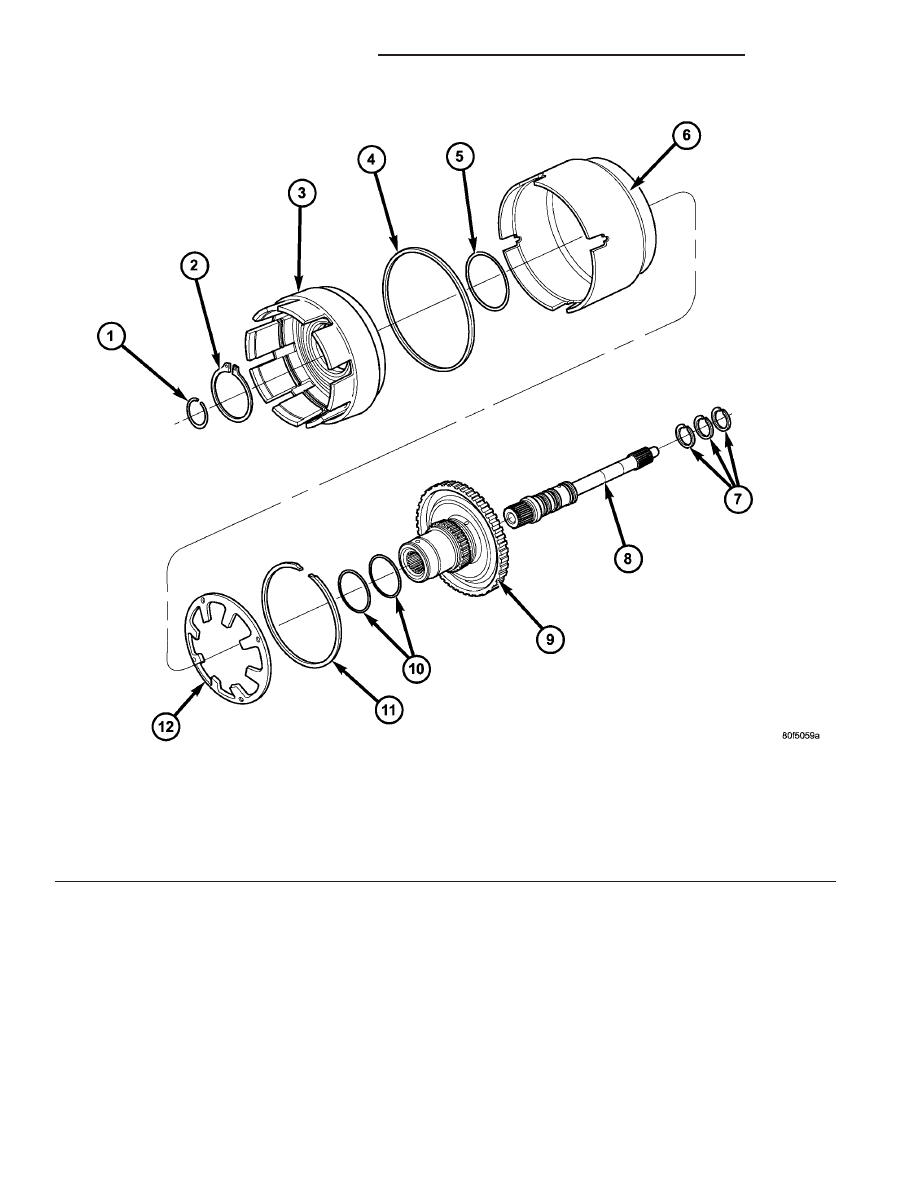

Fig. 236 Input Clutch Hub, Retainer, and OD/Reverse Piston

1 - SNAP RING (INPUT SHAFT)
2 - SNAP RING
3 - CLUTCH RETAINER
4 - SEAL, OUTER
5 - SEAL, INNER
6 - OD/REVERSE PISTON

7 - SEAL, INPUT SHAFT
8 - SHAFT, INPUT
9 - HUB
10 - SEAL
11 - SNAP RING
12 - BELLEVILLE SPRING

21 - 234

40TE AUTOMATIC TRANSAXLE

PL/SRT-4

INPUT CLUTCH ASSEMBLY (Continued)

(7) Install UD clutch piston (Fig. 237).

(8) Install UD piston return spring and Tool 5067

as shown in (Fig. 238).

(9) Using Tool 5059A and an arbor press, Install

the UD spring retainer and snap ring (Fig. 239) (Fig.
240) (Fig. 241) Compress just enough to install snap
ring.

CAUTION: Compress return spring just enough to
install snap ring.

(10) Install the UD clutch pack. Leave out upper

disc, until snap ring is installed (Fig. 242).

(11) Install the UD clutch flat snap ring (Fig. 243).

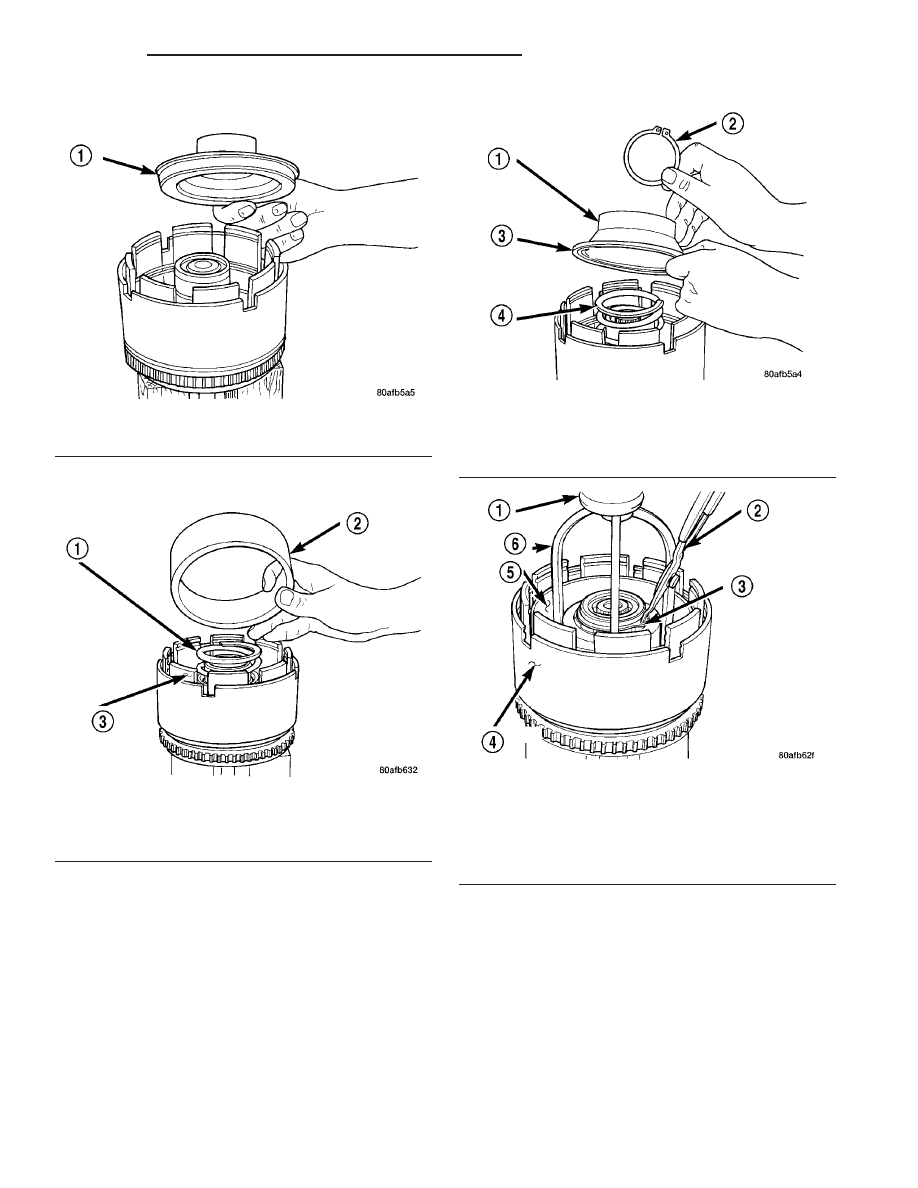

Fig. 237 Underdrive Clutch Piston

1 - PISTON

Fig. 238 Seal Compressor Special Tool 5067

1 - PISTON RETURN SPRING
2 - SPECIAL TOOL 5067
3 - INPUT SHAFT CLUTCHES RETAINER ASSEMBLY

Fig. 239 UD Return Spring and Retainer

1 - UNDERDRIVE SPRING RETAINER
2 - SNAP RING
3 - SEAL
4 - PISTON RETURN SPRING

Fig. 240 Install UD Spring Retainer and Snap Ring

1 - ARBOR PRESS RAM
2 - SNAP RING PLIERS
3 - SNAP RING
4 - OD/REVERSE PISTON
5 - TOOL 5067
6 - TOOL 5059A

PL/SRT-4

40TE AUTOMATIC TRANSAXLE

21 - 235

INPUT CLUTCH ASSEMBLY (Continued)
