Dodge Neon / Neon SRT-4. Manual - part 275





NOTE: Maintain proper clamp orientation when
replacing with new clamp.

(5) Connect the exhaust system ground strap.
(6) Start the engine and inspect for exhaust leaks.

Repair exhaust leaks as necessary.

(7) Check the exhaust system for contact with the

body panels. Make the necessary ajustments, if
needed.

MUFFLER

REMOVAL

WARNING: THE NORMAL OPERATING TEMPERA-
TURE OF THE EXHAUST SYSTEM IS VERY HIGH.
THEREFORE, NEVER WORK AROUND OR ATTEMPT
TO SERVICE ANY PART OF THE EXHAUST SYSTEM
UNTIL IT IS COOLED. SPECIAL CARE SHOULD BE
TAKEN WHEN WORKING NEAR THE CATALYTIC
CONVERTER. THE TEMPERATURE OF THE CON-
VERTER RISES TO A HIGH LEVEL AFTER A SHORT
PERIOD OF ENGINE OPERATING TIME.

(1) Raise vehicle on hoist and apply penetrating oil

to band clamp fastener of component being removed.

NOTE: Do not use petroleum-based lubricants when
removing/installing muffler or exhaust pipe isola-
tors as it may compromise the life of the part. A
suitable substitute is a mixture of liquid dish soap
and water.

(2) Remove exhaust system ground strap.
(3) Loosen band clamp and remove support isola-

tors at muffler. Remove muffler from exhaust pipe
(Fig. 12).

(4) Clean ends of pipes and muffler to assure mat-

ing of all parts. Discard broken or worn isolators,
rusted or overused clamps, supports, and attaching
parts.

NOTE: When replacement is required on any com-
ponent of the exhaust system, you must use origi-
nal equipment parts (or their equivalent).

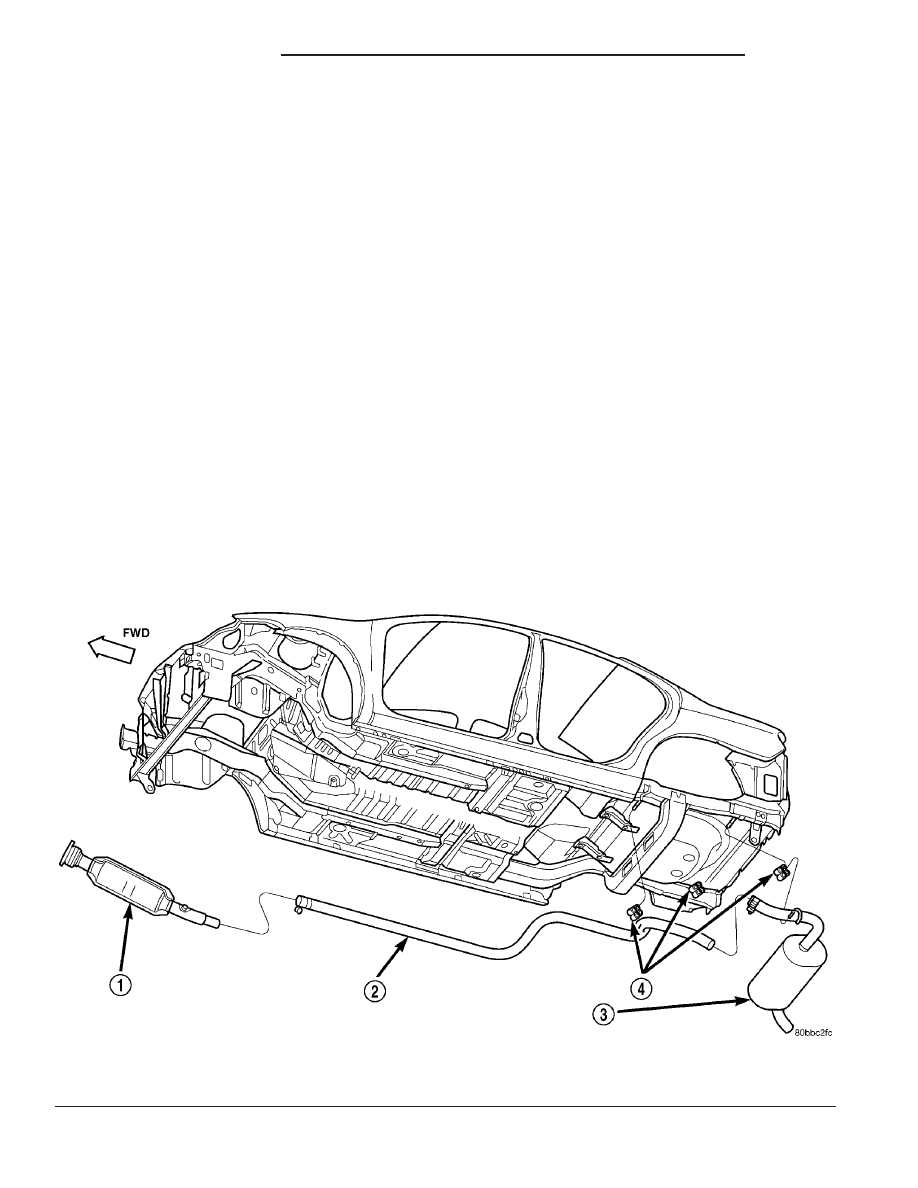

Fig. 12 EXHAUST SYSTEM COMPONENTS

1 - CATALYTIC CONVERTER
2 - INTERMEDIATE PIPE

3 - MUFFLER
4 - ISOLATORS

11 - 26

EXHAUST SYSTEM

PL/SRT-4

INTERMEDIATE PIPE (Continued)

INSTALLATION

When assembling exhaust system do not tighten

clamps until components are aligned and clearances
are checked.

(1) Install the muffler to intermediate pipe and the

isolator supports to the underbody.

(2) Working from the front of system; align each

component to maintain position and proper clearance
with underbody parts. (Refer to 11 - EXHAUST SYS-
TEM - ADJUSTMENTS)

(3) Tighten all band clamps to 47 N·m (35 ft. lbs.)

(Fig. 13).

CAUTION: Band clamps should never be tightened
such that the two sides of the clamps are bottomed
out against the center hourglass shaped center
block. Once this occurs, the clamp band has been
stretched and has lost its clamping force and must
be replaced.*

NOTE: *To replace the band clamp; remove the nut
and peel back the ends of the clamp until spot weld
breaks.

NOTE: Maintain proper clamp orientation when
replacing with new clamp.

(4) Connect the exhaust system ground strap.

(5) Start the engine and inspect for exhaust leaks.

Repair exhaust leaks as necessary.

(6) Check the exhaust system for contact with the

body panels. Make the necessary ajustments, if
needed.

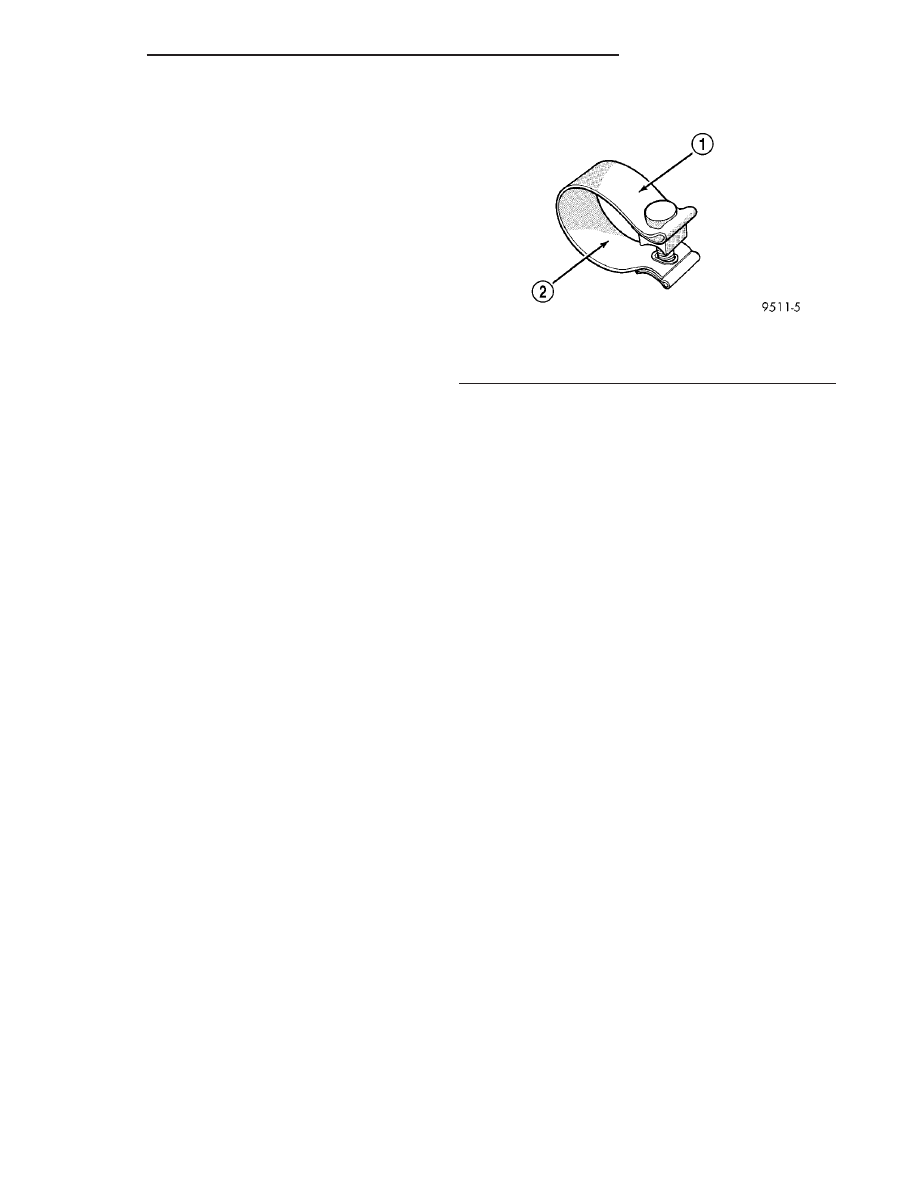

Fig. 13 Band Clamp

1 - CLAMP SIZE
2 - TORQUE SPECIFICATION

PL/SRT-4

EXHAUST SYSTEM

11 - 27

MUFFLER (Continued)

FRAME & BUMPERS

TABLE OF CONTENTS

page

page

BUMPERS

SPECIFICATIONS

TORQUE SPECIFICATIONS

. . . . . . . . . . . . . . 1

FRONT FASCIA

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 2

FRONT BUMPER REINFORCEMENT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 5

REAR FASCIA

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 6

REAR BUMPER REINFORCEMENT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 7

FRAME

SPECIFICATIONS

FRAME DIMENSIONS

. . . . . . . . . . . . . . . . . . . 7

FRONT CROSSMEMBER

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 12

REMOVAL

FRONT SUSPENSION CROSSMEMBER

. . . . 12

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 14

BUMPERS

SPECIFICATIONS

TORQUE SPECIFICATIONS

DESCRIPTION

TORQUE

Front Bumper
Reinforcement Bolt

12 N·m (105 in. lbs.)

Rear Bumper
Reinforcement Bolt

10 N·m (90 in. lbs.)

Front Crossmember To
Side Rail Bolt

153 N·m (113 ft. lbs.)

Front Crossmember/
Control Arm To Side Rail
Bolt

244 N·m (1180 ft. lbs.)

FRONT FASCIA

REMOVAL

(1) Remove splash shield attaching screws.
(2) Remove fasteners attaching air dam to cross-

member (Fig. 1).

(3) SRT-4 vehicle remove four attaching screws

(Fig. 2).

(4) Disconnect

fog

lamp

wiring

harness,

if

equipped.

(5) Remove nuts attaching front bumper fascia to

bottom of fender flange. (Fig. 3), and (Fig. 4).

(6) Remove fascia from vehicle.
(7) SRT-4 vehicle remove the fascia to crossmem-

ber upper blockers from the fascia (Fig. 5).
