Dodge Neon / Neon SRT-4. Manual - part 192





Component

Page

Fuel Injector No. 2 (2.4L Turbo) . . . . . . . . 8W-80-36
Fuel Injector No. 3 (2.4L Turbo) . . . . . . . . 8W-80-37
Fuel Injector No. 3 (2.0L) . . . . . . . . . . . . . 8W-80-37
Fuel Injector No. 4 (2.0L) . . . . . . . . . . . . . 8W-80-37
Fuel Injector No. 4 (2.4L Turbo) . . . . . . . . 8W-80-37
Fuel Pump Module . . . . . . . . . . . . . . . . . . 8W-80-38
Generator (2.0L) . . . . . . . . . . . . . . . . . . . . 8W-80-38
Generator (2.4L Turbo) . . . . . . . . . . . . . . . 8W-80-38
Headlamp Leveling Switch (Export) . . . . . 8W-80-38
Hood Ajar Switch (Export) . . . . . . . . . . . . 8W-80-39
Idle Air Control Motor (2.0L/2.4L Turbo) . 8W-80-39
Ignition Coil . . . . . . . . . . . . . . . . . . . . . . . 8W-80-39
Ignition Switch C1 . . . . . . . . . . . . . . . . . . 8W-80-39
Ignition Switch C2 . . . . . . . . . . . . . . . . . . 8W-80-40
Inlet Air Temperature Sensor . . . . . . . . . . 8W-80-40
Input Speed Sensor . . . . . . . . . . . . . . . . . 8W-80-40
Instrument Cluster . . . . . . . . . . . . . . . . . . 8W-80-41
Knock Sensor . . . . . . . . . . . . . . . . . . . . . . 8W-80-41
Left Back-Up Lamp . . . . . . . . . . . . . . . . . 8W-80-42
Left Cylinder Lock Switch (Premium) . . . 8W-80-42
Left Door Lock Switch . . . . . . . . . . . . . . . 8W-80-42
Left Front Door Speaker . . . . . . . . . . . . . . 8W-80-42
Left Front Fog Lamp (2.0L Except Export/2.4L

Turbo) . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-43

Left Front Fog Lamp (Export) . . . . . . . . . 8W-80-43
Left Front Side Marker Lamp (Except

Export) . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-43

Left Front Turn Signal Lamp (Export) . . . 8W-80-43
Left Front Wheel Speed Sensor . . . . . . . . 8W-80-44
Left Headlamp (Except Export) . . . . . . . . 8W-80-44
Left Headlamp (Export) . . . . . . . . . . . . . . 8W-80-44
Left Instrument Panel Speaker . . . . . . . . 8W-80-44
Left Lavalier Module (Export) . . . . . . . . . 8W-80-45
Left License Lamp (Export) . . . . . . . . . . . 8W-80-45
Left Park/Turn Signal Lamp (Except

Export) . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-45

Left Rear Door Ajar Switch . . . . . . . . . . . 8W-80-45
Left Rear Door Lock Motor/Ajar Switch . . 8W-80-46
Left Rear Fog Lamp (Export) . . . . . . . . . . 8W-80-46
Left Rear Speaker . . . . . . . . . . . . . . . . . . 8W-80-46
Left Rear Turn Signal Lamp (Export) . . . . 8W-80-46
Left Rear Wheel Speed Sensor . . . . . . . . . 8W-80-47
Left Seat Airbag Squib . . . . . . . . . . . . . . . 8W-80-47
Left Side Impact Airbag Control Module . 8W-80-47
Left Side Repeater Lamp (Export) . . . . . . 8W-80-47
Left Tail/Stop Lamp (Export) . . . . . . . . . . 8W-80-47
Left Tail/Stop/Turn Signal Lamp (Except

Export) . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-48

License Lamp (Except Export) . . . . . . . . . 8W-80-48
Low Note Horn . . . . . . . . . . . . . . . . . . . . . 8W-80-48
Manifold Absolute Pressure Sensor

(2.0L) . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-48

Manifold Absolute Pressure Sensor (2.4L

Turbo) . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-49

Manifold Tuning Valve Solenoid (RT) . . . . 8W-80-49

Component

Page

Map/Reading Lamps . . . . . . . . . . . . . . . . . 8W-80-49
Multi-Function Switch . . . . . . . . . . . . . . . 8W-80-50
Natural Vacuum Leak Detection Assembly (2.0L

Except Export/2.4L Turbo) . . . . . . . . . . 8W-80-50

Output Speed Sensor . . . . . . . . . . . . . . . . 8W-80-51
Oxygen Sensor 1/1 Upstream . . . . . . . . . . 8W-80-51
Oxygen Sensor 1/2 Downstream . . . . . . . . 8W-80-51
Passenger Airbag Squib 1 . . . . . . . . . . . . . 8W-80-51
Passenger Door Ajar Switch . . . . . . . . . . . 8W-80-51
Passenger Door Lock Motor/Ajar Switch . 8W-80-52
Passenger Power Mirror (LHD) . . . . . . . . 8W-80-52
Passenger Power Mirror (RHD) . . . . . . . . 8W-80-52
Passenger Power Window Motor . . . . . . . . 8W-80-53
Passenger Power Window Switch (LHD) . 8W-80-53
Passenger Power Window Switch (RHD) . 8W-80-53
Power Mirror Switch (LHD) . . . . . . . . . . . 8W-80-53
Power Mirror Switch (RHD) . . . . . . . . . . . 8W-80-54
Power Seat Motor (Export) . . . . . . . . . . . . 8W-80-54
Power Seat Switch (Export) . . . . . . . . . . . 8W-80-54
Power Steering Pressure Switch . . . . . . . . 8W-80-54
Powertrain Control Module C1 . . . . . . . . . 8W-80-55
Powertrain Control Module C2 . . . . . . . . . 8W-80-56
Powertrain Control Module C3 . . . . . . . . . 8W-80-57
Powertrain Control Module C4 . . . . . . . . . 8W-80-58
Radiator Fan Motor (2.0L) . . . . . . . . . . . . 8W-80-59
Radiator Fan Motor (2.4L Turbo) . . . . . . . 8W-80-59
Radio C1 . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-59
Radio C2 (Compact Disc Changer) . . . . . . 8W-80-60
Rear Window Defogger Switch . . . . . . . . . 8W-80-60
Remote Keyless Entry Module . . . . . . . . . 8W-80-60
Right Back-Up Lamp . . . . . . . . . . . . . . . . 8W-80-61
Right Cylinder Lock Switch (Export) . . . . 8W-80-61
Right Door Lock Switch . . . . . . . . . . . . . . 8W-80-61
Right Front Door Speaker . . . . . . . . . . . . 8W-80-61
Right Front Fog Lamp (2.0L Except Export/2.4L

Turbo) . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-62

Right Front Fog Lamp (Export) . . . . . . . . 8W-80-62
Right Front Side Marker Lamp (Except

Export) . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-62

Right Front Turn Signal Lamp (Export) . . 8W-80-62
Right Front Wheel Speed Sensor . . . . . . . 8W-80-63
Right Headlamp (Except Export) . . . . . . . 8W-80-63
Right Headlamp (Export) . . . . . . . . . . . . . 8W-80-63
Right Instrument Panel Speaker . . . . . . . 8W-80-63
Right Lavalier Module (Export) . . . . . . . . 8W-80-64
Right License Lamp (Export) . . . . . . . . . . 8W-80-64
Right Park/Turn Signal Lamp (Except

Export) . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-64

Right Rear Door Ajar Switch . . . . . . . . . . 8W-80-64
Right Rear Door Lock Motor/Ajar Switch . 8W-80-65
Right Rear Fog Lamp (Export) . . . . . . . . . 8W-80-65
Right Rear Speaker . . . . . . . . . . . . . . . . . 8W-80-65
Right Rear Turn Signal Lamp (Export) . . 8W-80-65
Right Rear Wheel Speed Sensor . . . . . . . . 8W-80-66

8W - 80 - 2

8W-80 CONNECTOR PIN-OUTS

PL/SRT-4

Component

Page

Right Seat Airbag Squib . . . . . . . . . . . . . . 8W-80-66
Right Side Impact Airbag Control

Module . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-66

Right Side Repeater Lamp (Export) . . . . . 8W-80-66
Right Tail/Stop Lamp (Export) . . . . . . . . . 8W-80-66
Right Tail/Stop/Turn Signal Lamp (Except

Export) . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-67

Seat Belt Switch . . . . . . . . . . . . . . . . . . . . 8W-80-67
Sentry Key Immobilizer Module . . . . . . . . 8W-80-67
Siren (Export) . . . . . . . . . . . . . . . . . . . . . . 8W-80-67
Speed Control Servo . . . . . . . . . . . . . . . . . 8W-80-68
Subwoofer . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-68
Sunroof Control Module . . . . . . . . . . . . . . 8W-80-68
Sunroof Motor . . . . . . . . . . . . . . . . . . . . . 8W-80-68
Sunroof Switch . . . . . . . . . . . . . . . . . . . . . 8W-80-69
Sunroof Vent Switch . . . . . . . . . . . . . . . . . 8W-80-69
Surge Solenoid (2.4L Turbo) . . . . . . . . . . . 8W-80-69
Throttle Inlet Pressure Sensor (2.4L

Turbo) . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-69

Component

Page

Throttle Inlet Pressure Solenoid (2.4L

Turbo) . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-69

Throttle Position Sensor (2.0L) . . . . . . . . . 8W-80-70
Throttle Position Sensor (2.4L Turbo) . . . . 8W-80-70
Trans Range Indicator Illumination (PRNDL)

(Autostick) . . . . . . . . . . . . . . . . . . . . . . 8W-80-70

Transmission Range Indicator Illumination

(PRNDL) . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-70

Transmission Range Sensor . . . . . . . . . . . 8W-80-71
Transmission Solenoid/Pressure Switch

Assembly . . . . . . . . . . . . . . . . . . . . . . . 8W-80-71

Turbo Boost Gauge Lamp (2.4L Turbo) . . . 8W-80-71
Vehicle Speed Sensor . . . . . . . . . . . . . . . . 8W-80-71
Wastegate Solenoid (2.4L Turbo) . . . . . . . 8W-80-72
Windshield Washer Pump . . . . . . . . . . . . . 8W-80-72
Wiper Motor . . . . . . . . . . . . . . . . . . . . . . . 8W-80-72
Wiper/Washer Switch . . . . . . . . . . . . . . . . 8W-80-72

PL/SRT-4

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 3

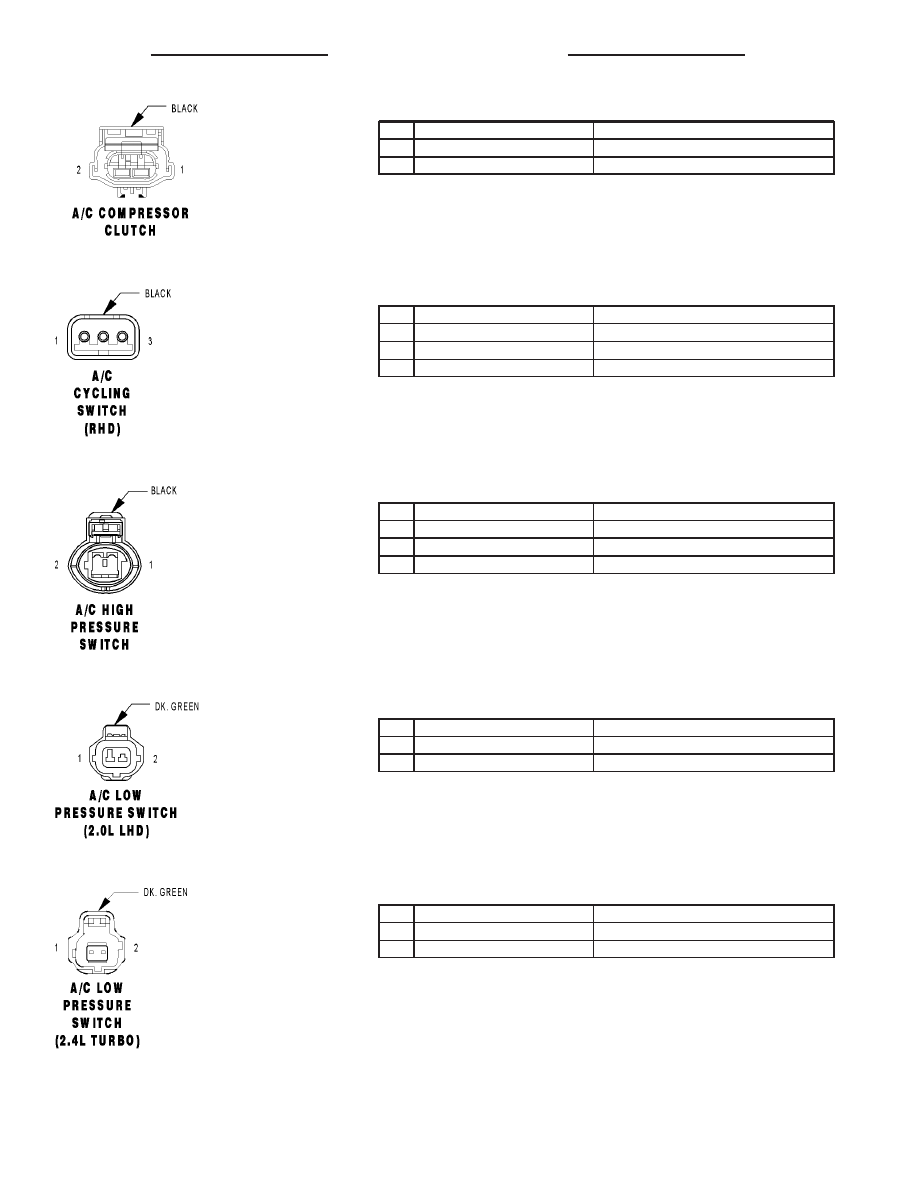

A/C COMPRESSOR CLUTCH - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

C3 20DB/BK

A/C CLUTCH RELAY OUTPUT

2

Z1 20BK

GROUND

A/C CYCLING SWITCH (RHD) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

C21 22DB/OR

A/C SWITCH SENSE

2

F20 22WT

FUSED IGNITION SWITCH OUTPUT (RUN)

3

C2 22DB/YL

MODE SWITCH OUTPUT

A/C HIGH PRESSURE SWITCH - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

C20 20BR/OR (2.0L)

A/C SWITCH SENSE

1

C20 20BR (2.4L TURBO)

A/C SWITCH SENSE

2

C22 20DB/WT

PRESSURE SWITCH OUTPUT

A/C LOW PRESSURE SWITCH (2.0L LHD) - DK. GREEN 2 WAY

CAV

CIRCUIT

FUNCTION

1

C22 20DB/WT

PRESSURE SWITCH OUTPUT

2

C21 20DB/OR

A/C SWITCH SENSE

A/C LOW PRESSURE SWITCH (2.4L TURBO) - DK. GREEN 2 WAY

CAV

CIRCUIT

FUNCTION

1

C22 20DB/WT

PRESSURE SWITCH OUTPUT

2

C21 20DB/OR

A/C SWITCH SENSE

8W - 80 - 4

8W-80 CONNECTOR PIN-OUTS

PL/SRT-4

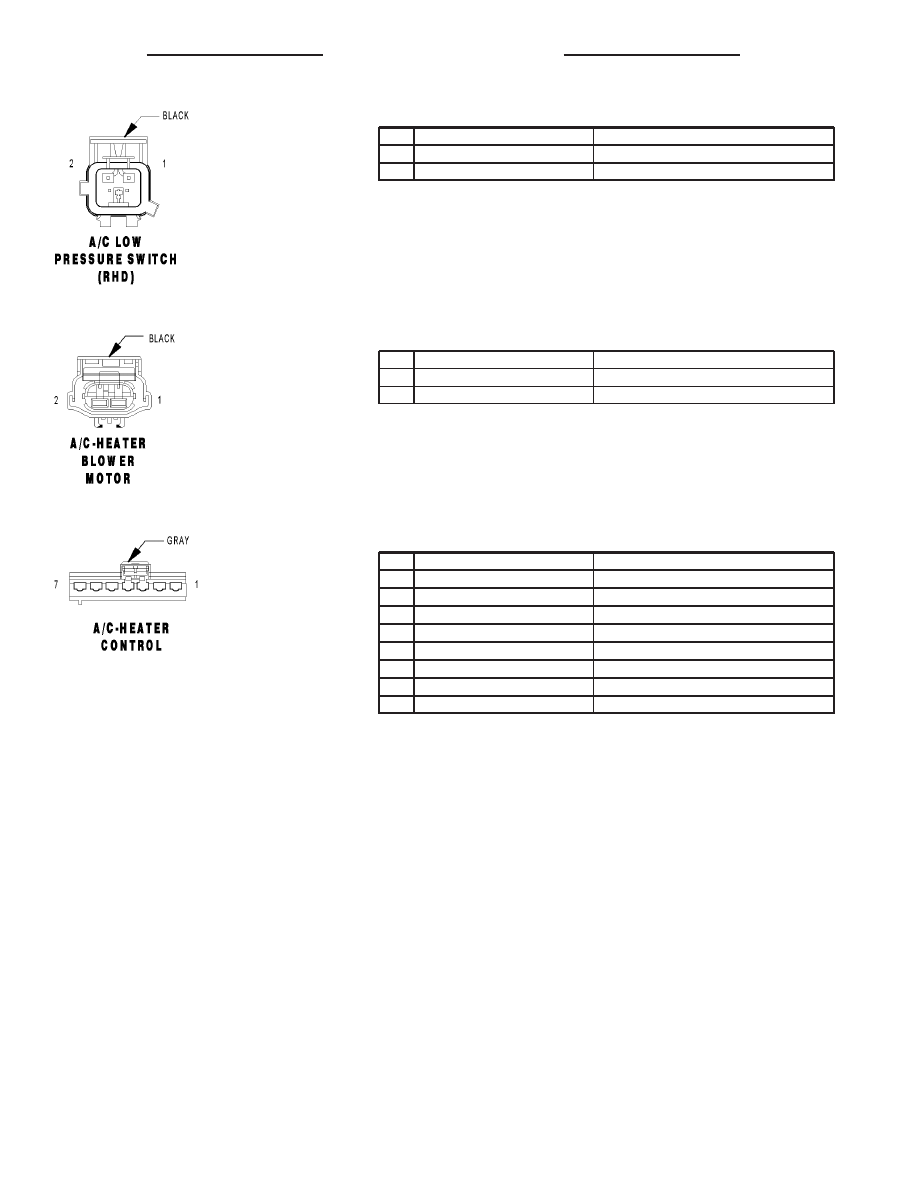

A/C LOW PRESSURE SWITCH (RHD) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

C22 20DB/WT

PRESSURE SWITCH OUTPUT

2

C21 20DB/OR

A/C SWITCH SENSE

A/C-HEATER BLOWER MOTOR - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

C1 14DG

FUSED IGNITION SWITCH OUTPUT (RUN)

2

C7 14BK/TN

BLOWER MOTOR HIGH DRIVER

A/C-HEATER CONTROL - GRAY 7 WAY

CAV

CIRCUIT

FUNCTION

1

Z8 14BK/VT

GROUND

2

C7 14BK/TN

BLOWER MOTOR HIGH DRIVER

3

C6 14LB

BLOWER MOTOR M2 DRIVER

4

C5 14LG

BLOWER MOTOR M1 DRIVER

5

C4 14TN

BLOWER MOTOR LOW DRIVER

6

C21 22DB/OR (LHD)

A/C SWITCH SENSE

6

C2 22DB/YL (RHD)

MODE SWITCH OUTPUT

7

E2 22OR

PANEL LAMPS DRIVER

PL/SRT-4

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 5
