Dodge Neon / Neon SRT-4. Manual - part 110





(6) Remove bolt attaching retractor to lower shelf

reinforcement bracket (Fig. 18).

(7) From in trunk compartment, remove rear seat

belt retractor from vehicle (Fig. 18).

INSTALLATION

(1) Position rear seat belt retractor in trunk com-

partment.

(2) Push seat belt bezel and buckle stab through

access hole in rear shelf trim panel.

(3) Install bolt attaching retractor to rear floor.

Tighten to 40 N·m (30 ft. lbs.) torque.

(4) Install the NVH cover and two push fasteners

over the center retractor.

(5) Install bolt attaching seat belt lower anchor to

floor. Tighten the seat belt bolt to 57 N·m (42 ft. lbs.)
torque.

(6) Install seat belt bezel to the rear shelf trim

panel.

(7) Install rear seat cushion and back.

REAR SEAT BELT &
RETRACTOR

REMOVAL

(1) Remove rear seat cushion and back.
(2) Remove seat belt bezel from parcel shelf cover.
(3) Remove rear seat closure panel silencer pad as

necessary to gain access to retractor.

(4) Remove bolt attaching seat belt lower anchor to

floor.

(5) Remove bolt attaching retractor to rear seat

closure panel (Fig. 19).

(6) Push seat belt bezel and buckle stab through

access hole in parcel shelf.

(7) From in trunk compartment, remove rear seat

belt retractor from vehicle.

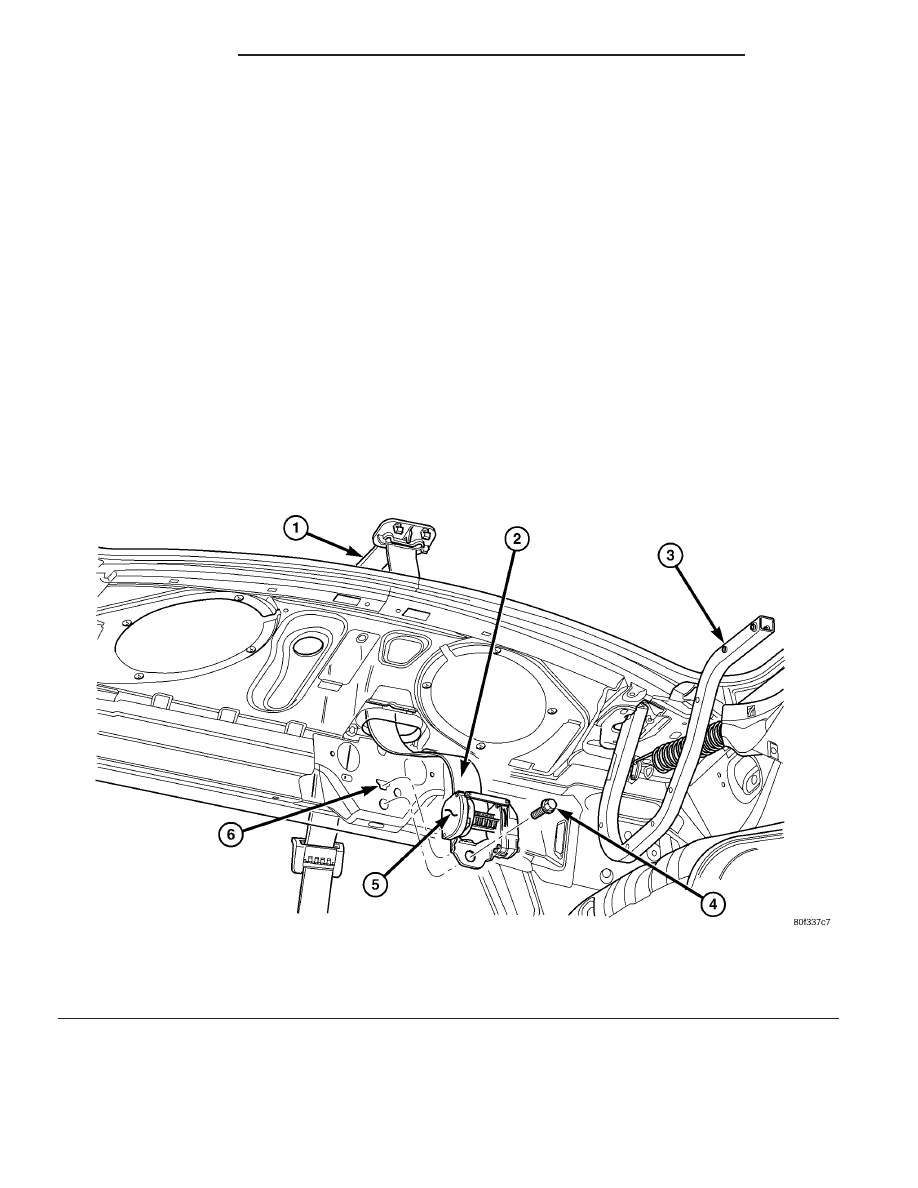

Fig. 18 REAR CENTER SEAT BELT & RETRACTOR - REMOVE/INSTALL

1 - SEAT BELT AND REAR SHELF TRIM

4 - RETRACTOR RETAINING BOLTS

2 - REAR CENTER SEAT BELT

5 - REAR CENTER SEAT BELT & RETRACTOR ASSEMBLY

3 - RIGHT DECK LID HINGE

6 - LOWER SHELF REINFORCEMENT BRACKET

8O - 16

RESTRAINTS

PL/SRT-4

REAR CENTER SEAT BELT & RETRACTOR (Continued)

INSTALLATION

(1) Position rear seat belt retractor in trunk com-

partment.

(2) Push seat belt bezel and buckle stab through

access hole in rear shelf trim panel.

(3) Install bolt attaching retractor to rear seat clo-

sure panel. 40 N·m (30 ft. lbs.) torque.

(4) Install bolt attaching seat belt lower anchor to

floor. Tighten the seat belt bolt to 40 N·m (30 ft. lbs.)
torque.

(5) Install rear seat closure panel silencer pad.
(6) Install seat belt bezel to the rear shelf trim

panel.

(7) Install rear seat cushion and back.

SEAT AIRBAG

DESCRIPTION

The left and right seat airbags are located in the

outboard edge of the front seat backs. The airbag
contains a bag, an inflator (small canister of highly
compressed gas), and a mounting bracket. The seat
airbag cannot be repaired and must be replaced if
deployed or in any way damaged. If it is found to be
defective, replacement is acceptable.

OPERATION

When supplied with the proper electrical signal,

the inflator seals the hole in the airbag cushion so it
can discharge the compressed gas directly into the
cushion. Upon deployment, the seat back trim cover
will tear open and allow the seat airbag to fully
deploy between the seat and the door.

REMOVAL

(1) Position the left front seat in the full forward

position.

(2) Open hood.
(3) Disconnect and isolate the battery negative

cable (Fig. 20).

(4) Wait two minutes for the system reserve capac-

itor to discharge before servicing any airbag compo-
nents.

(5) Remove front seat from vehicle. Refer to Body,

Seats, Front Seat, Removal.

(6) Disengage seat back trim cover J-strap from

the upper, lower and airbag side of seat back.

(7) Disconnect the seat airbag electrical connector

(Fig. 21). Slide yellow locking tab down to unlock.
Then with two fingers, push two side retaining tabs
in and pull connector straight from module.

(8) Remove the seat airbag retaining nuts.
(9) Grasp the upper airbag side of the seat back

trim cover and pull trim cover and cushion over top
of seat back frame. This will allow room to remove
seat airbag without damaging trim cover or cushion.

(10) Working between seat back trim cover/cushion

and frame carefully unhook seat airbag studs from
nylon sleeve and slide seat airbag out of sleeve. Be
careful not to tear nylon sleeve as this will affect
function of airbag system.

CAUTION: Be certain not to tear the side impact air-
bag module nylon sleeve during removal.

Fig. 19 REAR SEAT BELT & RETRACTOR

1 - REAR RIGHT OUTER SEAT BELT
2 - SEAT BELT RETRACTOR

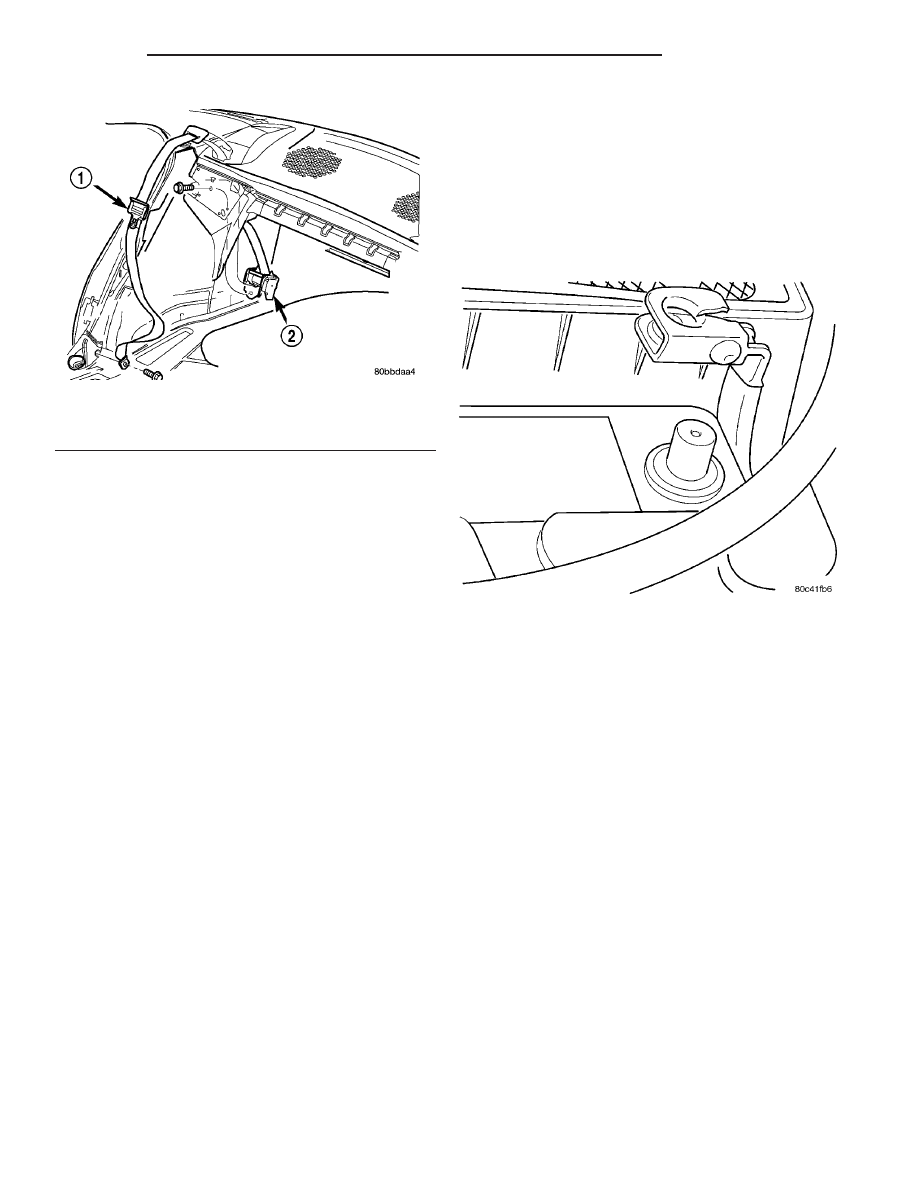

Fig. 20 BATTERY NEGATIVE CABLE REMOVE/

INSTALL

PL/SRT-4

RESTRAINTS

8O - 17

REAR SEAT BELT & RETRACTOR (Continued)

INSTALLATION

NOTE: The seat airbag connector must face down
(toward seat cushion) after installation.

(1) Carefully slide the seat airbag in nylon sleeve

until mounting studs line up with holes provided in
nylon sleeve. Be careful not to tear nylon sleeve as
this will affect function of airbag system.

CAUTION: The seat airbag must be inside the nylon
sleeve before installing retaining nuts. Failure to do
so will adversely affect the function of the side
impact airbag system.

(2) Pull seat airbag and nylon sleeve assembly up

to line up mounting studs and mistake proofing pin
with holes provided in seat back frame mounting
bracket (Fig. 22). Install the seat airbag retaining
nuts. Torque to 10.7 N·m (94.7 in. lbs.).

(3) Position the upper seat back trim cover and

cushion over seat back frame.

(4) Connect the seat airbag electrical connector.

After initial connector is installed be certain the yel-
low locking tab is in the upper “locked” position.
Check to be certain connector cannot be removed
once yellow locking tab is positioned.

(5) Position seat back trim cover and install seat

back trim cover J-straps on the upper, lower and air-
bag side of seat back frame.

(6) Install the front seat back in vehicle. Refer to

Body, Seats, Front Seat, Installation.

CAUTION: Be certain plastic back panel is securely
installed on the seat back. Failure to do so will
adversely affect the side impact airbag system.

WARNING: DO NOT CONNECT THE BATTERY NEG-
ATIVE

CABLE.

REFER

TO

ELECTRICAL,

RESTRAINTS, DIAGNOSIS AND TESTING - AIRBAG
SYSTEM

FIRST.

FAILURE

TO

DO

SO

COULD

RESULT IN OCCUPANT PERSONAL INJURY OR
DEATH.

(7) Close hood.
(8) Verify vehicle and system operation.

SEAT BELT BUCKLE - FRONT

REMOVAL

CAUTION: Front seat belt assemblies must be
replaced after a collision.

(1) Remove bolt attaching seat belt buckle from

seat anchor.

(2) Remove seat belt buckle from seat.

INSTALLATION

CAUTION: Front seat belt assemblies must be
replaced after a collision.

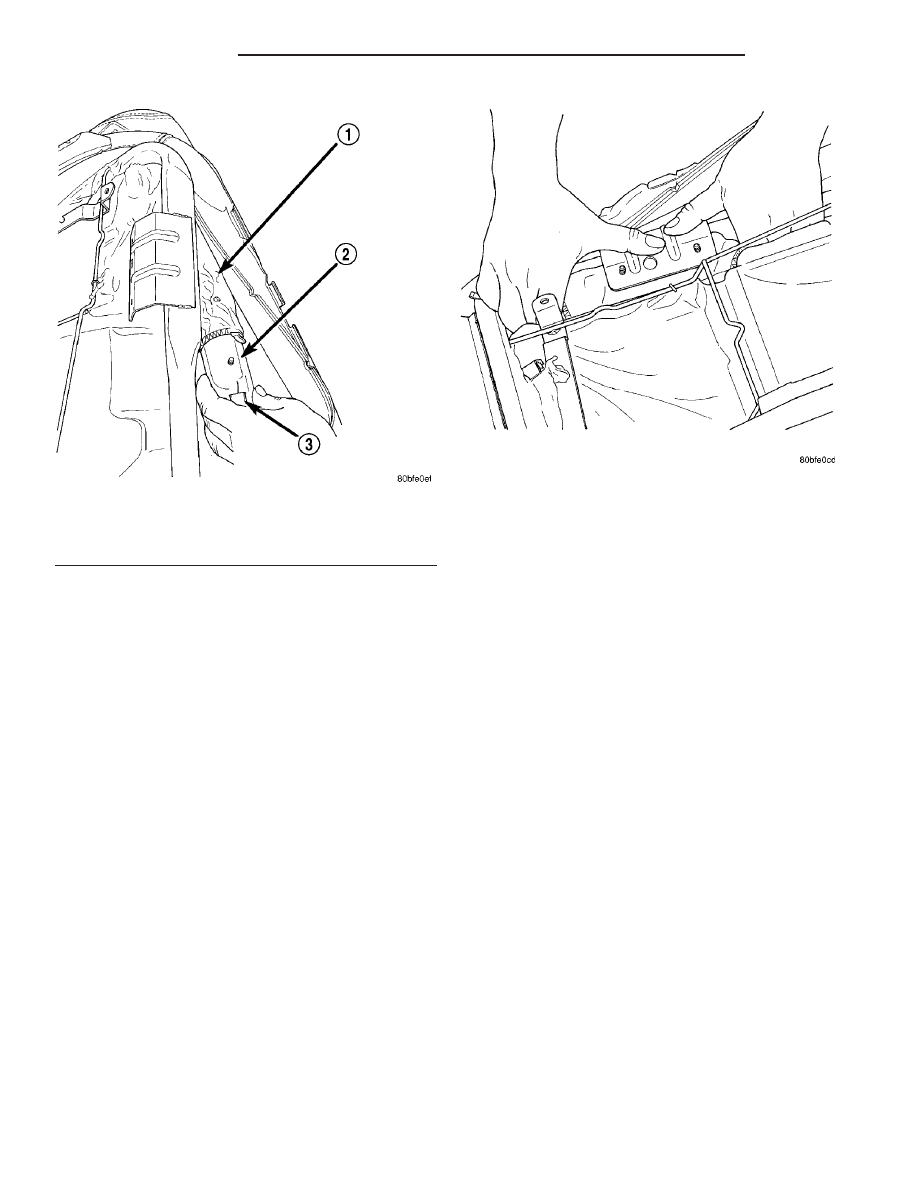

Fig. 21 SEAT AIRBAG ELECTRICAL CONNECTOR

1 - SEAT AIRBAG NYLON SLEEVE
2 - SEAT AIRBAG
3 - SEAT AIRBAG ELECTRICAL CONNECTOR

Fig. 22 INSTALLING SEAT AIRBAG

8O - 18

RESTRAINTS

PL/SRT-4

SEAT AIRBAG (Continued)

(1) Place seat belt buckle in position on seat

anchor.

(2) Install bolt and grommet attaching seat belt

buckle to seat anchor. Tighten seat belt anchor bolt
to 40 N·m (30 ft. lbs.) torque.

SEAT BELT BUCKLE - REAR

REMOVAL

(1) Remove rear seat cushion.
(2) Remove rear seat belt buckle bolt.
(3) Remove rear seat belt buckle from vehicle.

INSTALLATION

(1) Install rear seat belt buckle. Tighten the seat

belt nut to 57 N·m (42 ft. lbs.) torque.

(2) Install rear seat cushion.

SHOULDER BELT HEIGHT
ADJUSTER

REMOVAL

CAUTION: Front seat belt assemblies must be
replaced after a collision.

(1) Remove B-pillar trim (Fig. 13).
(2) Remove the two bolts attaching shoulder belt

adjuster to B-pillar (Fig. 23).

(3) Remove shoulder belt adjuster from vehicle.

INSTALLATION

CAUTION: Front seat belt assemblies must be
replaced after a collision.

CAUTION: Front seat belt adjuster must be in the
lowest position when Installing adjuster knob.

(1) Place into position the shoulder belt adjuster.
(2) Install bolts attaching shoulder belt adjuster to

B-pillar. Tighten all seat belt bolts to 40 N·m (30 ft.
lbs.) torque.

(3) Install B-pillar trim.

SIDE IMPACT AIRBAG
CONTROL MODULE

DESCRIPTION

Vehicles equipped with side airbags use two Side

Impact Airbag Control Modules (SIACM’s). One is
located on each side of the vehicle just in front of the

body B-pillar (Fig. 24) inboard of the door entry sill,
covered by the door sill trim.

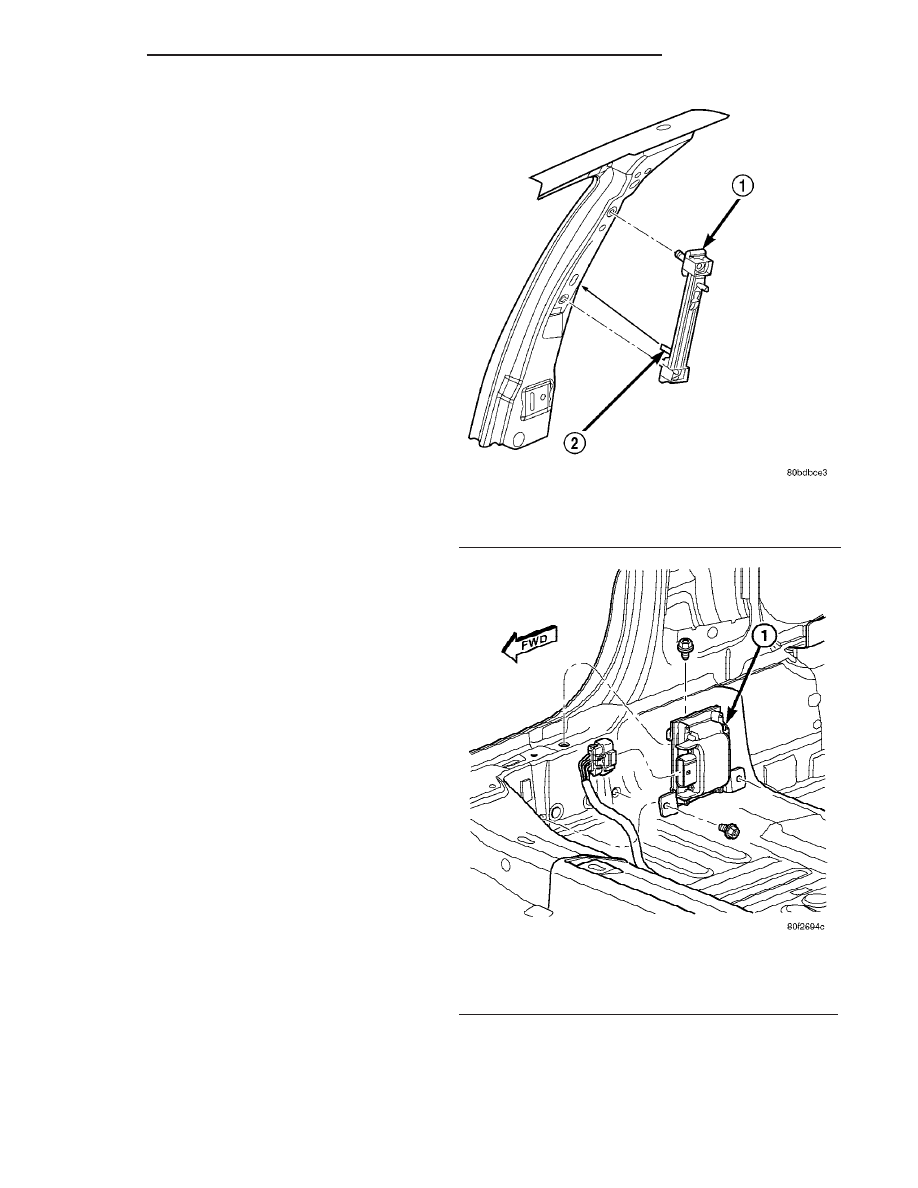

Fig. 23 FRONT SHOULDER BELT ADJUSTER

1 - FRONT SHOULDER BELT ADJUSTER
2 - TAB IS ON BOTTOM

Fig. 24 SIDE IMPACT AIRBAG CONTROL MODULE

(SIACM) LOCATION

1 - SIDE IMPACT AIRBAG CONTROL MODULE (SIACM)

PL/SRT-4

RESTRAINTS

8O - 19

SEAT BELT BUCKLE - FRONT (Continued)
