mechanism in place and take tension off the parking
brake cables.

(6) Remove both rear parking brake cables from

the parking brake cable equalizer (Fig. 150).

(7) Remove the wiring harness electrical connector

from the parking brake warning lamp switch on the
parking brake lever (Fig. 151).

(8) Remove the two nuts attaching the parking

brake lever to the vehicle (Fig. 151).

(9) Remove the parking brake lever from the vehi-

cle.

INSTALLATION

WARNING: THE AUTOMATIC ADJUSTING FEATURE
OF THIS PARKING BRAKE LEVER CONTAINS A
CLOCK SPRING LOADED TO APPROXIMATELY 25
POUNDS. DO NOT RELEASE THE AUTOMATIC
ADJUSTER LOCKOUT DEVICE UNLESS THE REAR
PARKING BRAKE CABLES AND EQUALIZER ARE
CONNECTED TO THE LEVER OUTPUT CABLE.
KEEP HANDS OUT OF AUTOMATIC ADJUSTER
SECTOR AND PAWL AREA. FAILURE TO OBSERVE

CAUTION IN HANDLING THIS MECHANISM COULD
LEAD TO SERIOUS INJURY.

(1) Place the parking brake lever on the mounting

studs on the vehicle floor. Install and tighten the two
mounting nuts to a torque of 28 N·m (250 in. lbs.)
(Fig. 151).

(2) Connect the wiring harness electrical connector

on the parking brake warning lamp switch (Fig. 151).

(3) Install both rear park brake cables into the

equalizer on the parking brake lever output cable
(Fig. 150).

(4) Ensure that the parking brake cables are cor-

rectly installed on the equalizer and aligned with the
cable track on the parking brake lever.

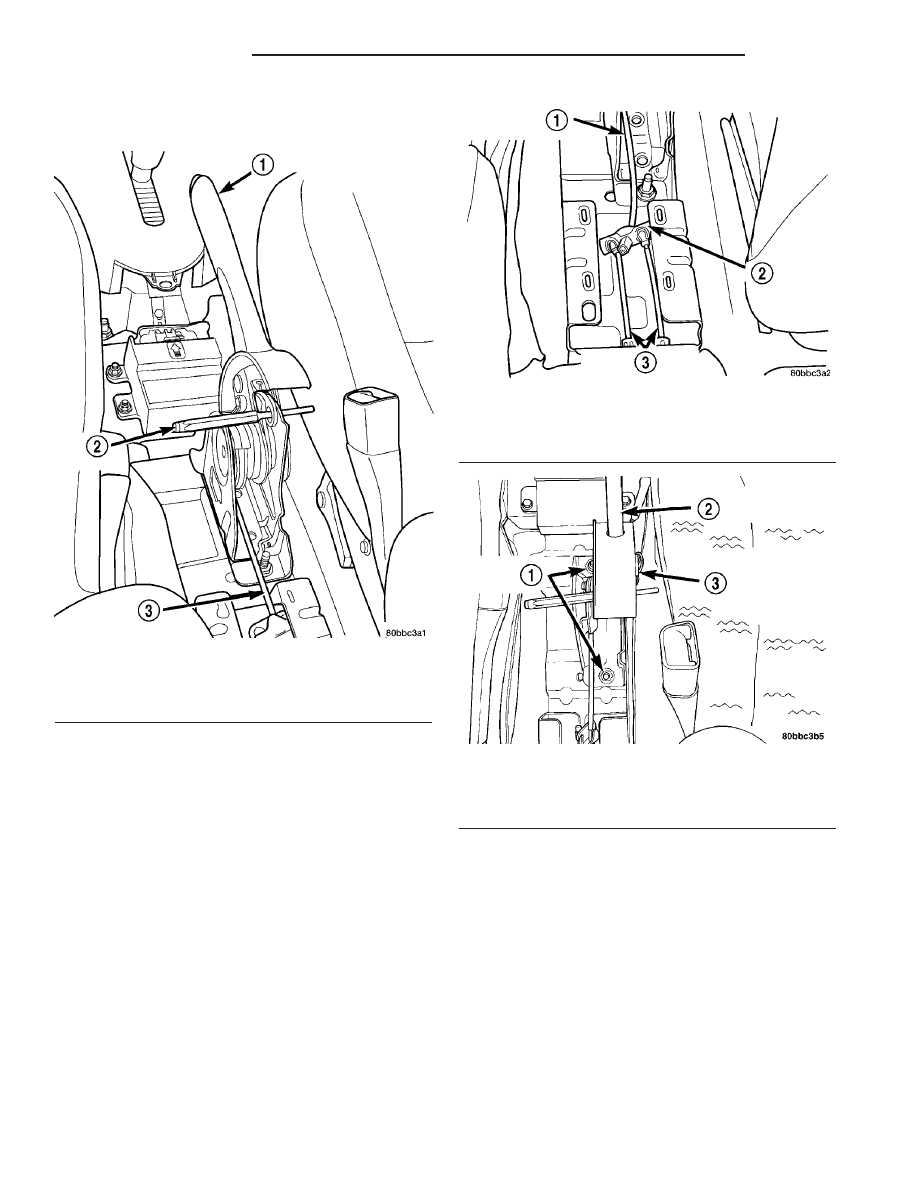

Fig. 149 Pin Punch Installed

1 - PARKING BRAKE LEVER
2 - PIN PUNCH
3 - OUTPUT CABLE

Fig. 150 Parking Brake Cables At Equalizer

1 - LEVER OUTPUT CABLE
2 - EQUALIZER
3 - REAR PARKING BRAKE CABLES

Fig. 151 Parking Brake Lever

1 - MOUNTING NUTS
2 - PARKING BRAKE LEVER
3 - PARKING BRAKE WARNING LAMP SWITCH CONNECTOR

5 - 78

BRAKES - BASE

PL/SRT-4

LEVER - PARKING BRAKE (Continued)

NOTE: The parking brake lever can only be in the
released position when releasing the automatic
adjuster.

(5) Keeping your hands clear of the automatic

adjuster sector and pawl area, firmly grasp the park-
ing brake lever pin punch (or locking pin if a new
mechanism has been installed) (Fig. 149), then
quickly remove it from the parking brake lever mech-
anism. This will allow the park brake lever mecha-
nism to automatically adjust the parking brake
cables.

(6) Cycle the parking brake lever once to position

the parking brake cables, then return the parking
brake lever its released position.

(7) Check the rear wheels of the vehicle. They

should rotate freely without dragging with the lever
in its released position.

(8) Fully apply the parking brake lever.
(9) Install the center console and its mounting

screws.

(10) Remove the blocks from the tires and wheels.

SHOES - PARKING BRAKE

REMOVAL

NOTE: Before proceeding with this procedure,
(Refer to 5 - BRAKES - WARNING).

NOTE: This procedure applies to vehicles with rear
disc brakes only.

(1) Raise the vehicle. (Refer to LUBRICATION &

MAINTENANCE/HOISTING - STANDARD PROCE-
DURE).

(2) Remove the rear tire and wheel assembly.(Re-

fer to 22 - TIRES/WHEELS - REMOVAL)

(3) Remove the rear disc brake caliper assembly

from the brake rotor and store it out of the way.(Re-
fer to 5 - BRAKES/HYDRAULIC/MECHANICAL/
BRAKE PADS/SHOES - REMOVAL).

(4) Remove rear brake rotor (Refer to 5 - BRAKES/

HYDRAULIC/MECHANICAL/ROTORS

-

REMOVAL).

(5) Remove the dust cap from the rear hub and

bearing.

(6) Remove the rear hub and bearing assembly

retaining nut and washer.

(7) Remove the rear hub and bearing assembly

from the rear spindle.

(8) Remove the rear brake shoe assembly hold-

down clip (Fig. 152).

(9) Turn the brake shoe adjuster wheel until the

adjuster is at shortest length.

(10) Remove the adjuster assembly from the park-

ing brake shoe assemblies (Fig. 153).

(11) Remove the lower shoe-to-shoe spring (Fig.

154).

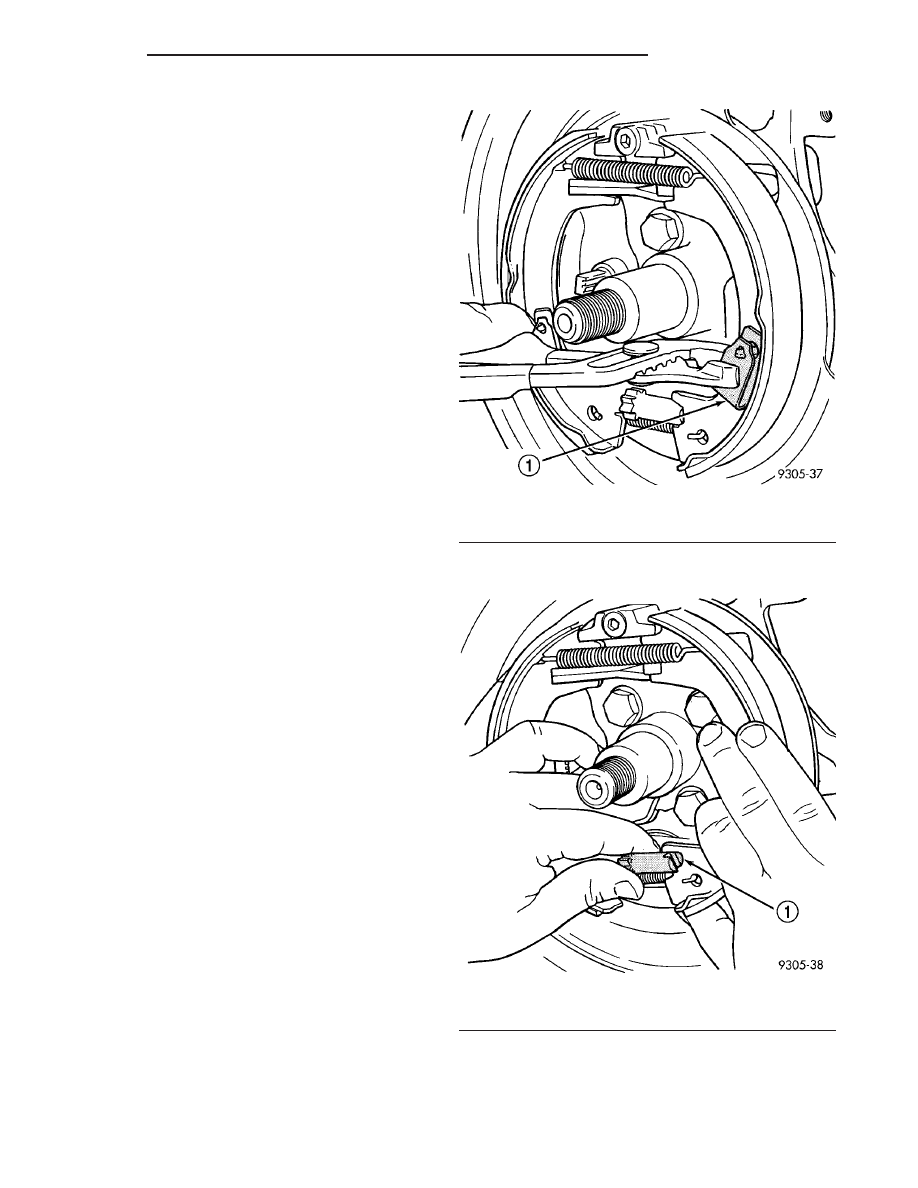

Fig. 152 Rear Brake Shoe Hold-Down Clip

1 - HOLD DOWN CLIP

Fig. 153 Parking Brake Shoe Adjuster Assembly

1 - ADJUSTER

PL/SRT-4

BRAKES - BASE

5 - 79

LEVER - PARKING BRAKE (Continued)

(12) Pull the rear brake shoe away from anchor.

Remove the rear brake shoe and upper return spring
(Fig. 155).

(13) Remove the front brake shoe hold-down clip

(Fig. 156). Remove the front brake shoe assembly.

INSTALLATION

NOTE: Before proceeding with this procedure,
(Refer to 5 - BRAKES - WARNING).

NOTE: This procedure applies to vehicles with rear
disc brakes only.

(1) Install the front brake shoe and secure it in

place with a hold-down clip (Fig. 156).

(2) Install the rear brake shoe and the upper shoe

return spring (Fig. 155). Pull the rear brake shoe
over the anchor block until it is properly located on
the adapter.

(3) Install the lower shoe-to-shoe return spring

(Fig. 154).

(4) Install the brake shoe adjuster assembly with

the star wheel towards the rear (Fig. 153).

(5) Install the rear brake shoe hold down clip (Fig.

152).

(6) Adjust the parking brake shoes to a diameter

to 171.72– 171.50 mm (6.75–6.75 inch) (Fig. 157).

(7) Install the rear hub and bearing assembly on

spindle.

(8) Install a new hub and bearing assembly retain-

ing nut. Tighten the retaining nut to a torque of 217
N·m (160 ft. lbs.).

(9) Install the hub and bearing dust cap.

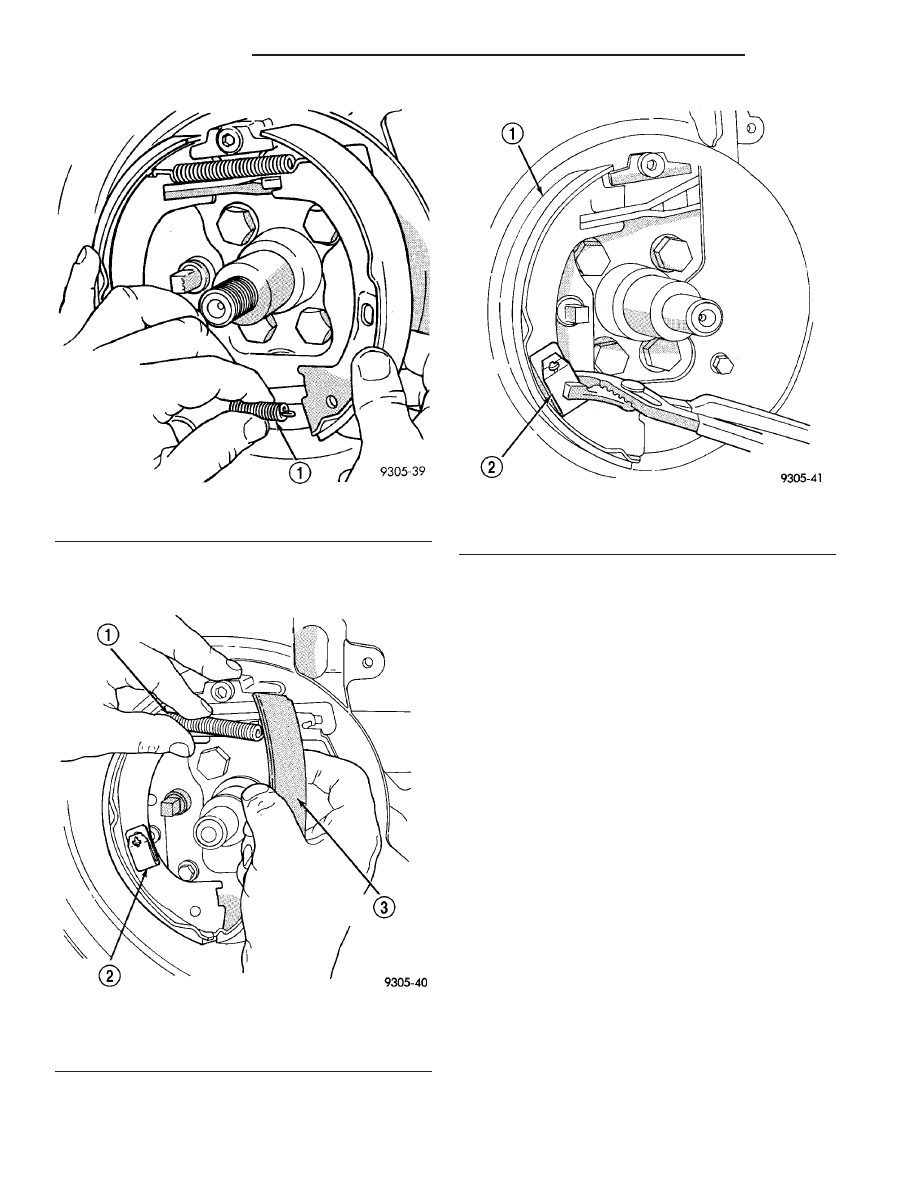

Fig. 154 Brake Shoe Lower Return Spring

1 - LOWER SPRING

Fig. 155 Brake Shoe and Upper Spring

1 - UPPER SPRING
2 - HOLD DOWN CLIP
3 - REAR PARKING BRAKE SHOE

Fig. 156 Front Hold Down Clip And Brake Shoe

1 - FRONT BRAKE SHOE ASSEMBLY
2 - HOLD DOWN CLIP

5 - 80

BRAKES - BASE

PL/SRT-4

SHOES - PARKING BRAKE (Continued)

(10) Install the rear brake rotor (Refer to 5 -

BRAKES/HYDRAULIC/MECHANICAL/ROTORS

-

INSTALLATION).

(11) Install rear disc brake caliper (Refer to 5 -

BRAKES/HYDRAULIC/MECHANICAL/BRAKE
PADS/SHOES - INSTALLATION).

(12) Install the tire and wheel assembly (Refer to

22 - TIRES/WHEELS - INSTALLATION). Tighten
the wheel mounting nuts to a torque of 135 N·m (100
ft. lbs.).

(13) Repeat the above procedure to the parking

brake shoes on the other side of the vehicle.

(14) Adjust the parking brake shoes as necessary.

(Refer to 5 - BRAKES/PARKING BRAKE/SHOES -
ADJUSTMENTS).

(15) Lower the vehicle.

ADJUSTMENTS

ADJUSTMENT

NOTE: The parking brake shoes used in the drum-
in-hat park brake system do not automatically
adjust to compensate for brake shoe lining wear.
Therefore, it is necessary to manually adjust the
parking brake shoes.

(1) Verify the parking brake lever is in the

released position.

(2) Raise the vehicle. (Refer to LUBRICATION &

MAINTENANCE/HOISTING - STANDARD PROCE-
DURE).

(3) Remove the rubber plug from the adjusting

hole in the disc brake caliper adapter.

(4) Adjust the parking brakes. Use the first bullet

point for the adjustment of the left side parking
brake shoes. Use the second bullet point for the
adjustment of the right side parking brake shoes.

• Insert a medium size screwdriver through

adjustment hole in the left backing plate. Position
the screwdriver against the star wheel on the park-
ing brake shoe adjuster. Using the screwdriver,
rotate the star wheel downward until a slight drag is
noticed when turning the rear tire and wheel assem-
bly. Then, using the screwdriver, slowly rotate the
star wheel upward, backing off the adjuster, just
enough to allow the rear tire and wheel assembly to
rotate without the parking brake shoes dragging. Do
not back off the adjuster star wheel more than two
clicks past the point of no drag. The parking brake
shoe-to-drum clearance is now properly set.

• Insert a medium size screwdriver through

adjustment hole in the right backing plate. Position
the screwdriver against the star wheel on the park-
ing brake shoe adjuster. Using the screwdriver,
rotate the star wheel upward until a slight drag is
noticed when turning the rear tire and wheel assem-
bly. Then, using the screwdriver, slowly rotate the
star wheel downward, backing off the adjuster, just
enough to allow the rear tire and wheel assembly to
rotate without the parking brake shoes dragging. Do
not back off the adjuster star wheel more that two
clicks past the point of no drag. The parking brake
shoe-to-drum clearance is now properly set.

(5) Install the rubber plug in the adjusting holes of

the disc brake caliper adapter.

(6) Lower the vehicle until the rear tires are just

clearing the floor.

(7) Reach inside the vehicle and fully apply and

release the park brakes two times after adjusting the
parking brake shoes.

(8) With the parking brake lever in the fully

applied position, attempt to hand rotate each rear
tire and wheel assembly to ensure that the parking
brake shoes are working.

(9) With the parking brake lever in the released

position, hand rotate each rear tire and wheel assem-
bly to ensure that the parking brake shoes are not
dragging.

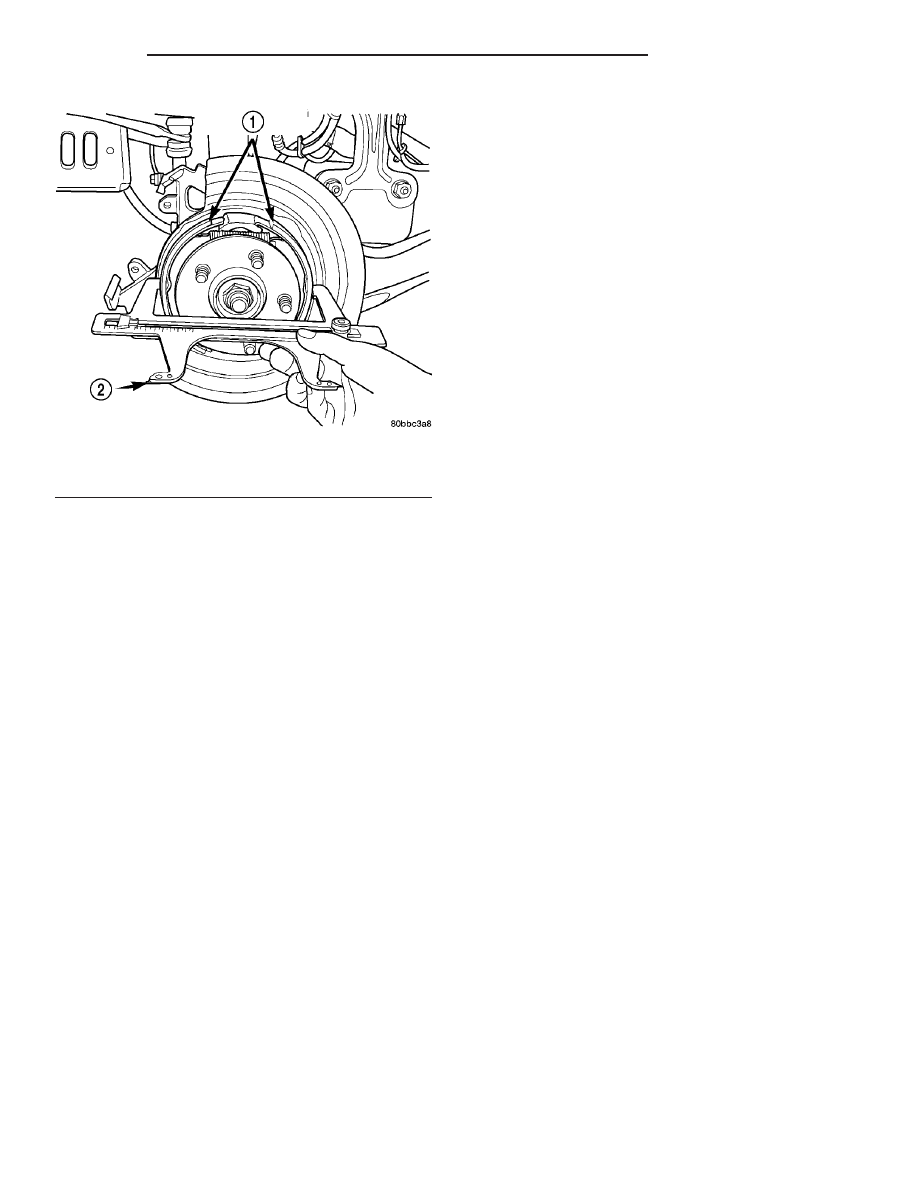

Fig. 157 Measuring Brake Shoes

1 - REAR PARKING BRAKE SHOES
2 - BRAKE SHOE GAUGE

PL/SRT-4

BRAKES - BASE

5 - 81

SHOES - PARKING BRAKE (Continued)
