FRONT SUSPENSION

DESCRIPTION - FRONT SUSPENSION

This vehicle has a gas pressurized MacPherson

strut type front suspension design (Fig. 1).

The front suspension includes the following compo-

nents:

• Hub

• Bearing

• Lower control arm

• Stabilizer bar

• Steering knuckle

• Strut assembly
For more information on the description and oper-

ation of an individual component, refer to the appli-
cable component.

OPERATION - FRONT SUSPENSION

The front suspension allows each front wheel on a

vehicle to adapt to different road surfaces and condi-
tions without greatly affecting the opposite wheel
and the ability to control the vehicle. Each side of the
front suspension is allowed to pivot so the vehicle can
be steered in the direction preferred.

When a vehicle strikes a bump, the force is trans-

ferred through the hub, bearing, and knuckle, into
the strut assembly to absorb the force and dampen it.
During steering maneuvers, the strut assembly
(through a pivot bearing in the upper strut mount)
and steering knuckle (through the lower ball joint
mounted on the lower control arm) turn as an assem-
bly.

WARNINGS AND CAUTIONS

WARNING: DO NOT REMOVE THE STRUT SHAFT
NUT WHILE STRUT ASSEMBLY IS INSTALLED IN
VEHICLE, OR BEFORE THE COIL SPRING IS COM-
PRESSED

WITH A COMPRESSION

TOOL.

THE

SPRING IS HELD UNDER HIGH PRESSURE.

CAUTION: Only frame contact hoisting equipment
can be used on this vehicle. All vehicles have a
fully independent rear suspension. The vehicles
cannot be hoisted using equipment designed to lift
a vehicle by the rear axle. If this type of hoisting
equipment is used, damage to rear suspension
components will occur.

CAUTION: At no time when servicing a vehicle can
a sheet metal screw, bolt, or other metal fastener be
installed in the shock tower to take the place of an
original plastic clip. It may come into contact with
the strut or coil spring.

CAUTION: Wheel bearing damage will result if after
loosening the hub nut, the vehicle is rolled on the
ground or the weight of the vehicle is allowed to be
supported by the tires for a length of time.

STANDARD PROCEDURE - LUBRICATION

There are no serviceable lubrication points on the

front suspension. The front lower ball joints have
grease fittings which have had the head snapped off
by the manufacturer after they have been filled. This
has been done to eliminate the possibility of damag-
ing the non-vented seals. Grease will not leak from
the broken grease fittings. The ball joints are sealed
for life and require no maintenance.

CAUTION: No attempt should be made to replace
the ball joint grease fitting with a new fitting, then
filling the ball joint with grease. Damage to the
grease seal can result.

2 - 2

FRONT SUSPENSION

PL/SRT-4

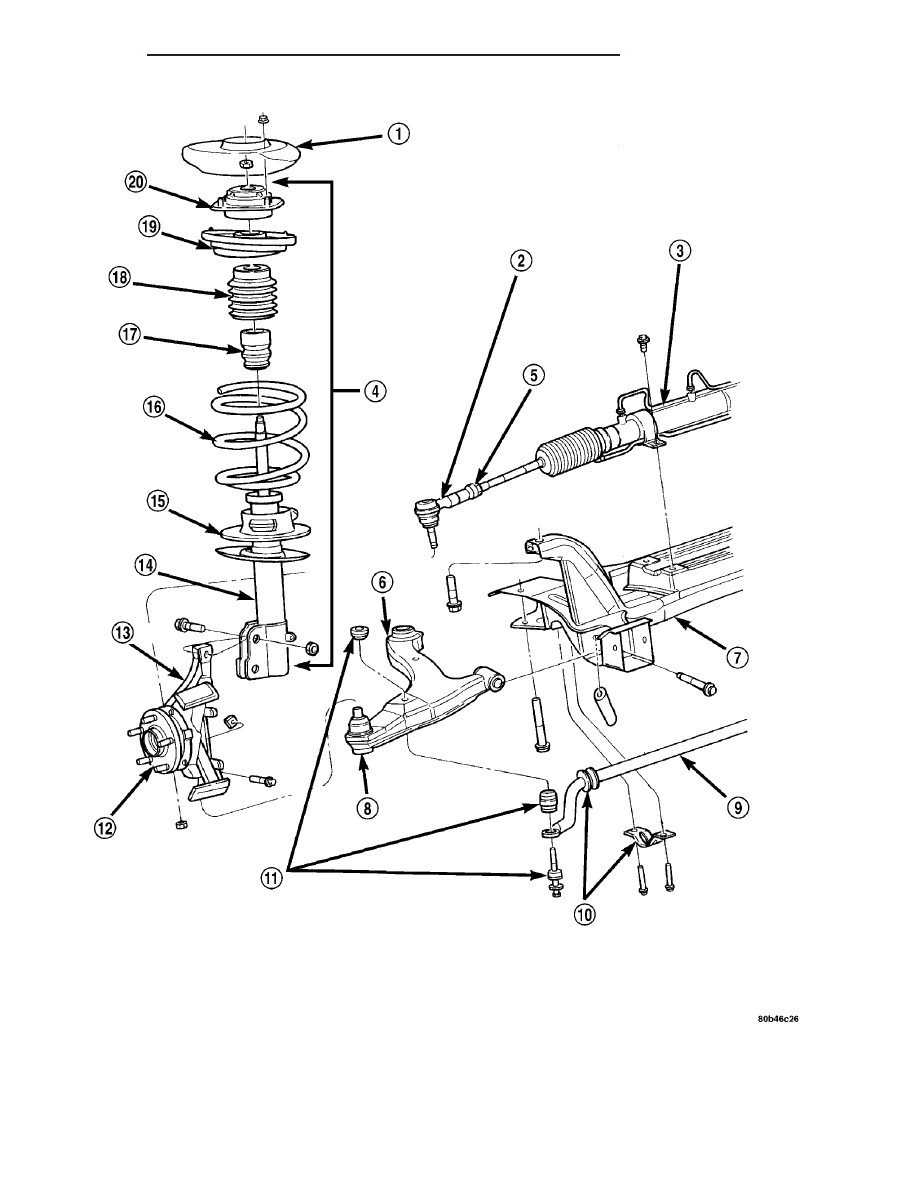

Fig. 1 Front Suspension System

PL/SRT-4

FRONT SUSPENSION

2 - 3

FRONT SUSPENSION (Continued)

SPECIFICATIONS

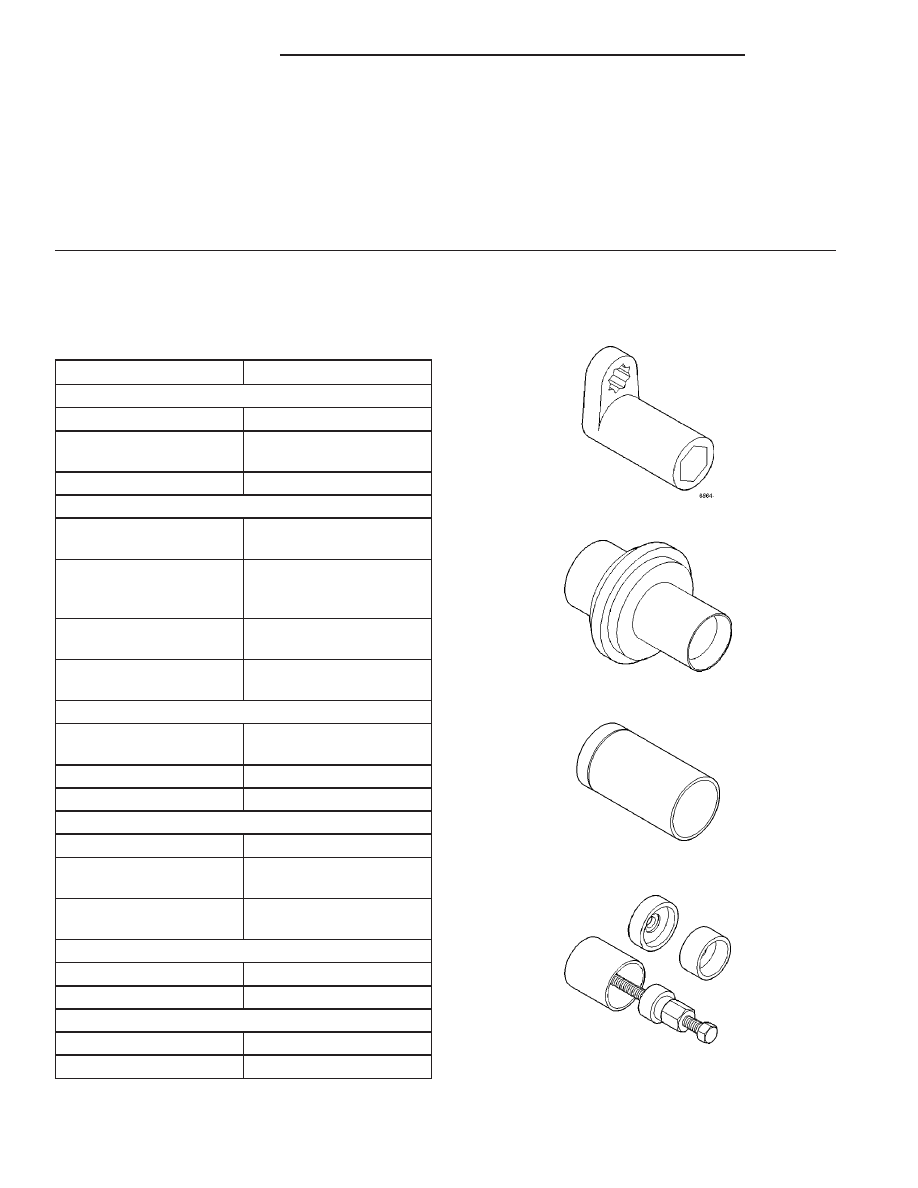

FRONT SUSPENSION FASTENER TORQUE

DESCRIPTION

TORQUE

STRUT ASSEMBLY:

Tower Nuts

34 N·m (300 in. lbs.)

Steering Knuckle Nuts

54 N·m (40 ft. lbs.) + 90°

Turn

Strut Shaft Nut

75 N·m (55 ft. lbs.)

STEERING KNUCKLE:

Ball Joint Stud Pinch Bolt
Nut

95 N·m (70 ft. lbs.)

Disc Brake Caliper
Adapter Mounting Bolts -
SRT-4

104 N·m (77 ft. lbs.)

Disc Brake Caliper Guide
Bolts

22 N·m (192 in. lbs.)

Disc Brake Caliper Guide
Bolts - SRT-4

35 N·m (26 ft. lbs.)

WHEEL BEARING AND HUB:

Bearing Retainer Plate
Bolts

28 N·m (250 in. lbs.)

Driveshaft Hub Nut

244 N·m (180 ft. lbs.)

Wheel Mounting Nuts

135 N·m (100 ft. lbs.)

STEERING GEAR:

Crossmember Bolts

68 N·m (50 ft. lbs.)

Tie Rod Adjusting Jam
Nut

75 N·m (55 ft. lbs.)

Tie Rod End Steering
Knuckle Nut

54 N·m (40 ft. lbs.)

LOWER CONTROL ARM:

Front Pivot Bolt

163 N·m (120 ft. lbs.)

Rear Pivot Bolt

237 N·m (175 ft. lbs.)

STABILIZER BAR:

Cushion Retainer Bolts

28 N·m (250 in. lbs.)

Link Nut

31 N·m (275 in. lbs.)

SPECIAL TOOLS

FRONT SUSPENSION

1 - VEHICLE STRUT TOWER
2 - OUTER TIE ROD
3 - STEERING GEAR
4 - STRUT ASSEMBLY
5 - JAM NUT
6 - LOWER CONTROL ARM
7 - CROSSMEMBER
8 - BALL JOINT
9 - STABILIZER BAR
10 - STABILIZER BAR CUSHION AND RETAINER

11 - STABILIZER BAR LINK
12 - HUB
13 - KNUCKLE
14 - STRUT
15 - LOWER SPRING ISOLATOR
16 - COIL SPRING
17 - JOUNCE BUMPER
18 - DUST SHIELD
19 - SPRING SEAT AND BEARING
20 - UPPER MOUNT

Socket/Wrench, Strut Nut 6864

Remover 6804

Installer 6758

Remover/Installer 6908 (–2)

2 - 4

FRONT SUSPENSION

PL/SRT-4

FRONT SUSPENSION (Continued)

HUB / BEARING

DESCRIPTION

The wheel bearing and hub are pressed into the

steering

knuckle.

(Refer

to

2

-

SUSPENSION/

FRONT/KNUCKLE - DESCRIPTION)

OPERATION

The wheel bearing and hub are pressed into the

steering

knuckle.

(Refer

to

2

-

SUSPENSION/

FRONT/KNUCKLE - OPERATION)

DIAGNOSIS AND TESTING - WHEEL BEARING
AND HUB

The wheel bearing is designed for the life of the

vehicle and requires no type of periodic maintenance.
The following procedure may be used for diagnosing
the condition of the wheel bearing and hub.

With the wheel, disc brake caliper, and brake rotor

removed, rotate the wheel hub. Any roughness or
resistance to rotation may indicate dirt intrusion or a
failed hub bearing. If the bearing exhibits any of
these conditions during diagnosis, the hub bearing

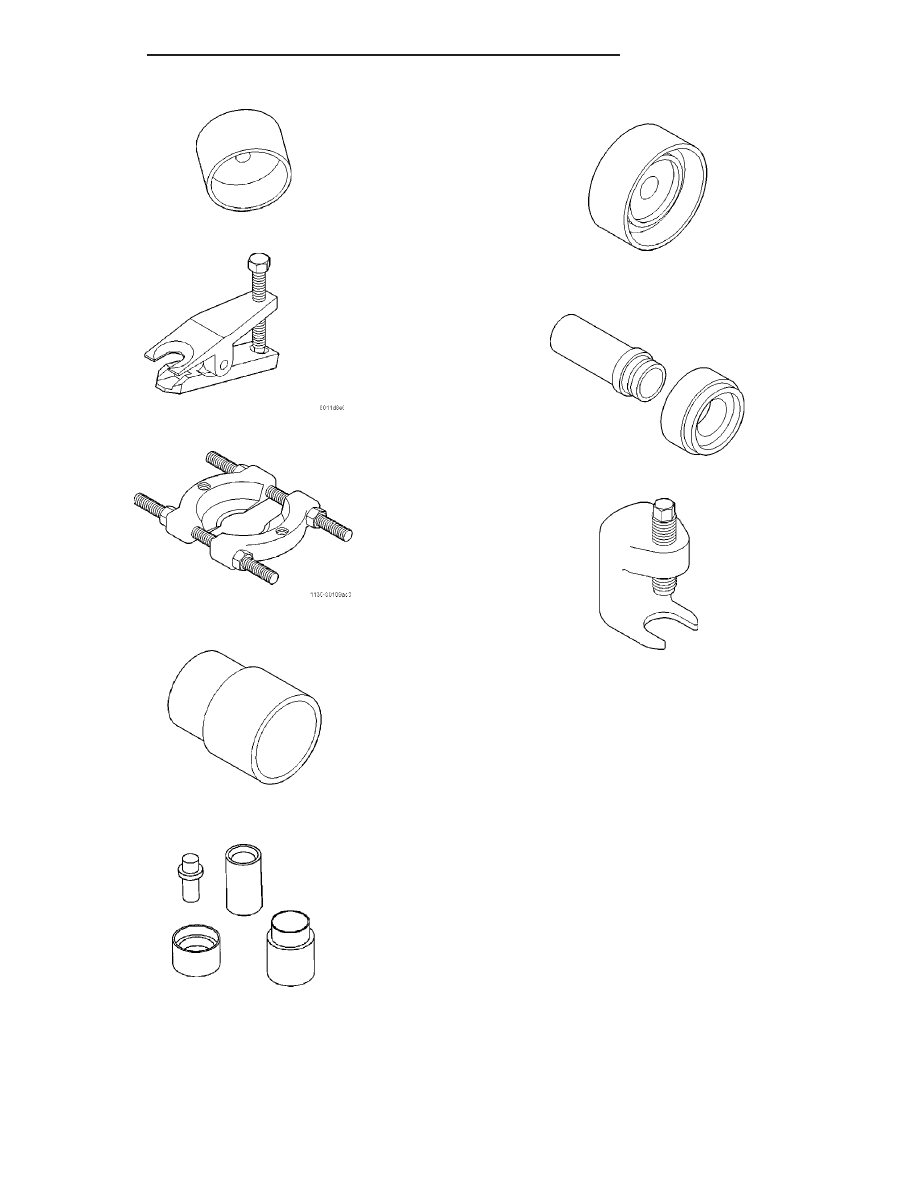

Installer 6760

Remover MB991113

Splitter, Bearing/Gear 1130

Remover MB-990799

Remover/Installer 6644 (-2)

Installer, Bearing 5052

Installer Adapter C-4698-2

Remover C-4150A

PL/SRT-4

FRONT SUSPENSION

2 - 5

FRONT SUSPENSION (Continued)
