When Monitored:
With the ignition on and no other S/C Switch DTCs present.

Set Condition:
The (V71) S/C Switch 1 Signal and (V72) S/C Switch 2 Signal do not indicate the same S/C Switch position for
5.0 seconds.

Possible Causes

INTERMITTENT DTC

(V71) S/C SWITCH 1 SIGNAL CIRCUIT SHORTED TO VOLTAGE

(V72) S/C SWITCH 2 SIGNAL CIRCUIT SHORTED TO VOLTAGE

(V937) S/C SWITCH GROUND CIRCUIT SHORTED TO VOLTAGE

(V71) S/C SWITCH 1 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

(V72) S/C SWITCH 2 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

(V937) S/C SWITCH GROUND CIRCUIT OPEN OR HIGH RESISTANCE

(V71) S/C SWITCH 1 SIGNAL CIRCUIT SHORTED TO GROUND

(V72) S/C SWITCH 2 SIGNAL CIRCUIT SHORTED TO GROUND

SPEED CONTROL SWITCH

ENGINE CONTROL MODULE (ECM)

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)

Diagnostic Test

1.

S/C SWITCH VOLTAGES OUT OF RANGE

KEY

SIGNAL 1

SIGNAL 2

LO LIMIT

HI LIMIT

LO LIMIT

HI LIMIT

RELEASED

4.36

4.69

4.36

4.69

ON-OFF

0.50

1.10

3.53

3.90

SET

3.16

3.53

1.56

1.18

RESUME-ACCEL

3.84

4.19

1.70

2.43

CANCEL

1.59

1.97

2.43

3.22

Turn the ignition on.

With the scan tool, monitor the S/C Switch signal voltages.

Press each button while noting the voltage readings for each circuit.

Do the S/C Switch voltages fall within the ranges specified in the table when each button is pressed?

Yes

>>

Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 -

ENGINE - DIAGNOSIS AND TESTING)

No

>> Go To 2

PM

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

9 - 1199

2.

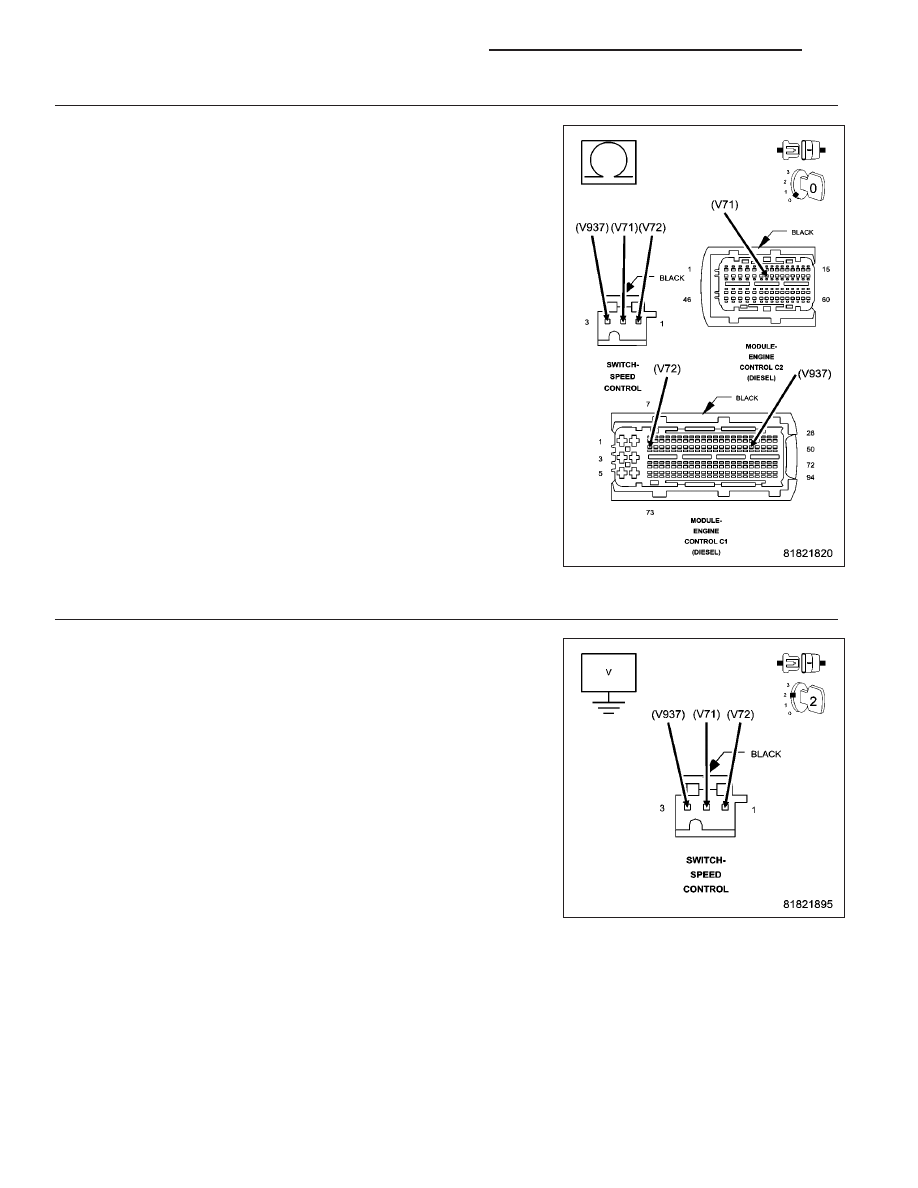

SPEED CONTROL SWITCH CIRCUIT OPEN OR HIGH RESISTANCE

Turn the ignition off.

Disconnect the Speed Control Switch harness connector.

Disconnect the Engine Control Module (ECM) harness connector.

Measure the resistance of the (V71) S/C Switch 1 Signal circuit
between the Speed Control Switch harness connector and the Engine
Control Module (ECM) harness connector.

Measure the resistance of the (V72) S/C Switch 2 Signal circuit
between the Speed Control Switch harness connector and the Engine
Control Module (ECM) harness connector.

Measure the resistance of the (V937) S/C Switch Ground circuit
between the Speed Control Switch harness connector and the Engine
Control Module (ECM) harness connector.

Is the resistance below 10.0 ohms for ALL measurements?

Yes

>> Go To 3

No

>> Repair the Speed Control Switch circuit for an open circuit

or high resistance.

Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

3.

SPEED CONTROL SWITCH CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Remove the Main Relay.

Connect a jumper wire between cavity B7 and cavity B9 of the Main
Relay connector.

Turn the ignition on.

Measure the voltage of the (V71) S/C Switch 1 Signal circuit.

Measure the voltage of the (V72) S/C Switch 2 Signal circuit.

Measure the voltage of the (V937) S/C Switch Ground circuit.

Is there any voltage present on any of the circuits?

Yes

>> Repair the Speed Control Switch circuit for a short to volt-

age.

Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

No

>> Go to 4

9 - 1200

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

PM

4.

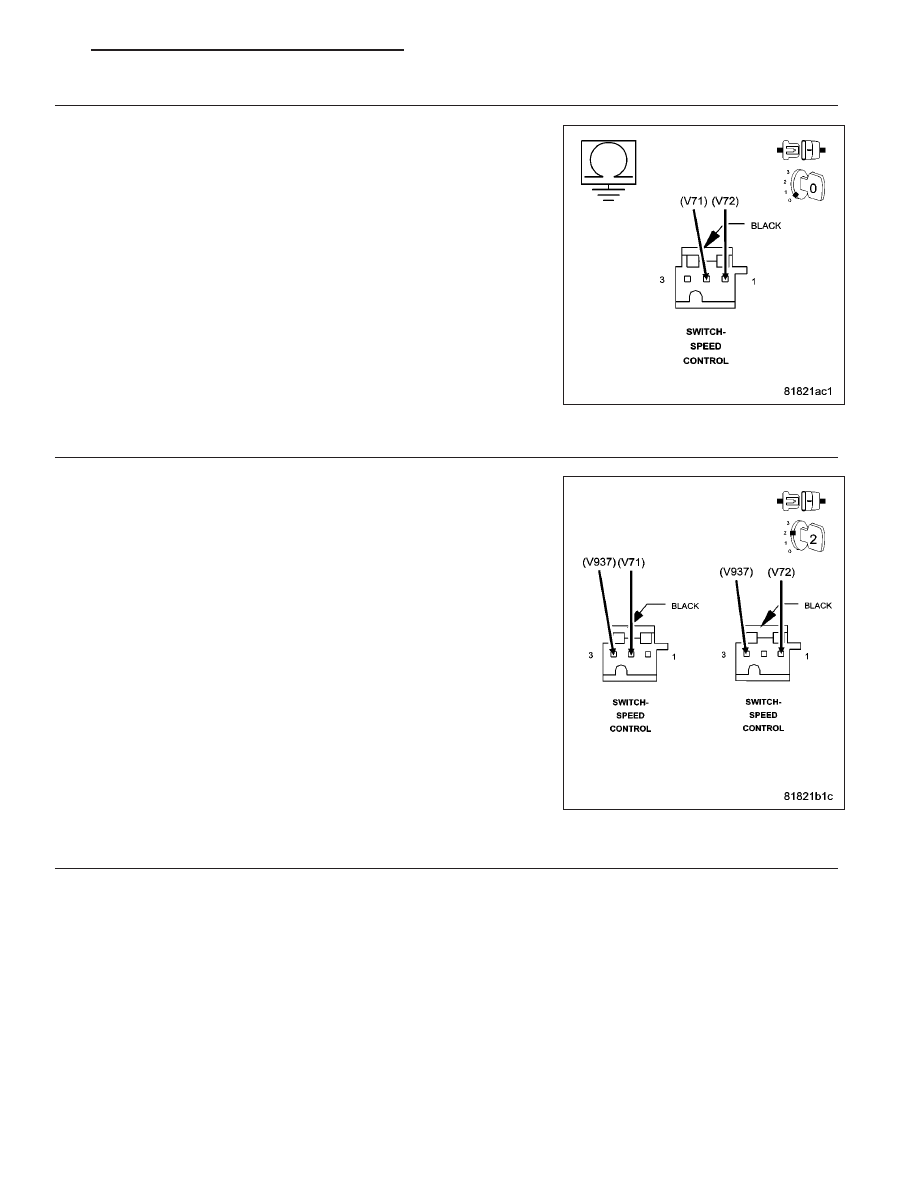

SPEED CONTROL SWITCH CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Measure the resistance between ground and the (V71) S/C Switch 1
Signal circuit.

Measure the resistance between ground and the (V72) S/C Switch 2
Signal circuit.

Is the resistance above 1000 ohms?

Yes

>> Go to 5

No

>> Repair the Speed Control Switch circuit for a short to

ground.

Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

5.

SPEED CONTROL SWITCHES

Turn the ignition off.

Connect the Engine Control Module (ECM) harness connector.

Turn the ignition on.

With the scan tool, monitor the S/C Switch Voltage.

While monitoring the scan tool, connect a jumper wire between the
(V71) S/C Switch 1 Signal circuit and the (V937) S/C Switch Ground
circuit in the S/C Switch harness connector.

While monitoring the scan tool, connect a jumper wire between the
(V72) S/C Switch 2 Signal circuit and the (V937) S/C Switch Ground
circuit in the S/C Switch harness connector.

Does the scan tool display below 0.1 volt for each circuit with
the jumper wire in place?

Yes

>> Replace the Speed Control Switches in accordance with the

Service Information.

Perform the ECM Verification Test Ver.1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

No

>> Go to 6

6.

ENGINE CONTROL MODULE (ECM)

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Speed Control
Switch and the Engine Control Module (ECM).

Look for any chafed, pierced, pinched, or partially broken wires.

Look for broken, bent, pushed out or corroded terminals.

Refer to any Technical Service Bulletins that may apply.

Were any problems found?

Yes

>> Repair as necessary.

Perform the ECM Verification Test Ver.1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

No

>> Replace the Engine Control Module (ECM) in accordance with the Service Information.

Perform the ECM Verification Test Ver.1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

PM

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

9 - 1201

P0590-SPEED CONTROL SWITCH 2 STUCK

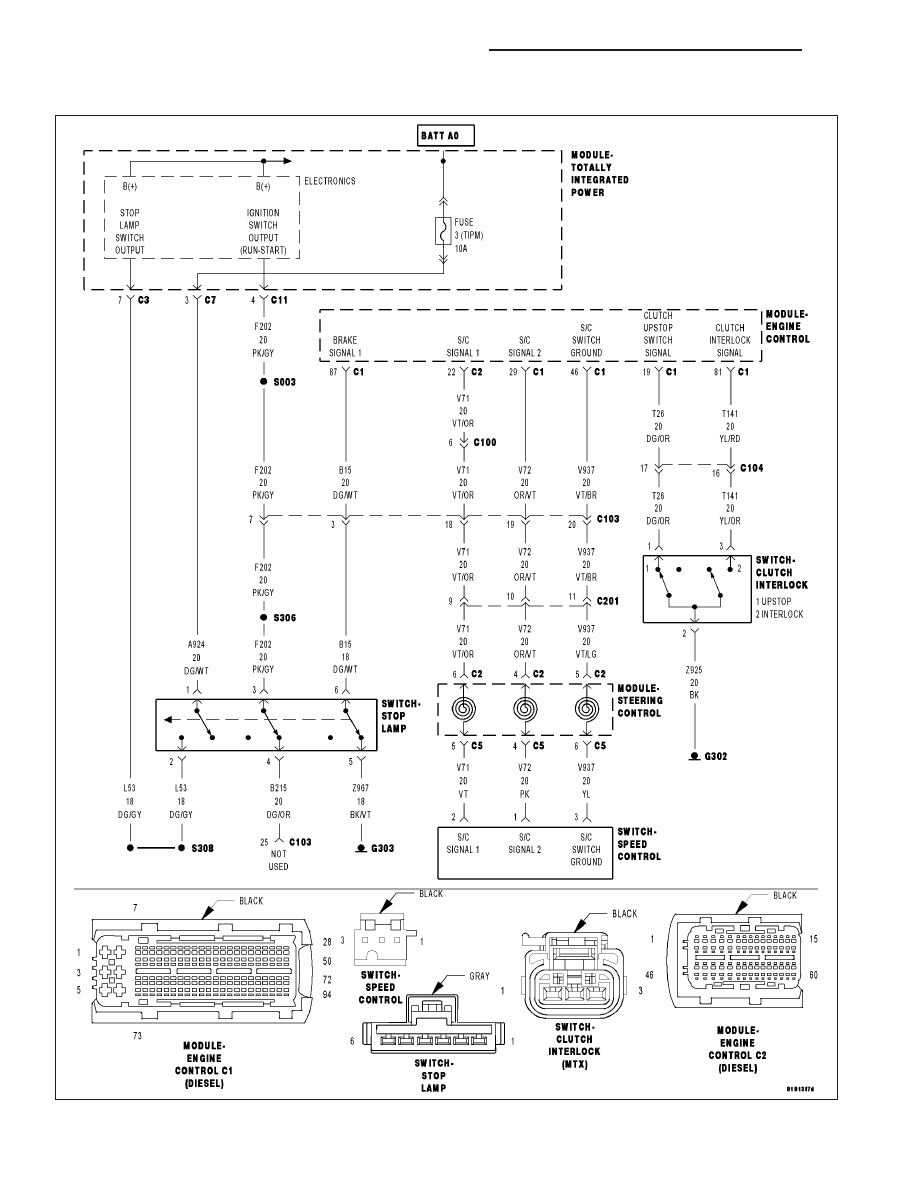

For a complete wiring diagram Refer to Section 8W
