Dodge Caliber. Manual - part 642

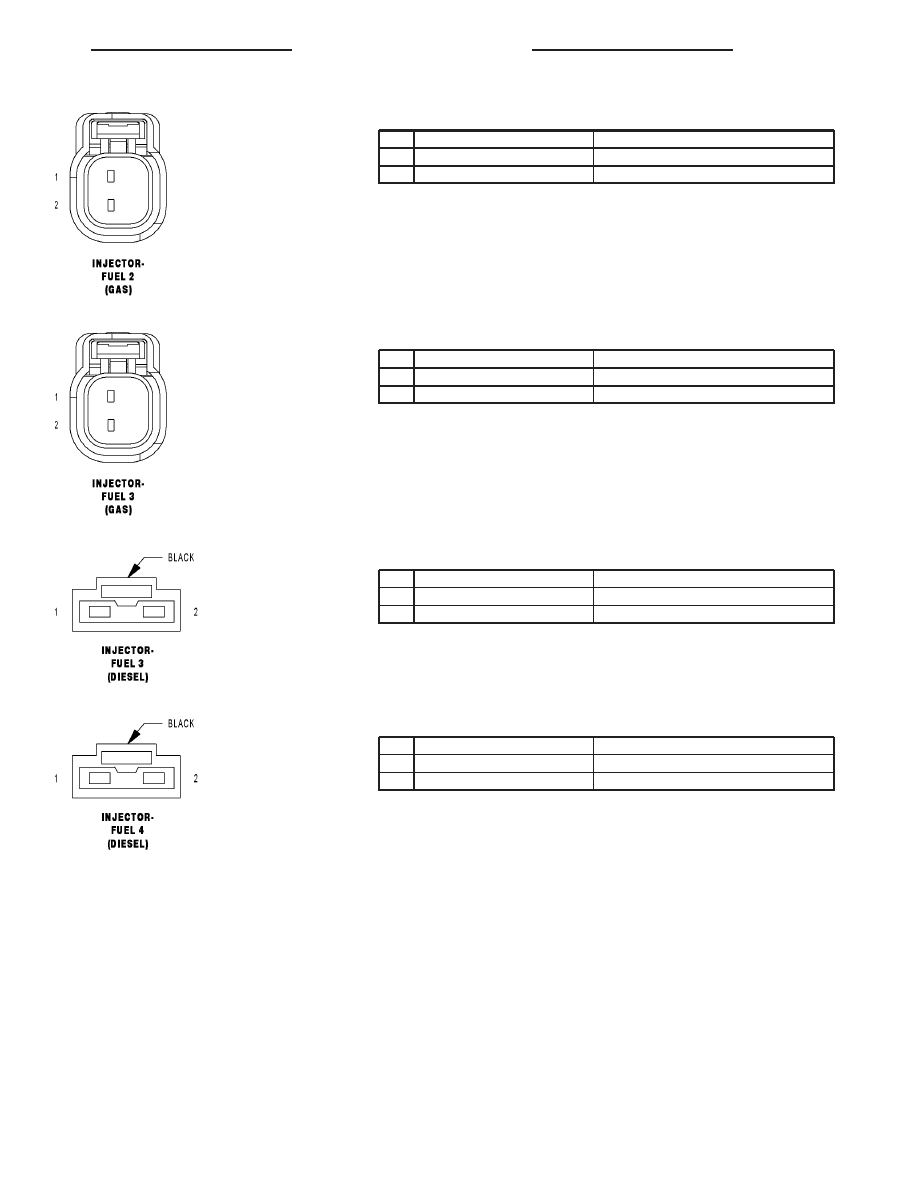

INJECTOR-FUEL 2 (GAS) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

K12 20BR/DB

INJECTOR 2 CONTROL

2

K343 16BR/YL

FUSED MAIN RELAY OUTPUT

INJECTOR-FUEL 3 (GAS) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

K13 20BR/LB

INJECTOR 3 CONTROL

2

K343 16BR/YL

FUSED MAIN RELAY OUTPUT

INJECTOR-FUEL 3 (DIESEL) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

K663 16BR/YL

FUEL INJECTOR HIGH-SIDE COMMON

2

K613 16BR/WT

FUEL INJECTOR 3 LOW-SIDE CONTROL

INJECTOR-FUEL 4 (DIESEL) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

K663 16BR/YL

FUEL INJECTOR HIGH-SIDE COMMON

2

K614 16BR/LB

FUEL INJECTOR 4 LOW-SIDE CONTROL

PM

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 45

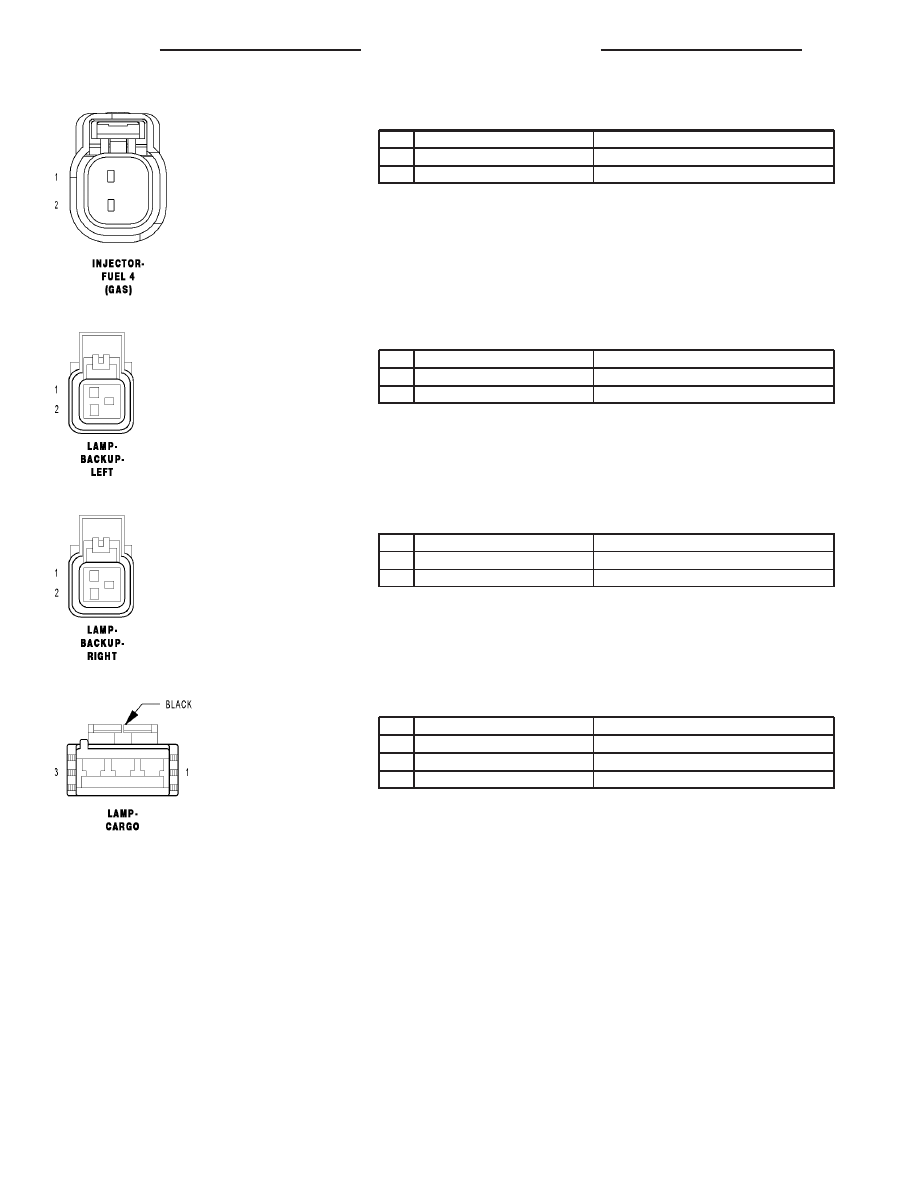

INJECTOR-FUEL 4 (GAS) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

K14 20BR/TN

INJECTOR 4 CONTROL

2

K343 16BR/YL

FUSED MAIN RELAY OUTPUT

LAMP-BACKUP-LEFT - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

Z960 20BK/LB

GROUND

2

L1 20WT/LG

BACKUP LAMP SWITCH OUTPUT

LAMP-BACKUP-RIGHT - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

Z964 20BK/WT

GROUND

2

L1 20WT/LG

BACKUP LAMP SWITCH OUTPUT

LAMP-CARGO - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

-

-

2

M24 20YL/WT

COURTESY LAMPS DRIVER

3

Z936 20BK/LB

GROUND

8W - 80 - 46

8W-80 CONNECTOR PIN-OUTS

PM

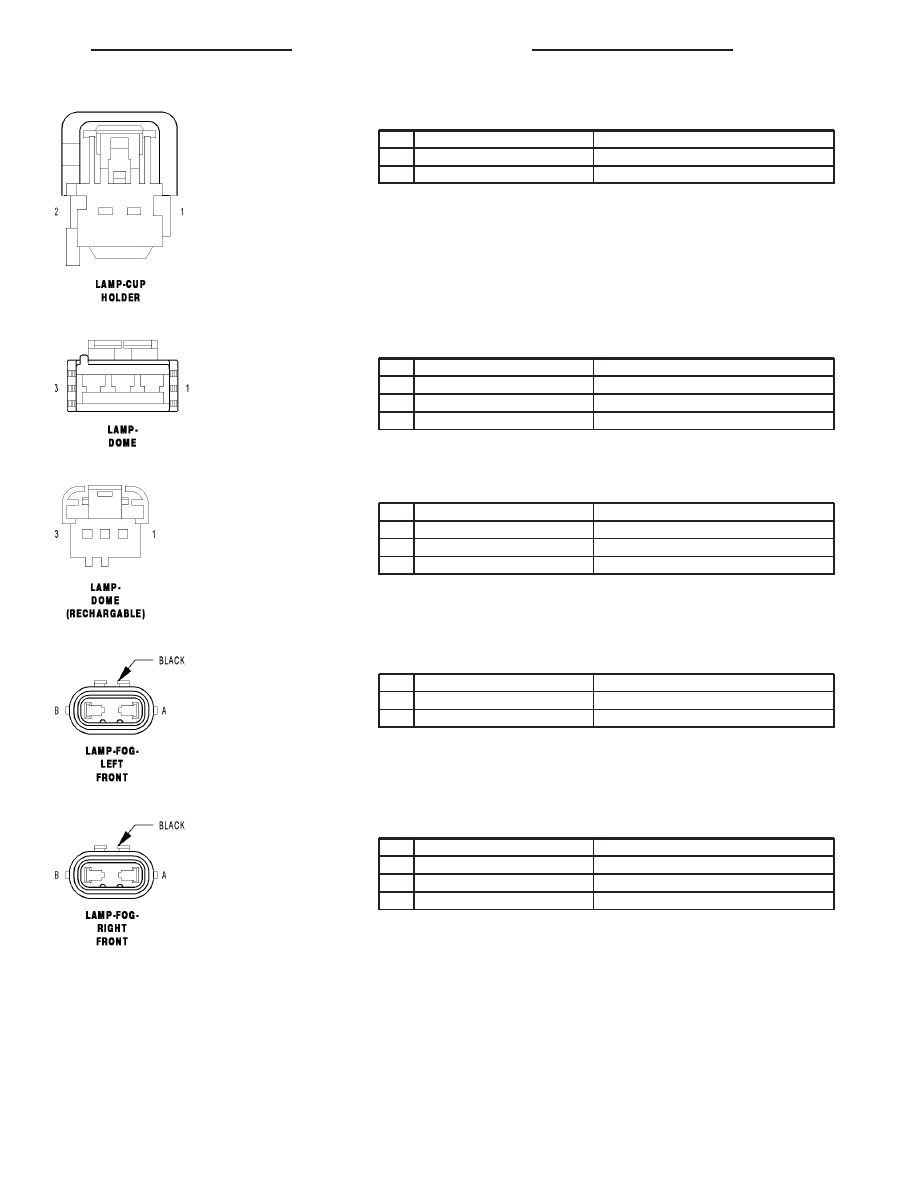

LAMP-CUP HOLDER - LT. GRAY 2 WAY

CAV

CIRCUIT

FUNCTION

1

E12 20OR/GY

PANEL LAMPS DRIVER

2

Z937 20BK

GROUND

LAMP-DOME - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

-

-

2

M24 20YL/WT

COURTESY LAMPS DRIVER

3

Z936 20BK/LB

GROUND

LAMP-DOME (RECHARGABLE) - 3 WAY

CAV

CIRCUIT

FUNCTION

1

F985 18PK/YL

FUSED IGNITION SWITCH OUTPUT (RUN-ACC)

2

M24 20YL/WT

COURTESY LAMPS DRIVER

3

Z936 20BK/LB

GROUND

LAMP-FOG-LEFT FRONT - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

A

L89 20WT/YL

FRONT FOG LAMP CONTROL OUTPUT

B

Z904 20BK/LG

GROUND

LAMP-FOG-RIGHT FRONT - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

A

L90 20WT/OR

FRONT FOG LAMP CONTROL OUTPUT

B

Z904 20BK/LG (EXCEPT EXPORT)

GROUND

B

Z908 20BK/PK (EXPORT)

GROUND

PM

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 47

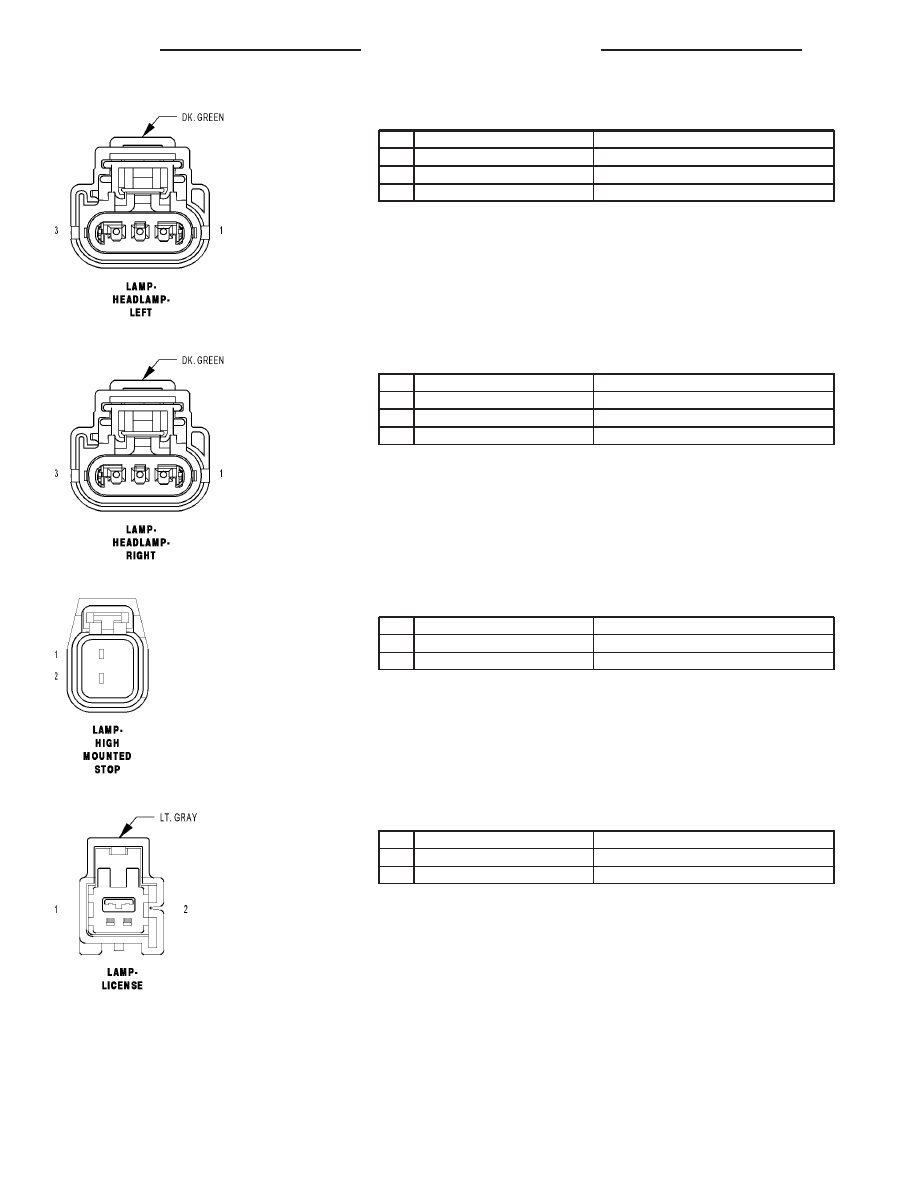

LAMP-HEADLAMP-LEFT - DK. GREEN 3 WAY

CAV

CIRCUIT

FUNCTION

1

L43 20WT/DB

LEFT LOW BEAM OUTPUT

2

Z904 20BK/LG

GROUND

3

L33 20WT/PK

LEFT HIGH BEAM OUTPUT

LAMP-HEADLAMP-RIGHT - DK. GREEN 3 WAY

CAV

CIRCUIT

FUNCTION

1

L44 20VT/RD

RIGHT LOW BEAM OUTPUT

2

Z908 20BK/PK

GROUND

3

L34 20WT/GY

RIGHT HIGH BEAM OUTPUT

LAMP-HIGH MOUNTED STOP - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

L53 18DG/WT

STOP LAMP SWITCH OUTPUT

2

Z960 20BK

GROUND

LAMP-LICENSE - LT. GRAY 2 WAY

CAV

CIRCUIT

FUNCTION

1

Z960 18BK

GROUND

2

L217 20WT/VT

PARK LAMP CONTROL OUTPUT

8W - 80 - 48

8W-80 CONNECTOR PIN-OUTS

PM
