SYMBOLS

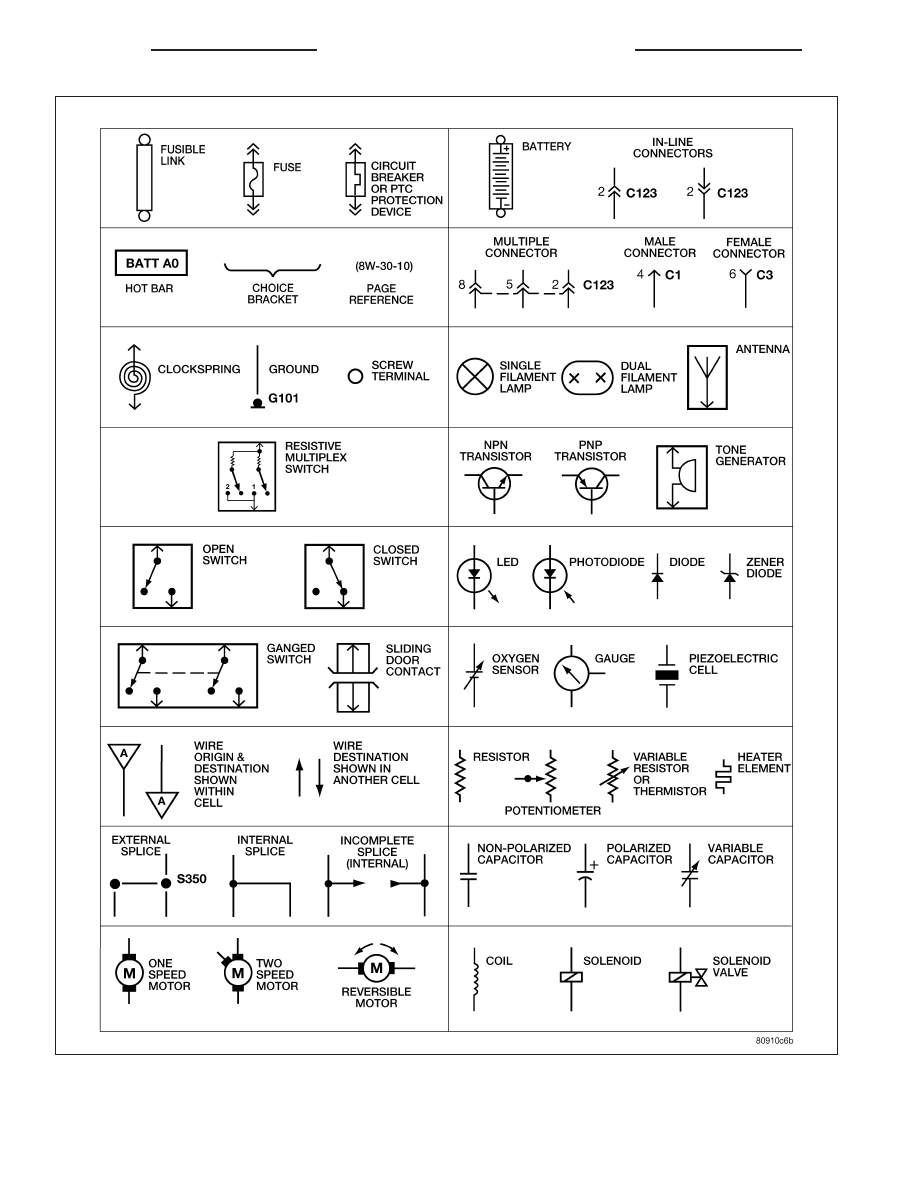

International symbols are used throughout the wiring diagrams. These symbols are consistent with those being used
around the world.

PM

8W-01 WIRING DIAGRAM INFORMATION

8W - 01 - 5

8W - 01 - 6

8W-01 WIRING DIAGRAM INFORMATION

PM

TERMINOLOGY

This is a list of terms and definitions used in the wiring diagrams.

LHD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Left Hand Drive Vehicles
RHD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Right Hand Drive Vehicles
ATX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Automatic Transmissions-Front Wheel Drive
MTX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Manual Transmissions-Front Wheel Drive
AT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Automatic Transmissions-Rear Wheel Drive
MT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Manual Transmissions-Rear Wheel Drive
SOHC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Single Over Head Cam Engine
DOHC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Double Over Head Cam Engine
Export . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Vehicles Built For Sale In Markets Other Than North America
Except Export . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Vehicles Built For Sale In North America

DESCRIPTION - CIRCUIT INFORMATION

Each wire shown in the diagrams contains a code which identifies the main circuit, a specific part of the main circuit,
gage of wire, and color. An example would be A 2 18 LB/YL. This is a Battery Feed circuit, level two, eighteen
gauge, light blue with a yellow tracer.

WIRE COLOR CODE CHART

COLOR CODE

COLOR

BL

BLUE

BK

BLACK

BR

BROWN

DB

DARK BLUE

DG

DARK GREEN

GY

GRAY

LB

LIGHT BLUE

LG

LIGHT GREEN

OR

ORANGE

PK

PINK

RD

RED

TN

TAN

VT

VIOLET

WT

WHITE

YL

YELLOW

*

WITH TRACER

DESCRIPTION - CIRCUIT FUNCTIONS

All circuits in the diagrams use an alpha/numeric code to identify the wire and it’s function. To identify which circuit
code applies to a system, refer to the Circuit Identification Code Chart. This chart shows the main circuits only and
does not show the secondary codes that may apply to some models.

PM

8W-01 WIRING DIAGRAM INFORMATION

8W - 01 - 7

CIRCUIT IDENTIFICATION CODE CHART

CIRCUIT

FUNCTION

A

BATTERY FEED

B

BRAKE CONTROLS

C

CLIMATE CONTROLS

D

DIAGNOSTIC CIRCUITS

E

DIMMING ILLUMINATION
CIRCUITS

F

FUSED CIRCUITS

G

MONITORING CIRCUITS
(GAUGES)

H

MULTIPLE

I

NOT USED

J

OPEN

K

POWERTRAIN CONTROL
MODULE

L

EXTERIOR LIGHTING

M

INTERIOR LIGHTING

N

MULTIPLE

O

NOT USED

P

POWER OPTION (BATTERY
FEED)

Q

POWER OPTIONS (IGNITION
FEED)

R

PASSIVE RESTRAINT

S

SUSPENSION/STEERING

T

TRANSMISSION/TRANSAXLE/
TRANSFER CASE

U

OPEN

V

SPEED CONTROL, WIPER/
WASHER

W

WIPERS

X

AUDIO SYSTEMS

Y

TEMPORARY

Z

GROUNDS

DESCRIPTION - SECTION IDENTIFICATION AND INFORMATION

The wiring diagrams are grouped into individual sections. If a component is most likely found in a particular group,
it will be shown complete (all wires, connectors, and pins) within that group. For example, the Auto Shutdown Relay
is most likely to be found in Group 30, so it is shown there complete. It can, however, be shown partially in another
group if it contains some associated wiring.

Splice diagrams in Section 8W-70 show the entire splice and provide references to other sections the splices
serves. Section 8W-70 only contains splice diagrams that are not shown in their entirety somewhere else in the
wiring diagrams.

Section 8W-80 shows each connector and the circuits involved with that connector. The connectors are identified
using the name/number on the diagram pages.

8W - 01 - 8

8W-01 WIRING DIAGRAM INFORMATION

PM
