Dodge Caliber. Manual - part 535





B2320-FRONT/REAR WASHER MOTOR CONTROL CIRCUIT HIGH

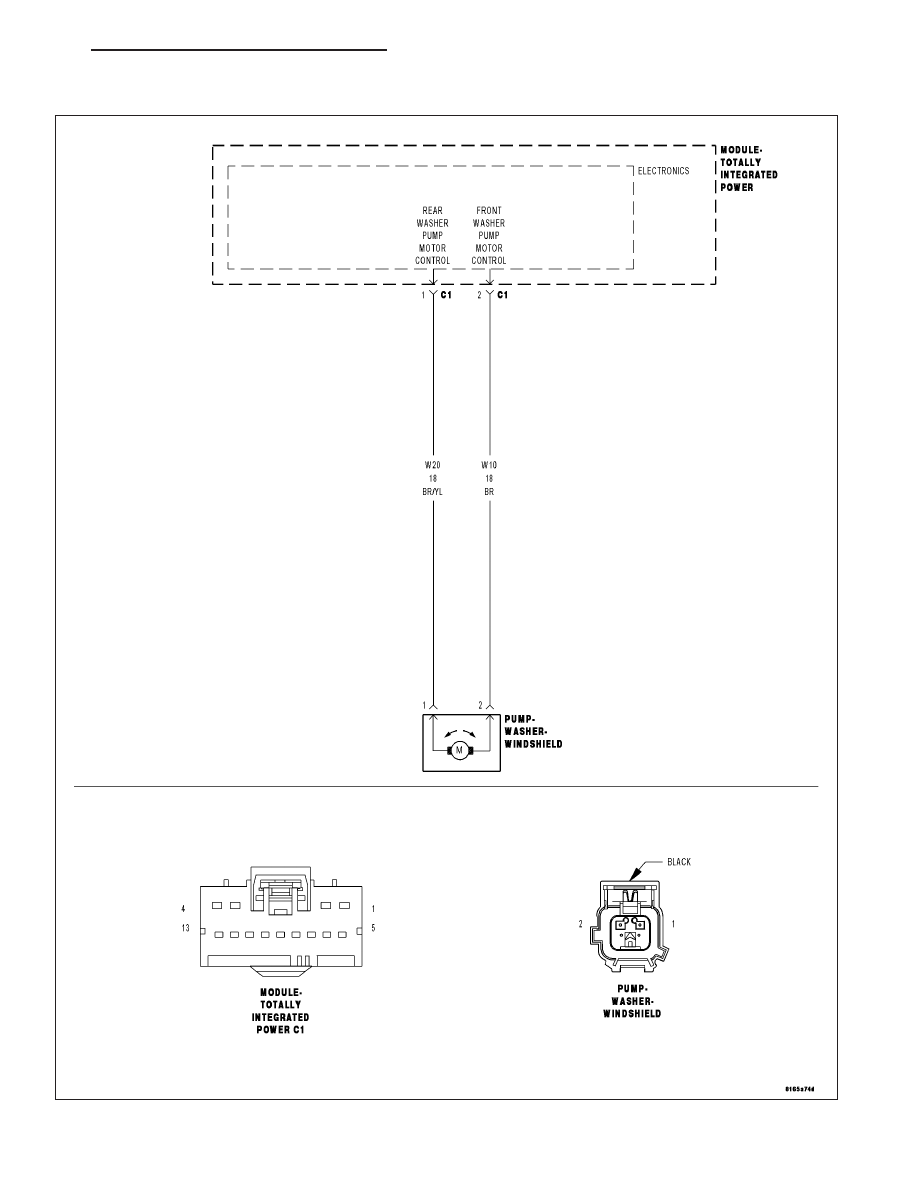

For a complete wiring diagram Refer to Section 8W.

PM

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

8R - 11

When Monitored:
With the ignition on.

Set Condition:
The TIPM detects an open condition.

Possible Causes

(W10) WASHER PUMP MOTOR CONTROL CIRCUIT SHORT TO VOLTAGE

(W20) WASHER PUMP MOTOR CONTROL CIRCUIT SHORT TO VOLTAGE

TOTALLY INTEGRATED POWER MODULE

Diagnostic Test

1.

INTERMITTENT CONDITION

Turn the ignition on.

With the Scan Tool, clear all TIPM DTC’s.

Turn the Washers on.

With the Scan Tool, read the Wiper/Washers DTC’s.

Does the Scan Tool read: B2320-FRONT/REAR WASHER MOTOR CONTROL CIRCUIT HIGH?

Yes

>> Go To 2

No

>> The condition that caused the symptom is currently not present. Inspect the related wiring for a possible

intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.

Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)

2.

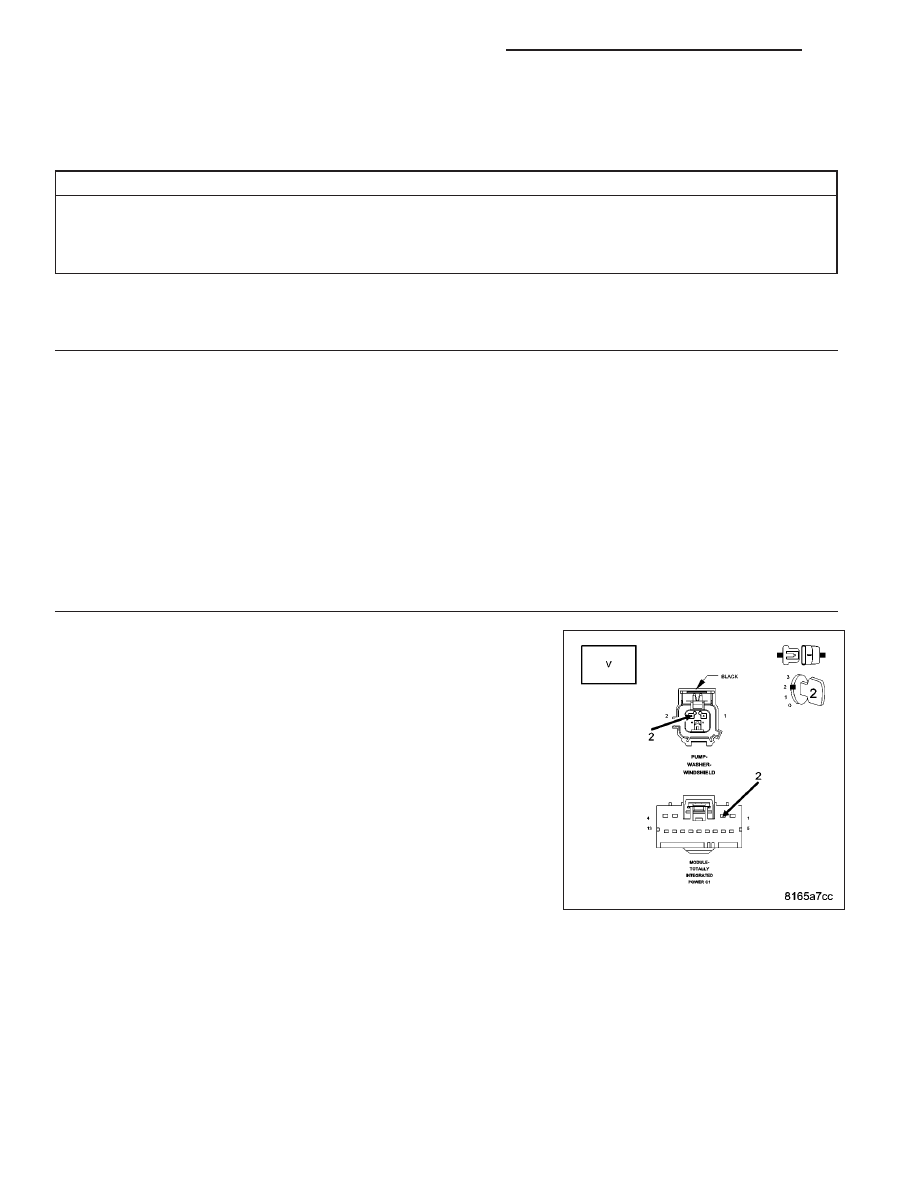

(W10) WASHER PUMP MOTOR CONTROL CIRCUIT SHORT TO VOLTAGE

Turn the ignition off.

Disconnect the TIPM C1 harness connector.

Disconnect the Washer Pump Motor harness connector.

Turn the ignition on.

Measure the voltage of the (W10) Washer Pump Motor Control circuit.

Is the voltage above 5.0 volts?

Yes

>> Repair the (W10) Washer Pump Motor Control circuit for a

short to voltage.

Perform the BODY VERIFICATION TEST — VER 1. (Refer
to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)

No

>> Go To 3

8R - 12

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

PM

3.

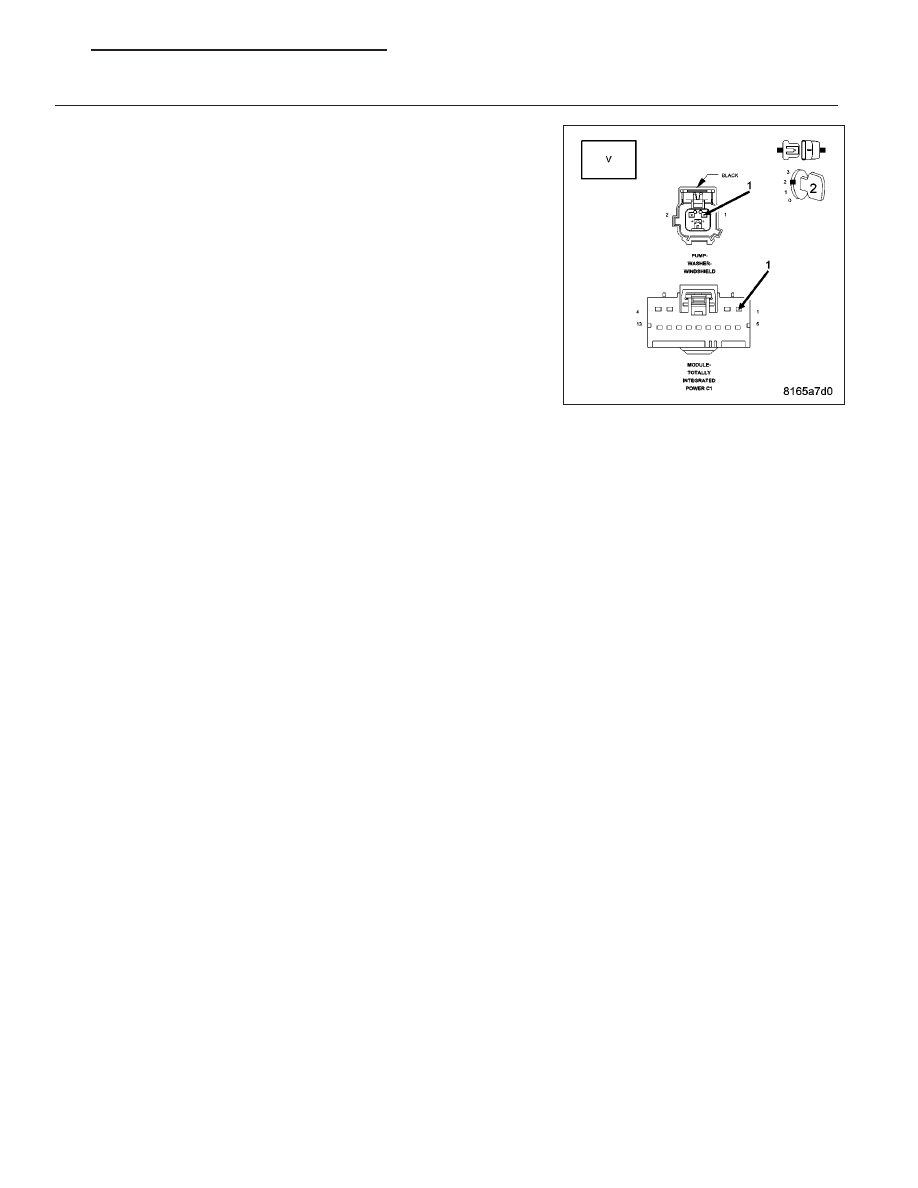

(W20) WASHER PUMP MOTOR CONTROL CIRCUIT SHORT TO VOLTAGE

Measure the Voltage of the (W20) Washer Pump Motor Control circuit.

Is the voltage above 5.0 volts?

Yes

>> Repair the (W20) Washer Pump Motor Control circuit for a

short to voltage.

Perform the BODY VERIFICATION TEST — VER 1. (Refer
to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)

No

>> Replace the Totally Integrated Power Module in accordance

with the service information.

Perform the BODY VERIFICATION TEST — VER 1. (Refer
to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)

PM

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

8R - 13

B231B-REAR WIPER MOTOR CONTROL CIRCUIT LOW

For a complete wiring diagram Refer to Section 8W.

Possible Causes

(A1) FUSED B+ CIRCUIT OPEN

REAR WIPER RELAY

FRONT CONTROL MODULE

INTEGRATED POWER MODULE

Diagnostic Test

1.

(A1) FUSED B+ CIRCUIT OPEN

NOTE: Check all fuses and circuit breakers before proceeding with the diagnosis of this DTC.
Turn the ignition on.

Remove the Rear Wiper relay.

Measure the voltage at cavity 86 of the Rear Wiper Relay.

Is the voltage above 10.0 volts?

Yes

>> Go To 2

No

>> Check the (A1) Fused B+ circuit for an open.

Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/FRONT CONTROL MODULE - DIAGNOSIS AND TESTING)

2.

REAR WIPER RELAY

Turn the ignition off.

Replace the Rear Wiper Relay with a known good relay.

Turn the ignition on.

With the Scan Tool, clear all FCM DTC’s.

Turn the Rear Wipers ON then OFF.

With the Scan Tool, read the FCM DTC’s.

Does the Scan Tool read: B231B-WIPER ON/OFF CONTROL CIRCUIT LOW?

Yes

>> Go To 3

No

>> Replace the Rear Wiper relay.

Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/FRONT CONTROL MODULE - DIAGNOSIS AND TESTING)

3.

INTEGRATED POWER MODULE

Turn the ignition off.

Disconnect the FCM from the IPM.

Turn the ignition on.

Measure the voltage on cavity 28 (Rear Wiper Relay Control) of the IPM.

Is the voltage above 10.0 volts?

Yes

>> Replace the FCM in accordance with the service information.

Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/FRONT CONTROL MODULE - DIAGNOSIS AND TESTING)

No

>> Replace the IPM in accordance with the service information.

Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/FRONT CONTROL MODULE - DIAGNOSIS AND TESTING)

8R - 14

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

PM
