INTRUSION MODULE

DESCRIPTION

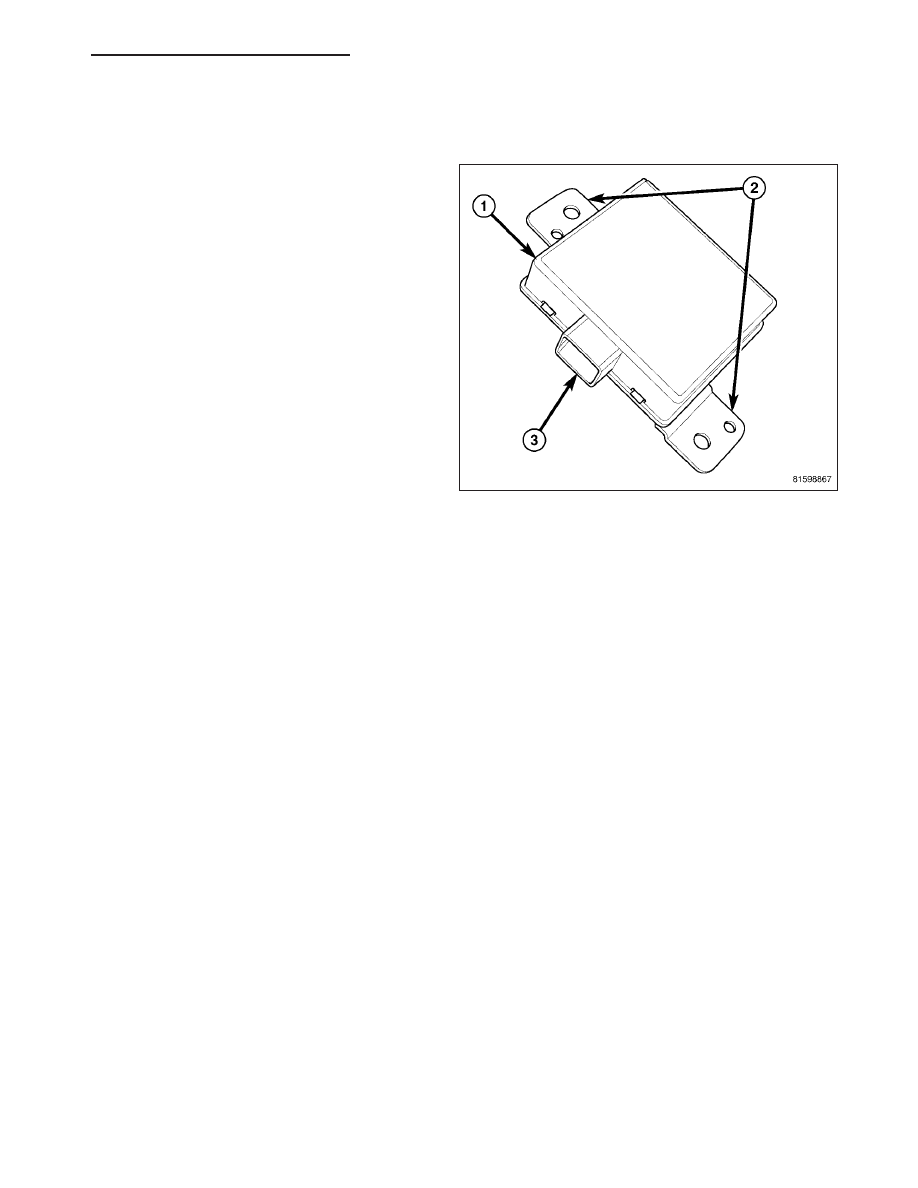

An intrusion module (1) is part of the premium version
of the Vehicle Theft Alarm (VTA) in the Vehicle Theft
Security System (VTSS). The premium version of the
VTA is only available in vehicles built for certain mar-
kets, where the additional features offered by this sys-
tem are required. The intrusion module is located in
the passenger compartment. This unit is designed to
work in conjunction with the intrusion sensor transmit-
ter and intrusion sensor receiver to provide interior
motion detection and serves as the interface between
the Totally Integrated Power Module (TIPM), the Elec-
troMechanical Instrument Cluster (EMIC) (sometimes
referred to as the Cab Compartment Node (CCN), and
the alarm siren.

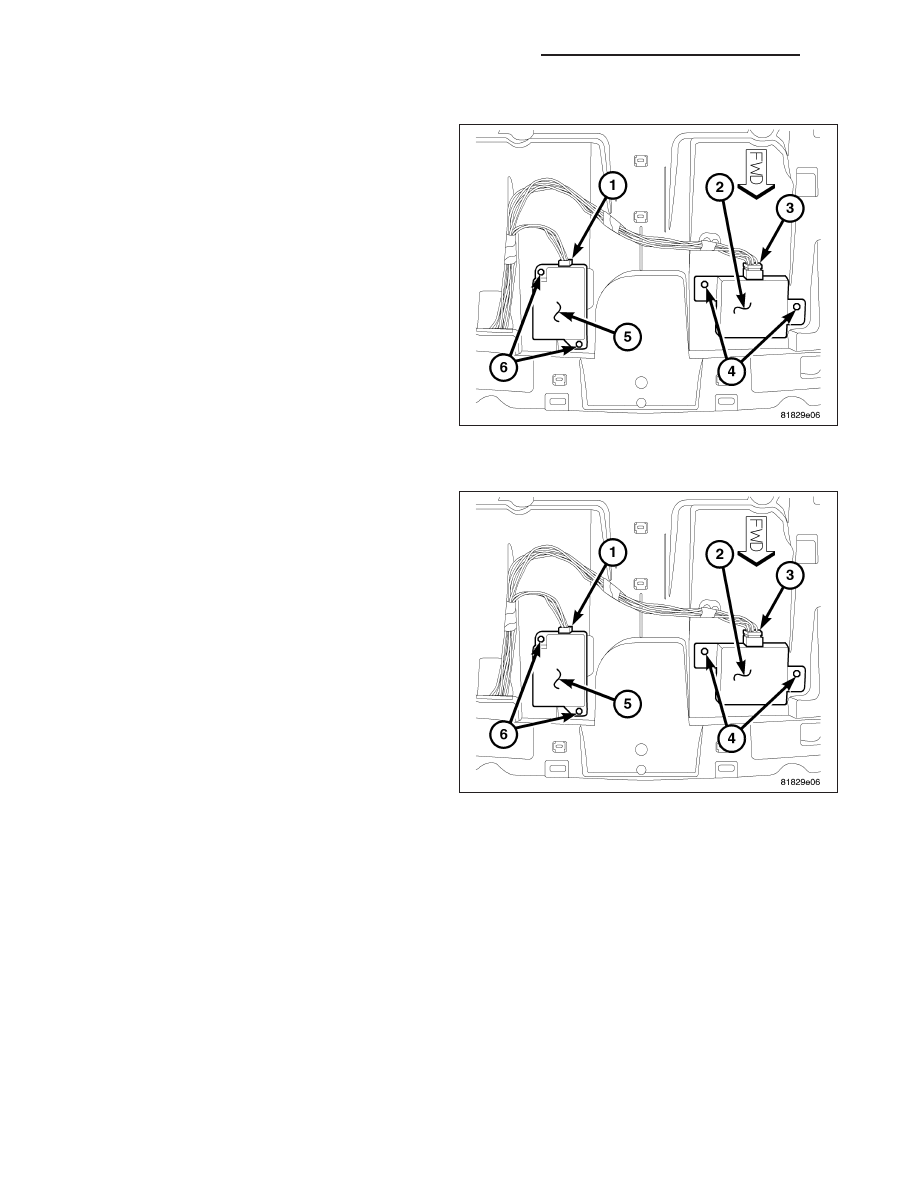

The intrusion module has two integral mounts (2) that
are secured by two screws underneath the instrument
panel upper cover, just above the center stack. Con-
cealed within the molded plastic housing is the cir-
cuitry of the module, which includes a microprocessor.
The module is connected to the vehicle electrical system wire harness.

The intrusion module unit cannot be adjusted or repaired and, if faulty or damaged, it must be replaced.

OPERATION

The microprocessor in the intrusion module contains the motion detection logic circuits and controls all of the fea-
tures of the premium version of the Vehicle Theft Alarm (VTA). The module uses On-Board Diagnostics (OBD) and
can communicate with other modules in the vehicle as well as with a diagnostic scan tool using the Controller Area
Network (CAN) data bus. This method of communication is used by the module to communicate with the Totally
Integrated Power Module (TIPM) and the ElectroMechanical Instrument Cluster (EMIC). The module also commu-
nicates with the alarm siren over a dedicated serial bus circuit.

The intrusion module microprocessor continuously monitors inputs from the intrusion sensor transmitter and receiver
as well as inputs from the EMIC and the alarm siren module. The module energizes the intrusion sensor transmitter,
which transmits ultrasonic signals into the vehicle cabin through a transmit transducer, then monitors the current
draw of the transmitter to detect problems with the transmitter and transmitter circuits. The module also energizes
the intrusion sensor receiver, which listens to the ultrasonic signals through a receive transducer as they bounce off
of objects in the vehicle interior, then monitors the current draw of the receiver for data signals and to detect prob-
lems with the receiver and receiver circuits. If an object is moving in the interior, a detection circuit in the module
senses this movement through the modulation of the returning data signals from the receiver.

If movement is detected, the intrusion module sends an electronic message to the CCN over the CAN data bus to
trigger the alarm. The CCN sends the alarm message over the CAN date bus to the TIPM and intrusion module.
The intrusion module sends another message to the alarm siren module over the dedicated serial bus line to sound
the siren. When the EMIC detects a breach in the perimeter protection through a door or liftgate, it sends an elec-
tronic message to the intrusion module and the TIPM. The intrusion module sends a message to the alarm siren
module to sound the siren. The module also monitors message inputs from the alarm siren module for siren battery
or siren input/output circuit tamper alerts, and siren battery condition alerts, then sets active and stored Diagnostic
Trouble Codes (DTC) for any monitored system faults it detects. An active fault only remains for the current ignition
switch cycle, while a stored fault causes a DTC to be stored in memory by the module. If a fault does not recur for
fifty ignition cycles, the module will automatically erase the stored DTC.

The intrusion module receives battery voltage on a B(+) circuit and is grounded at all times through a hard wired
remote ground point. These connections allow the module to remain operational, regardless of the ignition switch
position. To diagnose the intrusion module, the CAN data bus, and the electronic message inputs to and outputs
from the module requires the use of a diagnostic scan tool and refer to the appropriate diagnostic information.

PM

VEHICLE THEFT SECURITY - SERVICE INFORMATION

8Q - 93

REMOVAL

1. Disconnect and isolate the battery negative cable.

2. Remove the instrument panel upper panel (Refer to

23 - BODY/INSTRUMENT PANEL/INSTRUMENT
PANEL UPPER PANEL - REMOVAL).

3. Disconnect the module electrical connector (3).

4. Remove the two screws (4) that secure the module

(2) to the instrument panel.

5. Remove the module from the instrument panel.

INSTALLATION

1. Position the intrusion module (2) onto the instru-

ment panel.

2. Install the two screws (4) that secure the module

(2) to the instrument panel.

3. Connect the electrical connector (3) on the module

(1).

4. Install the instrument panel upper panel (Refer to

23 - BODY/INSTRUMENT PANEL/INSTRUMENT
PANEL TOP PAD - INSTALLATION).

5. Connect the battery negative cable.

8Q - 94

VEHICLE THEFT SECURITY - SERVICE INFORMATION

PM

INTRUSION SENSOR - EXPORT

DESCRIPTION

TRANSMITTER

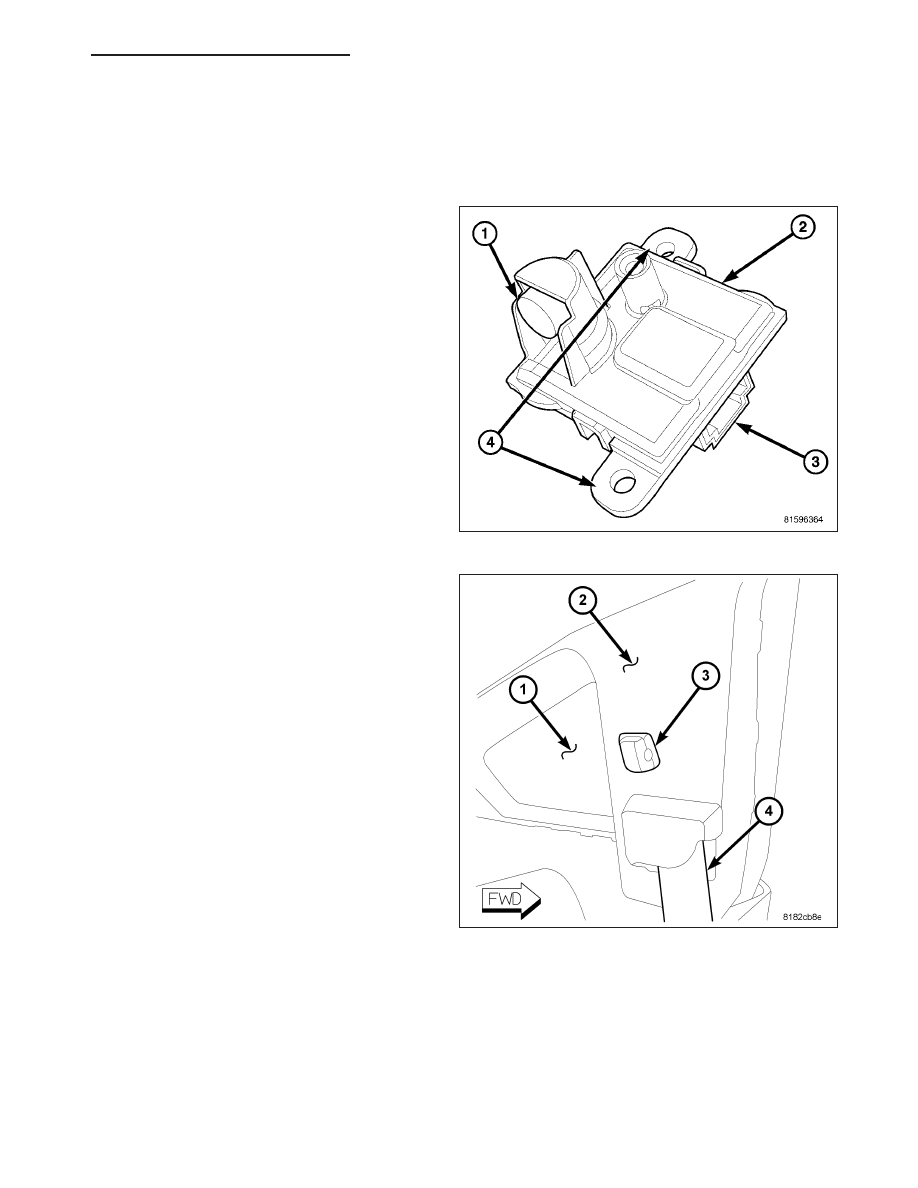

An intrusion sensor transmitter (2) is part of the pre-
mium version of the Vehicle Theft Security System
(VTSS). The premium version of the VTSS is only
available in vehicles built for certain markets, where
the additional features offered by this system are
required. This unit is designed to work in conjunction
with the intrusion sensor receiver to provide interior
motion detection inputs to the intrusion module, which
serves as an input to the ElectroMechanical Instru-
ment Cluster (EMIC), sometimes referred to as the
Cab Compartment Node (CCN), and the alarm siren.
Concealed within the molded plastic transmitter hous-
ing is the circuitry of the transmitter which includes an
ultrasonic transmit transducer (1). The intrusion sensor
transmitter cannot be adjusted or repaired and, if
faulty or damaged, it must be replaced. The transmit-
ter mounting bracket is serviced as a unit with the
headliner. The transducer trim bezel is available for
separate service replacement.

The transmitter is located in the passenger compart-
ment, where it is concealed behind the left C-pillar
upper trim panel (2), above the seat belt (4). The trim
bezel has a small round opening that faces the front
of the vehicle through which the transducer (3) is
aimed.

PM

VEHICLE THEFT SECURITY - SERVICE INFORMATION

8Q - 95

RECEIVER

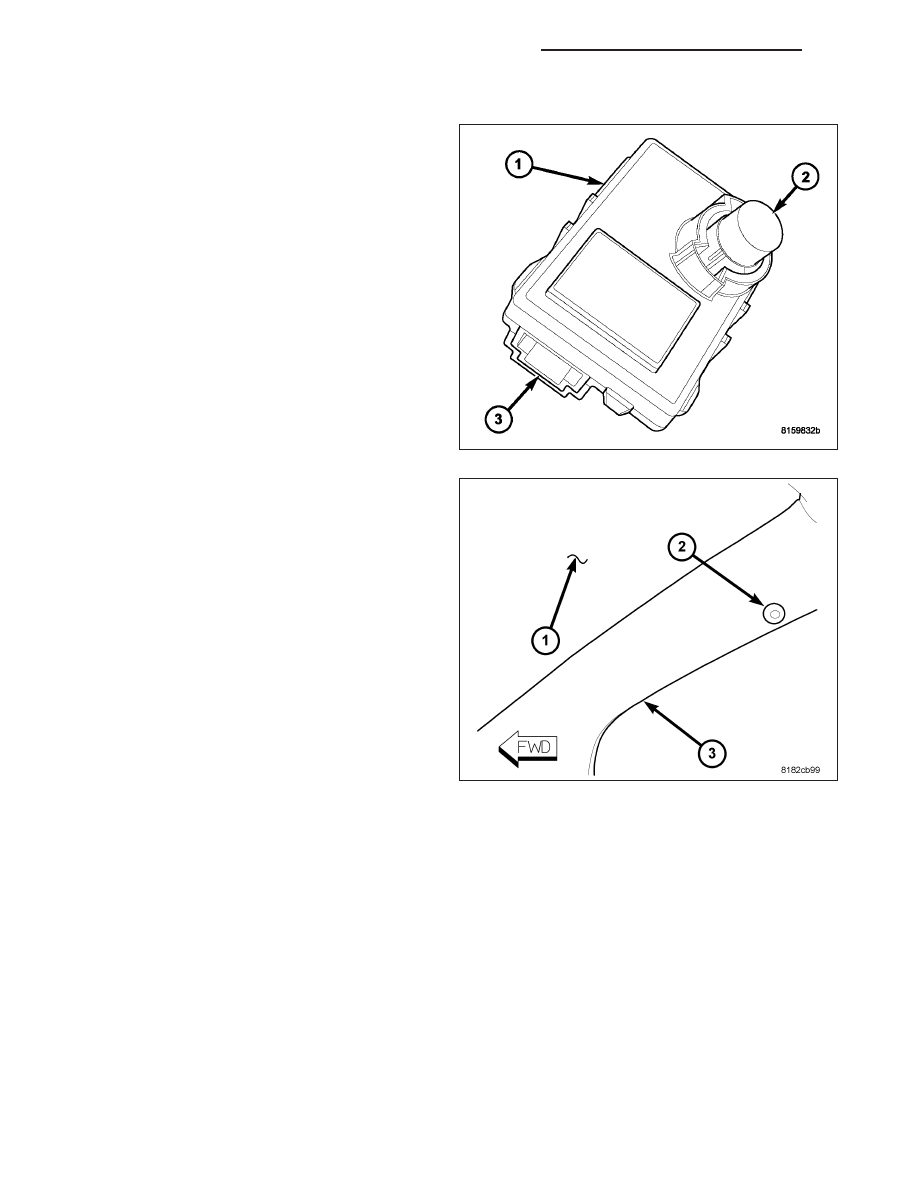

An intrusion sensor receiver (1) is part of the premium
version of the Vehicle Theft Security System (VTSS).
The premium version of the VTSS is only available in
vehicles built for certain markets, where the additional
features offered by this system are required. This unit
is designed to work in conjunction with the intrusion
sensor transmitter to provide interior motion detection
inputs to the intrusion module, which serves as an
input to the ElectroMechanical Instrument Cluster
(EMIC), sometimes referred to as the Cab Compart-
ment Node (CCN), and the alarm siren.

The receiver (2) is located in the passenger compart-
ment, where it is concealed behind the right A-pillar
trim panel (3) and engages two latch tabs of a bracket
that is serviced with the A-pillar trim panel. The ultra-
sonic receiver transducer (2) is aimed through a small
dedicated round opening in the a-pillar and is the only
evidence of the receiver that is visible from the pas-
senger compartment.

Concealed within the receiver housing is the circuitry
which includes the receive transducer. The receiver is
connected to the vehicle electrical system wire har-
ness that is integral to the headliner.

The intrusion sensor receiver cannot be adjusted or
repaired and, if faulty or damaged, it must be
replaced. The receiver mounting bracket is serviced as
a unit with the A-pillar trim panel.

OPERATION

TRANSMITTER

The intrusion sensor transmitter operates only when it is energized by the intrusion module. The transmitter gener-
ates ultrasonic signals into the vehicle cabin through a transmit transducer. Then the intrusion sensor receiver lis-
tens to the returning signals as they bounce off of objects in the vehicle interior and provides input signals to the
intrusion module. If an object is moving in the interior, a detection circuit in the intrusion module senses this move-
ment through the modulation of the returning signals that occur due to the Doppler effect. The intrusion module
monitors the current draw of the transmitter circuits to determine the condition of the transmitter and, if the draw is
too high or too low, it will store a Diagnostic Trouble Code (DTC) for any fault that is detected.

Use a diagnostic scan tool and refer to the appropriate diagnostic information for diagnosis and testing of the sys-
tem.
