When Monitored:
While the CAN bus ignition status is IGN_RUN.

•

Set Condition:
This DTC will set if the ORC is not configured for Occupant Classification Module and the OCM is active on
the CAN Bus. Note: Because all ORCs are originally configured for the OCM the ORC must learn the not
equipped with OCM state from the TIPM.

Possible Causes

LOSS OF COMMUNICATION BETWEEN ORC AND TIPM

MISSING CAN BUS CONFIGURATION MESSAGE

CORRUPT CONFIGURATION MESSAGE

OCCUPANT RESTRAINT CONTROLLER (ORC)

CHECK FOR ACTIVE B1BAA-OCCUPANT CLASSIFICATION MODULE CONFIGURATION MISMATCH

With the scan tool, read Occupant Restraints Controller (ORC) DTCs.

Does the scan tool display an active: B1BAA-OCCUPANT CLASSIFICATION MODULE CONFIGURATION
MISMATCH DTCs?

Yes

>> Go To 2

>> Go To 5

CHECKING FOR CORRUPT CONFIGURATION MESSAGE

With the scan tool, read Occupant Restraints Controller (ORC) DTCs.

Does the scan tool display an active U1414-IMPLAUSIBLE/MISSING ECU NETWORK CONFIGURATION
DATA DTCs?

Yes

>> Go To U1414-IMPLAUSIBLE/MISSING ECU NETWORK CONFIGURATION DATA DTC (Refer to 8 -

ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TESTING)

>> Go To 3

CHECKING FOR LOSS OF CAN BUS CONFIGURATION MESSAGE

With the scan tool, read Occupant Restraints Controller (ORC) DTCs.

Does the scan tool display an active U1415-IMPLAUSIBLE/MISSING VEHICLE CONFIGURATION DATA
DTCs?

Yes

>> Go To U1415-IMPLAUSIBLE/MISSING VEHICLE CONFIGURATION DATA DTC (Refer to 8 - ELECTRI-

CAL/RESTRAINTS - DIAGNOSIS AND TESTING)

>> Go To 4

CHECKING FOR LOSS OF COMMUNICATION WITH THE TIPM

With the scan tool, read Occupant Restraints Controller (ORC) DTCs.

Does the scan tool display an active: U0141-LOST COMMUNICATION WITH FRONT CONTROL MODULE
(TOTALLY INTEGRATED POWER MODULE)?

Yes

>> Go To U0141-LOST COMMUNICATION WITH FRONT CONTROL MODULE (TOTALLY INTEGRATED

POWER MODULE) (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TESTING)

>> Go To 6

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 241

VERIFYING STORED B1BAA-OCCUPANT CLASSIFICATION MODULE CONFIGURATION MISMATCH DTC

With the scan tool, record and erase all DTC’s from the Occupant Restraint Controller.

Turn the ignition off, and wait 15 seconds, then turn the ignition on.

Wait one minute, and read active and stored codes.

Does the scan tool display an active or stored B1BAA-OCCUPANT CLASSIFICATION MODULE CONFIG-
URATION MISMATCH DTCs?

Yes

>> For active DTC-Go To 2

Yes

>> For stored-Go To 6

>> Perform *OCCUPANT CLASSIFICATION MODULE SYSTEM VERIFICATION TEST.

REPLACE THE ORC

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.

WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to
take the proper precautions can result in accidental airbag deployment and personal injury or death.

NOTE: When reconnecting airbag system components the Ignition must be turned off and the Battery must
be disconnected.

Repair

Replace the ORC in accordance with the Service Information.

Perform *OCCUPANT CLASSIFICATION MODULE SYSTEM VERIFICATION TEST.

8O - 242

RESTRAINTS - ELECTRICAL DIAGNOSTICS

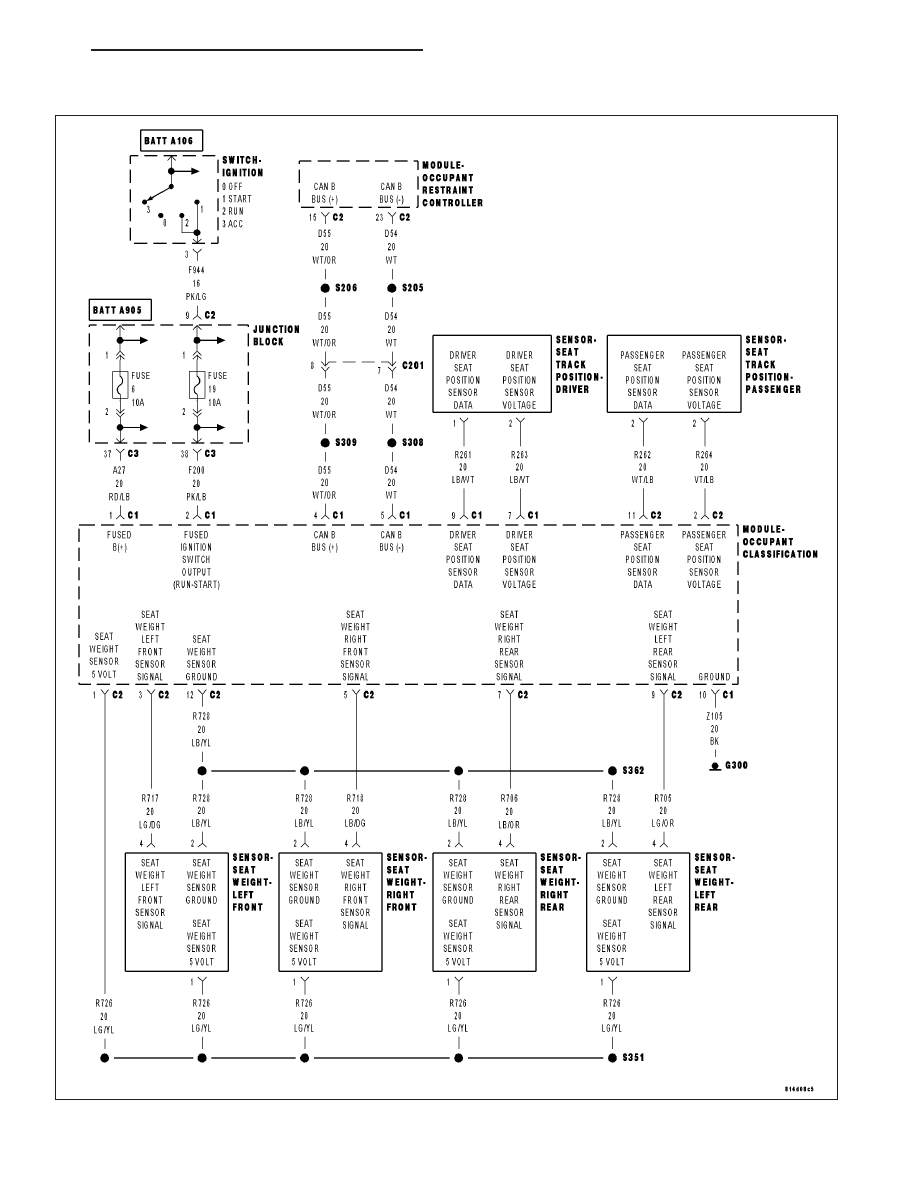

B1BBA-PASSENGER SEAT WEIGHT SENSOR SUPPLY CIRCUIT

For a complete wiring diagram Refer to Section 8W.

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 243

•

When Monitored:
While the CAN bus ignition status is in IGN_RUN, the module checks the sensor supply.

•

Set Condition:
If the OCM detects that the sensor supply shorted. NOTE: A shorted supply circuit will cause a ’NO
RESPONSE FROM OCM” condition.

Possible Causes

OCS SUPPLY CIRCUIT SHORTED

OCCUPANT CLASSIFICATION MODULE (OCM)

Diagnostic Test

VERIFY THAT B1BBA-PASSENGER SEAT WEIGHT SENSOR SUPPLY CIRCUIT DTC IS ACTIVE

With the scan tool, read OCM DTCs.

Does the scan tool display active: B1BBA-PASSENGER SEAT WEIGHT SENSOR SUPPLY CIRCUIT?

Yes

>> Replace the OCM in accordance with the Service Information.

Perform the OCS VERIFICATION REQUIRED procedure.

>> Go To 2

INSPECT PASSENGER SEAT HARNESS WIRES AND CONNECTORS

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the Passenger Seat Harness wiring and connectors. Look
for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contam-
inated terminals.

Are any of these conditions present?

Yes

NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or
testing for is present in the Seat Harness.

Replace the Passenger Seat Harness in accordance with the Service Information.

Perform *OCCUPANT CLASSIFICATION MODULE SYSTEM VERIFICATION TEST.

>> Go To 3

TEST FOR INTERMITTENT CONDITION

With the scan tool, record and erase all DTCs from the OCM.

If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.

Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or con-
taminated terminals.

The following additional checks may assist you in identifying a possible intermittent problem.

Reconnect any disconnected components and harness connector.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
With the scan tool monitor active codes as you work through the following steps.

WARNING: To avoid personal injury or death, maintain a safe distance from all airbags while performing the
following steps.
Wiggle the wiring harness and connectors of the related airbag circuit or component.

If only stored codes return continue the test until the problem area has been isolated.

8O - 244

RESTRAINTS - ELECTRICAL DIAGNOSTICS
