When Monitored:
With the ignition on.

•

Set Condition:
The Occupant Restraint Controller (ORC) monitors the resistance of the Driver Knee Bolster Airbag circuits.
The ORC will set this DTC if it detects low resistance between the Driver Knee Bolster Airbag circuits.

Possible Causes

(R11) DRIVER KNEE BLOCKER SQUIB LINE 1 CIRCUIT SHORTED TO (R9) DRIVER KNEE BLOCKER SQUIB
LINE 2 CIRCUIT

DRIVER KNEE BOLSTER AIRBAG

OCCUPANT RESTRAINT CONTROLLER (ORC)

Diagnostic Test

DETERMINE ACTIVE OR STORED DTC

NOTE: Ensure that the battery is fully charged.

NOTE: The scan tool, SRS Airbag Load Tool MRL 8443, and DVOM are required to perform the following
test.
Turn the ignition on.

Select ACTIVE or STORED DTC:

ACTIVE DTC

Go To 2

STORED DTC

Go To 4

CHECK FOR SHORTED DRIVER KNEE BOLSTER AIRBAG CIRCUITS

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Disconnect the Driver Knee Bolster Airbag connector.

NOTE: Check connectors - Clean and repair as necessary.

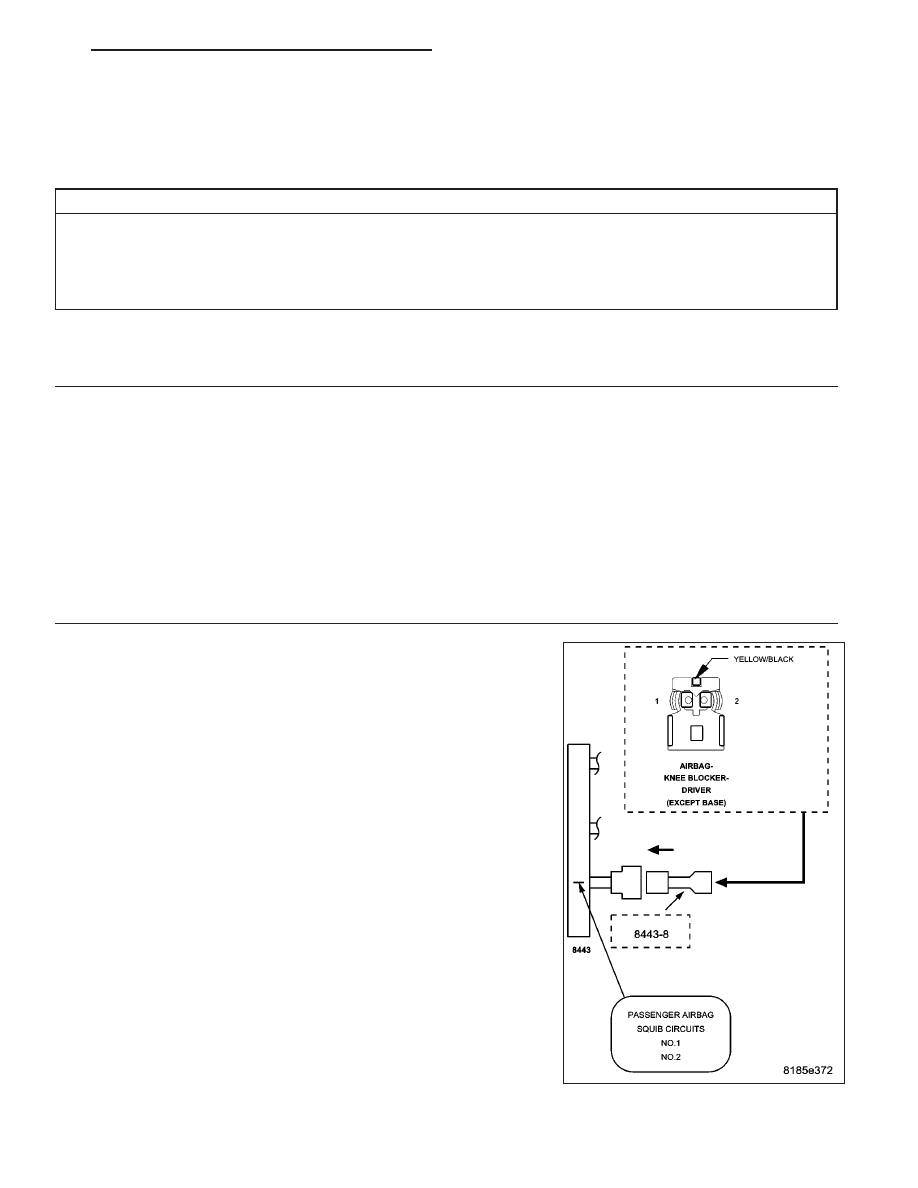

Connect the 8443 Load Tool to the Driver Knee Bolster Airbag connec-
tor.

WARNING: To avoid personal injury or death, turn the ignition on,
then reconnect the battery.
With the scan tool, read the active ORC DTCs.

Does the scan tool display: B1B13-DRIVER KNEE BOLSTER
SQUIB CIRCUIT SHORTED TOGETHER?

Yes

>> Go To 3

>> Replace the Driver Knee Bolster Airbag in accordance with

the Service Information.

Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 73

CHECK (R11) DRIVER KNEE BLOCKER SQUIB LINE 1 CIRCUIT FOR A SHORT TO (R9) DRIVER KNEE
BLOCKER SQUIB LINE 2 CIRCUIT

Disconnect the 8443 Load Tool from the Driver Knee Bolster Airbag
connector.

Disconnect the ORC connectors.

NOTE: Check connectors - Clean and repair as necessary.

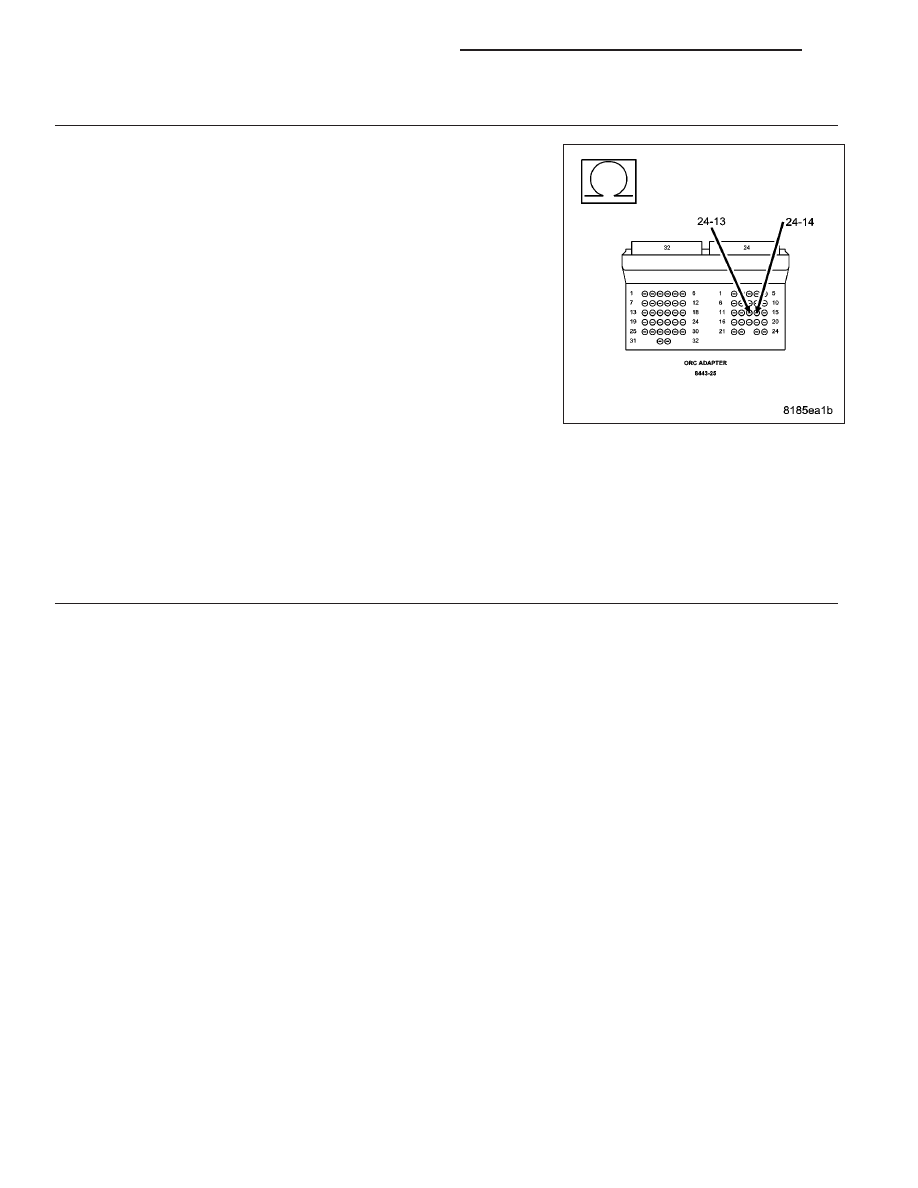

Connect the 8443 Load Tool ORC Adaptor to the ORC C2 connector.

Measure the resistance between the (R11) Driver Knee Blocker Squib
Line 1 circuit and the (R9) Driver Knee Blocker Squib Line 2 circuit at
the ORC adaptor.

Is the resistance below 10k ohms?

Yes

>> Repair the (R11) Driver Knee Blocker Squib Line 1 circuit

for a short to the (R9) Driver Knee Blocker Squib Line 2 cir-
cuit.

Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

WARNING: If the Occupant Restraint Controller (ORC) is dropped
at any time, it must be replaced. Failure to take the proper precautions can result in accidental airbag
deployment and personal injury or death.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.

Replace the ORC in accordance with Service Information.

Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

CHECKING STORED OR INTERMITTENT CODES

NOTE: Diagnose and repair all active codes before diagnosing stored codes. Refer to the Table of Contents
in this Section for a complete list of airbag system diagnostic procedures.
With the scan tool, record and erase all Airbag System Module DTCs.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the related wiring and connectors for chafed, pierced,
pinched, and partially broken wires, and for broken, bent, pushed out, corroded, and contaminated terminals. Repair
as necessary.

Reconnect all disconnected components and harness connectors.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
With the scan tool, monitor for active codes while performing the following:

•

Wiggle the wiring harness and connectors of the related airbag circuit.

•

Continue the test until either a code becomes active or the problem area is isolated.

In the previous steps you have attempted to recreate the conditions responsible for setting the DTC in question/
causing the intermittent condition.

Are any ACTIVE DTCs present?

Yes

>> Select the appropriate diagnostic procedure from the Table of Contents in this section.

>> No problem found at this time. Erase all codes before returning the vehicle to the customer.

8O - 74

RESTRAINTS - ELECTRICAL DIAGNOSTICS

B1B18-LEFT SIDE CURTAIN SQUIB 1 CIRCUIT LOW

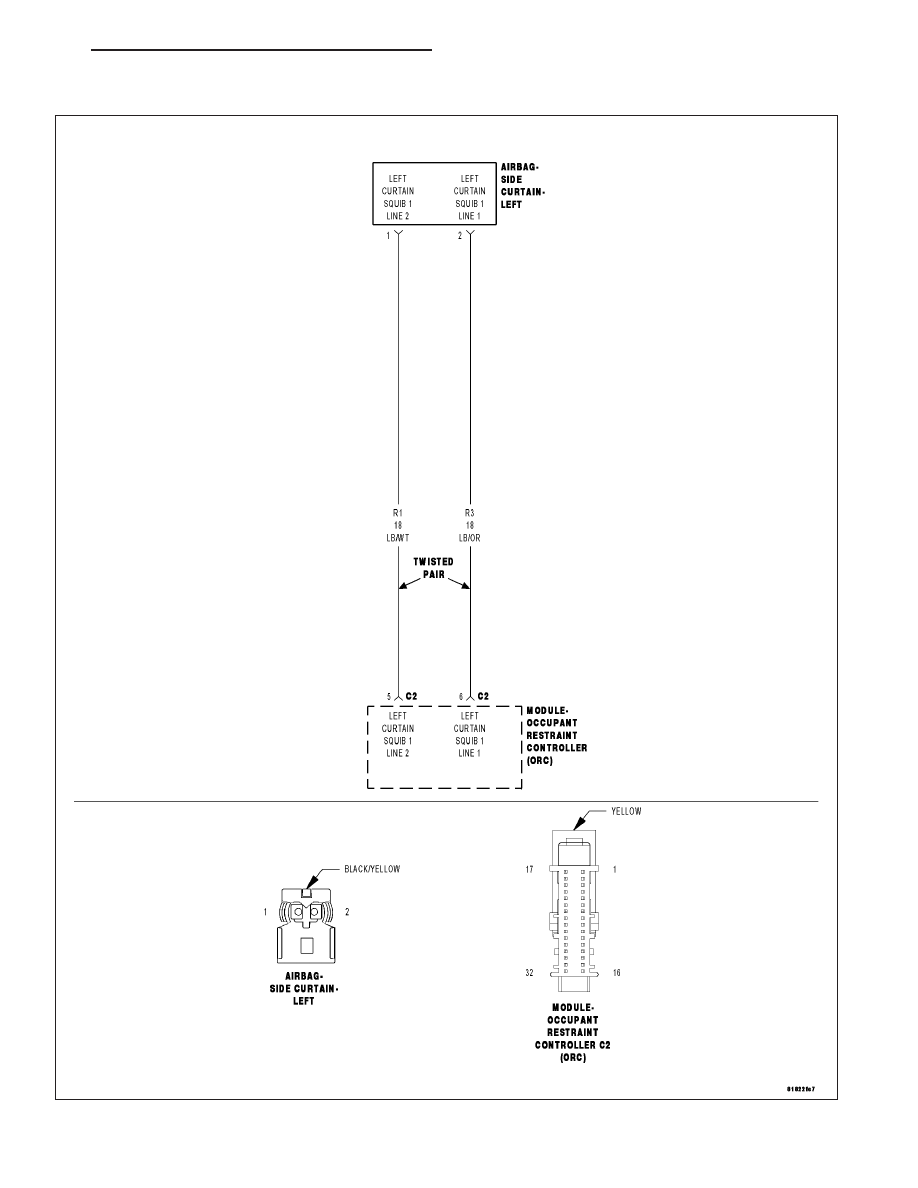

For a complete wiring diagram Refer to Section 8W.

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 75

•

When Monitored:
With the ignition on.

•

Set Condition:
The Occupant Restraint Controller (ORC) monitors the resistance of the Left Curtain Squib 1 circuits. The ORC
will set this DTC if it detects low resistance of the Left Curtain Squib 1 circuits.

Possible Causes

(R3) LEFT CURTAIN SQUIB 1 LINE 1 CIRCUIT OR (R1) LEFT CURTAIN SQUIB 1 LINE 2 CIRCUIT SHORTED
TO GROUND

LEFT SIDE CURTAIN AIRBAG

OCCUPANT RESTRAINT CONTROLLER (ORC)

Diagnostic Test

DETERMINE ACTIVE OR STORED DTC

NOTE: Ensure that the battery is fully charged.

NOTE: The scan tool, SRS Airbag Load Tool MRL 8443, and DVOM are required to perform the following
test.
Turn the ignition on.

Select ACTIVE or STORED DTC:

ACTIVE DTC

Go To 2

STORED DTC

Go To 4

CHECK FOR SHORTED SQUIB CIRCUITS IN LEFT SIDE CURTAIN AIRBAG

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Disconnect the Left Side Curtain Airbag connector.

WARNING: To avoid personal injury or death, do not place an
intact undeployed curtain airbag face down on a hard surface, the
airbag will propel into the air if accidentally deployed.

NOTE: Check connectors - Clean and repair as necessary.

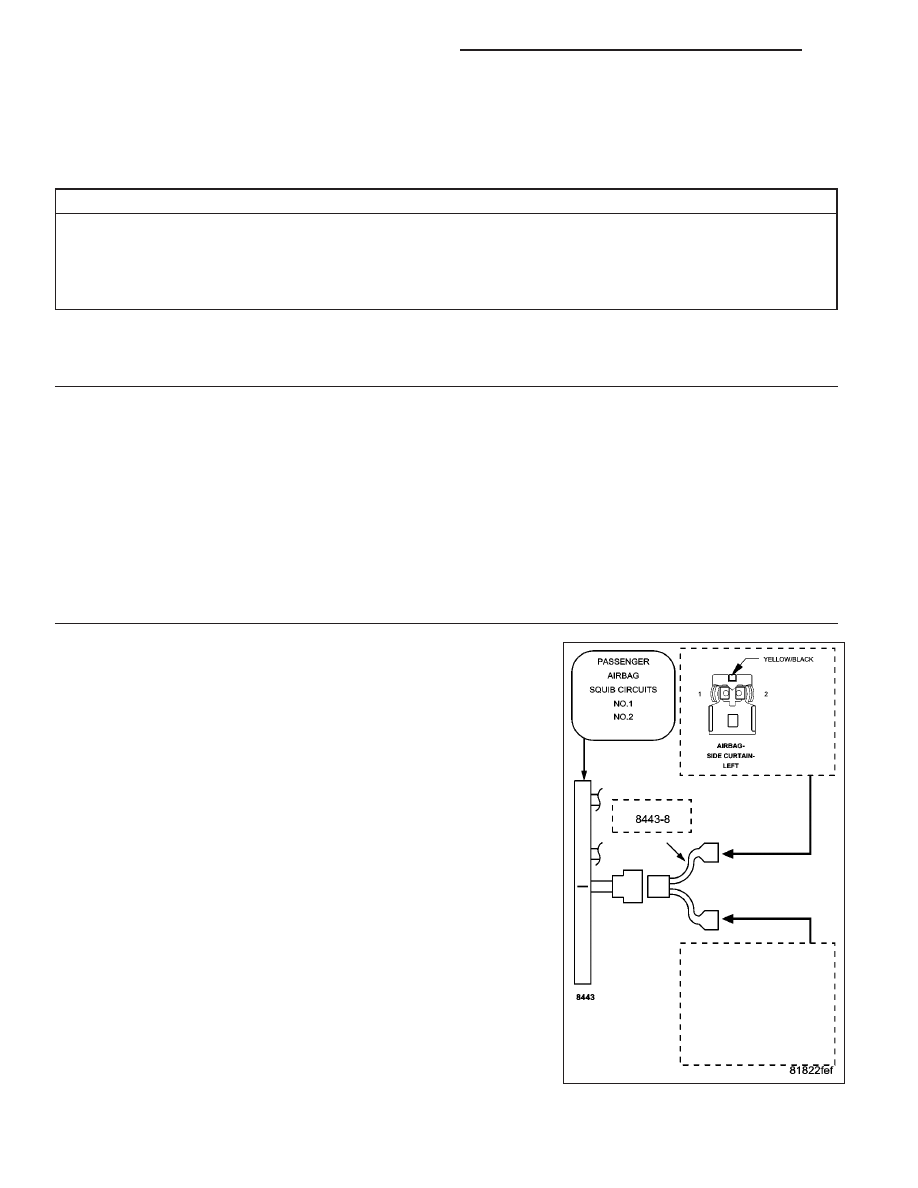

Connect the 8443 Load Tool and 8443-8 Jumper to the Left Side Cur-
tain Airbag connector.

WARNING: To avoid personal injury or death, turn the ignition on,
then reconnect the battery.
With the scan tool, read the active ORC DTCs.

Does the scan tool display: B1B18 LEFT SIDE CURTAIN SQUIB
1 CIRCUIT LOW?

Yes

>> Go To 3

>> Replace the Left Side Curtain Airbag in accordance with the

Service Information.

Perform AIRBAG SYSTEM VERIFICATION TEST - VER 1.

8O - 76

RESTRAINTS - ELECTRICAL DIAGNOSTICS
