Dodge Caliber. Manual - part 387

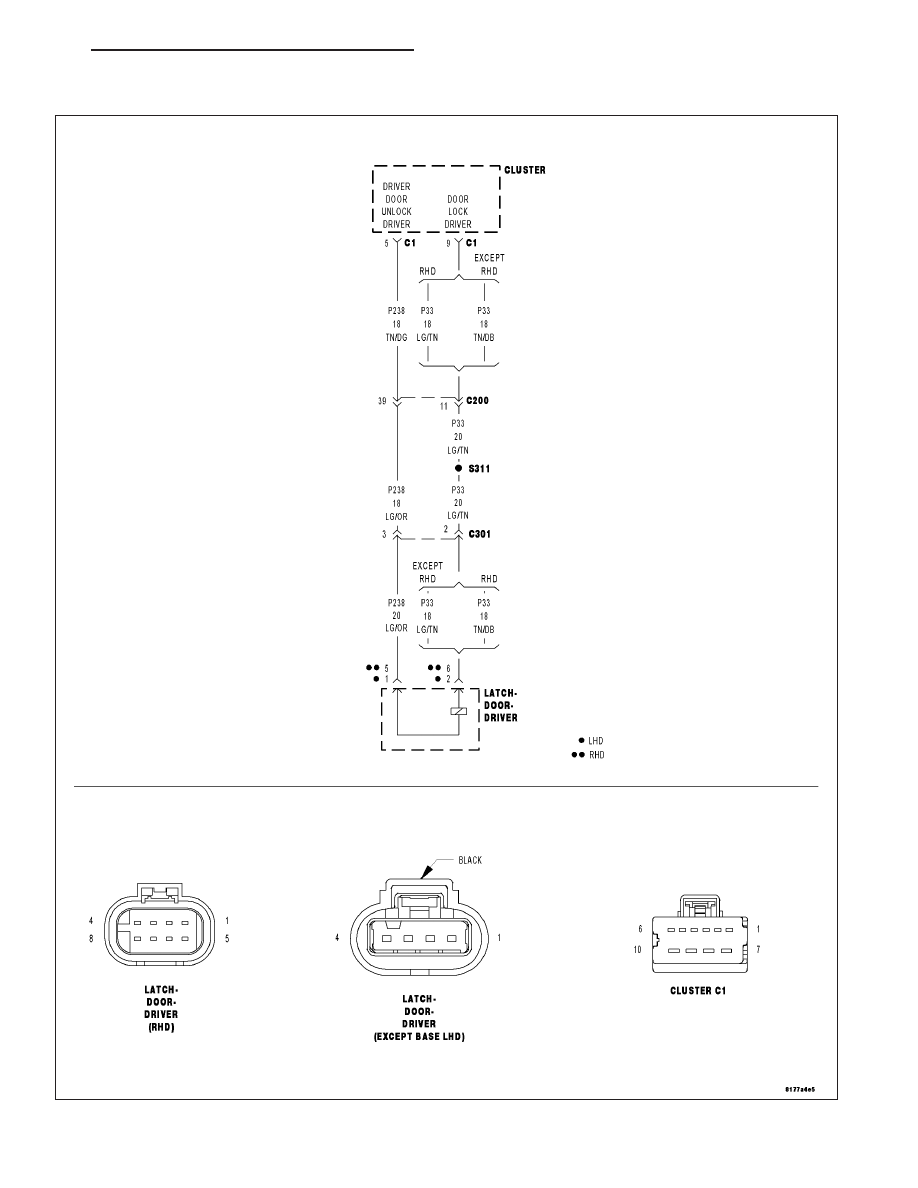

*DRIVER DOOR FAILS TO LOCK AND UNLOCK

For a complete wiring diagram Refer to Section 8W.

PM

POWER LOCKS - ELECTRICAL DIAGNOSTICS

8N - 25

Possible Causes

DTC’s PRESENT

(P238) DRIVER DOOR UNLOCK DRIVER WIRE OPEN

(P33) DOOR LOCK DRIVER WIRE OPEN

INSTRUMENT CLUSTER

DRIVER DOOR LATCH

Theory of Operation

This test does not cover a secondary latch problem on a right hand drive vehicle.

Diagnostic Test

1.

TEST FOR DIAGNOSTIC TROUBLE CODES

Turn the ignition on.

With the scan tool, record and erase DTC’s

Operate the Driver Door Lock Switch in all positions several times.

Cycle the ignition from on to off and wait for five seconds.

Turn the ignition on.

With the scan tool, read the active DTC’s.

Does the scan tool display any Power Door Lock related DTC’s?

No

>> Go To 2

Yes

>> Refer to the Table of Contents in this section to diagnose and repair the DTC’s.

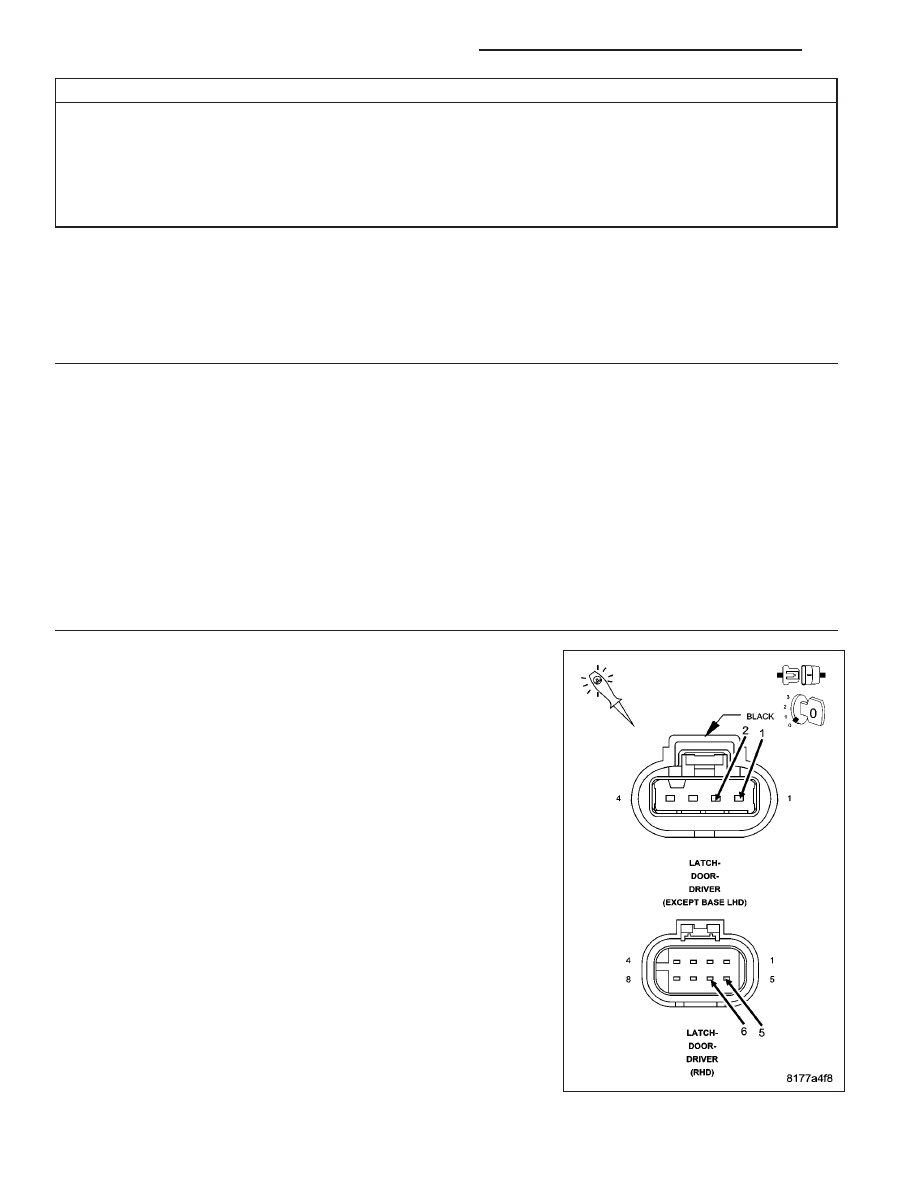

2.

CHECK DOOR LOCK MOTOR CIRCUIT

Turn the ignition off.

Disconnect the Driver Door Latch connector.

Connect a 12 volt test light between the (P33) Door Lock Driver and the
(P238) Driver Door Unlock Driver circuits in the latch connector.

Remove the key from the ignition switch.

Close the driver door or trip the latch to the door closed position

Operate the door locks several times in the lock and unlock positions
from the door lock switch and observe the test light.

Does the test light illuminate brightly when the locks are actu-
ated in both directions?

Yes

>> Replace the Driver Door Latch Assembly.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/POWER LOCKS - DIAGNOSIS AND TEST-
ING)

No

>> Go To 3

8N - 26

POWER LOCKS - ELECTRICAL DIAGNOSTICS

PM

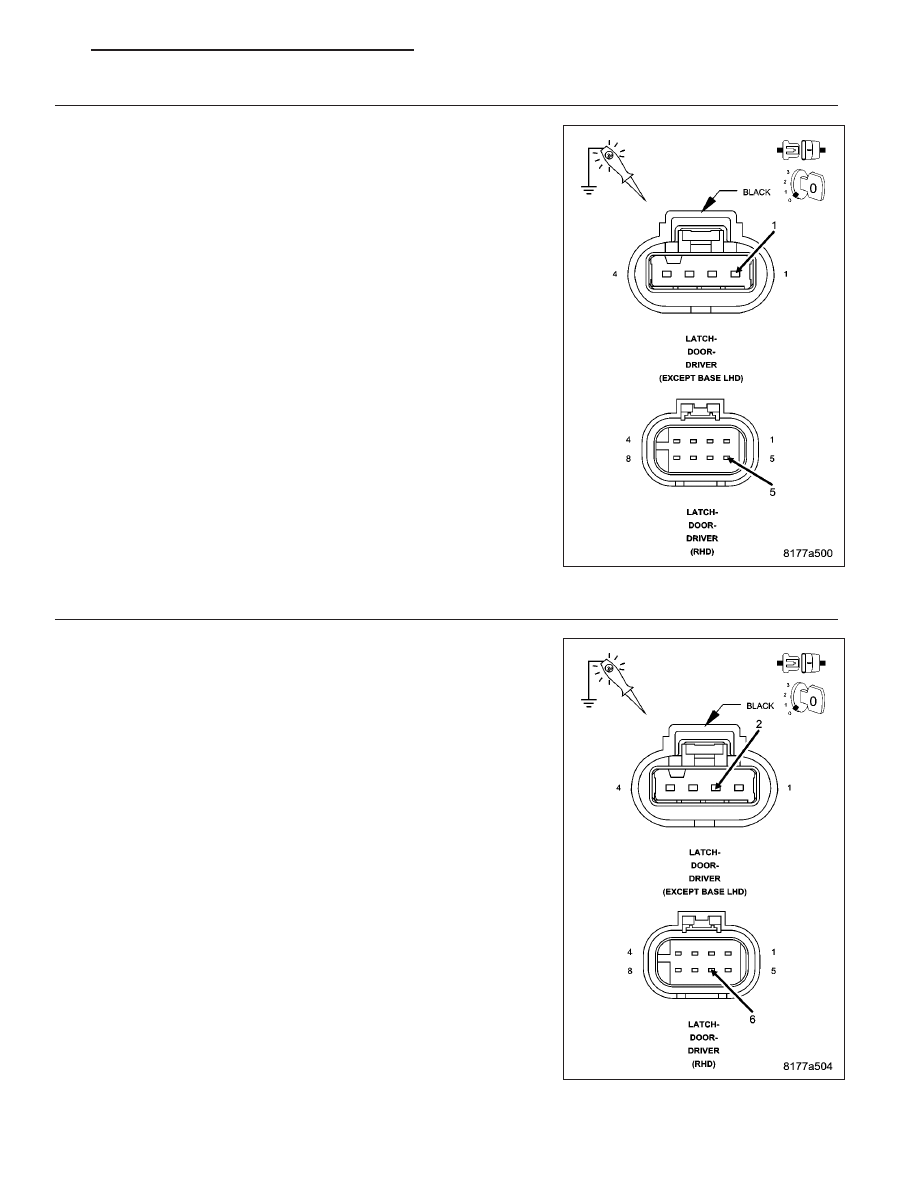

3.

(P238) DRIVER DOOR UNLOCK DRIVER CIRCUIT OPEN

Using a 12-volt test light connected to ground, check the (P238) Driver
Door Unlock Driver circuit.

Close the driver door or trip the latch to the door closed position

With the scan tool, actuate the Driver Door Unlock Relay.

Does the test light illuminate brightly when the driver door
unlock is actuated?

Yes

>> Go To 4

No

>> Go To 5

4.

(P33) DOOR LOCK DRIVER WIRE OPEN

Using a 12-volt test light connected to ground, check the (P33) Door
Lock Driver circuit.

Close the driver door or trip the latch to the door closed position

With the scan tool, actuate the Door Lock Relay.

Does the test light illuminate brightly when the door lock is
actuated?

Yes

>> Test Complete.

No

>> Repair the (P33) Door Lock Driver wire for an open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/POWER LOCKS - DIAGNOSIS AND TEST-
ING)

PM

POWER LOCKS - ELECTRICAL DIAGNOSTICS

8N - 27

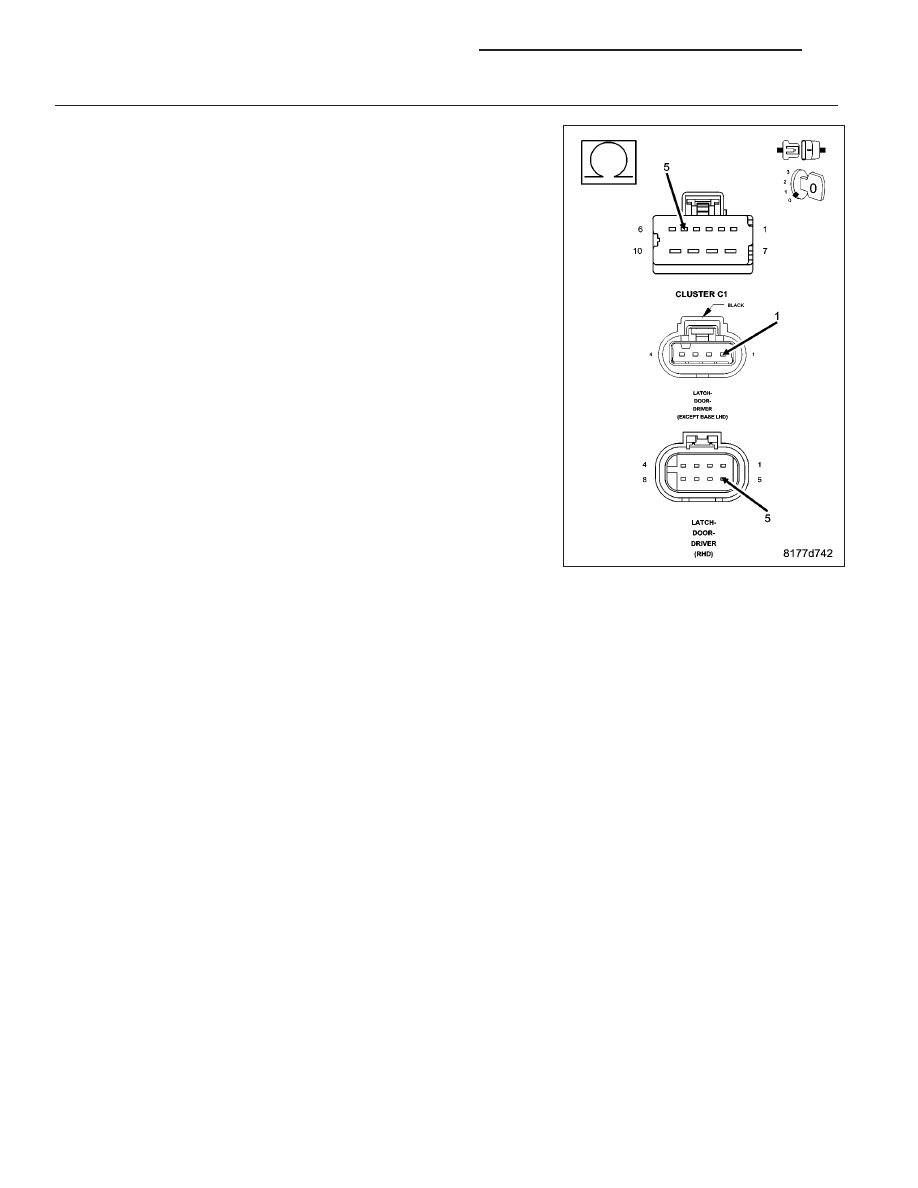

5.

(P238) DRIVER DOOR UNLOCK DRIVER WIRE OPEN

Disconnect the Cluster C1 connector.

Measure the resistance of the (P238) Driver Door Unlock Driver wire
between the Cluster C1 connector and the Driver Door Latch connector.

Is the resistance below 2.0 ohms?

Yes

>> Replace the Instrument Cluster in accordance with service

information.Perform BODY VERIFICATION TEST - VER 1.
(Refer to 8 - ELECTRICAL/POWER LOCKS - DIAGNOSIS
AND TESTING)

No

>> Repair the (P238) Driver Door Unlock Driver wire for an

open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/POWER LOCKS - DIAGNOSIS AND TEST-
ING)

8N - 28

POWER LOCKS - ELECTRICAL DIAGNOSTICS

PM
