Dodge Caliber. Manual - part 331





B210E-BATTERY VOLTAGE HIGH

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
The Instrument Cluster detects a battery voltage of 16.0 volts or greater for 5 seconds.

Possible Causes

VEHICLE CHARGING SYSTEM

CLUSTER

Diagnostic Test

1.

CHECK FOR ACTIVE DTC: B210E-BATTERY VOLTAGE HIGH

Turn the ignition on.

With the scan tool, record and erase Instrument Cluster DTCs.

Wait 30 seconds.

With the scan tool, read Instrument Cluster DTCs.

Does the scan tool display: B210E-BATTERY VOLTAGE HIGH?

Yes

>> Go To 2

No

>> The condition that caused this code to set is not present at this time. Check for an intermittent condition

by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also
inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated termi-
nals.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

2.

VERIFY OPERATION OF THE VEHICLE CHARGING SYSTEM

NOTE: Troubleshoot any PCM charging/cranking DTCs before proceeding.

NOTE: Ensure the battery is fully charged.

Are any charging system DTCs present?

Yes

>> Refer to appropriate DTC diagnostic information.

No

>> Replace the Instrument Cluster in accordance with the service information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

PM

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

8J - 17

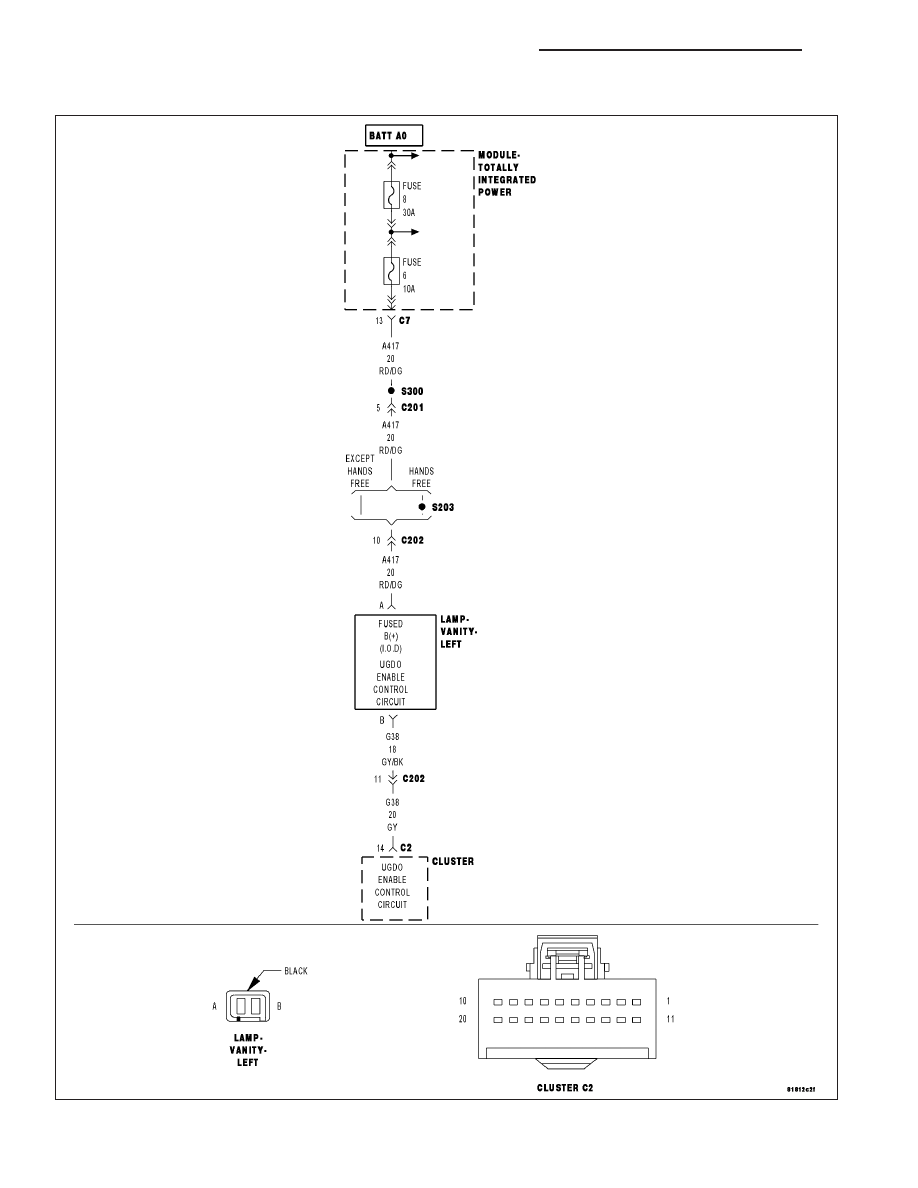

B2143-UGDO ENABLE CONTROL CIRCUIT

For a complete wiring diagram Refer to Section 8W.

8J - 18

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

PM

When Monitored:
With the ignition on.

Set Condition:
The Cluster detects a fault on the (G38) UGDO Enable Control Circuit.

Possible Causes

(G38) UGDO ENABLE CONTROL CIRCUIT SHORT TO VOLTAGE

(G38) UGDO ENABLE CONTROL CIRCUIT SHORT TO GROUND

(G38) UGDO ENABLE CONTROL CIRCUIT OPEN

UGDO MODULE

CLUSTER

Diagnostic Test

1.

CHECK FOR AN ACTIVE DTC

Turn the ignition on.

With the scan tool, record and erase DTCs.

Wait 30 seconds.

With the scan tool, read DTCs.

Does the scan tool display: B2143-UGDO ENABLE CONTROL CIRCUIT?

Yes

>> Go To 2

No

>> The condition that caused this code to set is not present at this time. Check for an intermittent condition

by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also
inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated termi-
nals.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

2.

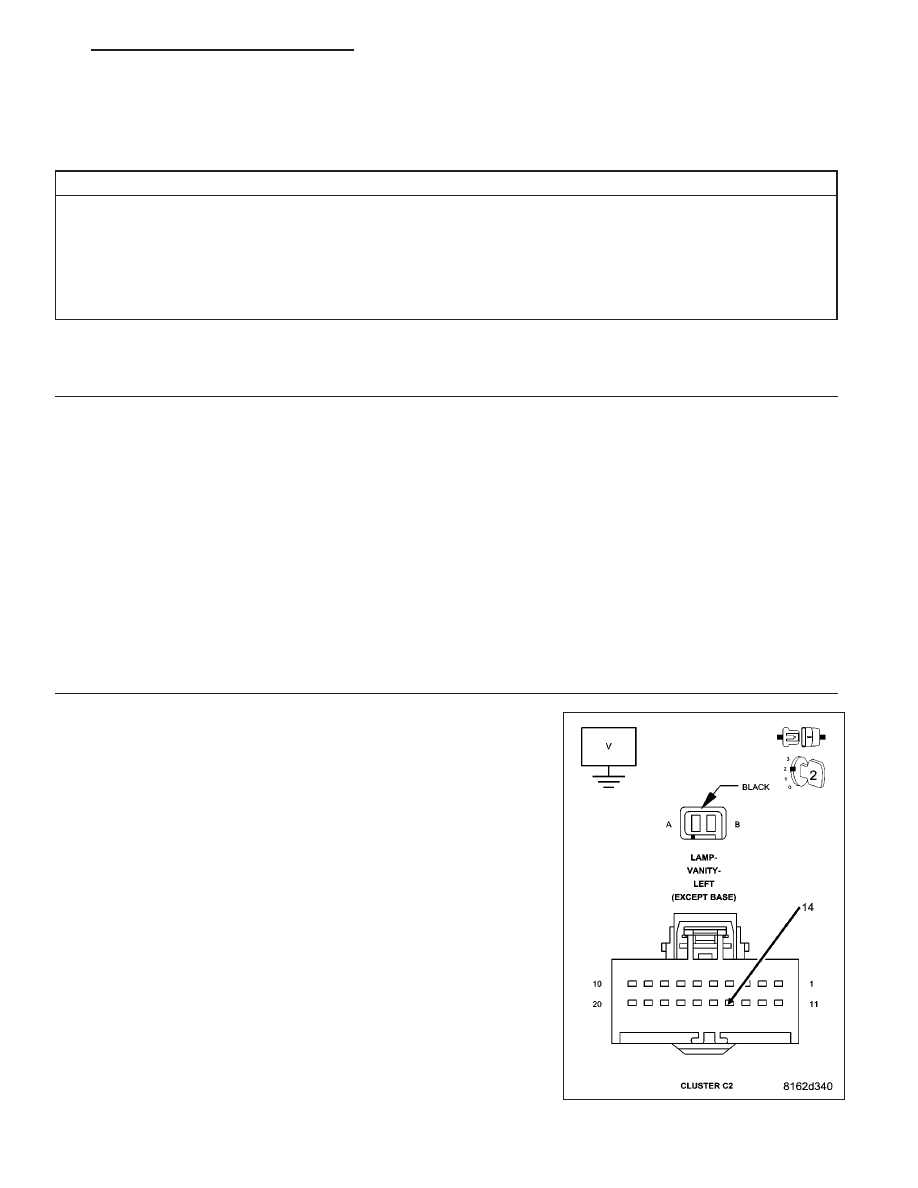

(G38) UGDO ENABLE CONTROL CIRCUIT SHORT TO VOLTAGE

Turn the ignition off.

Disconnect the Instrument Cluster C2 harness connector.

Disconnect the Left Vanity Lamp Harness connector.

Turn the ignition on.

Measure the voltage of the (G38) UGDO Enable Control Circuit.

Is voltage present?

Yes

>> Repair the (G38) UGDO Enable Control Circuit for a short

to voltage.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Go To 3

PM

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

8J - 19

3.

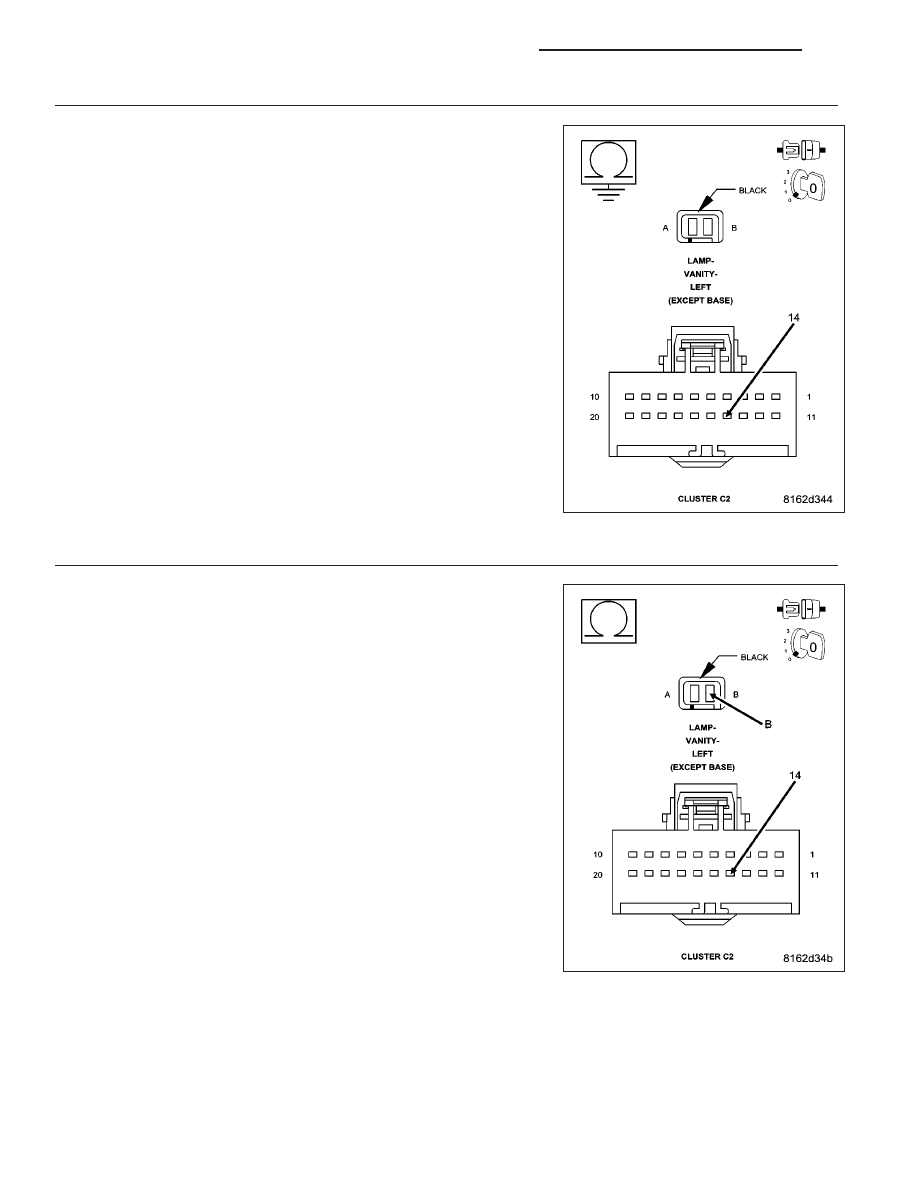

(G38) UGDO ENABLE CONTROL CIRCUIT SHORT TO GROUND

Turn the ignition off.

Measure the resistance between ground and the (G38) UGDO Enable
Control Circuit.

Is the resistance below 10K ohms?

Yes

>> Repair the (G38) UGDO Enable Control Circuit for a short

to ground.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Go To 4

4.

(G38) UGDO ENABLE CONTROL CIRCUIT OPEN

Measure the resistance of the (G38) UGDO Enable Control Circuit.

Is the resistance above 10K ohms?

Yes

>> Repair the (G38) UGDO Enable Control Circuit for an open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Replace the Instrument Cluster inaccordance with the ser-

vice information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

8J - 20

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

PM
