STANDARD PROCEDURE)

B1615-PANEL ILLUMINATION CONTROL CIRCUIT OPEN

PM

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

8J - 13

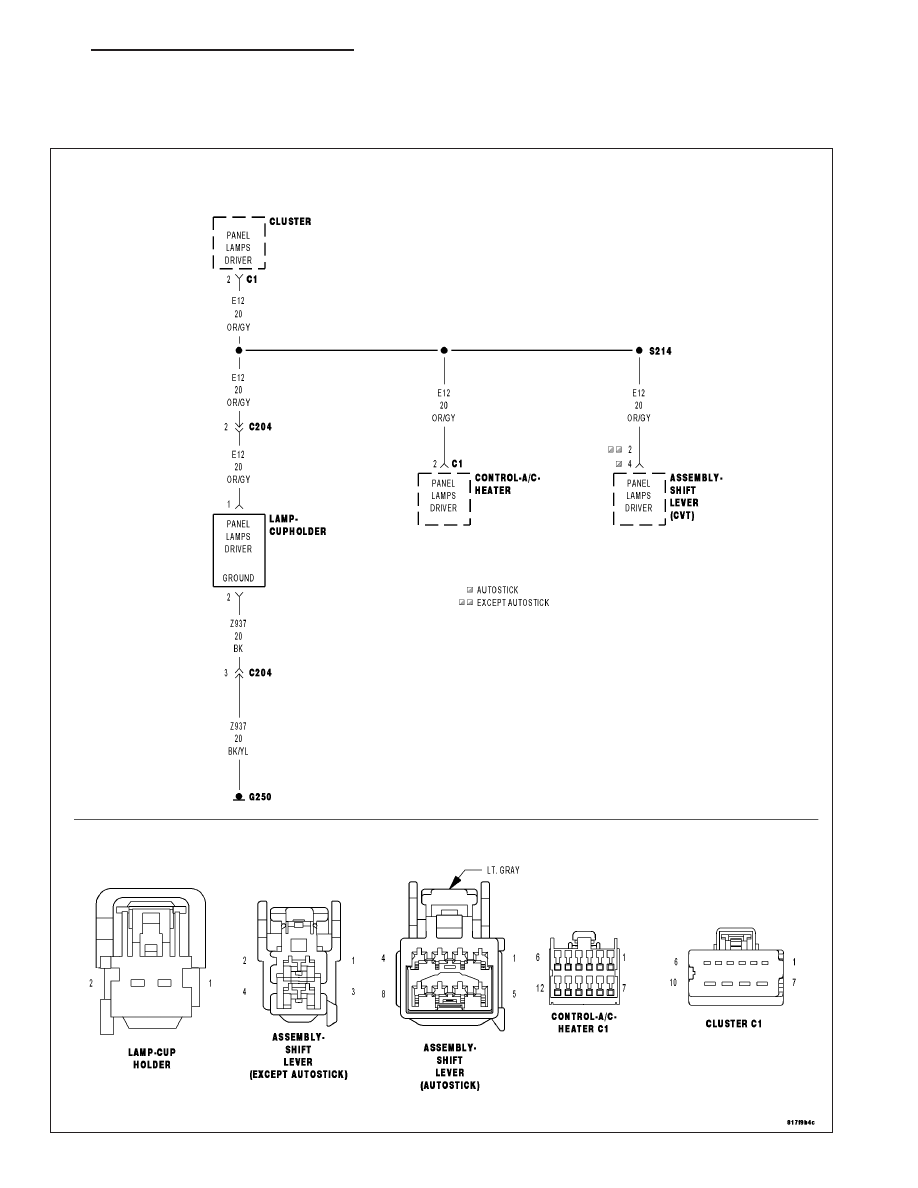

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on and the Panel Illumination active.

Set Condition:
Panel Illumination Status open.

Possible Causes

(E12) PANEL LAMPS DRIVER CIRCUIT SHORTED TO VOLTAGE

(E12) PANEL LAMPS DRIVER CIRCUIT OPEN

CLUSTER

Diagnostic Test

1.

CHECK FOR AN ACTIVE DTC

Turn the ignition on.

With the scan tool, record and erase DTCs.

Activate the Panel Illumination.

Wait 30 seconds.

With the scan tool, read DTCs.

Does the scan tool display: B1615-PANEL ILLUMINATION CONTROL CIRCUIT HIGH?

Yes

>> Go To 2

No

>> The condition that caused this code to set is not present at this time. Check for an intermittent condition

by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also
inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated termi-
nals.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

2.

CHECK THE (E12) PANEL LAMPS DRIVER CIRCUIT FOR AN OPEN

Turn the ignition off.

Disconnect the Cluster C1 harness connector.

Disconnect the Cup Holder Lamp harness connector.

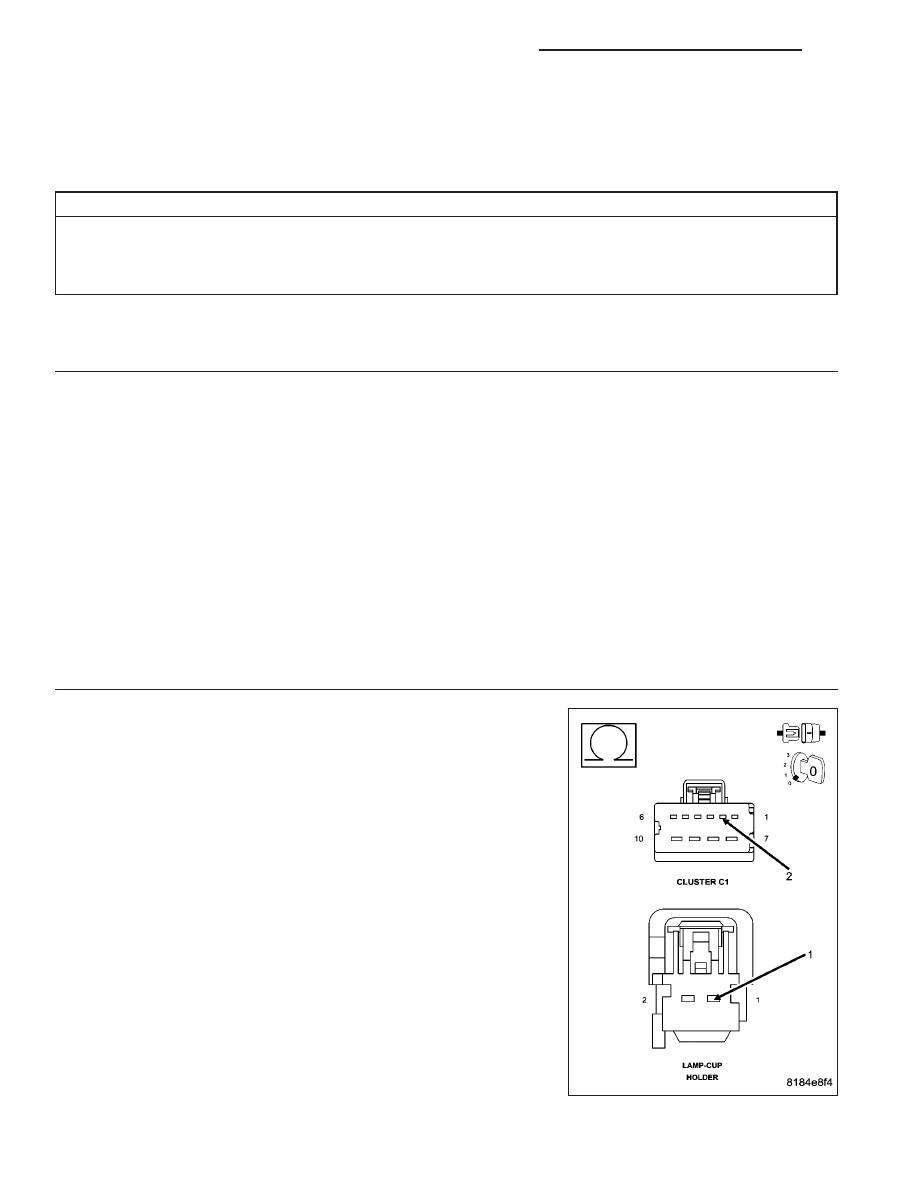

Measure the resistance of the (E12) Panel Lamps Driver Circuit
between the Instrument Cluster C1 harness connector and the Cup
Holder harness connector.

Is the resistance greater than 10K ohms?

Yes

>> Repair the (E12) Panel Lamps Driver circuit for an open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Go To 3

8J - 14

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

PM

3.

CHECK THE (E12) PANEL LAMPS DRIVER CIRCUIT FOR A SHORT TO VOLTAGE

Turn the ignition on.

Measure the voltage of the (E12) Panel Lamps Driver Circuit from the
Instrument Cluster C1 harness connector.

Is the voltage above 5.0 volts?

Yes

>> Repair the (E12) Panel Lamps Driver circuit for a short to

voltage.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

No

>> Replace the Instrument Cluster in accordance with the ser-

vice information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES

-

STANDARD PROCEDURE)

PM

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

8J - 15

B210D-BATTERY VOLTAGE LOW

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
The Instrument Cluster detects a battery voltage of 9.0 volts or less for 5 seconds.

Possible Causes

VEHICLE CHARGING SYSTEM

CLUSTER

Diagnostic Test

1.

CHECK FOR ACTIVE DTC: B210D-BATTERY VOLTAGE LOW

Turn the ignition on.

With the scan tool, record and erase Instrument Cluster DTCs.

Wait 30 seconds.

With the scan tool, read Instrument Cluster DTCs.

Does the scan tool display: B210D-BATTERY VOLTAGE LOW?

Yes

>> Go To 2

No

>> The condition that caused this code to set is not present at this time. Check for an intermittent condition

by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also
inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated termi-
nals.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

2.

VERIFY OPERATION OF THE VEHICLE CHARGING SYSTEM

NOTE: Troubleshoot any PCM charging/cranking DTCs before proceeding.

NOTE: Ensure the battery is fully charged.

Are any charging system DTCs present?

Yes

>> Refer to appropriate DTC diagnostic information.

No

>> Replace the Instrument Cluster in accordance with the service information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)
