Dodge Caliber. Manual - part 293





SWITCH-REAR WINDOW DEFOGGER

DESCRIPTION

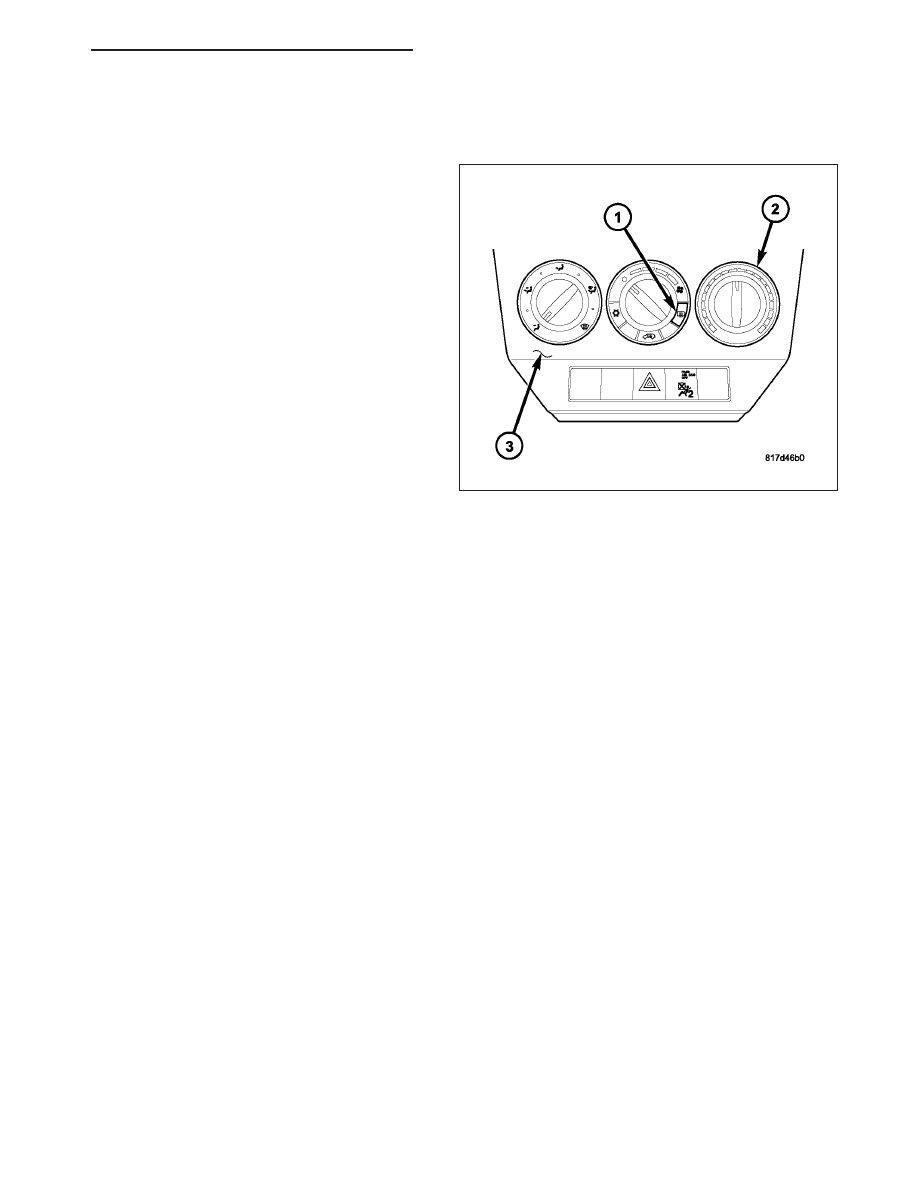

The switch for the rear window defogger (EBL) system
(1) is located in the A/C-heater control (2) in the
instrument panel center bezel (3). When the rear win-
dow defogger switch is pressed to the On position a
request signal is sent to the cabin compartment node
(CCN), which sends a message to the totally inte-
grated power module (TIPM) to operate the EBL sys-
tem.

When the high side driver in the TIPM is energized,
current is directed to the rear defogger grid lines and
to the heated side view mirrors (when equipped). The
grid lines heat the glass to help clear the surface of
fog or frost.

OPERATION

An amber indicator will illuminate when the rear window defogger switch is activated. When activated, the switch
sends a request signal to the cabin compartment node (CCN), which sends a message to the totally integrated
power module (TIPM) to energize the internal EBL high side driver to provide battery current to the rear window
defogger grid lines and, when equipped, to the heated side view mirrors.

NOTE: The EBL system turns off automatically after 10 minutes of initial operation. Each following activa-
tion cycle of the EBL system will last 5 minutes.

The EBL system will be automatically turned off after an initial programmed time interval of about 10 minutes as
long as the ignition switch is the Run position. After the initial time interval has expired, if the rear window defogger
switch is turned on again during the same ignition cycle, the EBL system will automatically turn off after about 5
minutes. The EBL system will automatically shut off if the ignition switch is turned to any position other than Run, or
it can be turned off manually by pressing the rear window defogger switch a second time.

The rear window defogger switch is diagnosed using a scan tool (refer to 8G - Heated Glass Electrical Diagnostics
for more information).

The rear window defogger switch and the rear window defogger indicator cannot be repaired and, if faulty or dam-
aged, the A/C-heater control must be replaced (refer to 24 - HEATING & AIR CONDITIONING/CONTROLS/CON-
TROL-A/C HEATER - REMOVAL).

PM

HEATED GLASS - SERVICE INFORMATION

8G - 27

HEATED MIRRORS - SERVICE INFORMATION

TABLE OF CONTENTS

page

page

HEATED MIRRORS - SERVICE INFORMATION

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

8G - 28

HEATED MIRRORS - SERVICE INFORMATION

PM

HEATED MIRRORS - SERVICE INFORMATION

DESCRIPTION

When equipped, the heated mirror system operates in
concert with the rear window defogger (EBL) system
and is controlled by the rear window defogger switch
(1) located in the A/C-heater control (2) in the instru-
ment panel center bezel (3). An amber indicator lamp
in the rear window defogger switch will illuminate to
indicate when the heated mirror system is turned on.

The heated mirror system will be automatically turned
off after an initial programmed time interval of about
10 minutes as long as the ignition switch is the Run
position. After the initial time interval has expired, if
the rear window defogger switch is turned on again
during the same ignition cycle, the heated mirror sys-
tem will automatically turn off after about 5 minutes.
The heated mirror system will also turn off if the igni-
tion switch is turned to any position other than Run or
by manually pressing the rear window defogger switch
a second time.

Circuit protection for the heated mirror system is pro-
vided by a fuse located in the totally integrated power module (TIPM).

OPERATION

When equipped, the heated mirror system is activated when the rear window defogger (EBL) system is turned on
(refer to 8 - ELECTRICAL/HEATED GLASS - OPERATION). When the heated mirror system is activated, an electric
heater grid located behind the glass of each of the outside rear view mirror becomes energized and produces heat
to help clear the mirror of ice, snow, or fog.

If the outside mirror heating grids are both inoperative, (refer to 8 - ELECTRICAL/HEATED GLASS - DIAGNOSIS
AND TESTING) in this group. If only one of the outside mirror heating grid is inoperative, (refer to 8 - ELECTRICAL/
POWER MIRRORS - DIAGNOSIS AND TESTING).

The heating grid behind each outside mirror glass cannot be repaired and if faulty or damaged the mirror must be
replaced (refer to 23 - BODY/EXTERIOR/SIDE VIEW MIRROR - REMOVAL.

PM

HEATED MIRRORS - SERVICE INFORMATION

8G - 29
