When Monitored:
With the ignition on.
Battery voltage between 10 and 16 volts.
IOD fuse installed.
TIPM is configured correctly.

Set Condition:
Bus messages not received from the Satellite Receiver (SDAR) for approximately 2 to 5 seconds.

Possible Causes

CAN B BUS CIRCUITS OPEN OR SHORTED

DTC’S RELATED TO BATTERY VOLTAGE, IGNITION, OR VIN MESSAGES

TIPM NOT CONFIGURED CORRECTLY

SATELLITE RECEIVER POWER AND GROUND

SATELLITE RECEIVER

MODULE THAT SET THIS DTC

Diagnostic Test

1.

VERIFY DTC IS ACTIVE

NOTE: Ensure the IOD fuse is installed and battery voltage is between 10 and 16 volts before proceeding.
With the scan tool, read active DTC’s.

Is this DTC active?

Yes

>> Go To 2

No

>> Perform the Stored Lost Communication test procedure. (Refer to 8 - ELECTRICAL/ELECTRONIC

CONTROL MODULES - DIAGNOSIS AND TESTING).

2.

CHECK FOR ANY OF THE FOLLOWING ACTIVE DTC’S

With the scan tool, read active DTC’s from all modules.

NOTE: Check for TIPM configuration, CAN B or C hardware electrical, VIN Missing/Mismatch, battery or igni-
tion related DTC’s.

Does the scan tool display any active DTC’s to the conditions listed above?

Yes

>> Diagnose and repair the DTC. Refer to the Table of Contents for a complete list of the symptoms.

No

>> Go To 3

3.

VERIFY THAT THE SATELLITE RECEIVER IS ACTIVE ON THE BUS

Turn the ignition on.

With the scan tool, select ECU View.

Verify that the SDARS is active on the bus.

Is the SDARS active on the bus?

Yes

>> Go To 4

No

>> (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for No

Response diagnostic procedures.

PM

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 79

4.

CHECK FOR ADDITIONAL COMMUNICATION RELATED DTC’S

With the scan tool, select Network View and select Advanced.

Is there more than one module with active DTC’s “Logged Against” the SDARS?

Yes

>> Replace/update the Satellite Receiver in accordance with the service information.

Perform the BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE).

No

>> Replace/update the module that set the DTC in accordance with the service information

Perform the appropriate VERIFICATION TEST.

8E - 80

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

PM

U0197-LOST COMMUNICATION WITH HANDS FREE PHONE MODULE (HFM)

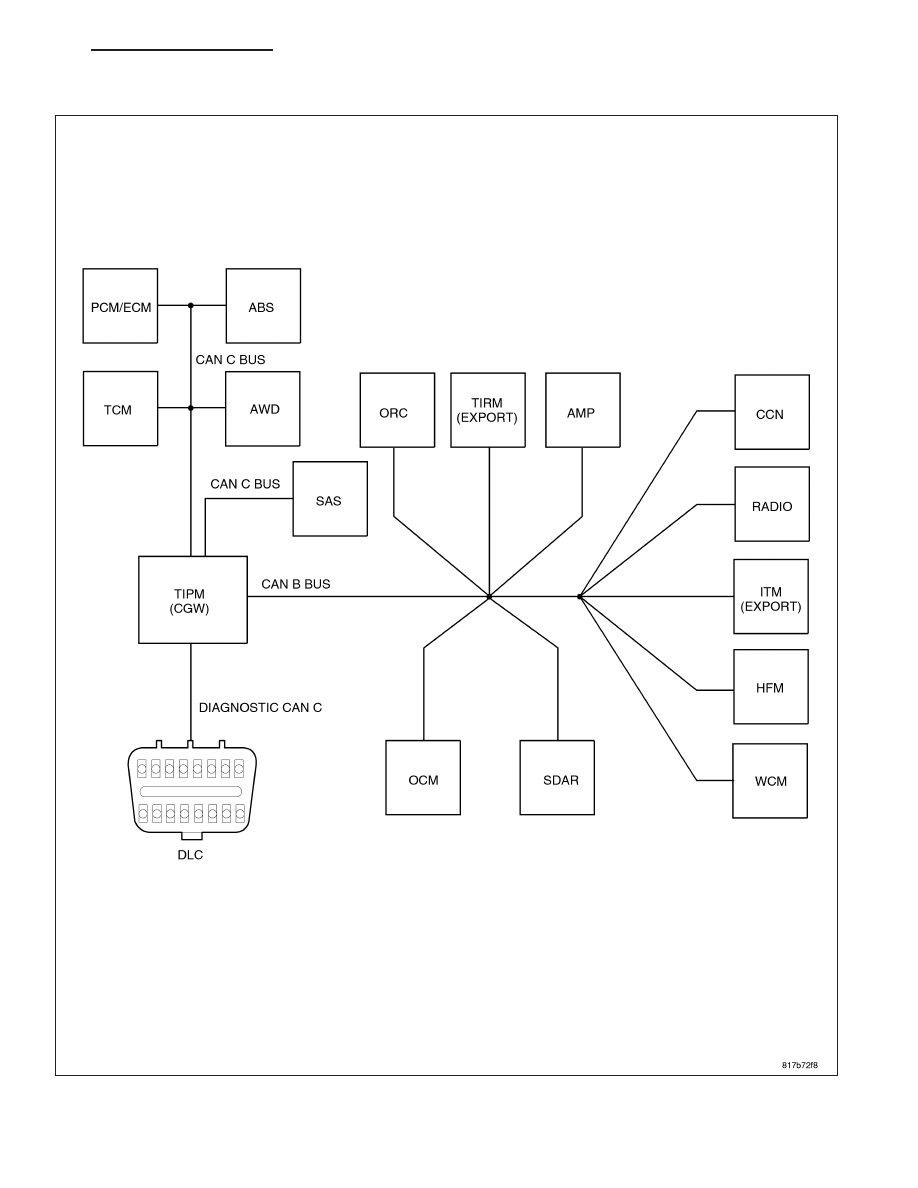

For a complete wiring diagram Refer to Section 8W.

PM

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 81

When Monitored:
With the ignition on.
Battery voltage between 10 and 16 volts.
IOD fuse installed.
TIPM is configured correctly.

Set Condition:
Bus messages not received from the HFM for approximately 2 to 5 seconds.

Possible Causes

CAN B BUS CIRCUITS OPEN OR SHORTED

DTC’S RELATED TO BATTERY VOLTAGE, IGNITION, OR VIN MESSAGES

TIPM NOT CONFIGURED CORRECTLY

HANDS FREE MODULE POWER AND GROUND

HANDS FREE MODULE

MODULE THAT SET THIS DTC

Diagnostic Test

1.

VERIFY DTC IS ACTIVE

NOTE: Ensure the IOD fuse is installed and battery voltage is between 10 and 16 volts before proceeding.
With the scan tool, read active DTC’s.

Is this DTC active?

Yes

>> Go To 2

No

>> Perform the Stored Lost Communication test procedure. (Refer to 8 - ELECTRICAL/ELECTRONIC

CONTROL MODULES - DIAGNOSIS AND TESTING).

2.

CHECK FOR ANY OF THE FOLLOWING ACTIVE DTC’S

With the scan tool, read active DTC’s from all modules.

NOTE: Check for TIPM configuration, CAN B or C hardware electrical, VIN Missing/Mismatch, battery or igni-
tion related DTC’s.

Does the scan tool display any active DTC’s to the conditions listed above?

Yes

>> Diagnose and repair the DTC. Refer to the Table of Contents for a complete list of the symptoms.

No

>> Go To 3

3.

VERIFY THAT THE HFM IS ACTIVE ON THE BUS

Turn the ignition on.

With the scan tool, select ECU View.

Verify that the HFM is active on the bus.

Is the HFM active on the bus?

Yes

>> Go To 4

No

>> (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for No

Response diagnostic procedures.

8E - 82

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

PM
