Dodge Caliber. Manual - part 1397





3.

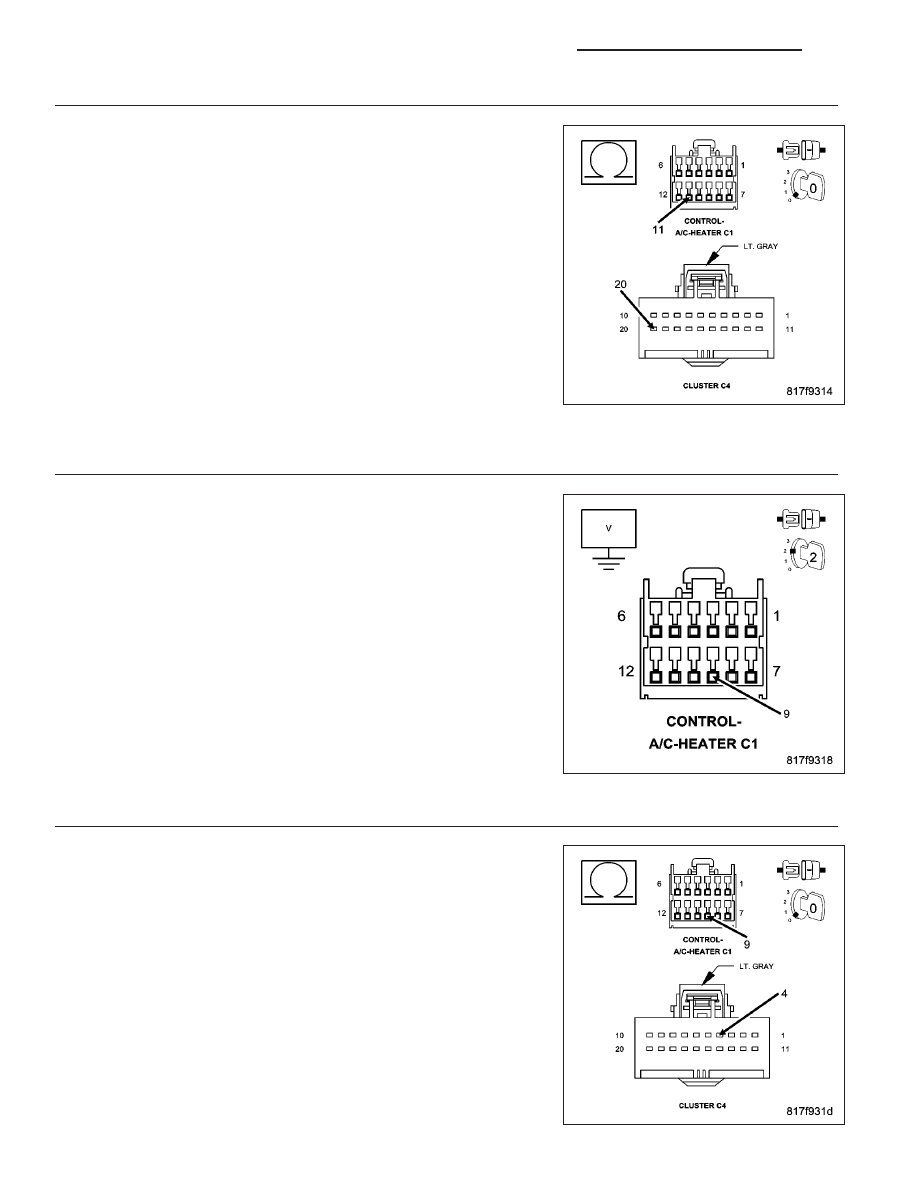

CHECK THE (C105) HVAC MUX CONTROL CIRCUIT FOR A SHORT TO GROUND

Turn the ignition off.

Disconnect the Instrument Cluster C4 harness connector.

Measure the resistance of the (C105) HVAC MUX Control circuit
between ground and the A/C Heater Control C4 harness connector.

Does the ohm meter read open circuit?

Yes

>> Go To 4

No

>> Repair the (C105) HVAC MUX Control circuit for a short to

ground.

Perform the BODY VERIFICATION TEST – VER 1. (Refer
to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

4.

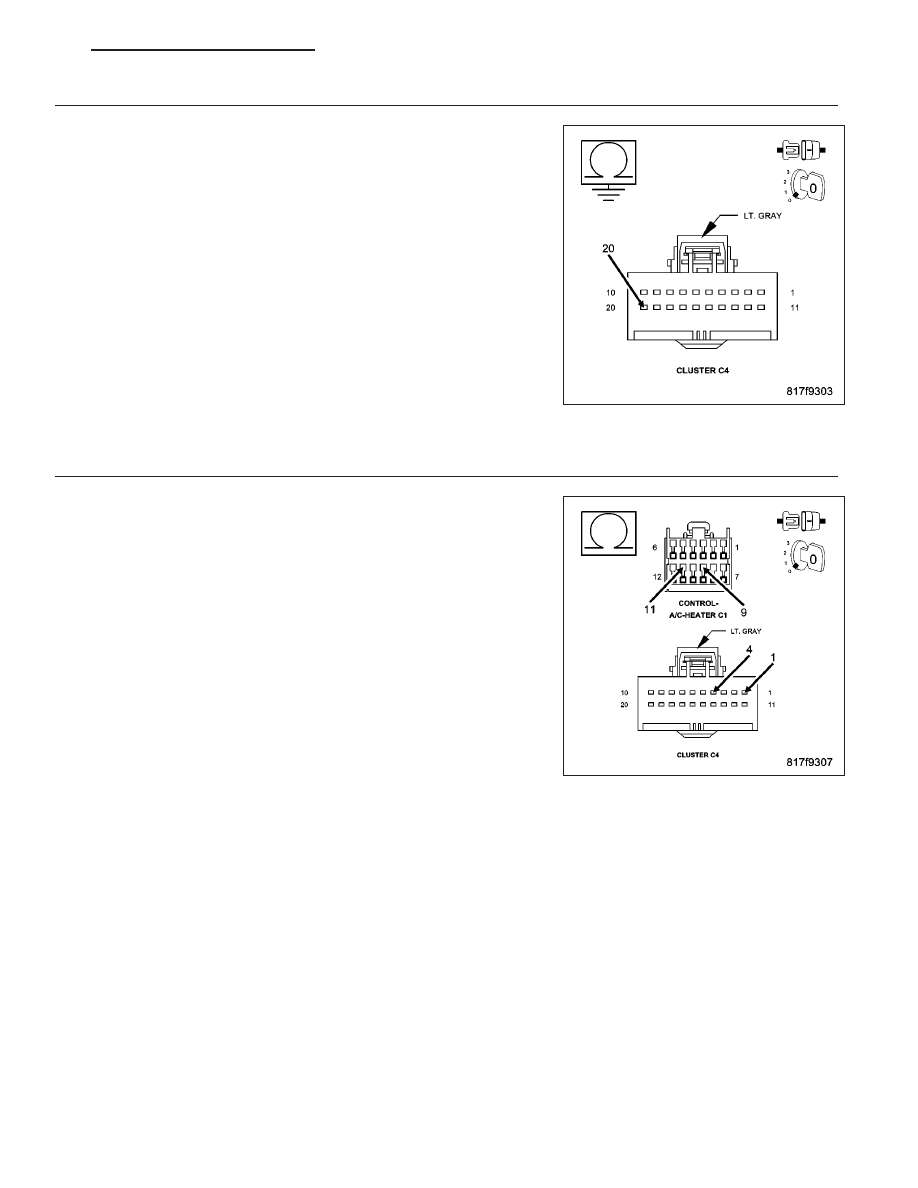

CHECK THE (C105) HVAC MUX CONTROL CIRCUIT FOR A SHORT TO THE (Z936) GROUND CIRCUIT &
THE (C955) HVAC MUX RETURN CIRCUIT

Measure the resistance between the (C105) HVAC MUX Control circuit
and the (Z936) Ground circuit in the A/C Heater Control C1 harness
connector.

Measure the resistance between the (C105) HVAC MUX Control circuit
and the (C955) HVAC MUX Return circuit in the A/C Heater Control C1
and C4 harness connectors.

Does the ohm meter read open circuit?

Yes

>> Replace the Instrument Cluster (CCN) in accordance with

the Service Information.

Perform the BODY VERIFICATION TEST – VER 1. (Refer
to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Repair any circuits that are shorted to the (C105) HVAC

MUX Control circuit.

Perform the BODY VERIFICATION TEST – VER 1. (Refer
to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

PM

HEATING & AIR CONDITIONING ELECTRICAL DIAGNOSTICS

24 - 5

B1002–A/C SWITCH REQUEST INPUT CIRCUIT HIGH (CCN)

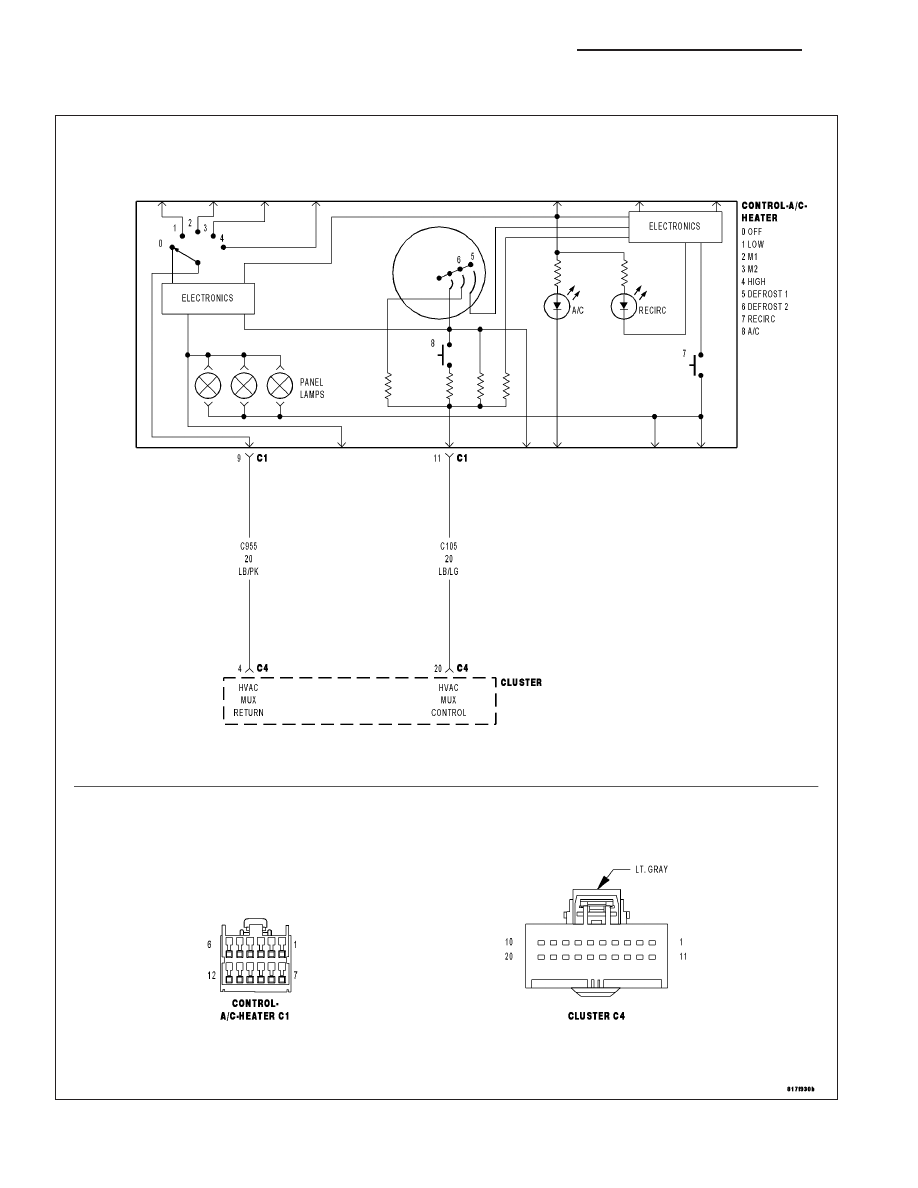

For a complete wiring diagram Refer to Section 8W.

24 - 6

HEATING & AIR CONDITIONING ELECTRICAL DIAGNOSTICS

PM

When Monitored:
With the ignition on.

Set Condition:
If the Instrument Cluster (CCN) detects voltage above 4.5 volts for 10 seconds on the (C105) HVAC MUX
Control circuit.

Possible Causes

(C105) HVAC MUX CONTROL CIRCUIT SHORTED TO VOLTAGE

(C105) HVAC MUX CONTROL CIRCUIT OPEN

(C955) HVAC MUX RETURN CIRCUIT OPEN

A/C HEATER CONTROL

INSTRUMENT CLUSTER (CCN)

Diagnostic Test

1.

VERIFY DTC B1002–A/C SWITCH REQUEST INPUT CIRCUIT HIGH IS ACTIVE

Turn the ignition on.

With the scan tool, erase DTCs.

Turn the ignition off, wait 10 seconds, and turn the ignition on.

With the scan tool, read DTCs.

Does the scan tool display active: B1002–A/C SWITCH REQUEST INPUT CIRCUIT HIGH?

Yes

>> Go To 2

No

>> The condition that caused this symptom is currently not present. Check for an intermittent condition by

inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also,
inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated termi-
nals. Repair as necessary.

Perform the BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE).

2.

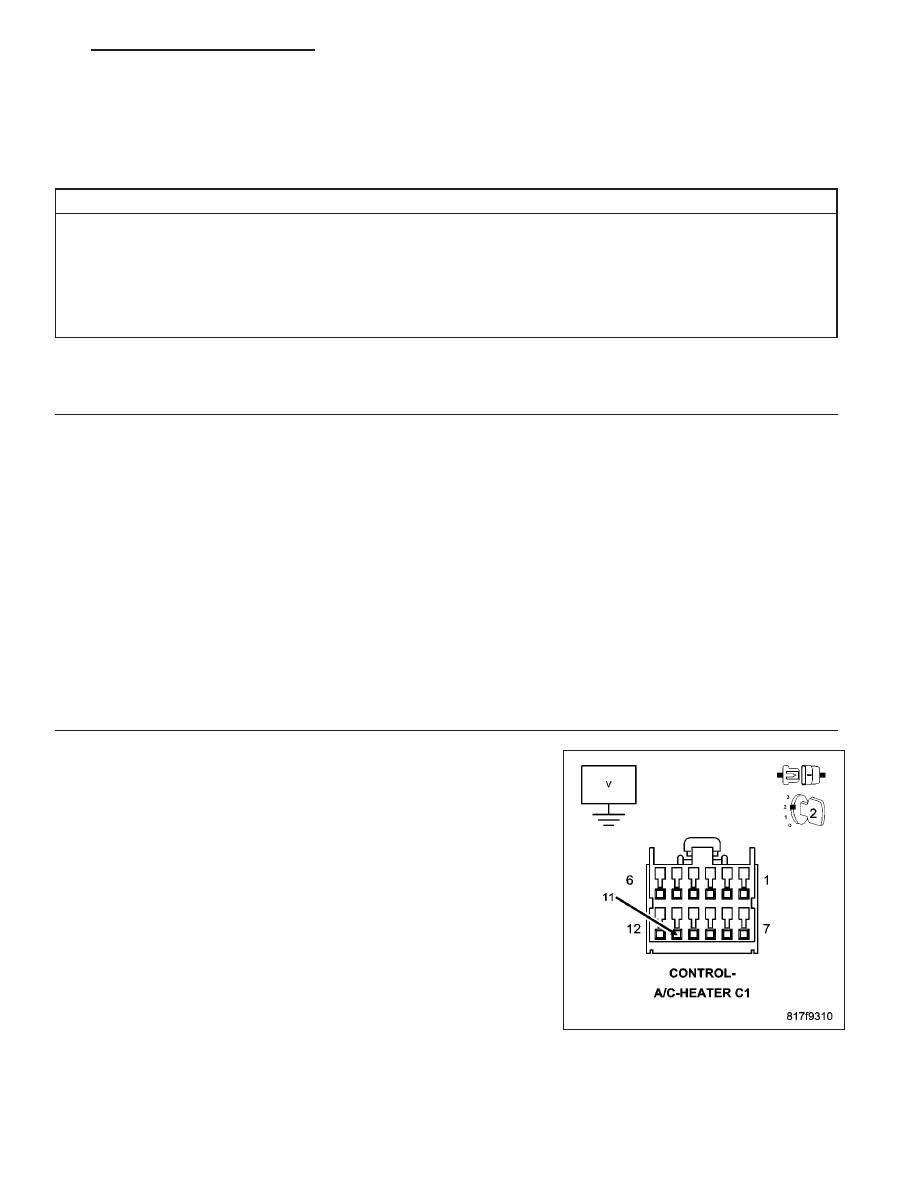

CHECK THE (C105) HVAC MUX CONTROL CIRCUIT VOLTAGE AT A/C HEATER CONTROL C1 HARNESS
CONNECTOR

Turn the ignition off.

Disconnect the A/C Heater Control C1 harness connector.

Turn the ignition on.

Measure the voltage of the (C105) HVAC MUX Control circuit.

What is the voltage?

Below 4.8 Volts

Go To 3

4.8 to 5.2 Volts

Go To 4

Above 5.2 Volts

Go To 6

PM

HEATING & AIR CONDITIONING ELECTRICAL DIAGNOSTICS

24 - 7

3.

CHECK THE (C105) HVAC MUX CONTROL CIRCUIT FOR AN OPEN

Turn the ignition off.

Disconnect the Instrument Cluster (CCN) C4 harness connector.

Measure the resistance of the (C105) HVAC MUX Control circuit
between the A/C Heater Control C1 harness connector and the Instru-
ment Cluster C4 harness connector.

Does the ohm meter read open circuit?

Yes

>> Repair the (C105) HVAC MUX Control circuit for an open.

Perform the BODY VERIFICATION TEST – VER 1. (Refer
to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Replace the Instrument Cluster (CCN) in accordance with

the Service Information.

Perform the BODY VERIFICATION TEST – VER 1. (Refer
to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

4.

CHECK THE (C955) HVAC MUX RETURN CIRCUIT OPERATION

Turn the ignition on.

Using a volt meter, measure the voltage of the (C955) HVAC MUX
Return circuit in the A/C Heater Control C1 harness connector.

Does the volt meter read above 4.5 volts?

Yes

>> Replace the A/C-Heater Control in accordance with the Ser-

vice Information.

Perform the BODY VERIFICATION TEST – VER 1. (Refer
to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 5

5.

CHECK THE (C955) HVAC MUX RETURN CIRCUIT FOR AN OPEN

Measure the resistance of the (C955) HVAC MUX Return circuit
between the A/C Heater Control C1 harness connector and the Instru-
ment Cluster C4 harness connector.

Does the ohm meter read open circuit?

Yes

>> Repair the (C955) HVAC MUX Return circuit for an open.

Perform the BODY VERIFICATION TEST – VER 1. (Refer
to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Replace the Instrument Cluster in accordance with the Ser-

vice Information.

Perform the BODY VERIFICATION TEST – VER 1. (Refer
to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).
