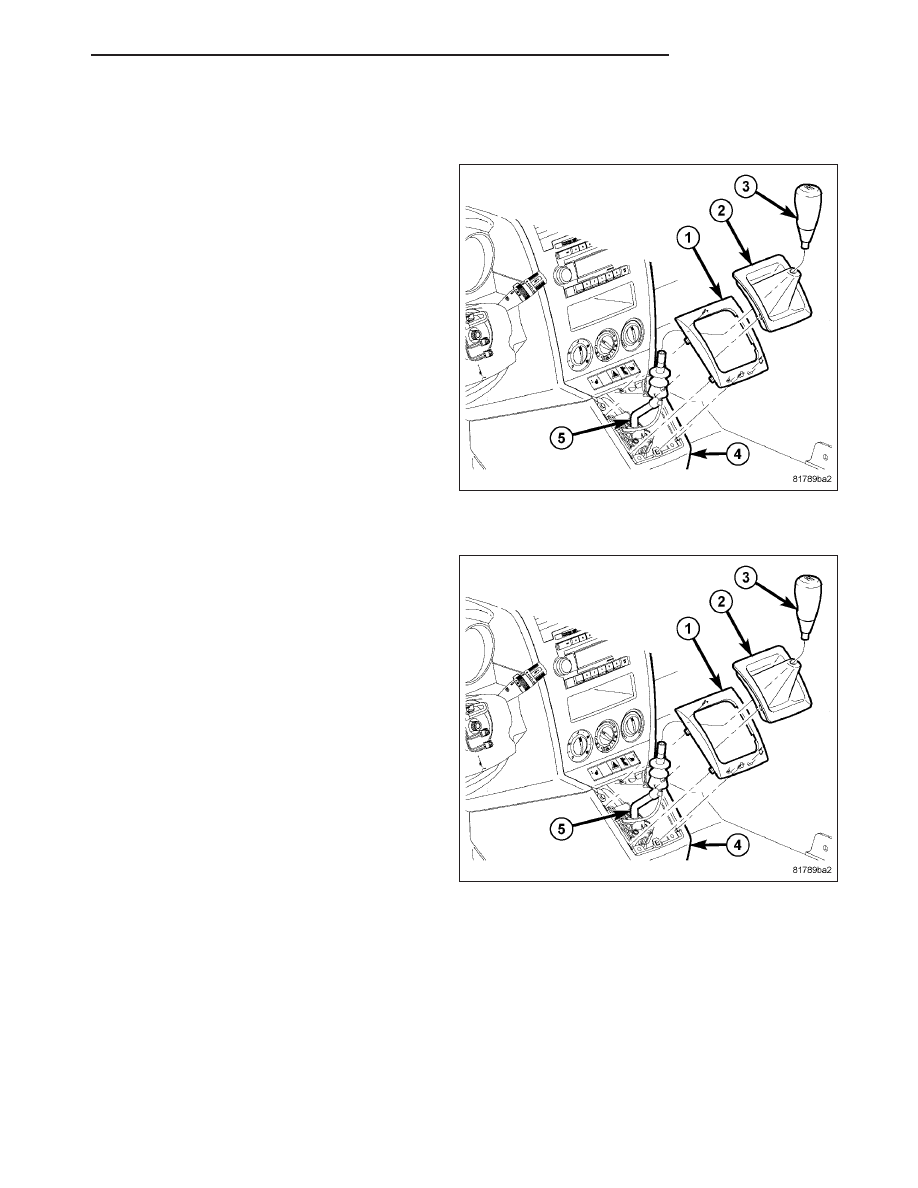

SHIFT BEZEL - MANUAL

REMOVAL

1. Pull up on shifter knob (3) and remove.

2. Using trim stick C-4755 or equivalent, pry up on

bezel (1) and remove from shifter pod (4).

INSTALLATION

1. Locate bezel (1) over shifter lever (5) and into

shifter pod (4).

2. Insert bezel locator to shifter pod (4).

3. Apply hand pressure to bezel (1) until clips are

seated.

4. Slide boot (2) over shift lever (5) to bezel (1).

5. Apply hand pressure to snap bottom of boot (2)

into bezel (1).

6. Snap shifter knob (3) onto shifter lever (5).

7. Pull up on know to verify seated correctly.

PM

INTERIOR

23 - 113

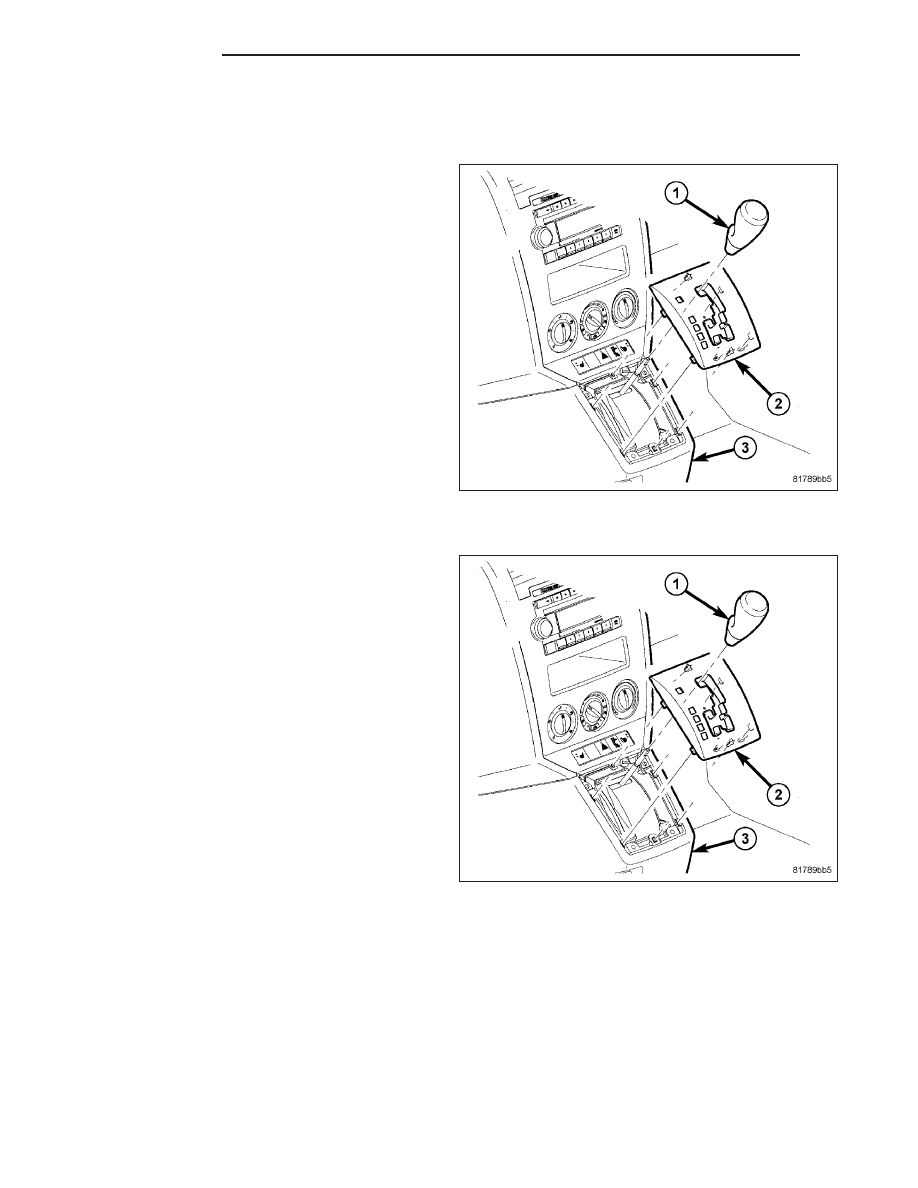

SHIFT BEZEL- AUTOMATIC

REMOVAL

1. Pull up on shifter knob (1) and remove.

2. Using trim stick C-4755 or equivalent, pry up on

bezel (2) and remove from shifter pod (3).

INSTALLATION

1. Insert bezel (2) locator to shifter pod (3).

2. Apply hand pressure until clips are seated.

3. Snap shifter knob (1) onto shifter shaft.

4. Pull up on knob (1) to verify seated correctly.

23 - 114

INTERIOR

PM

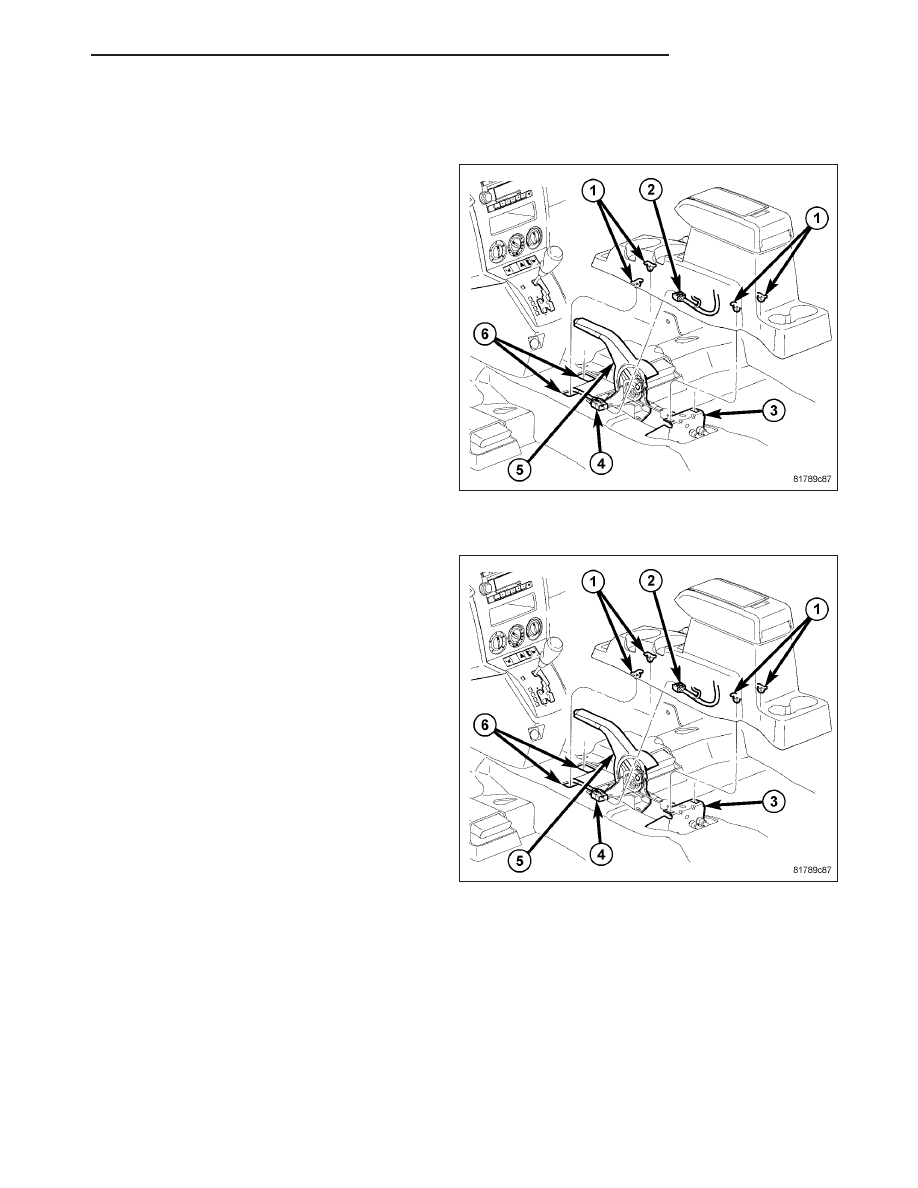

CENTER CONSOLE

REMOVAL

1. Pull back on parking brake (5) to the upright posi-

tion.

2. Remove front screws (1) fastening center console

to front floor bracket (6).

3. Open console door and remove two screws (1) fas-

tening console to rear floor bracket (3).

4. Disconnect center console wire connector (2) to

instrument panel connector.

5. Remove from vehicle.

INSTALLATION

1. Pull parking brake (5) into upright position.

2. Insert center console over parking brake.

3. Connect console wiring connector (2) to instrument

panel connector (4).

4. Insert and fasten two front screws (1) into front

floor bracket (6).

5. Insert and fasten two rear screws (1) into rear floor

bracket (3).

PM

INTERIOR

23 - 115

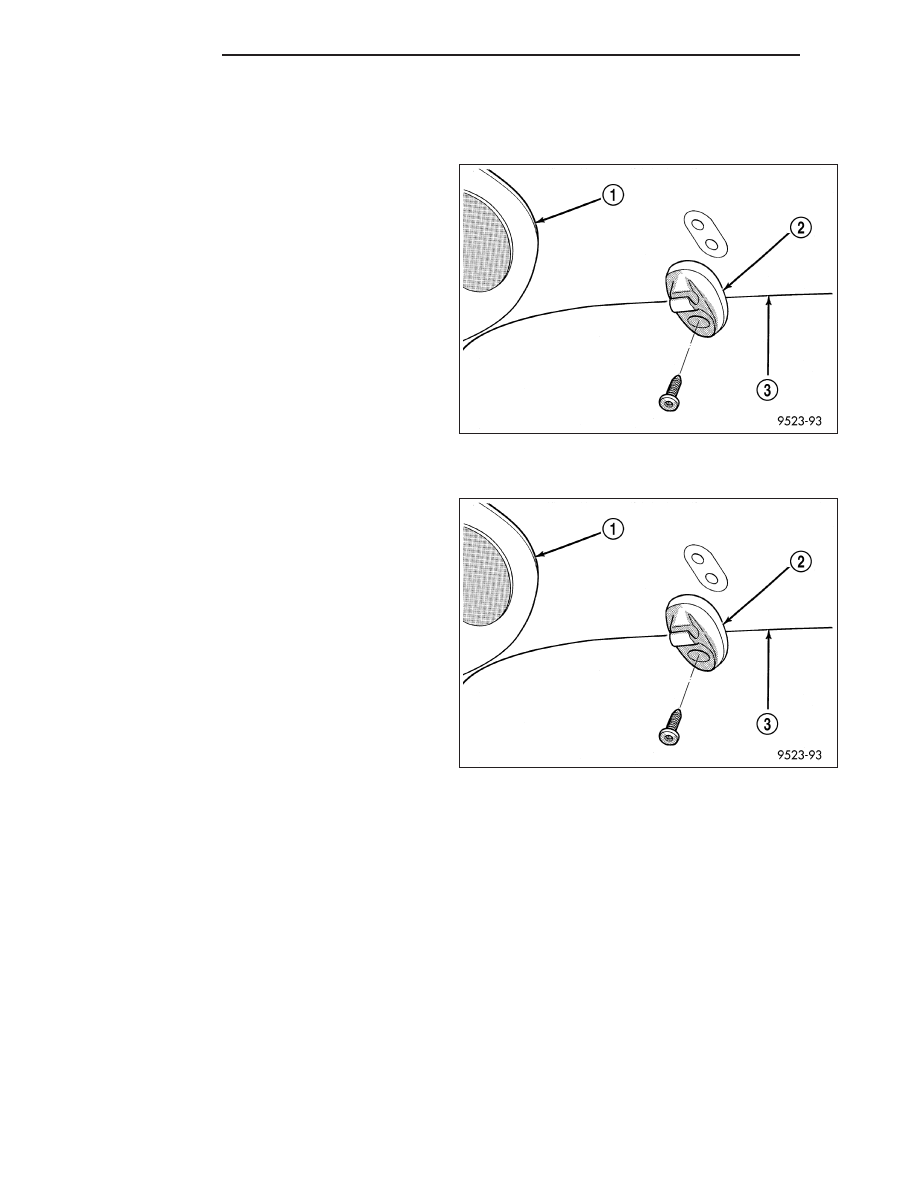

SUPPORT-VISOR

REMOVAL

1. Disengage the sun visor (1) from the sun visor sup-

port (2).

2. Remove the screw that secures the support to the

roof panel and remove the support from the head-
liner (3).

INSTALLATION

1. Position the sun visor support (2) on the headliner

(3) and install the screw that secures the support to
the roof panel.

2. Engage the sun visor (1) and sun visor support.

23 - 116

INTERIOR

PM
