C123B–ESP SYSTEM CONTROL TOO LONG

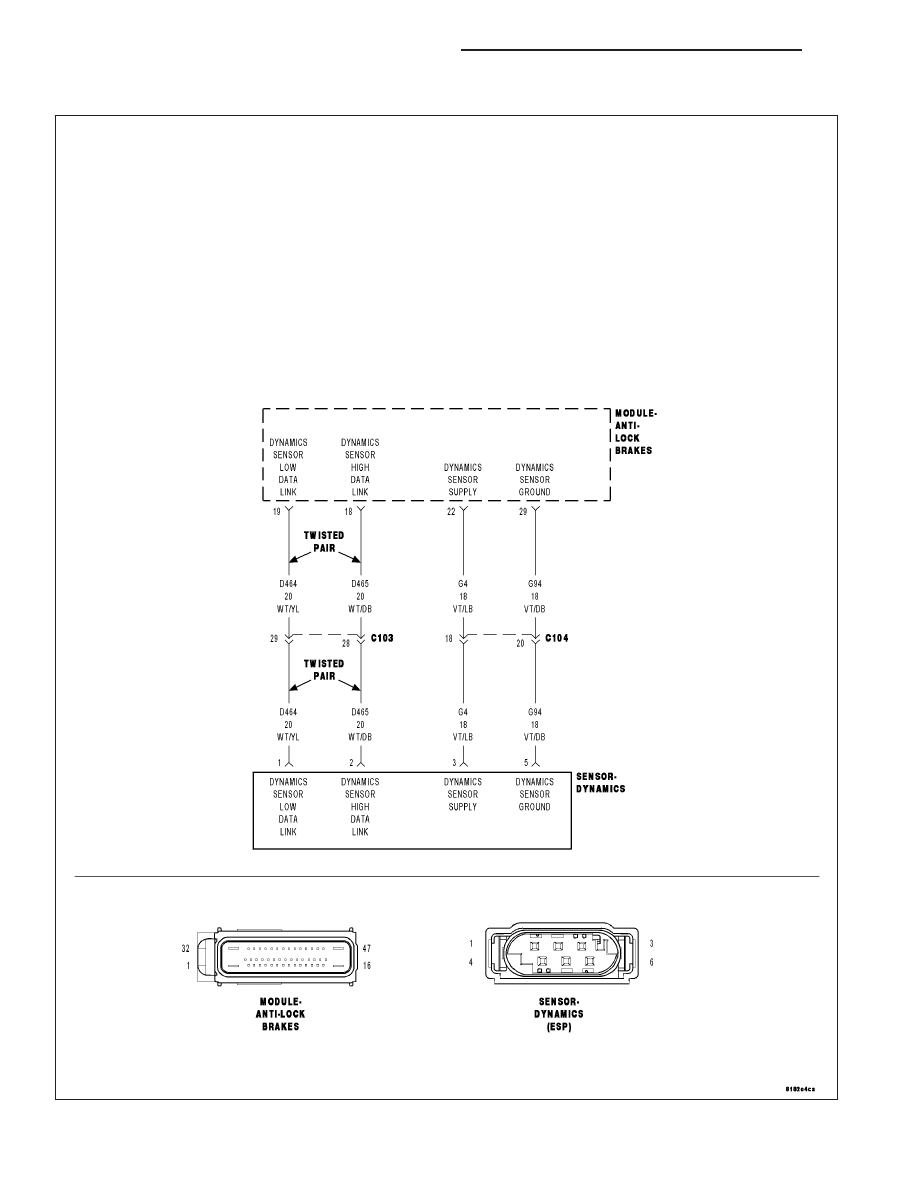

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
When the Anti-Lock Brake Module indicates ESP control lasting longer the 15 seconds.

Possible Causes

HYDRAULIC/BRAKE ISSUE

DYNAMICS SENSOR

INTEGRATED CONTROL MODULE

Diagnostic Test

1.

VERIFY DTC IS ACTIVE

NOTE: If other DTC’s are set they must be repaired before continuing. This DTC must be active for the
results of this test to be valid and this DTC may set while driving under excessive driving conditions.
Turn the ignition on.

With the scan tool, read and record ABS DTCs.

With the scan tool, read and record Environmental Data (EV Data).

With the scan tool, erase ABS DTCs.

Cycle the ignition switch.

WARNING: To avoid personal injury or death, check brake capability is available before road testing.
Test drive the vehicle by turning the vehicle left or right in a curving manner at a velocity between 10 and 20 km/hr
(6 and 12 m.p.h.).

Park the vehicle.

With the scan tool, read ABS DTCs.

Does this DTC reset?

Yes

>> Go To 2

No

>> Perform the ABS Intermittent Condition diagnostic procedure in this Section.

Refer to the ABS-INTERMITTENT CONDITION TEST. (Refer to 5 - BRAKES - DIAGNOSIS AND TEST-
ING)

2.

CHECK HYDRAULIC SYSTEM & BRAKE SYSTEM COMPONENT INSTALLATION & FUNCTION

Verify that the Anti-Lock Brakes Module and Hydraulic Control Unit are properly installed.

Verify that the hydraulic system is properly filled and bled.

Verify that the brake system components are installed and functioning properly.

Were any problems found?

Yes

>> Repair as necessary.

Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

No

>> Replace the Dynamics Sensor in accordance with the Service Information.

Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).
