7.

INTERMITTENT WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.

Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.

Wiggle the wires while checking for shorted and open circuits.

Were there any problems found?

Yes

>> Repair as necessary.

Perform CVT VERIFICATION TEST. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - CVT -
STANDARD PROCEDURE)

No

>> Test Complete.

PM

AUTOMATIC - CVT-ELECTRICAL DIAGNOSTICS

21 - 203

P0843-PRIMARY OIL PRESSURE SENSOR CIRCUIT HIGH

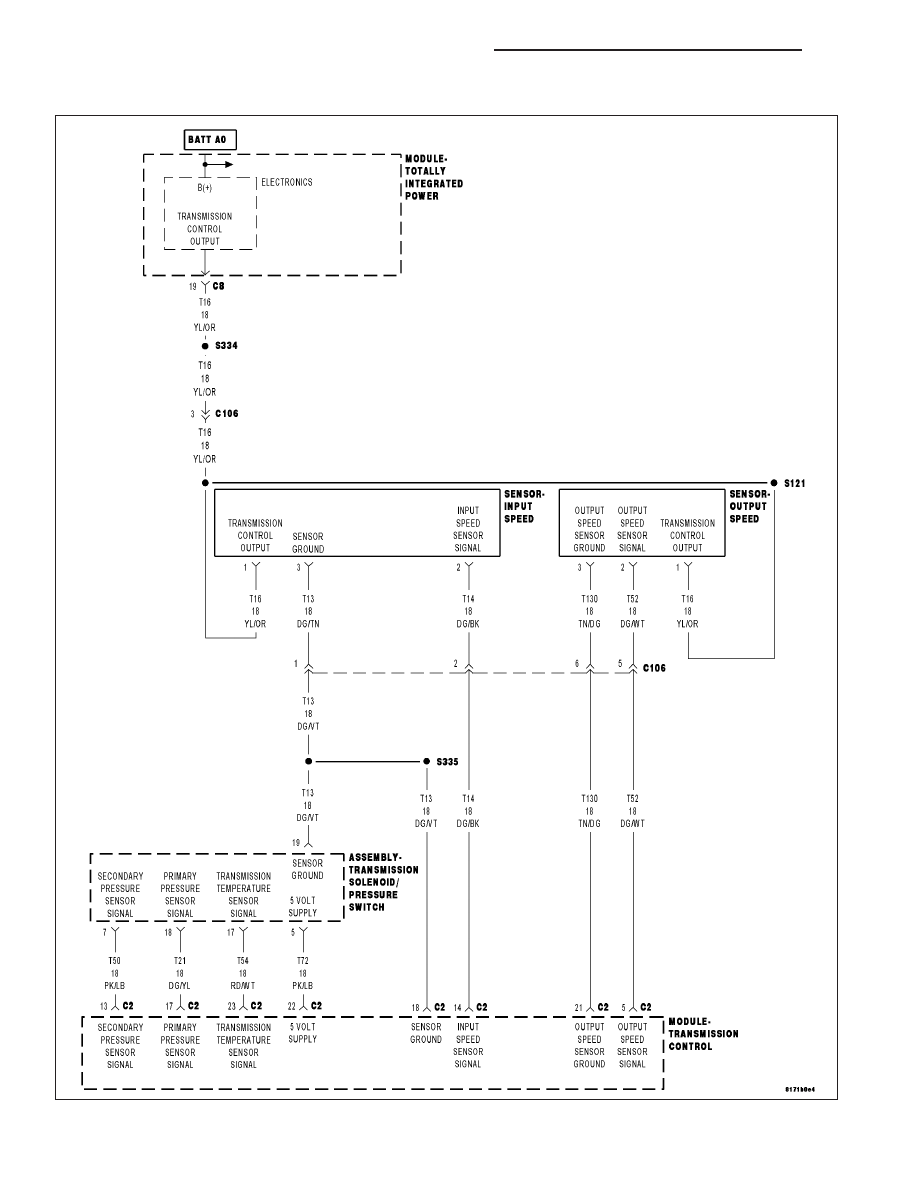

For a complete wiring diagram Refer to Section 8W.

21 - 204

AUTOMATIC - CVT-ELECTRICAL DIAGNOSTICS

PM

Theory of Operation

The Transmission Control Module (TCM) monitors the input voltage from the primary pulley pressure sensor. When
the voltage is above a predetermined limit a DTC will set.

When Monitored:
Ignition on, system voltage between 9.0 and 16.0 volts.
Transmission temperature greater than -20° C (-4° F)
No active DTCs from the following:

Primary Oil Pressure Sensor Low

Sensor ground

Set Condition:
When the monitored voltage rises above 4.7 volts for the period of 5 seconds.

Possible Causes

(T72) 5 VOLT SUPPLY CIRCUIT SHORT TO VOLTAGE

(T21) PRIMARY PRESSURE SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE

PRIMARY PRESSURE SENSOR

TRANSMISSION CONTROL MODULE

Always perform the CVT Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 -
TRANSMISSION/TRANSAXLE/AUTOMATIC - CVT - STANDARD PROCEDURE)

Diagnostic Test

1.

CHECK THE PRIMARY PRESSURE SENSOR VOLTAGE

With the scan tool, read the Primary Pulley Pressure Sensor voltage.

Is the voltage greater than 4.7 volts?

Yes

>> Go To 2

No

>> Go To 6

2.

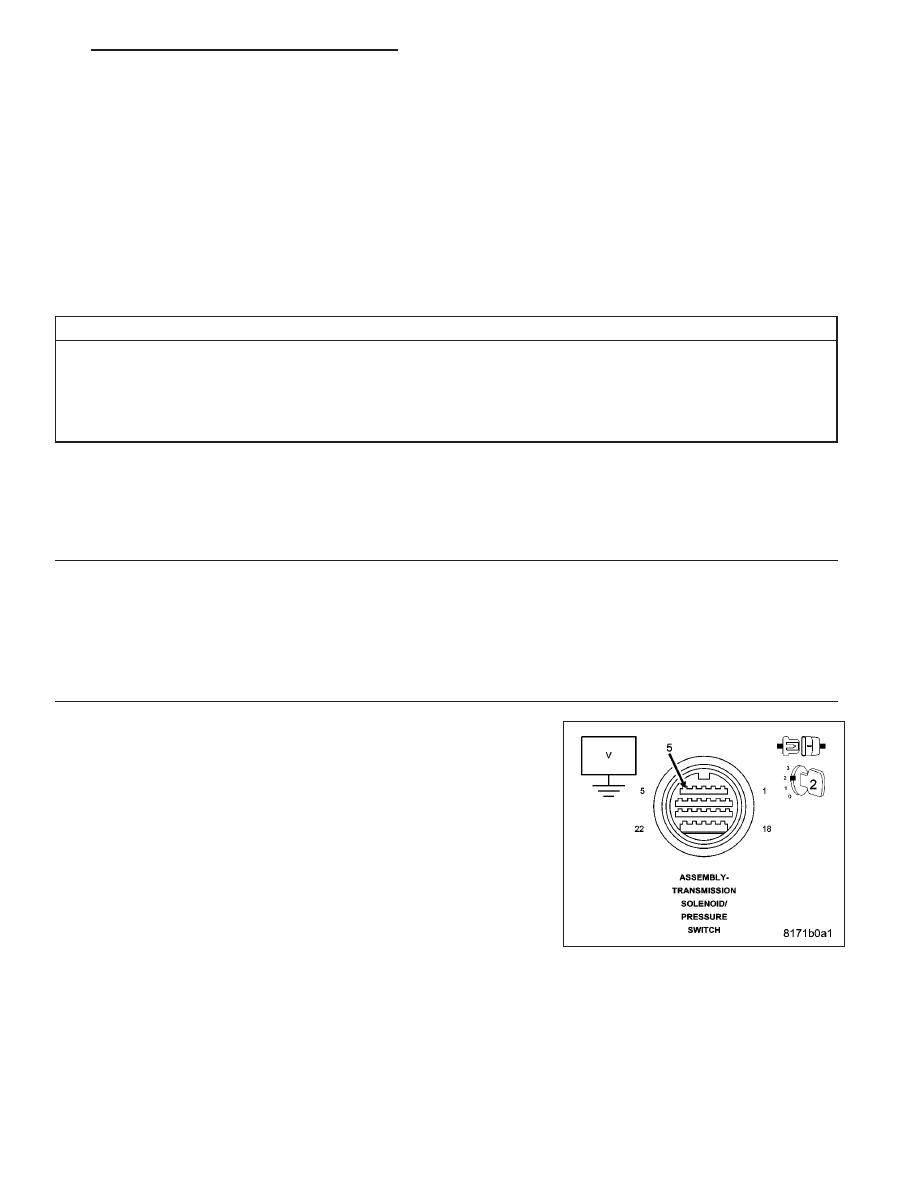

CHECK THE (T72) 5 VOLT SUPPLY CIRCUIT

Turn the ignition off to the lock position.

Disconnect the Transmission Solenoid/Pressure Switch Assembly har-
ness connector.

Ignition on, engine not running.

Measure the voltage of the (T72) 5 Volt Supply circuit in the Transmis-
sion Solenoid/Pressure Switch Assembly harness connector.

Is the voltage between 4.5 and 5.5 volts?

Yes

>> Go To 3

No

>> Go To 5

PM

AUTOMATIC - CVT-ELECTRICAL DIAGNOSTICS

21 - 205

3.

CHECK THE (T21) PRIMARY PRESSURE SENSOR SIGNAL CIRCUIT

Turn the ignition off to the lock position.

Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.

Ignition on, engine not running.

With the scan tool, read the Primary Pulley Pressure Sensor voltage.

Does the scan tool read any voltage?

Yes

>> Go To 4

No

>> Replace CV Transmission or replace the Primary Pressure Sensor (Valve Body) per the Service Infor-

mation.

Perform CVT VERIFICATION TEST. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - CVT -
STANDARD PROCEDURE)

4.

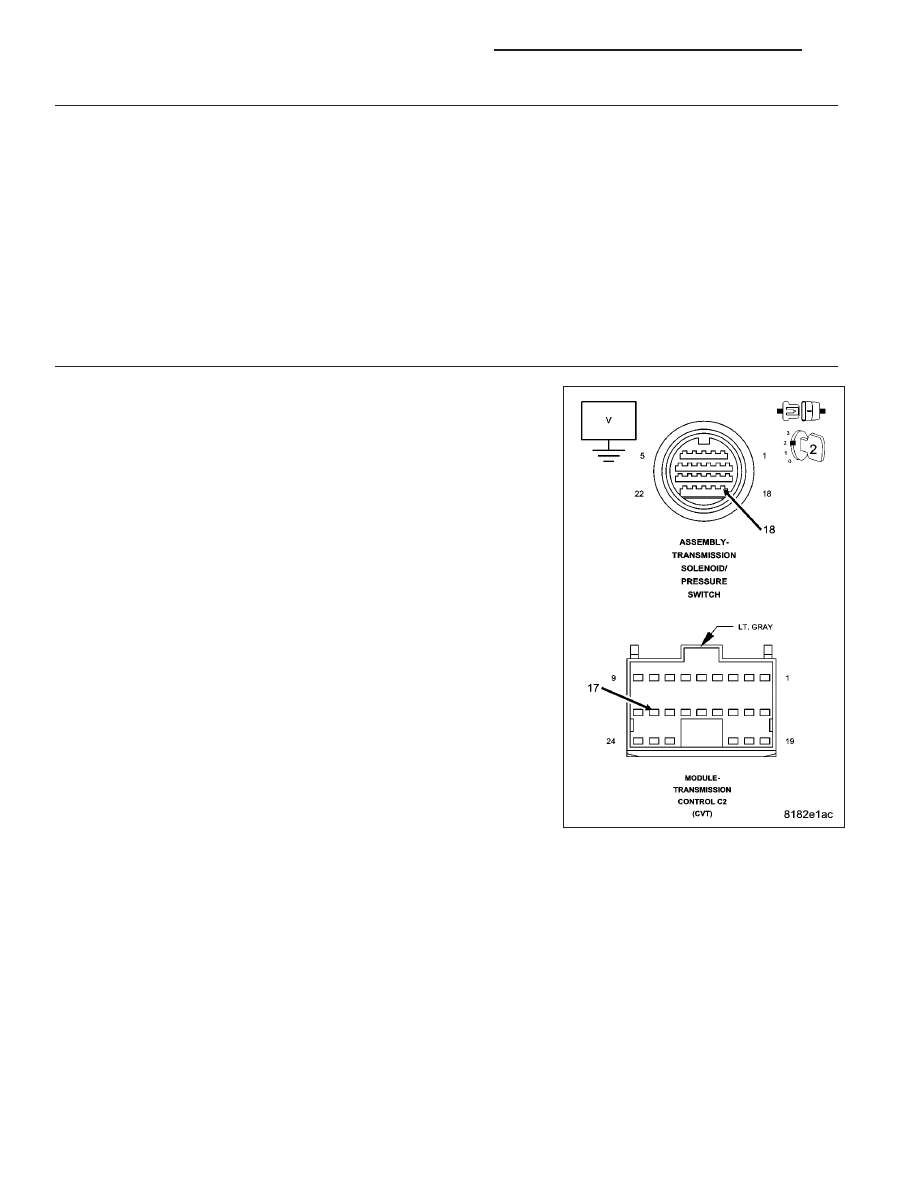

CHECK THE (T21) PRIMARY PRESSURE SENSOR SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE

Turn the ignition off to the lock position.

Disconnect the TCM C2 harness connector.

Ignition on, engine not running.

Measure the voltage of the (T21) Primary Pressure Sensor Signal cir-
cuit.

Is there any voltage present?

Yes

>> Repair the (T21) Primary Pressure Sensor Signal circuit for

a short to voltage.

Perform CVT VERIFICATION TEST. (Refer to 21 - TRANS-
MISSION/TRANSAXLE/AUTOMATIC - CVT - STANDARD
PROCEDURE)

No

>> Using the schematics as a guide, check the Transmission

Control Module (TCM) terminals for corrosion, damage, or
terminal push out. Pay particular attention to all power and
ground circuits. Check for any Service Bulletins for possible
causes that may apply. If no problems are found, replace
the TCM per the Service Information.

Perform CVT VERIFICATION TEST. (Refer to 21 - TRANS-
MISSION/TRANSAXLE/AUTOMATIC - CVT - STANDARD
PROCEDURE)

21 - 206

AUTOMATIC - CVT-ELECTRICAL DIAGNOSTICS

PM
