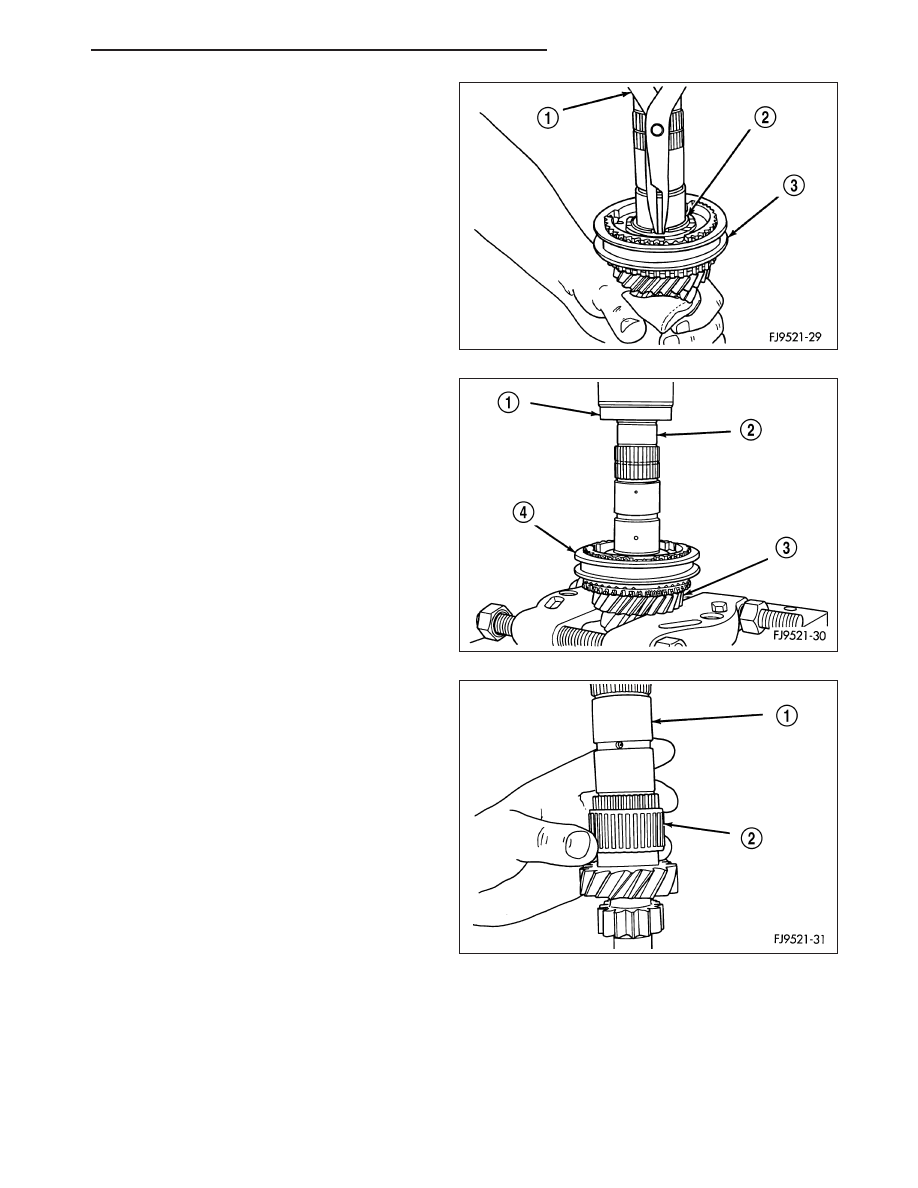

9. Remove blocking ring. Remove 3-4 synchronizer

hub retaining snap ring (3).

10. Install input shaft in shop press (1). Using bearing

splitter, remove 3-4 synchronizer and 3rd gear (3).

11. Remove 3rd gear caged needle bearing (2).

Inspect needle bearing for a broken retention
spring.

12. Inspect the input shaft for worn or damaged bear-

ing races or chipped gear teeth. Replace as
necessary.

PM

T355 MANUAL TRANSAXLE

21 - 87

ASSEMBLY

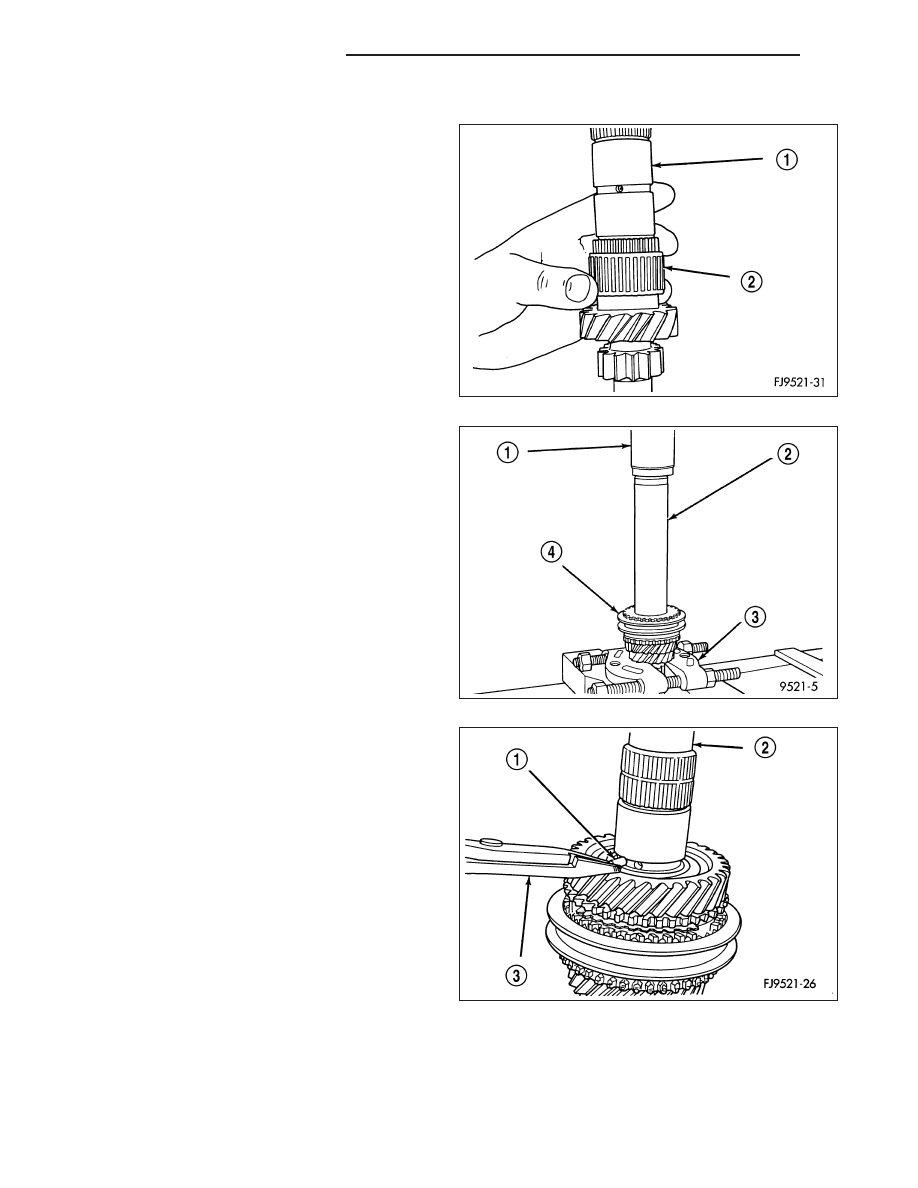

1. Place input shaft into shop press.

2. Install 3rd gear caged needle bearing (2).

3. Install 3rd gear and 3-4 synchronizer (4) onto input

shaft. Install Sleeve C-3717 (2) over input shaft
and press on synchronizer hub and 3rd gear. The
synchronizer hub has the letter stamped on the
top face of the hub. This designates that the hub
must be installed with the facing upward.

4. Install 3-4 synchronizer snap ring into slot on input

shaft.

5. Install blocking ring into 3-4 synchronizer. Install

4th gear caged needle bearing.

6. Install 4th gear onto input shaft.

7. Install 4-5 split thrust washer separation pin (1).

21 - 88

T355 MANUAL TRANSAXLE

PM

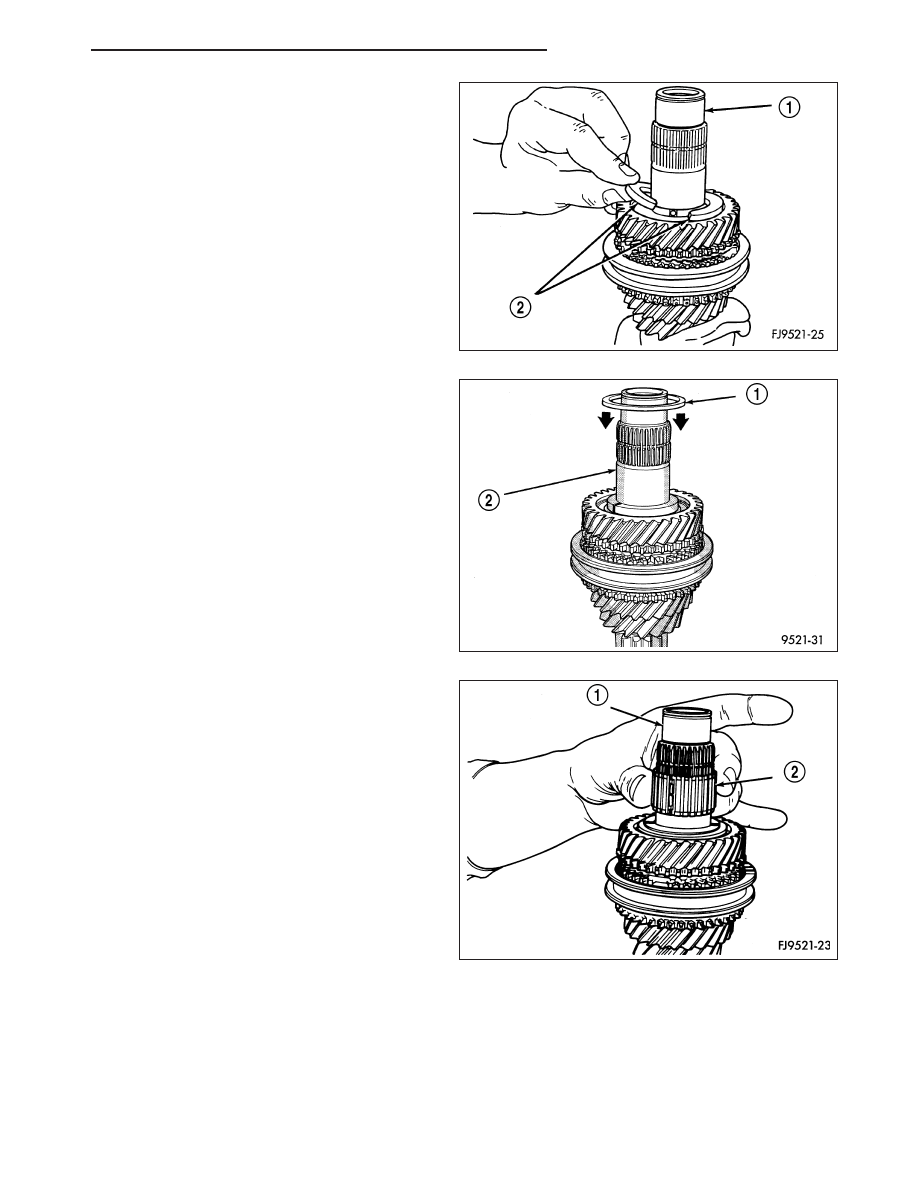

8. Install split thrust washer (2) onto input shaft (1).

9. Install split thrust washer retaining ring (1).

10. Install 5th gear caged needle bearing (2).

PM

T355 MANUAL TRANSAXLE

21 - 89

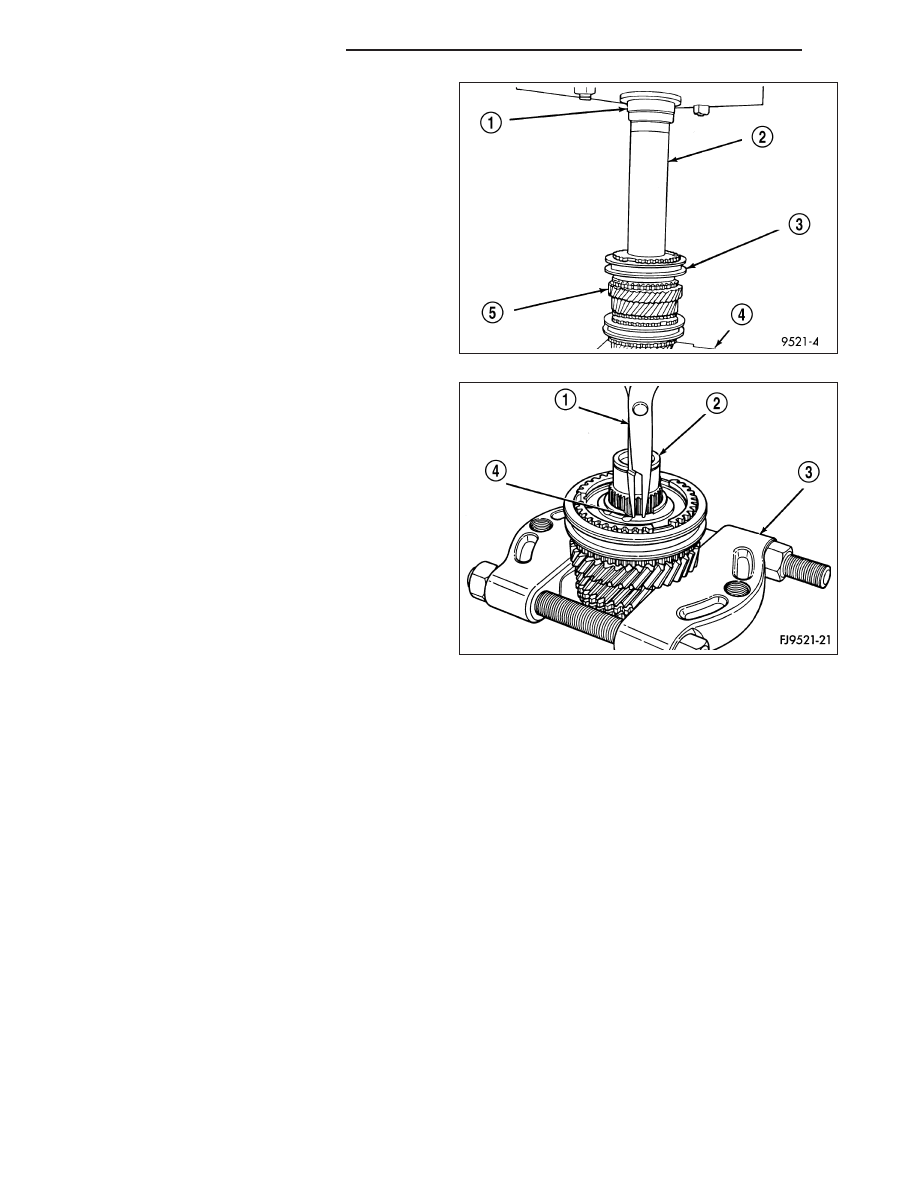

11. Using special Sleeve C-3717 (2), install 5th speed

gear (5) and synchronizer (3). The 5th gear syn-
chronizer hub has the letter stamped on the top
face of the hub. This designates that the hub must
be installed with the facing upward.

12. Install 5th gear synchronizer snap ring (4).

21 - 90

T355 MANUAL TRANSAXLE

PM
