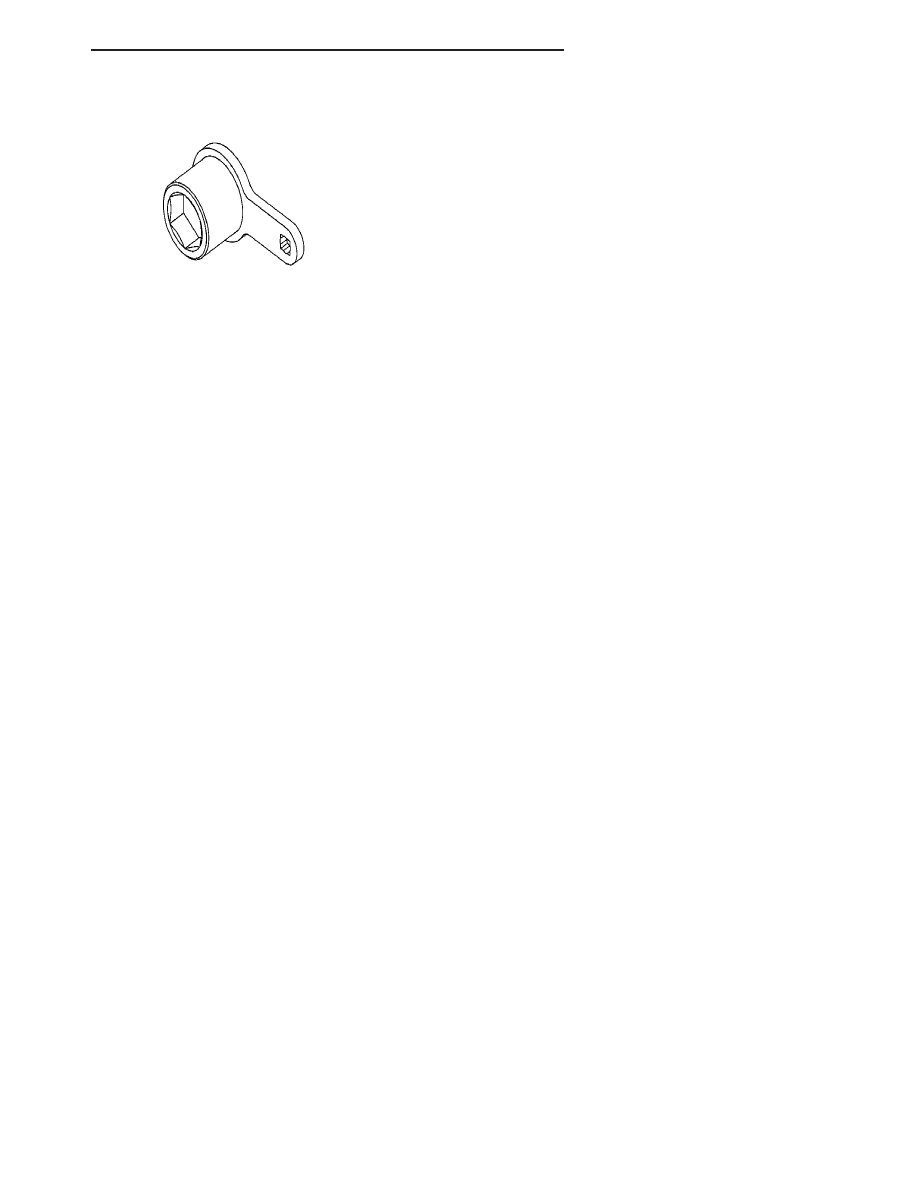

OUTPUT SHAFT NUT SOCKET 9921

PM

POWER TRANSFER UNIT

21 - 39

SEAL-DIFFERENTIAL CARRIER

REMOVAL

1. Remove PTU from transaxle (Refer to 21 - TRANSMISSION/TRANSAXLE/POWER TRANSFER UNIT -

REMOVAL).

2. Use a screw mounted in a slide hammer to remove seal. Be careful not to damage seal journal when removing

seal.

INSTALLATION

1. Install the carrier case seal using Installer 9851

and Handle C- 4171.

2. Install the PTU (Refer to 21 - TRANSMISSION/

TRANSAXLE/POWER

TRANSFER

UNIT

-

INSTALLATION).

21 - 40

POWER TRANSFER UNIT

PM

SEAL-OUTPUT FLANGE

REMOVAL

1. Remove the propeller shaft (Refer to 3 - DIFFERENTIAL & DRIVELINE/PROPELLER SHAFT - REMOVAL).

2. Using a screwdriver remove the output seal.

INSTALLATION

1. Install the output shaft seal using Installer 9851

and Handle C-4171.

2. Install the propeller shaft (Refer to 3 - DIFFEREN-

TIAL

&

DRIVELINE/PROPELLER

SHAFT

-

INSTALLATION).

PM

POWER TRANSFER UNIT

21 - 41

SEALS-END COVER

REMOVAL

1. Remove the right halfshaft (Refer to 3 - DIFFER-

ENTIAL & DRIVELINE/HALF SHAFT - REMOVAL).

2. Remove the side cover bolts.

3. Remove the side cover.

4. Using a drift remove both inner and outer seals.

21 - 42

POWER TRANSFER UNIT

PM
