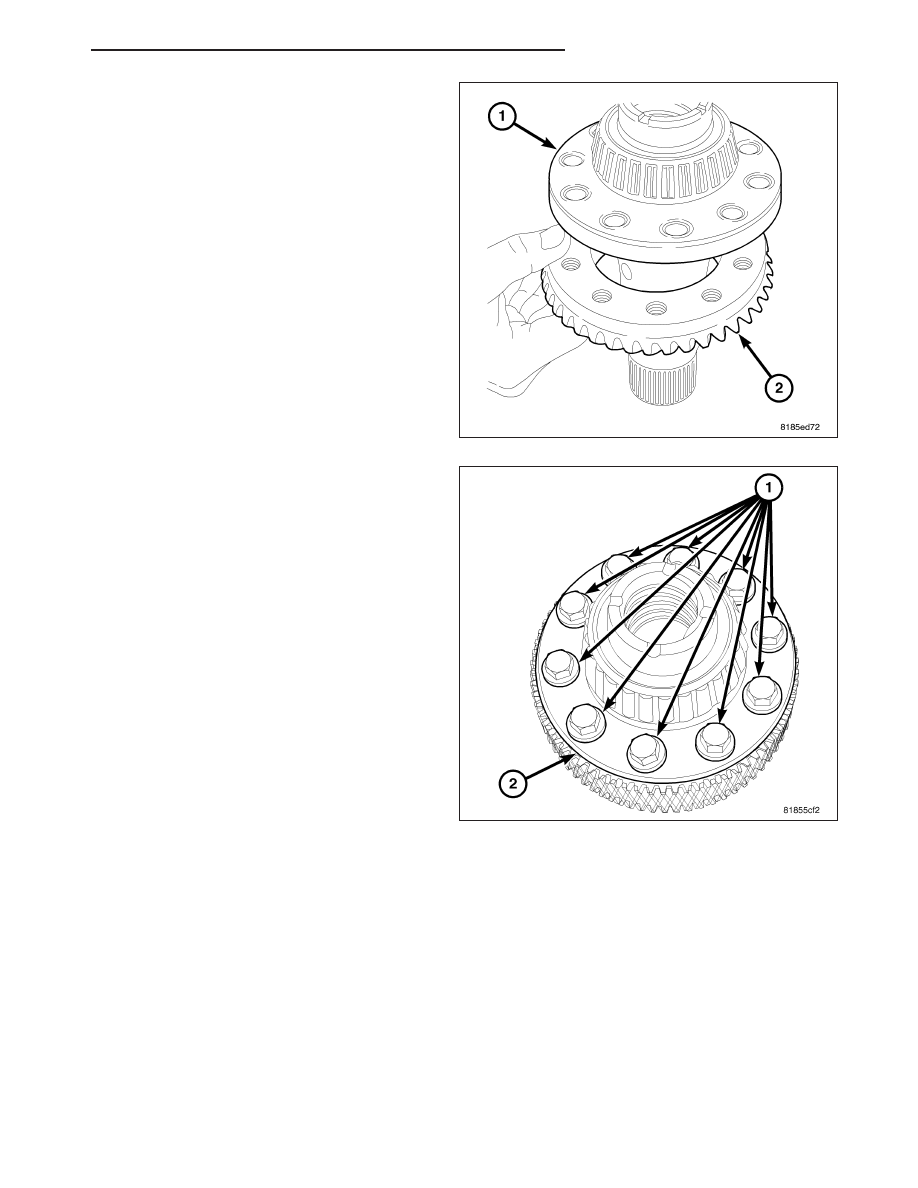

3. Install the ring gear.

4. Install the ring gear Bolts and torque to 74 N·m (55

ft. lbs.).

PM

POWER TRANSFER UNIT

21 - 23

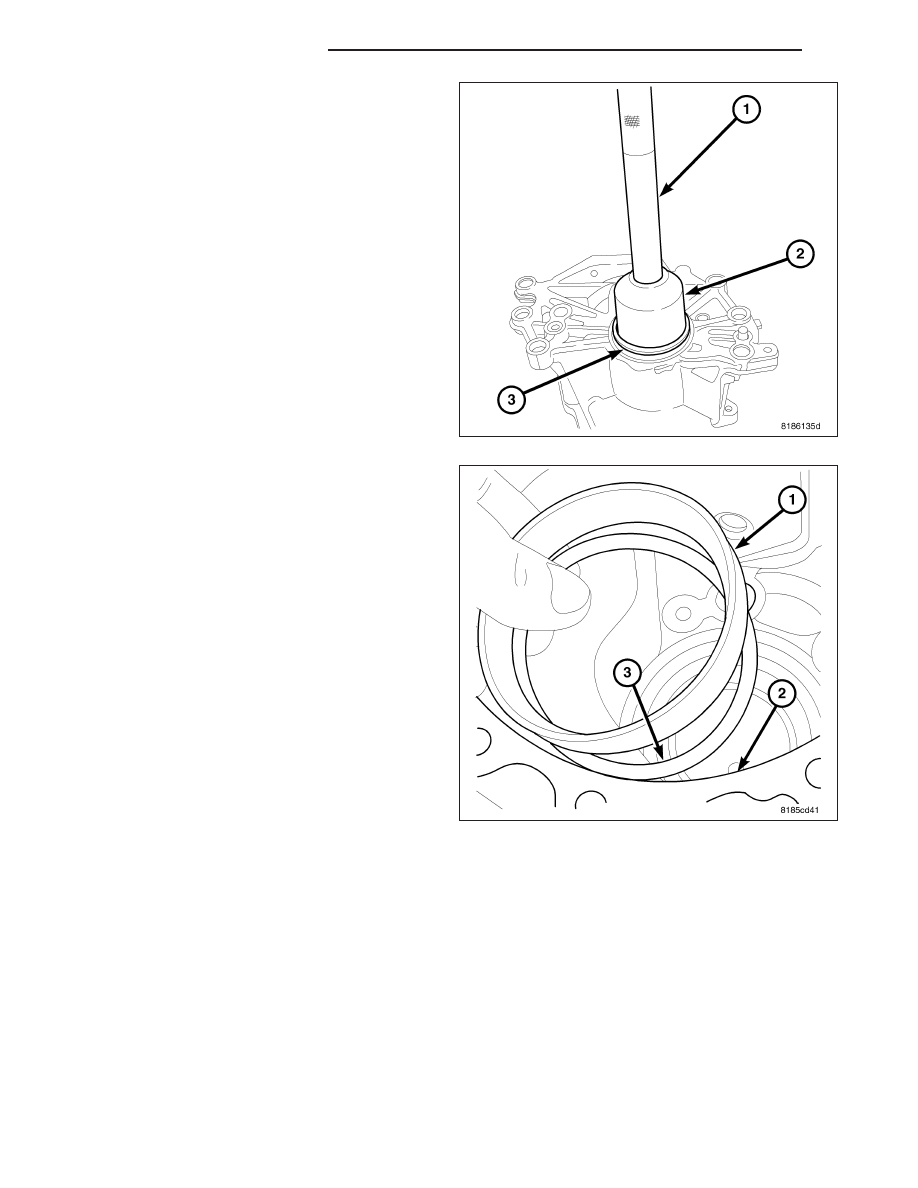

5. Install the carrier case seal using Installer 9851

and Handle C- 4171.

6. Install the shim (3) under the bearing cup (1) in the

case side.

7. Install the bearing cup by hand.

21 - 24

POWER TRANSFER UNIT

PM

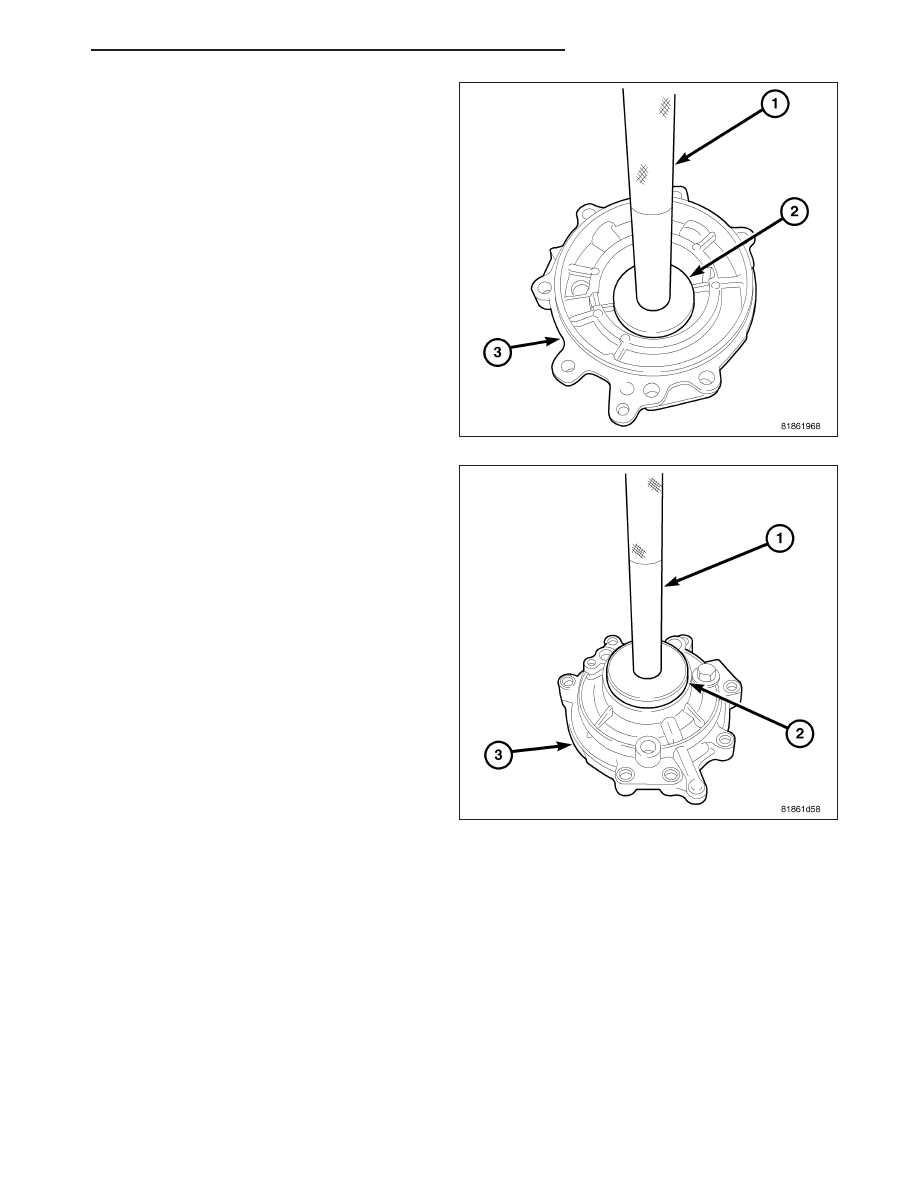

8. Install the inner seal into the PTU cover using

Installer 9852 and Handle C-4171.

9. Install the outer seal into the PTU cover using

Installer 9853 and Handle C-4171.

PM

POWER TRANSFER UNIT

21 - 25

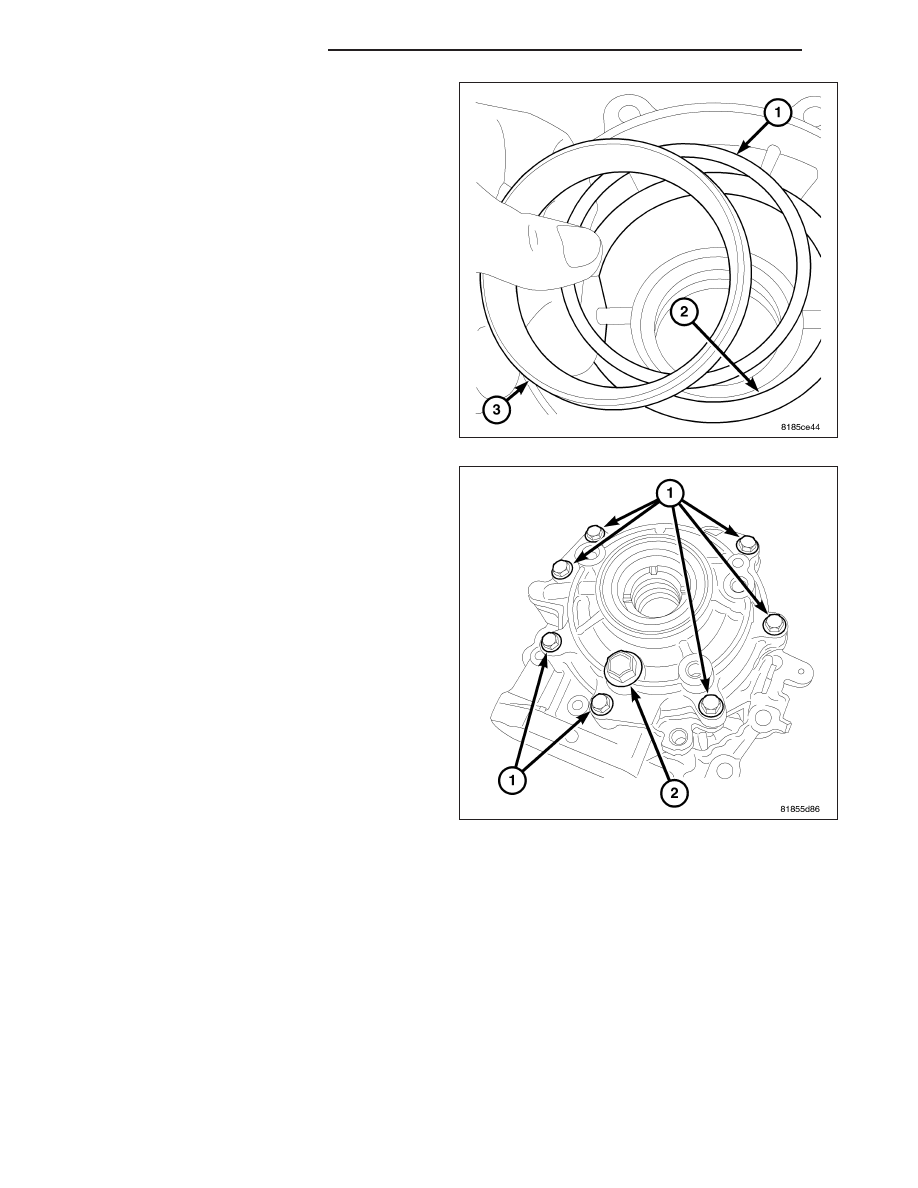

10. Install the shim (1) under the bearing cup (3).

11. Install bearing cup by hand (1).

12. Install the carrier assembly into the case

13. Install the side cover

14. Torque side cover bolts (1) to 23 N·m (17 ft. lbs.).

21 - 26

POWER TRANSFER UNIT

PM
