FUEL INJECTOR

DESCRIPTION

The injectors are positioned in the intake manifold with the nozzle ends directly above the intake valve port.

OPERATION

The fuel injectors are 12 volt electrical solenoids. The
injector contains a pintle that closes off an orifice at
the nozzle end. When electric current is supplied to
the injector, the armature and needle move a short
distance against a spring, allowing fuel to flow out the
orifice. Because the fuel is under high pressure, a fine
spray is developed in the shape of a hollow cone or
two streams. The spraying action atomizes the fuel,
adding it to the air entering the combustion chamber.
Fuel

injectors

are

not

interchangeable

between

engines.

The PCM provides battery voltage to each injector
through the ASD relay. Injector operation is controlled
by a ground path provided for each injector by the
PCM. Injector on-time (pulse-width) is variable, and is
determined by the PCM processing all the data previ-
ously discussed to obtain the optimum injector pulse width for each operating condition. The pulse width is con-
trolled by the duration of the ground path provided.

PM

FUEL INJECTION

14 - 61

STANDARD PROCEDURE

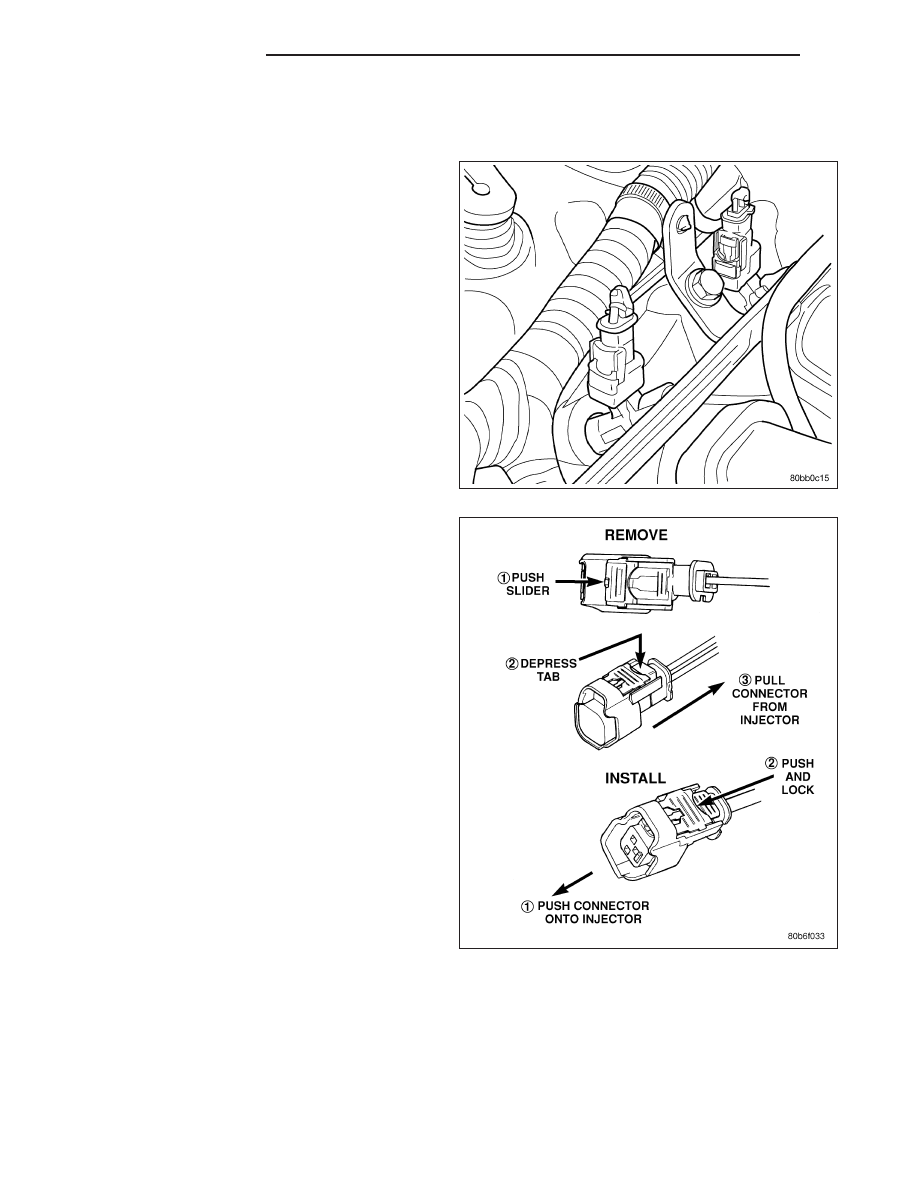

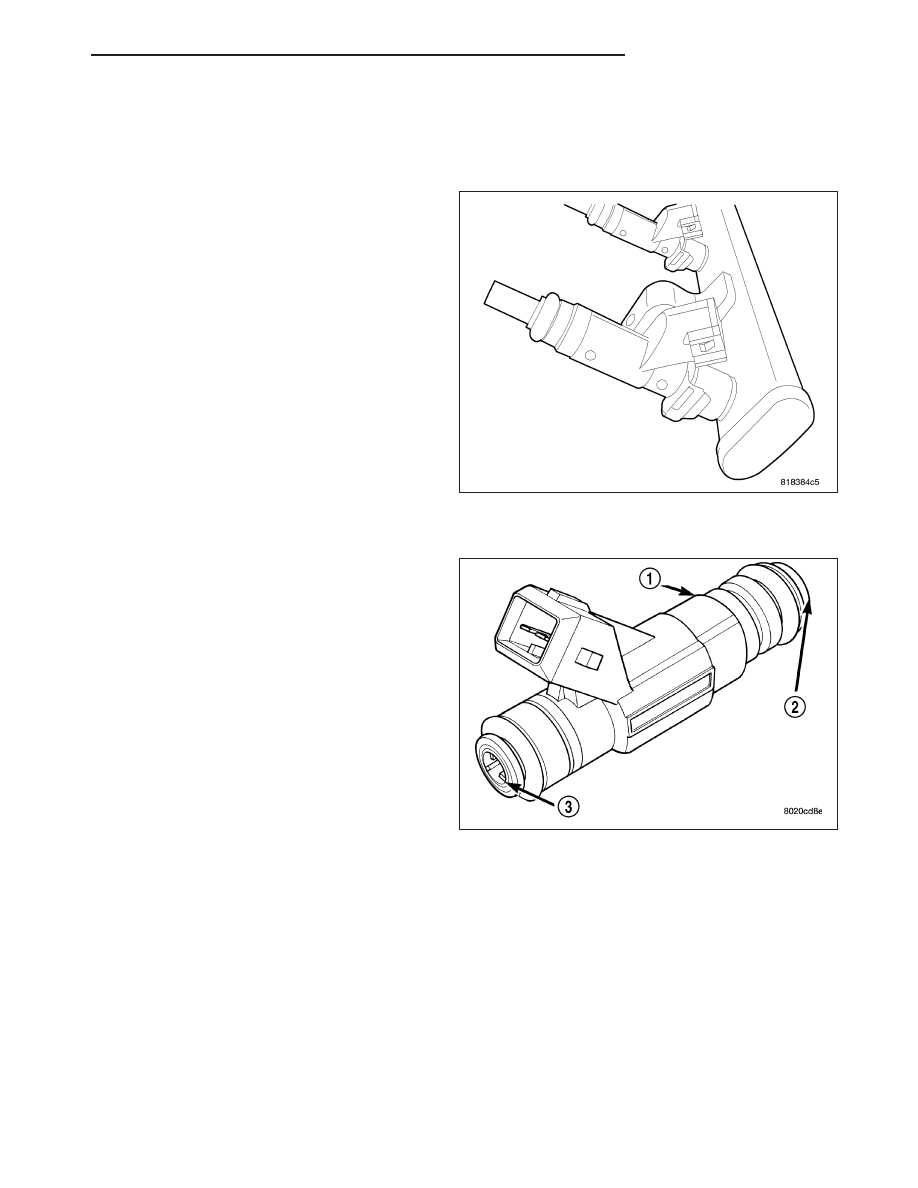

REMOVAL - INJECTOR CONNECTOR

1. Disconnect electrical connectors at the fuel injec-

tors.

2. To remove connector pull the red colored slider

away from injector (1). While pulling the slider,
depress tab (2) and remove connector (3) from
injector. The factory fuel injection wiring harness is
numerically tagged (INJ 1, INJ 2, etc.) for injector
position identification. If harness is not tagged,
make note of wiring location before removal.

REMOVAL

WARNING: Release fuel system pressure before servicing fuel system components. Service vehicles in well
ventilated areas and avoid ignition sources. Never smoke while servicing the vehicle. This may result in
personal injury or death.

14 - 62

FUEL INJECTION

PM

1. Release the fuel pressure, refer to the fuel pres-

sure release procedure.

2. Disconnect the negative battery cable.

3. Disconnect the electrical connectors from the fuel

injectors.

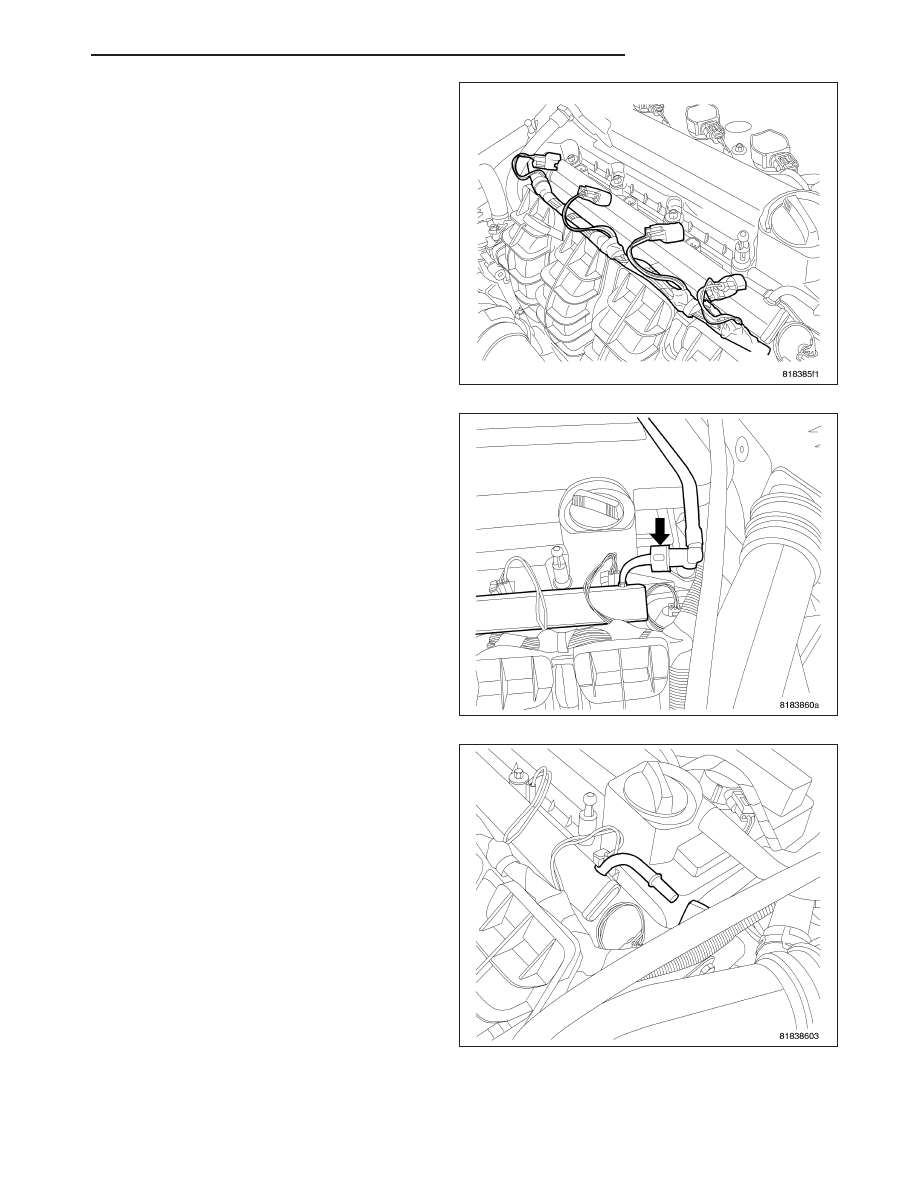

4. Fuel line connection at fuel rail.

5. Remove the fuel line from the fuel rail.

PM

FUEL INJECTION

14 - 63

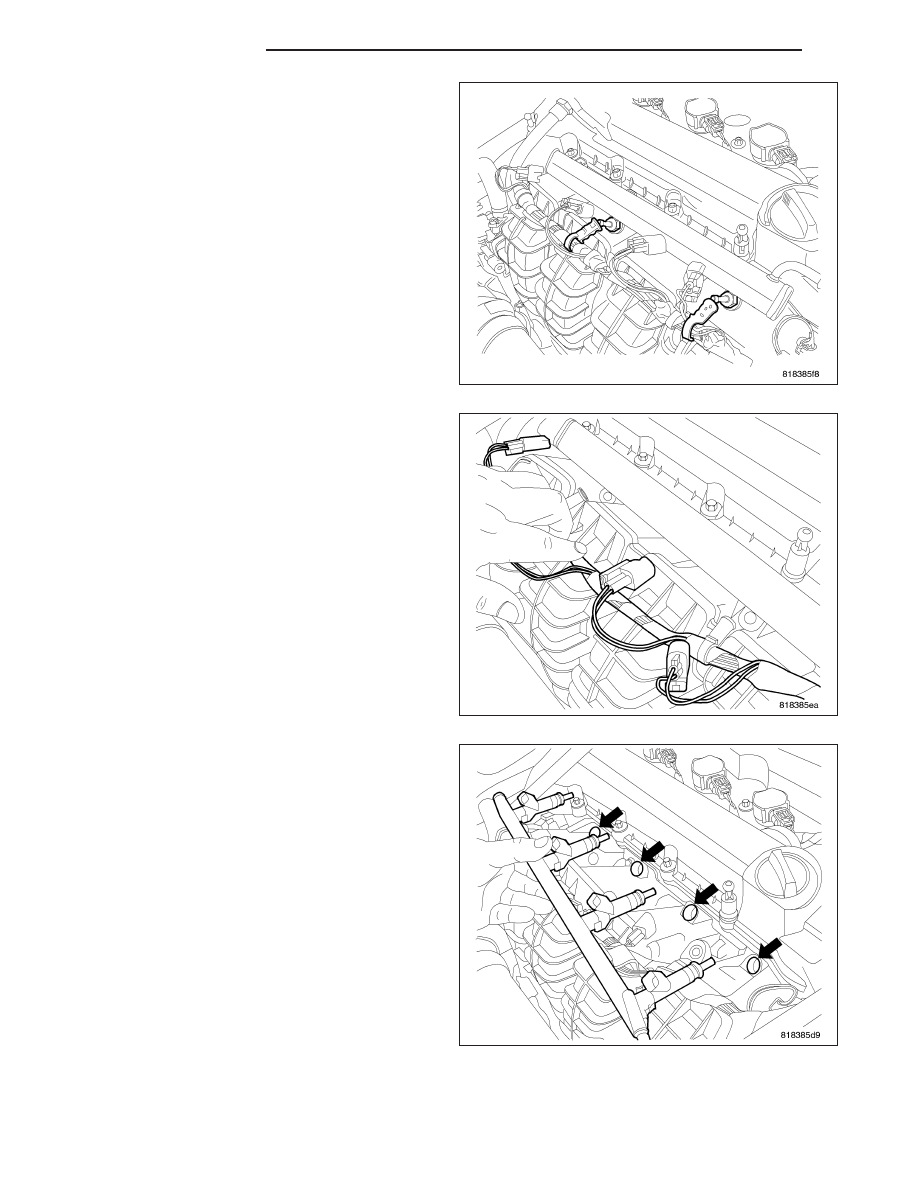

6. Remove wire harness from fuel rail mounting studs.

7. Remove the 2 bolts to the fuel rail at the lower

manifold.

8. Remove the fuel rail

14 - 64

FUEL INJECTION

PM
