OPERATION

Short Term

The first fuel correction program that begins functioning is the short term fuel correction. This system corrects fuel
delivery in direct proportion to the readings from the Upstream O2 Sensor.

The PCM monitors the air/fuel ratio by using the input voltage from the O2 Sensor. When the voltage reaches its
preset high or low limit, the PCM begins to add or remove fuel until the sensor reaches its switch point. The short
term corrections then begin.

The PCM makes a series of quick changes in the injector pulse-width until the O2 Sensor reaches its opposite
preset limit or switch point. The process then repeats itself in the opposite direction.

Short term fuel correction will keep increasing or decreasing injector pulse-width based upon the upstream O2 Sen-
sor input. The maximum range of authority for short term memory is 25% (+/-) of base pulse-width. Short term is
violated and is lost when ignition is turned OFF.

Long Term

The second fuel correction program is the long term adaptive memory. In order to maintain correct emission
throughout all operating ranges of the engine, a cell structure based on engine rpm and load (MAP) is used.

Ther number of cells varies upon the driving conditions. Two cells are used only during idle, based upon TPS and
Park/Neutral switch inputs. There may be two other cells used for deceleration, based on TPS, engine rpm, and
vehicle speed. The other twelve cells represent a manifold pressure and an rpm range. Six of the cells are high rpm
and the other six are low rpm. Each of these cells has a specific MAP voltage range Typical Adaptive Memory Fuel
Cells .

As the engine enters one of these cells the PCM looks at the amount of short term correction being used. Because
the goal is to keep short term at 0 (O2 Sensor switching at 0.5 volt), long term will update in the same direction as
short term correction was moving to bring the short term back to 0. Once short term is back at 0, this long term
correction factor is stored in memory.

The values stored in long term adaptive memory are used for all operating conditions, including open loop and cold
starting. However, the updating of the long term memory occurs after the engine has exceeded approximately 170°-
190° F (77° to 88°C), with fuel control in closed loop and two minutes of engine run time. This is done to prevent
any transitional temperature or start-up compensations from corrupting long term fuel correction.

Long term adaptive memory can change the pulse-width by as much as 25%, which means it can correct for all of
short term. It is possible to have a problem that would drive long term to 25% and short term to another 25% for a
total change of 50% away from base pulse-width calculation.

Typical Adaptive Memory Fuel Cells

Open

Throttle

Open

Throttle

Open

Throttle

Open

Throttle

Open

Throttle

Open

Throttle

Idle

Decel

Vacuum

20

17

13

9

5

0

Above 1,984

rpm

1

3

5

7

9

11

13 Drive

15

Below 1,984

rpm

0

2

4

6

8

10

12

Neutral

14

MAP volt =

0

1.4

2.0

2.6

3.3

3.9

Fuel Correction Diagnostics

There are two fuel correction diagnostic routines:

Fuel System Rich

Fuel System Lean

A DTC is set and the MIL is illuminated if the PCM detects either of these conditions. This is determined based on
total fuel correction, short term times long term.

PM

FUEL INJECTION

14 - 53

SYSTEM DIAGNOSIS

OPERATION

The PCM can test many of its own input and output circuits. If the PCM senses a fault in a major system, the PCM
stores a Diagnostic Trouble Code (DTC) in memory.

For DTC information see On-Board Diagnostics (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES/
POWERTRAIN CONTROL MODULE - DESCRIPTION) .

SPECIFICATIONS

TORQUE

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Crankshaft Position

Sensor Mounting Bolts

9

-

79.5

MAP Sensor

4.5

-

40

Oxygen Sensor

28

20

Powertrain Control Module

(PCM) Mounting Screws

4

-

35

Throttle Body Mounting

Bolts

9

-

79.5

Crankshaft Position

Sensor

9

-

79.5

Fuel Rail bolts

27

20

-

Inlet Air Tube Clamp

3

-

25

14 - 54

FUEL INJECTION

PM

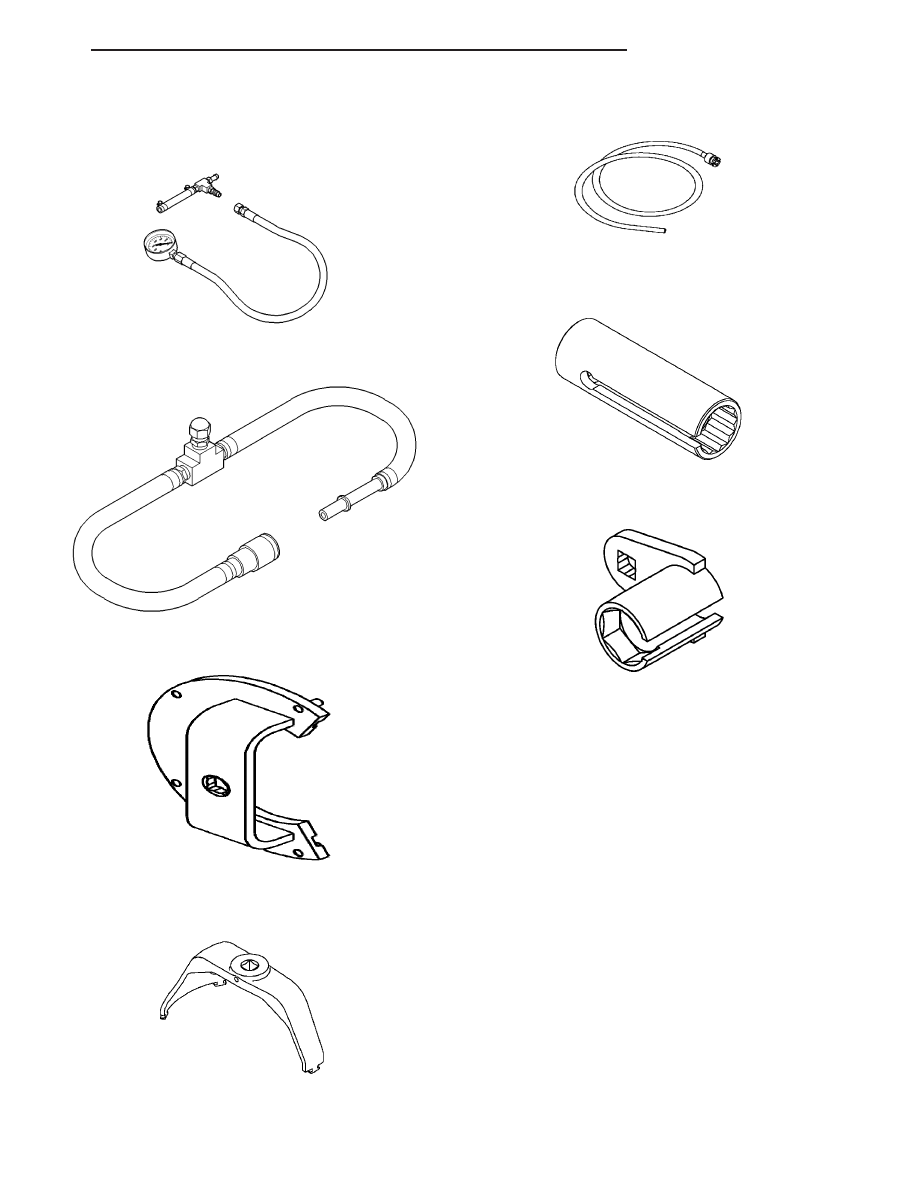

SPECIAL TOOLS

FUEL

Pressure Gauge Assembly C–4799–B

Fuel Pressure Test Adapter 6539

9318 LOCK RING TOOL

Spanner Wrench 9340

Fuel Line Adapter 1/4

O2S (Oxygen Sensor) Remover/Installer—C-4907

O2S (Oxygen Sensor) Remover/Installer - 8439

PM

FUEL INJECTION

14 - 55

SENSOR-ACCELERATOR PEDAL POSITION

DESCRIPTION

The Accelerator Pedal Position Sensor (APPS) is a variable resistor that provides the PCM with an input signal
(voltage). The signal represents pedal angle position. As the position of the accelerator pedal changes, the resis-
tance of the APPS changes.

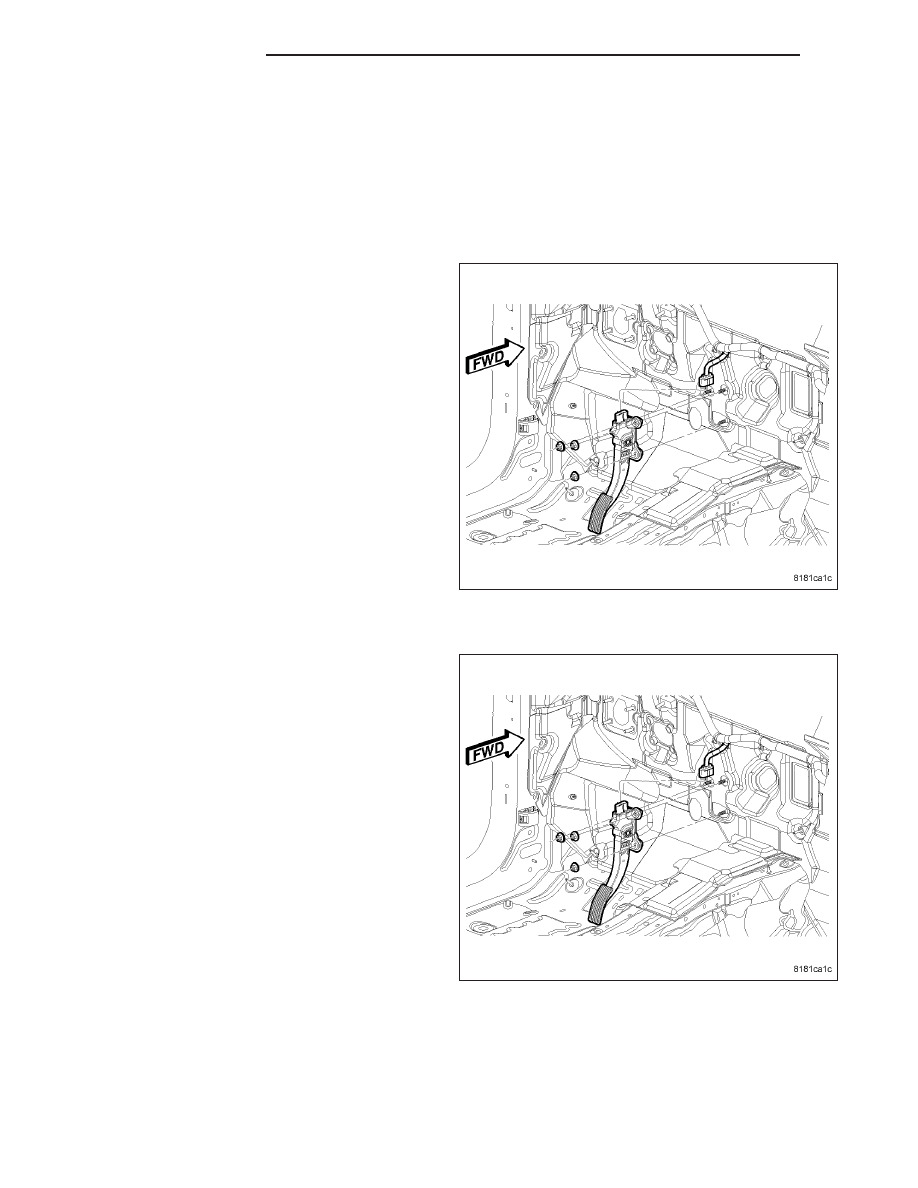

REMOVAL

1. Disconnect negative battery cable.

2. Unlock the electrical connector and then disconnect

the electrical connector from the module

3. Remove the mounting nuts.

4. Remove assembly from the mounting studs.

INSTALLATION

1. Install APPS module.

2. Tighten the mounting nuts.

3. Connect electrical connector and lock.

4. Connect negative battery cable.
