FRONT BUMPER REINFORCEMENT

REMOVAL

1. Remove fascia. (Refer to 13 - FRAME & BUMPERS/BUMPERS/FRONT FASCIA - REMOVAL)

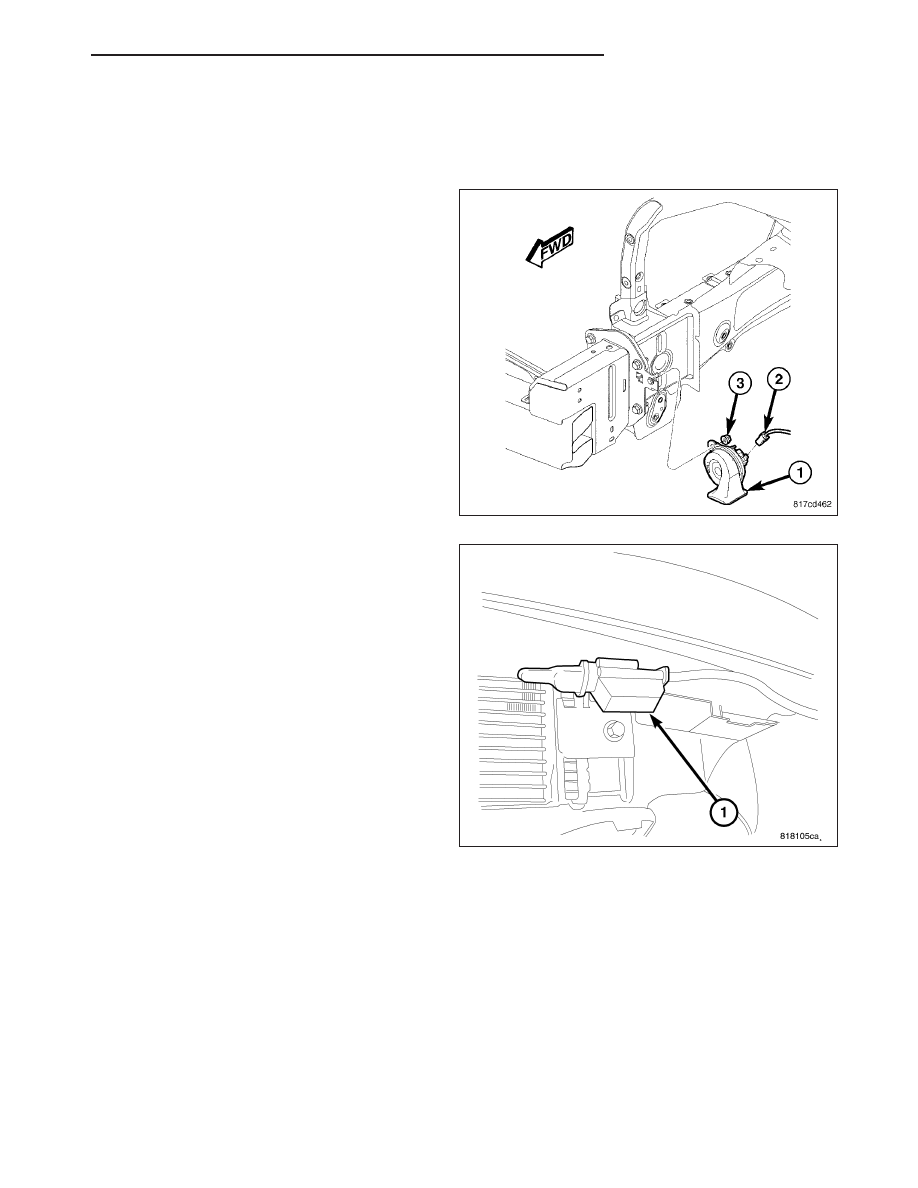

2. Disconnect wire connector (2) and remove horn

(3). (Refer to 8 - ELECTRICAL/HORN/HORN -
REMOVAL)

3. Remove wire harness push pin fastener (1).

PM

FRAME & BUMPERS

13 - 3

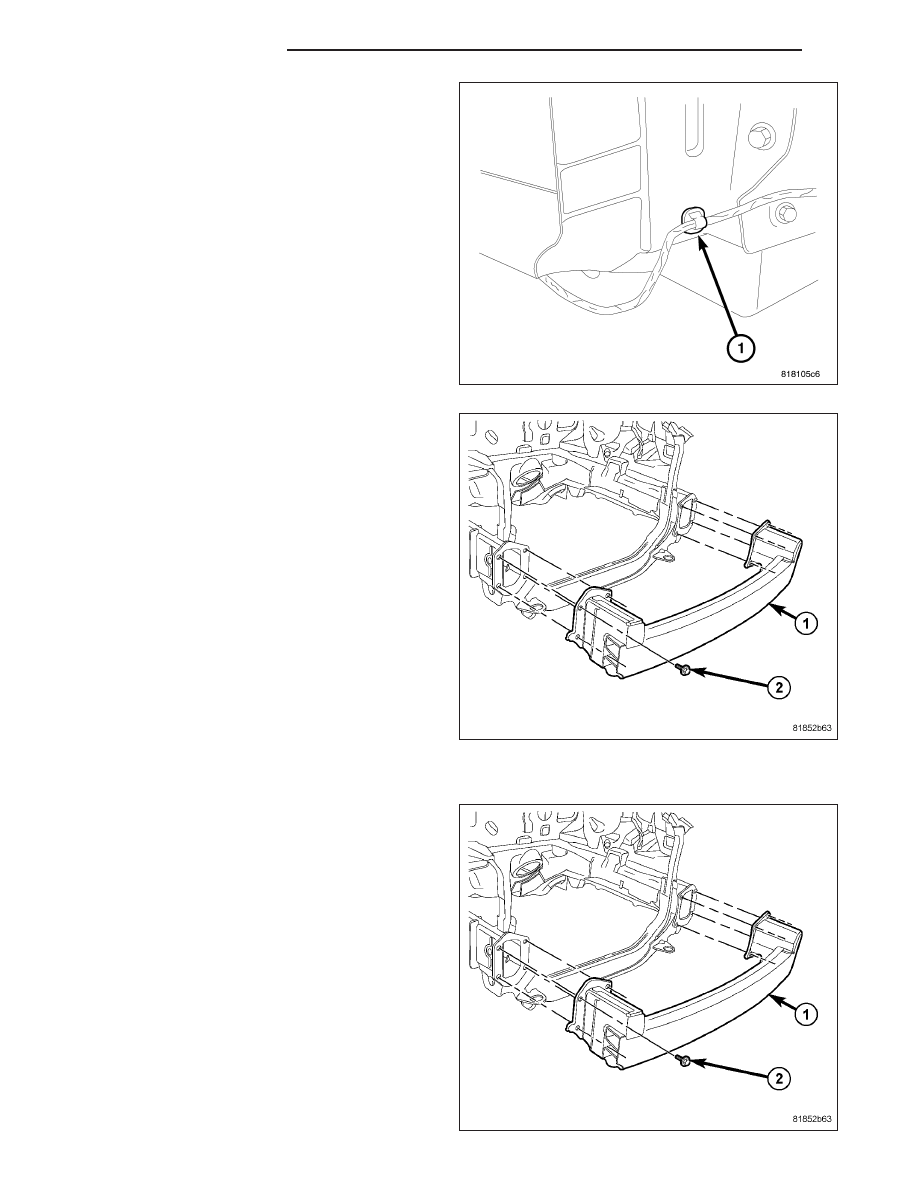

4. Remove wire harness (1) from bottom of bumper

reinforcement.

5. Remove 8 fasteners (2) from bumper reinforcement

(1).

INSTALLATION

1. Install fasteners (2) and torque to 23 N·m (204 in.

lbs.).

13 - 4

FRAME & BUMPERS

PM

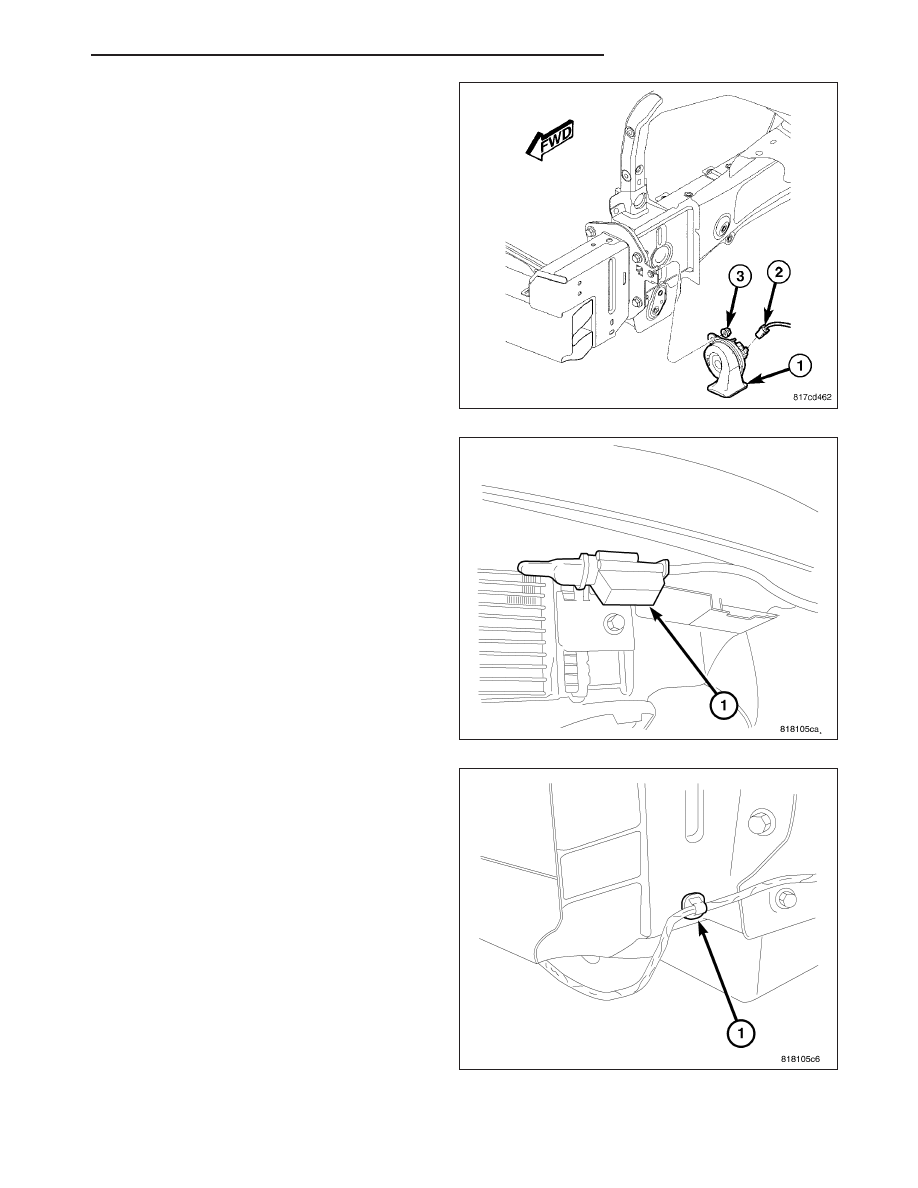

2. Connect wire connector (2) and install horn (1).

(Refer to 8 - ELECTRICAL/HORN/HORN - INSTAL-
LATION)

3. Install wiring harness push pin.

4. Install wire connector (1) to bumper reinforcement.

5. Install front fascia. (Refer to 13 - FRAME &

BUMPERS/BUMPERS/FRONT FASCIA - INSTAL-
LATION)

PM

FRAME & BUMPERS

13 - 5

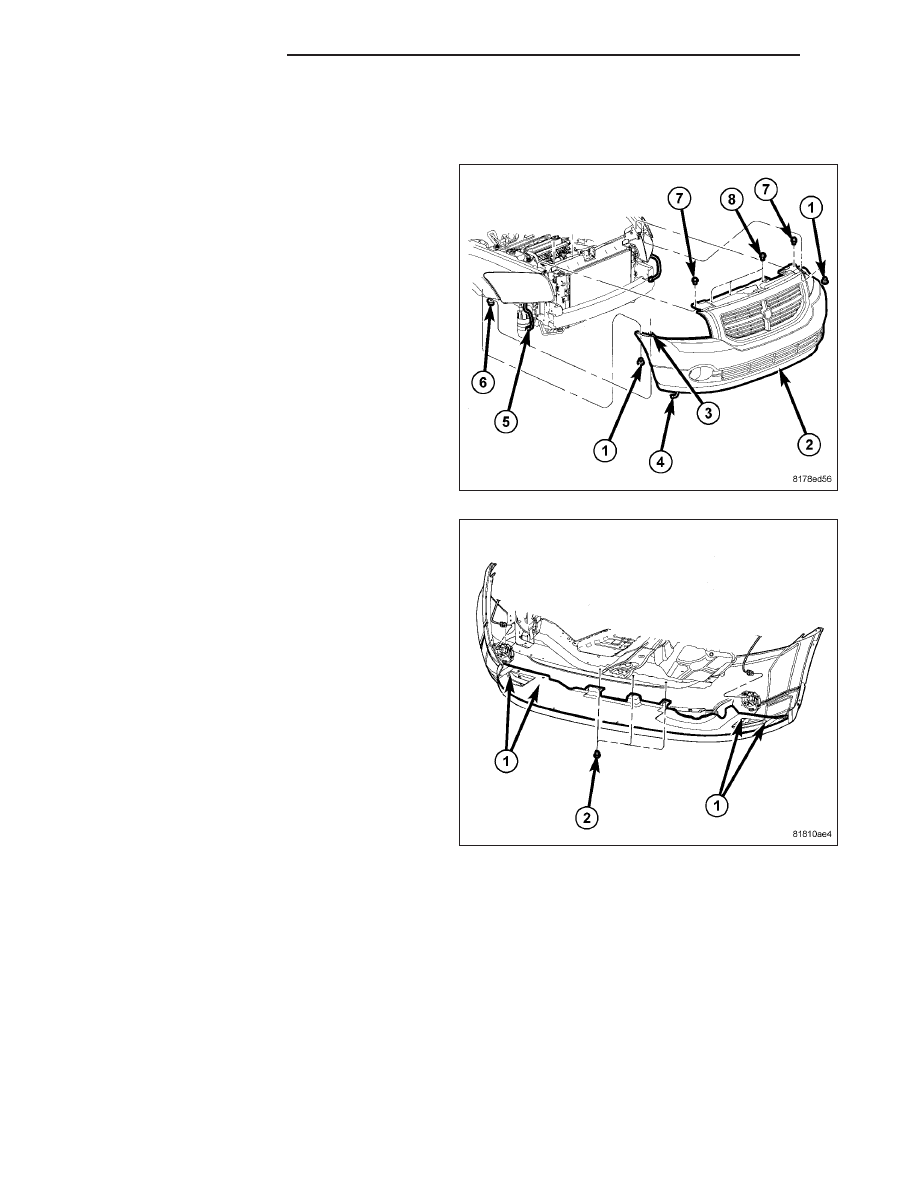

FRONT BUMPER FASCIA

REMOVAL

1. Remove splash shield. (Refer to 23 - BODY/EXTE-

RIOR/LF

WHEELHOUSE

SPLASH

SHIELD

-

REMOVAL)

2. Remove left and right side fastener (1) located in

the wheel well.

3. Remove three fasteners (2) located at the bottom

of fascia.

4. Remove middle fasteners (8) located on the top of

the fascia.

5. If equipped, disconnect fog lamps (1).

6. Remove two fasteners located at the top of fascia

(7).

7. Carefully, remove fascia from vehicle.

13 - 6

FRAME & BUMPERS

PM
