4. Remove oil pan (Refer to 9 - ENGINE/LUBRICATION/OIL PAN - REMOVAL).

5. Remove balance shaft assembly.

NOTE: Remove any carbon build up prior to piston removal.

6. Remove top ridge of cylinder bores with a reliable ridge reamer before removing pistons from cylinder block. Be

sure to keep tops of pistons covered during this operation.

7. Rotate crankshaft so that each connecting rod is centered in cylinder bore.

8. Using a permanent ink or paint marker, identify cylinder number on each connecting rod cap.

CAUTION: DO NOT use a number stamp or a punch to mark connecting rods, as damage to connecting rod
could occur.

CAUTION: Care must be taken not to damage the fractured rod and cap joint surfaces, as engine damage
many occur.

9. Remove connecting rod bolts and cap.

NOTE: Do not reuse connecting rod bolts.

10. Carefully push each piston and rod assembly out of cylinder bore. Re-install bearing cap on the mating rod.

11. Repeat procedure for each piston and connecting rod assembly.

INSTALLATION

1. Install piston rings on piston (Refer to 9 - ENGINE/

ENGINE BLOCK/PISTON RINGS - INSTALLA-
TION).

2. Before

installing

pistons

and

connecting

rod

assemblies into the bore, be sure that compression
ring gaps are staggered so that neither is in line
with oil ring rail gap.

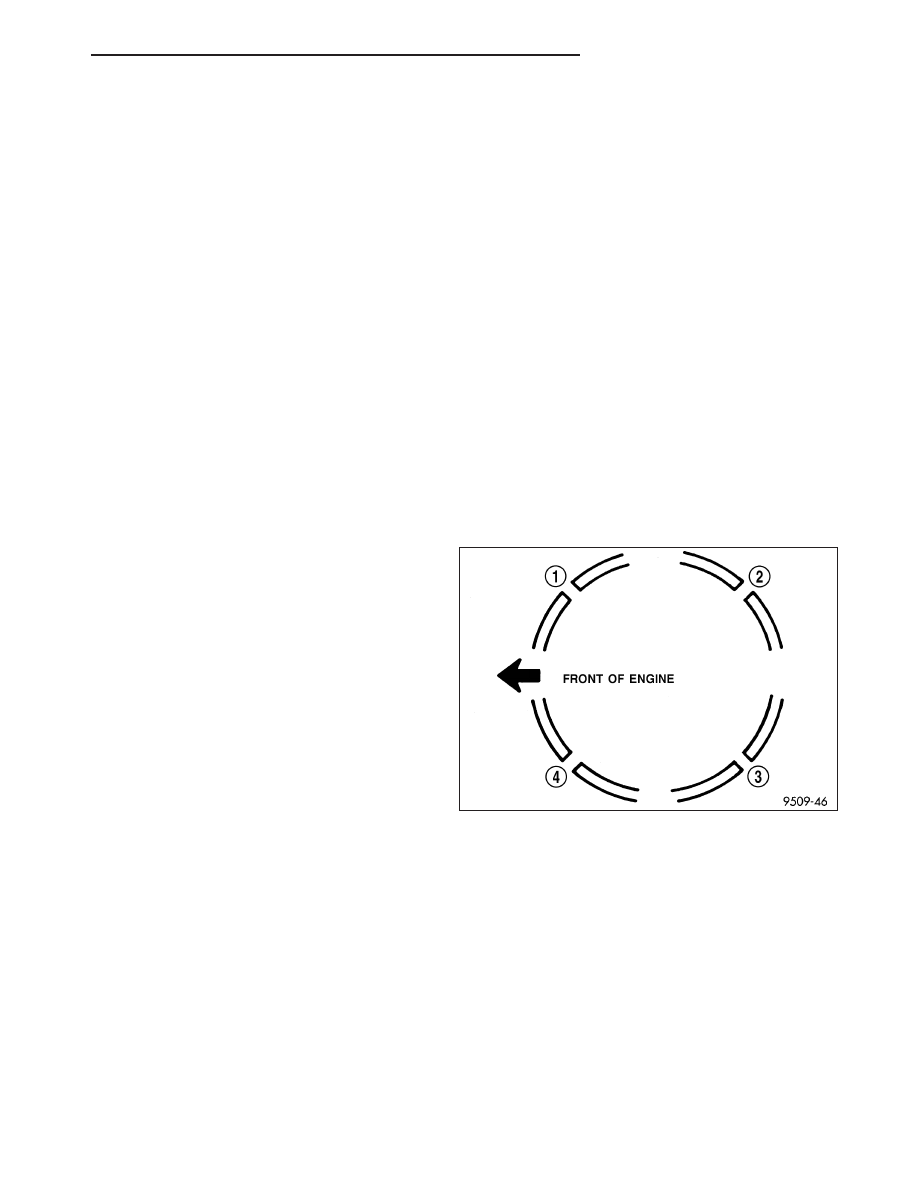

3. Before installing the ring compressor, make sure

the oil ring expander ends are butted and the rail
gaps located as shown above. As viewed from the
top of the piston.

4. Immerse the piston head and rings in clean engine

oil, slide the ring compressor, over the piston. Be
sure position of rings does not change during
this operation
.

5. The directional arrow stamped on the piston should face toward the front of the engine.

6. Rotate crankshaft so that the connecting rod journal is on the center of the cylinder bore. Lubricate connecting

rod journal with clean engine oil.

NOTE: There are three different size rod bearings, perform rod bearing selection procedure.

7. The rod bearing sizes are indicated on the nose of the crankshaft.

8. Install connecting rod upper bearing half into connecting rod.

9. Tap the piston down in cylinder bore, using a hammer handle. At the same time, guide connecting rod into posi-

tion on connecting rod journal.

NOTE: The connecting rod cap bolts should NOT be reused.

10. Before installing the NEW bolts, the threads should be coated with clean engine oil.

11. Install connecting rod lower bearing half into connecting rod cap. Install connecting rod cap.

12. Install each bolt finger tight then alternately torque each bolt to assemble the cap properly.

13. Tighten the connecting rod bolts using the 2 step torque-turn method. Tighten according to the following values:

PM

ENGINE 2.0L WORLD

9 - 1611

CAUTION: Do not use a torque wrench for the second step.

1. Tighten the bolts to 27 N·m (20 ft. lbs.).

2. Tighten the connecting rod bolts an additional 1/4 TURN.

14. Using a feeler gauge, check connecting rod side clearance. (Refer to 9 - ENGINE - SPECIFICATIONS) for

connecting rod side clearance.

15. Install the ladder frame.

16. Install oil pump/Balance Shaft Carrier Assembly

(Refer to 9 - ENGINE/VALVE TIMING/BALANCE
SHAFT CARRIER - INSTALLATION).

17. Install oil pan (Refer to 9 - ENGINE/LUBRICA-

TION/OIL PAN - INSTALLATION).

18. Install cylinder head (Refer to 9 - ENGINE/CYLIN-

DER HEAD - INSTALLATION).

9 - 1612

ENGINE 2.0L WORLD

PM

BEARINGS-MAIN

STANDARD PROCEDURE - MAIN BEARING SELECTION

NOTE: There are three different possibilities for the upper main bearings and five different lower main bear-
ings. The upper and lower bearing shells are not interchangeable.

The lower main bearing identification is stamped in the nose of the crankshaft (1). There are 5 different bearing
sizes available 0 through 4.

CRANKSHAFT IDENTIFICATION

LOWER CRANKSHAFT BEARING SELECTION

JOURNAL DIAMETER

GRADE

DIMENSION

LOWER MAIN BEARING

SIZE CLASSIFICATION

LOWER MAIN BEARING

DIMENSION

0

52 mm

0 (Pink or Red)

2 mm

1

52 mm

1 (Black)

2 mm

2

52 mm

2 (No Color)

2 mm

3

52 mm

3 (Green)

2 mm

4

52 mm

4 (Blue)

2 mm

The upper main bearing shell identification is located in the middle of cylinder block on the right side of the engine
when viewing from the flywheel. There are three different size bearings available.

UPPER MAIN BEARING SELECTION

CYLINDER BLOCK IDENTIFICATION

UPPER CRANKSHAFT BEARING SELECTION

MAIN BEARING GRADE

DIMENSION

UPPER MAIN BEARING

SIZE CLASSIFICATION

UPPER MAIN BEARING

DIMENSION

1

56 mm

1 (Black)

2 mm

2

56 mm

2 (No Color)

2 mm

3

56 mm

3 (Green)

2 mm

PM

ENGINE 2.0L WORLD

9 - 1613

BEARINGS-CONNECTING ROD

STANDARD PROCEDURE

CONNECTING ROD - FITTING

There are three different sizes of rod bearings available. Connecting rod bearing identification can be found on the
nose of the crankshaft. Use the table below for proper bearing selection.

CONNECTING ROD BEARING SELECTION

CRANKSHAFT PIN

DIAMETER GRADE

DIMENSION

CONNECTING ROD

BEARING

CLASSIFICATION

CONNECTING ROD

BEARING DIMENSION

1

48 mm

1 (Black)

1.5 mm

2

48 mm

2 (No Color)

1.5 mm

3

48 mm

3 (Green)

1.5 mm

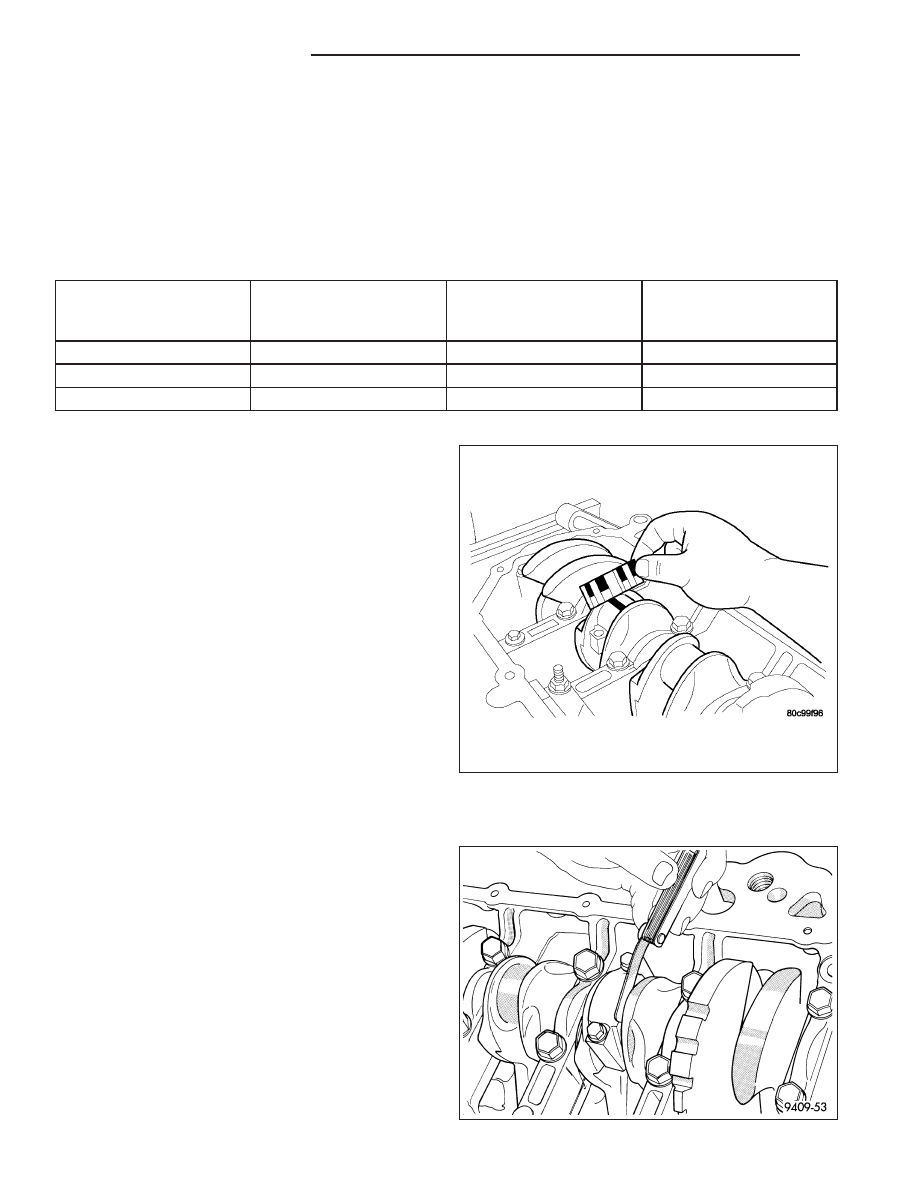

1. For measuring connecting rod bearing clearance

procedure and use of Plastigage (Refer to 9 -
ENGINE - STANDARD PROCEDURE) For bearing
clearance refer to Engine Specifications. (Refer to
9 - ENGINE - SPECIFICATIONS).

NOTE: The rod bolts should not be reused.

2. Before installing the NEW rod bolts the threads and

under the bolt head should be oiled with clean
engine oil.

3. Install each bolt finger tight then alternately torque

each bolt to assemble the cap properly.

4. Tighten the connecting rod bolts using the 2 step

torque-turn method. Tighten according to the fol-
lowing values:

CAUTION: Do not use a torque wrench for the sec-
ond step.

1. Tighten the bolts to 27 N·m (20 ft. lbs.).

2. Tighten the connecting rod bolts an additional 90°.

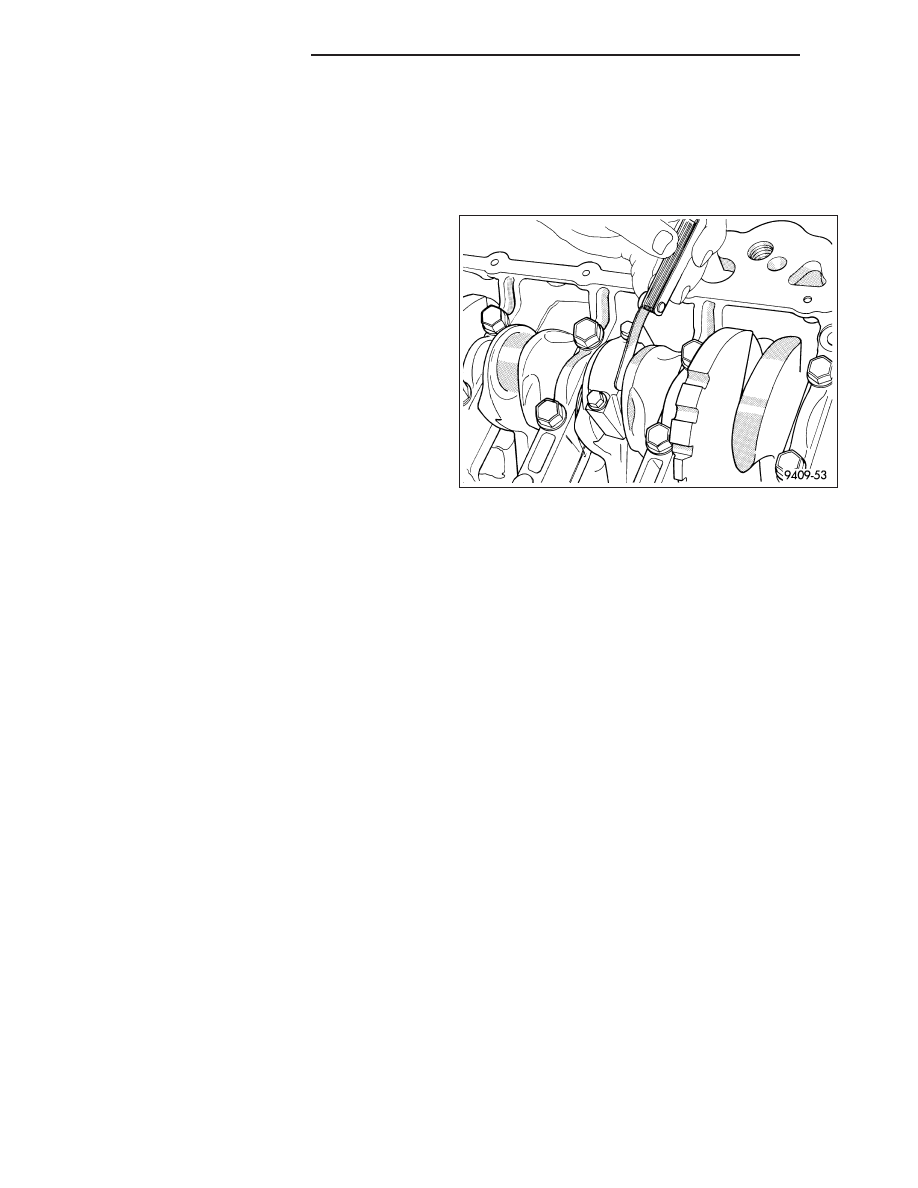

5. Using a feeler gauge, check connecting rod side

clearance. Refer to clearance specifications (Refer
to 9 - ENGINE - SPECIFICATIONS).

9 - 1614

ENGINE 2.0L WORLD

PM
