15. Install coolant manifold.

16. Install intake manifold.

17. Install intake manifold bolts and torque to 24 N·m (18 ft.lbs.).

18. Install upper radiator hose retaining bracket.

19. Install timing chain (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - INSTAL-

LATION).

20. Install timing chain cover, torque m6 bolts to 12 N·m (105 in.lbs.) and m8 bolts to 23 N·m (17 ft.lbs.).

21. Connect cam sensor wiring connector.

22. Install spark plugs and torque to 27 N·m (20 ft.lbs.).

23. Install ignition coils and torque to 8 N·m (70 in.lbs.).

24. Install power steering pump reservoir/bracket to cylinder head.

25. Install exhaust pipe to manifold. Torque fasteners to 28 N·m (20 ft. lbs.).

26. Install accessory drive belts (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION).

27. Connect engine coolant temperature sensor connector.

28. Connect upper radiator hose. Connect heater hoses to thermostat housing.

29. Install heater tube support bracket to cylinder head.

30. Install fastener attaching dipstick tube to lower intake manifold

31. Connect fuel supply line quick-connect at the fuel rail assembly (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY/

QUICK CONNECT FITTING - STANDARD PROCEDURE).

32. Fill cooling system (Refer to 7 - COOLING/ENGINE - STANDARD PROCEDURE).

33. Connect negative cable to battery.

34. Install clean air hose and air cleaner housing (Refer to 9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER

HOUSING - INSTALLATION).

PM

ENGINE 1.8L WORLD

9 - 1475

CAMSHAFT(S)

DESCRIPTION

Both camshafts have six bearing journal surfaces and two cam lobes per cylinder. Flanges on the third journal con-
trol camshaft end play. Cam position sensors are located on the intake and exhaust camshafts on the rear of the
cylinder head.

OPERATION

The camshaft is driven by the crankshaft via drive sprockets and a chain. The camshaft has precisely machined
lobes to provide accurate valve timing and duration.

STANDARD PROCEDURE

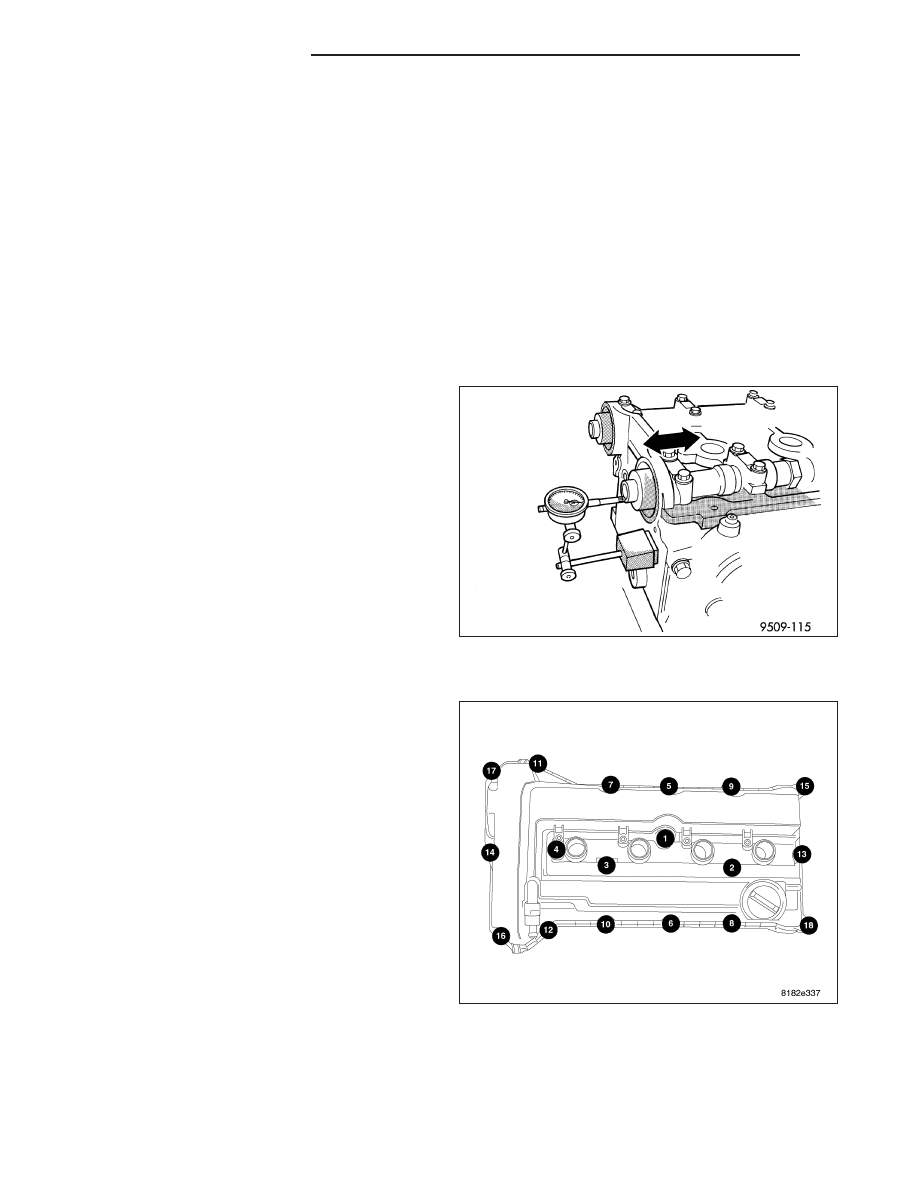

MEASURING CAMSHAFT END PLAY

1. Using a suitable tool, move camshaft as far rear-

ward as it will go.

2. Zero dial indicator.

3. Move camshaft as far forward as it will go.

4. Record reading on dial indicator. For end play

specification, (Refer to 9 - ENGINE - SPECIFICA-
TIONS).

5. If end play is excessive, check cylinder head and

camshaft for wear; replace as necessary.

REMOVAL

1. Remove engine cover by pulling upward.

2. Disconnect negative battery cable.

3. Remove cylinder head cover (Refer to 9 - ENGINE/

CYLINDER HEAD/CYLINDER HEAD COVER(S) -
REMOVAL).

4. Raise vehicle.

5. Remove right splash shield.

9 - 1476

ENGINE 1.8L WORLD

PM

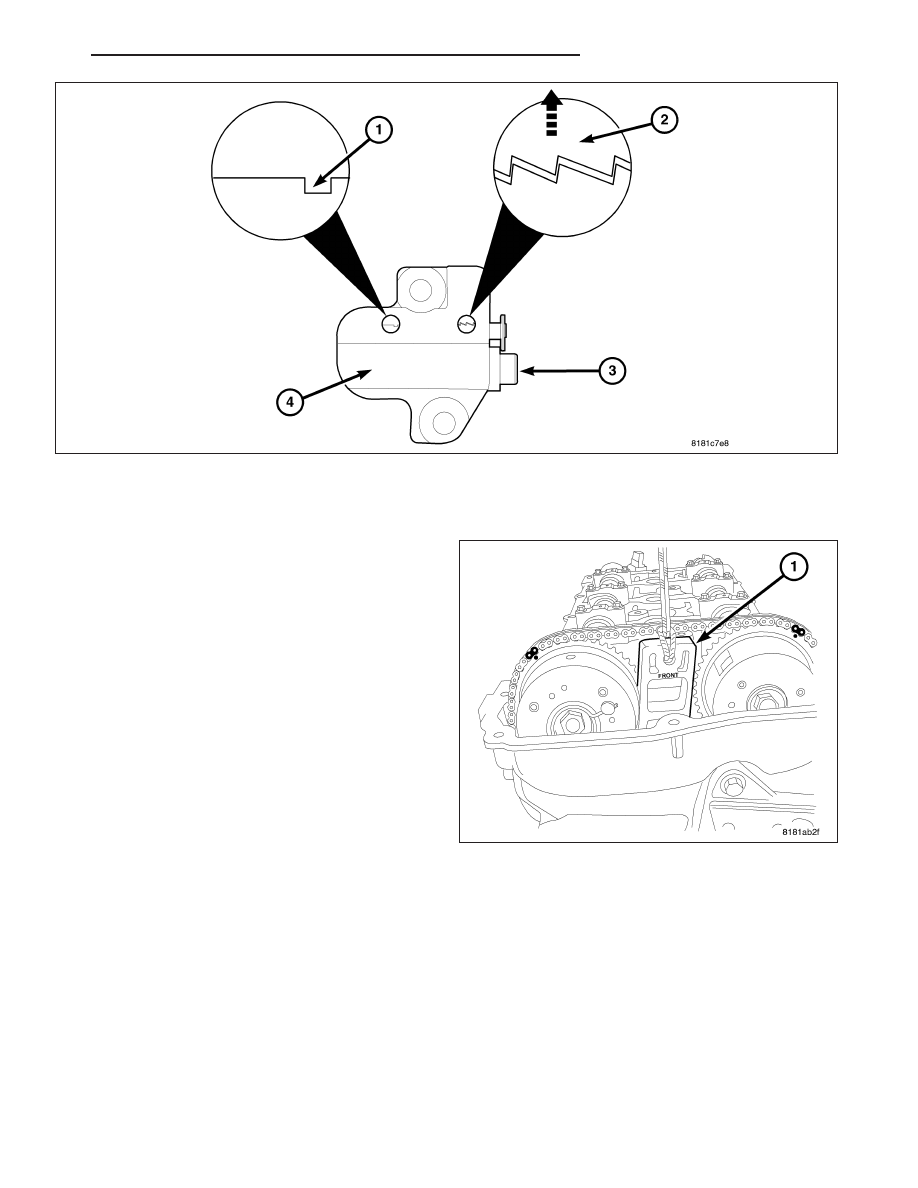

6. Remove timing tensioner plug from front cover.

7. Insert small allen wrench and lift ratchet (2) upward to release the tensioner. Leave the allen wrench installed

during the remainder of this procedure.

8. Insert wedge 9701 (1).

PM

ENGINE 1.8L WORLD

9 - 1477

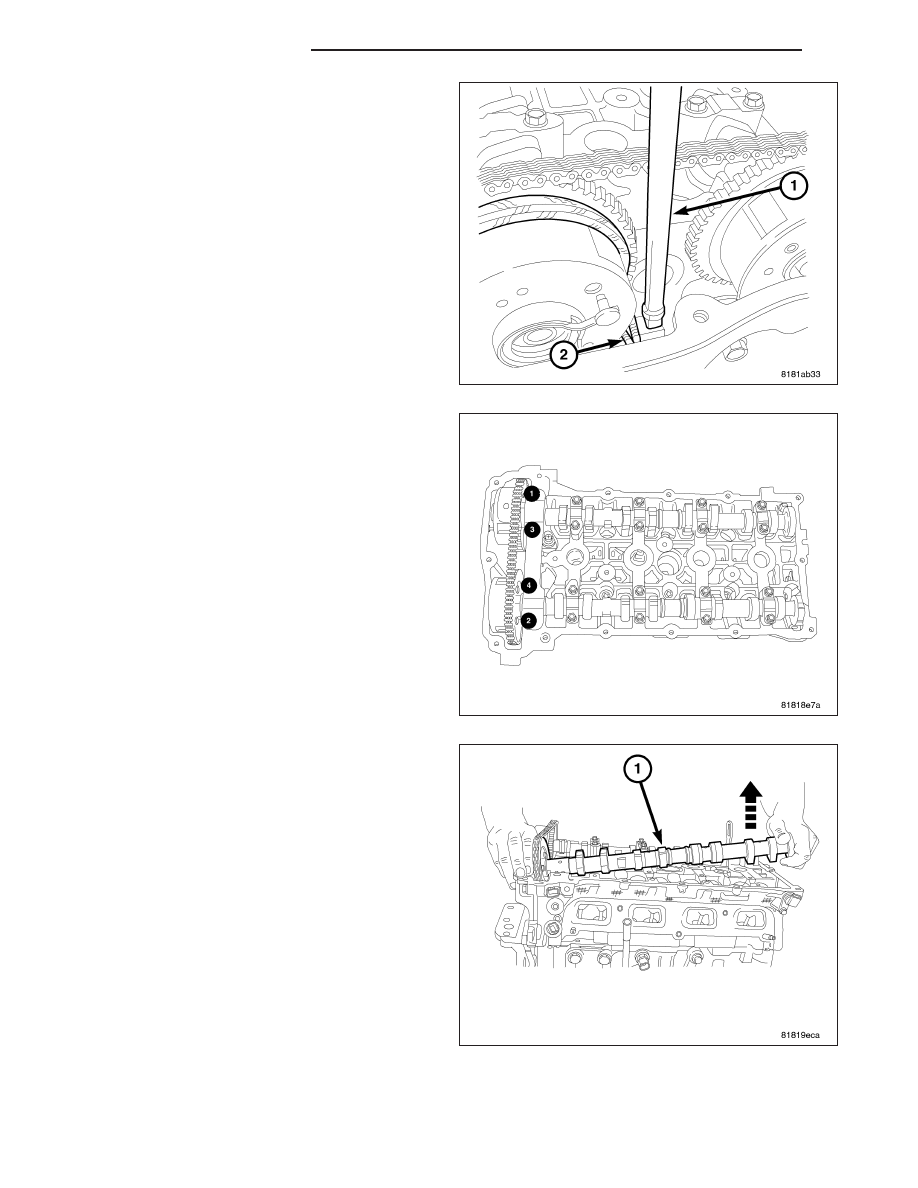

9. Lightly tap Wedge 9701(2) into place.

10. Remove the front camshaft bearing cap.

11. Slowly remove the remaining camshaft bearing

bolts one turn at a time following the above
sequence.

12. Remove intake camshaft (1) by lifting the rear of

the camshaft upward.

9 - 1478

ENGINE 1.8L WORLD

PM
