49. Remove maniverter to left of engine.

50. Hoist up.

51. Remove front mount through bolt.

52. Remove crossmember.

53. Remove front mount bracket.

54. Remove rear mount through bolt.

55. Remove rear mount.

56. Remove rear mount bracket.

57. Pull engine forward and support.

58. Remove PTU assembly (Refer to 21 - TRANSMISSION/TRANSAXLE/POWER TRANSFER UNIT - REMOVAL).

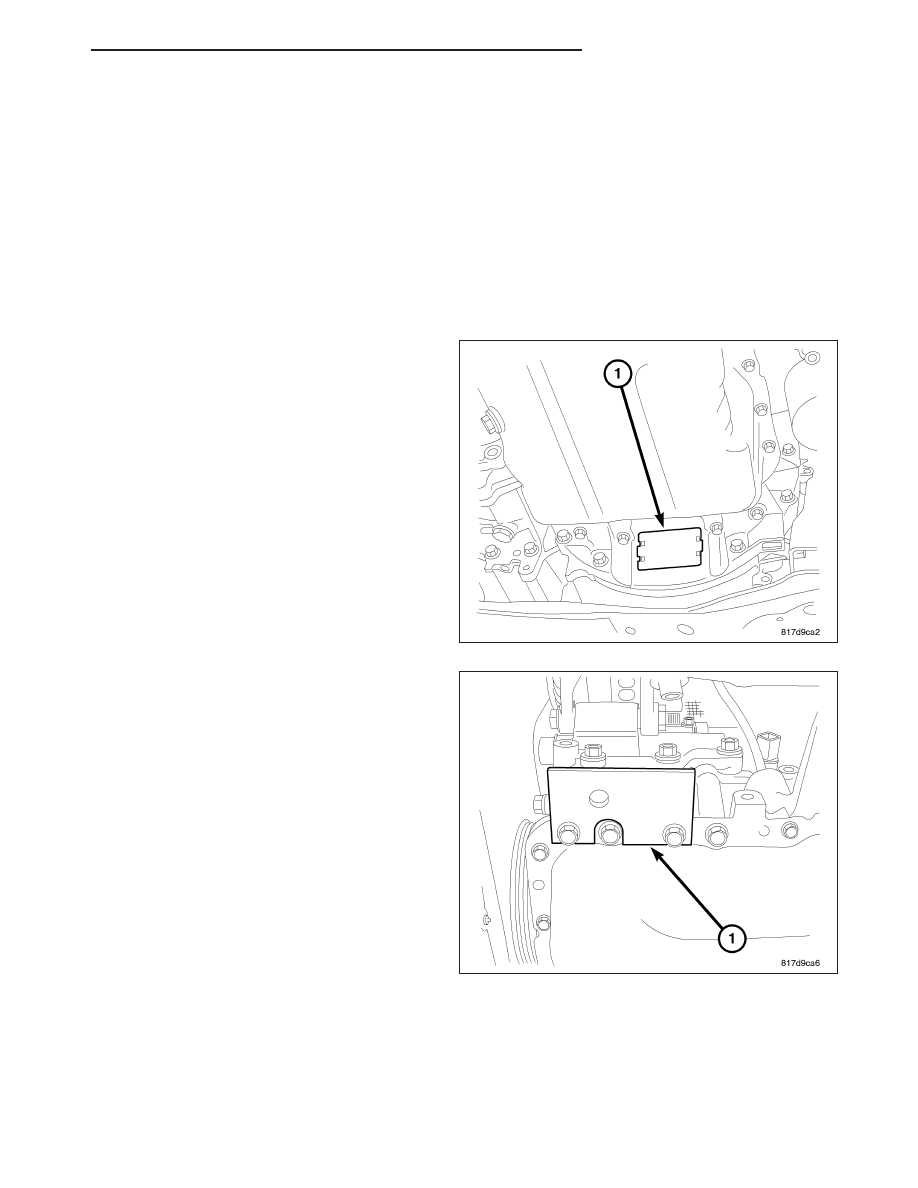

59. Remove inspection cover and mark torque con-

verter to flywheel.

60. Remove torque converter bolts.

61. Remove lower bell housing bolts.

62. Remove A/C lines from compressor and remove

A/C compressor.

63. Remove A/C mounting bracket.

64. Install Adapter 9704.

65. Remove generator and lower idler pulley.

66. Disconnect transmission electrical connector.

67. Disconnect CKP electrical connector.

68. Remove coolant hoses at transaxle cooler.

69. Remove transaxle cooler lines from cooler.

PM

ENGINE 1.8L WORLD

9 - 1455

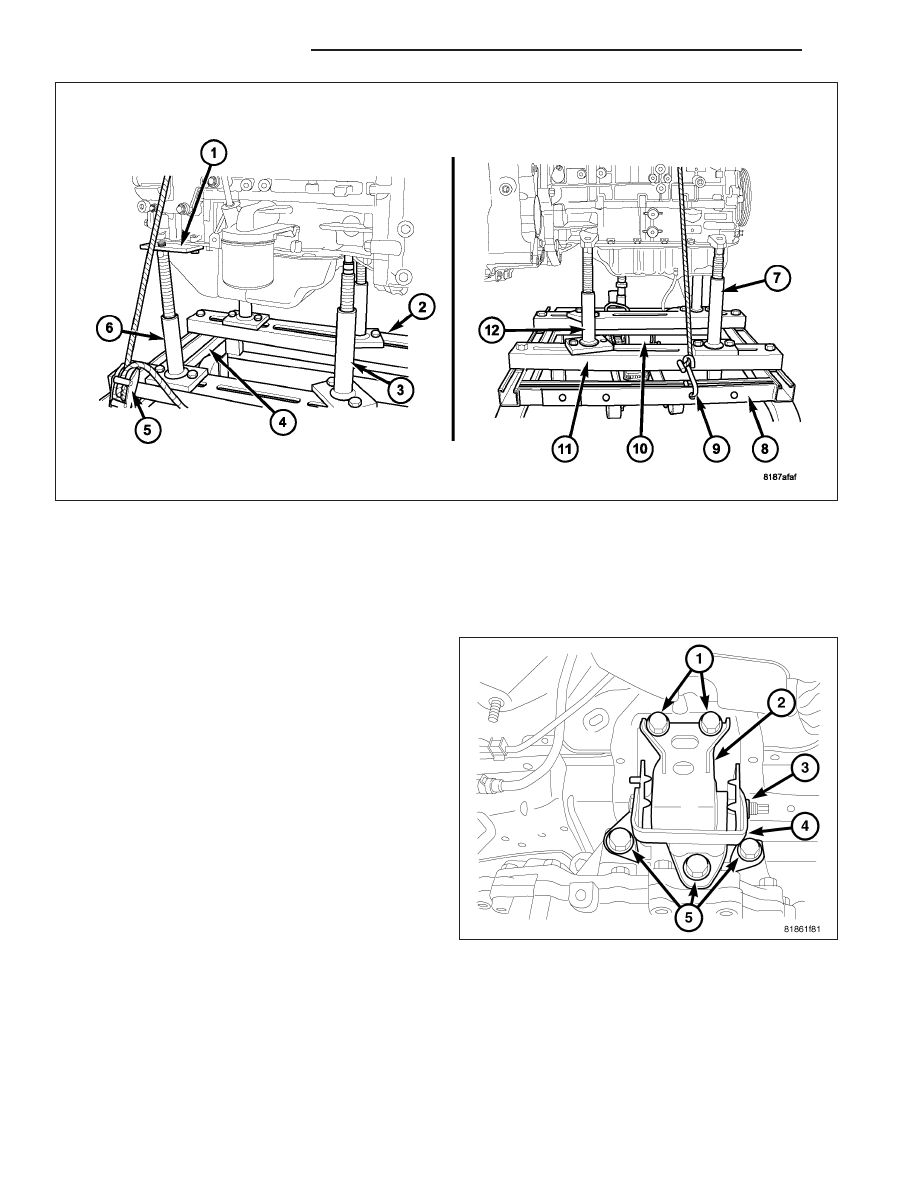

70. Position dolly under engine and lower vehicle.

WARNING: Safety straps MUST be used.

71. Install safety straps.

72. Remove PCM bracket and set aside.

73. Remove left engine mount through bolt (3).

9 - 1456

ENGINE 1.8L WORLD

PM

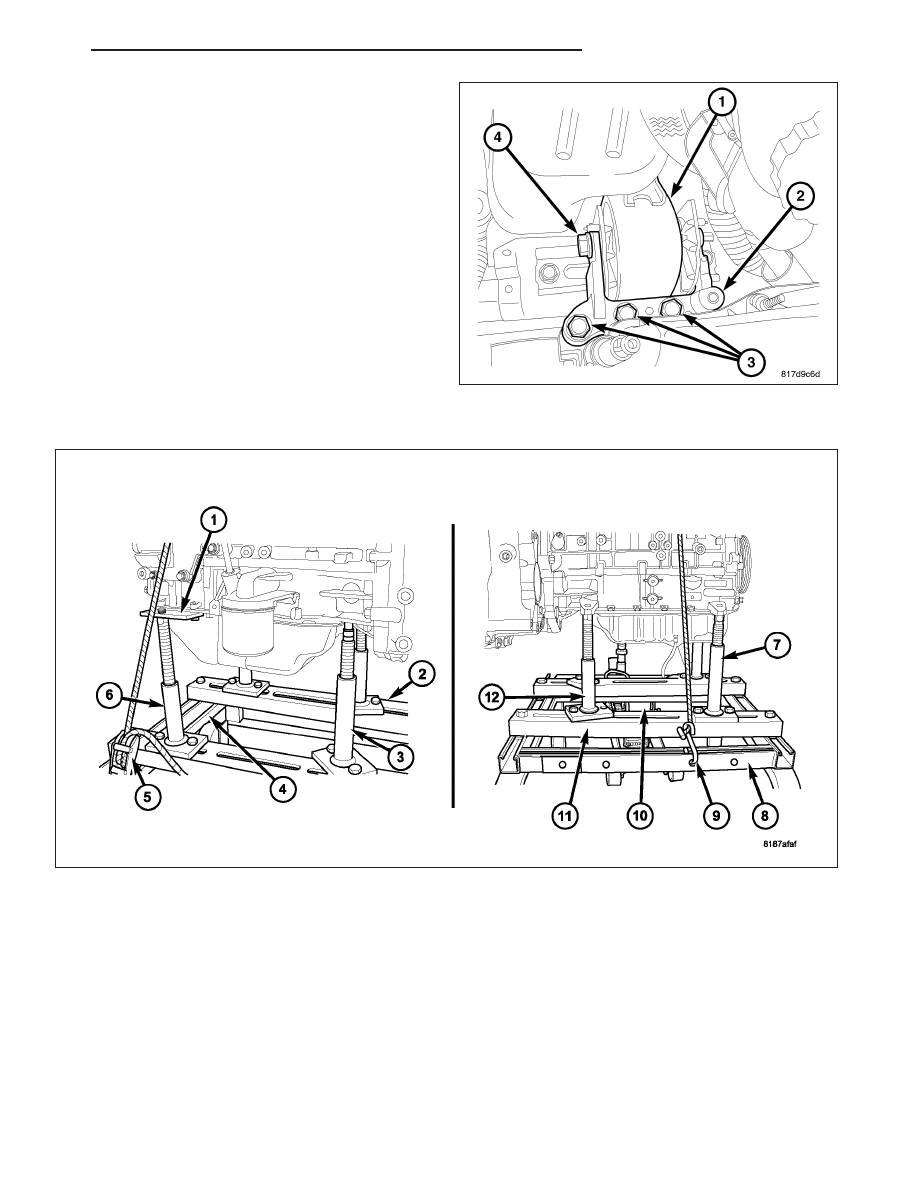

74. Remove right engine mount through bolt (4).

75. Raise vehicle away from engine and transaxle.

76. Separate engine from transaxle.

INSTALLATION - ENGINE ASSEMBLY

1. Position engine and transmission assembly under vehicle and slowly lower the vehicle over the engine/transaxle

assembly.

2. Continue lowering vehicle until engine/transaxle aligns to mounting locations.

3. Install mounting bolts at the right and left engine/transaxle mount bolts and Tighten bolts to 118 N·m (87 ft. lbs.).

4. Install mounting bolts at the right and left engine/transaxle mount bolts and Tighten bolts to 118 N·m (87 ft. lbs.).

5. Remove safety straps from engine/transaxle assembly. Slowly raise vehicle enough to remove the engine dolly

and cradle.

6. Remove Adapter 9704.

7. Install pcm bracket.

8. Install maniverter assembly and upper lower heat shields.

9. Install oxygen sensor and connect electrical connector.

10. Install coolant manifold assembly.

PM

ENGINE 1.8L WORLD

9 - 1457

11. Install transaxle linkage and adjust as necessary.

12. Install transaxle vent hose.

13. Connect transaxle range sensor electrical connector.

14. Connect TIS and TOS electrical connectors.

15. Install Ground strap near right strut tower.

16. Raise vehicle.

17. Pull engine forward and restrain engine.

NOTE: Be sure to install O-ring prior to installing PTU assembly.

18. Install PTU.

19. Remove engine restraint.

20. Install front mount bracket and tighten bolts.

21. Install frame cross member.

22. Install front engine mount.

23. Install rear mount bracket.

24. Install rear mount and tighten bolts.

25. Connect CKP electrical connector.

26. Install maniverter to exhaust pipe bolts and tighten.

27. Align driveshaft marks and install and heat shield.

28. Install generator

29. Install A/C bracket.

30. Install A/C lines on compressor and install compressor.

31. Install lower bell housing bolts and tighten.

32. Align torque converter and flex plate mark and install torque converter bolts and tighten.

33. Install inspection cover.

34. Install transaxle connector.

35. Connect trans cooler lines.

36. Install coolant hoses at transmission cooler.

37. Install axles.

38. Install ball joint pinch bolts and tighten.

39. Install axle nuts and tighten.

40. Install splash shields.

41. Install wheels.

42. Install new oil filter.

43. Lower vehicle.

44. Install transaxle filler tube.

45. Install upper idler pulley.

46. Install power steering pump.

47. Install power steering line support bracket.

48. Install power steering pump.

49. Install accessory drive belt.

50. Connect electrical connectors at block ground, starter, A/C compressor, knock sensor, Oil pressure sensor, gen-

erator, Coolant temperature sensor at block, and block heater.

51. Install intake manifold. Install intake manifold retaining bolts and tighten.

52. Install throttle body support bracket.

53. Install engine oil dip stick.

54. Install PCV hose to valve cover.

9 - 1458

ENGINE 1.8L WORLD

PM
