MODULE-REAR DRIVELINE

STANDARD PROCEDURE -

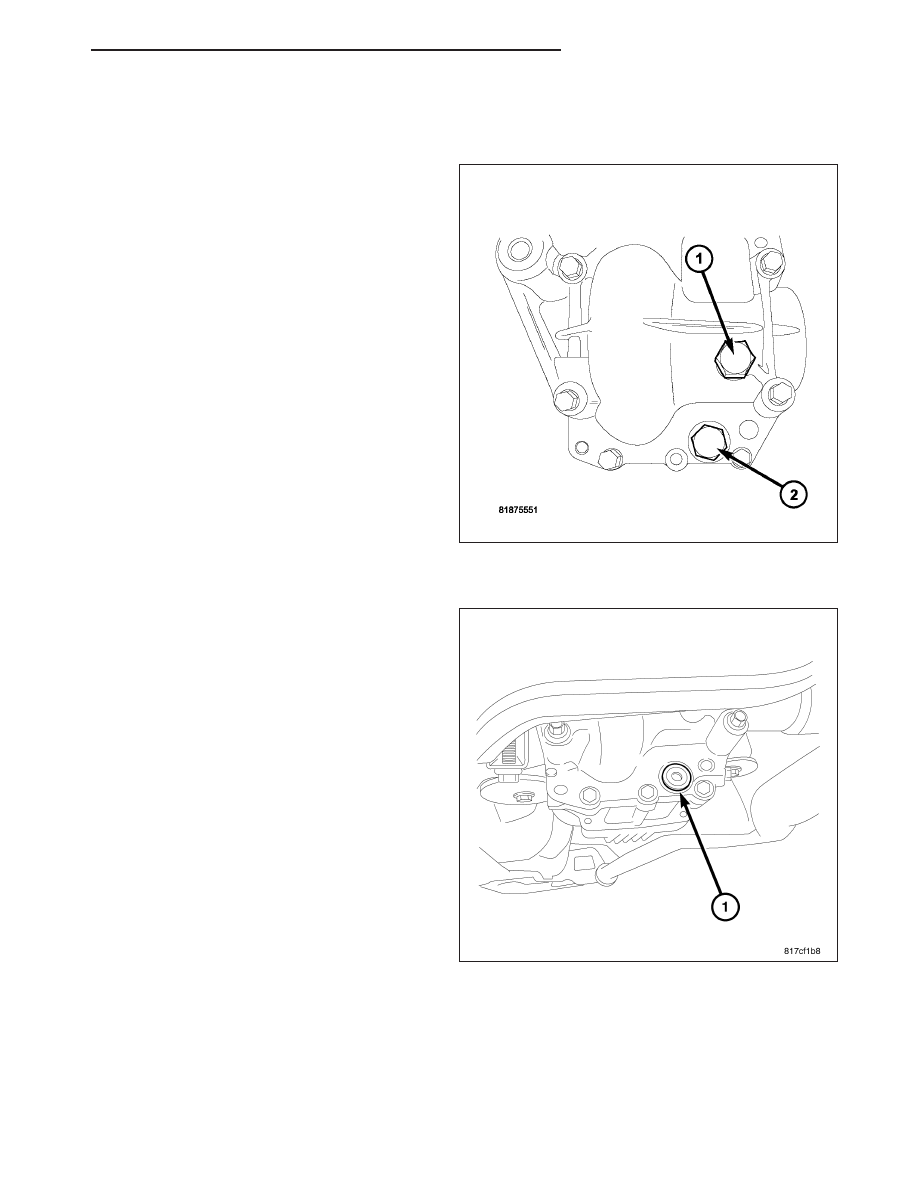

1. If fluid level is low or fluid change is required fill

with PN 4874468 Mopar MS9020 SAE80W90 Gear
Lube until to bottom of fill plug.

2. Torque fill plug (1) to 32 N-m (24 lbf-ft).

3. Torque drain plug (2) to 32 N-m (24 lbf-ft).

REMOVAL

1. Raise vehicle on a hoist.

2. Remove the rear tires.

3. Remove the drain plug (1) and drain the fluid from

the rear drive line module.

4. Remove the rear propeller shaft. (Refer to 3 - DIF-

FERENTIAL & DRIVELINE/PROPELLER SHAFT -
REMOVAL)

PM

MODULE-REAR DRIVELINE

3 - 51

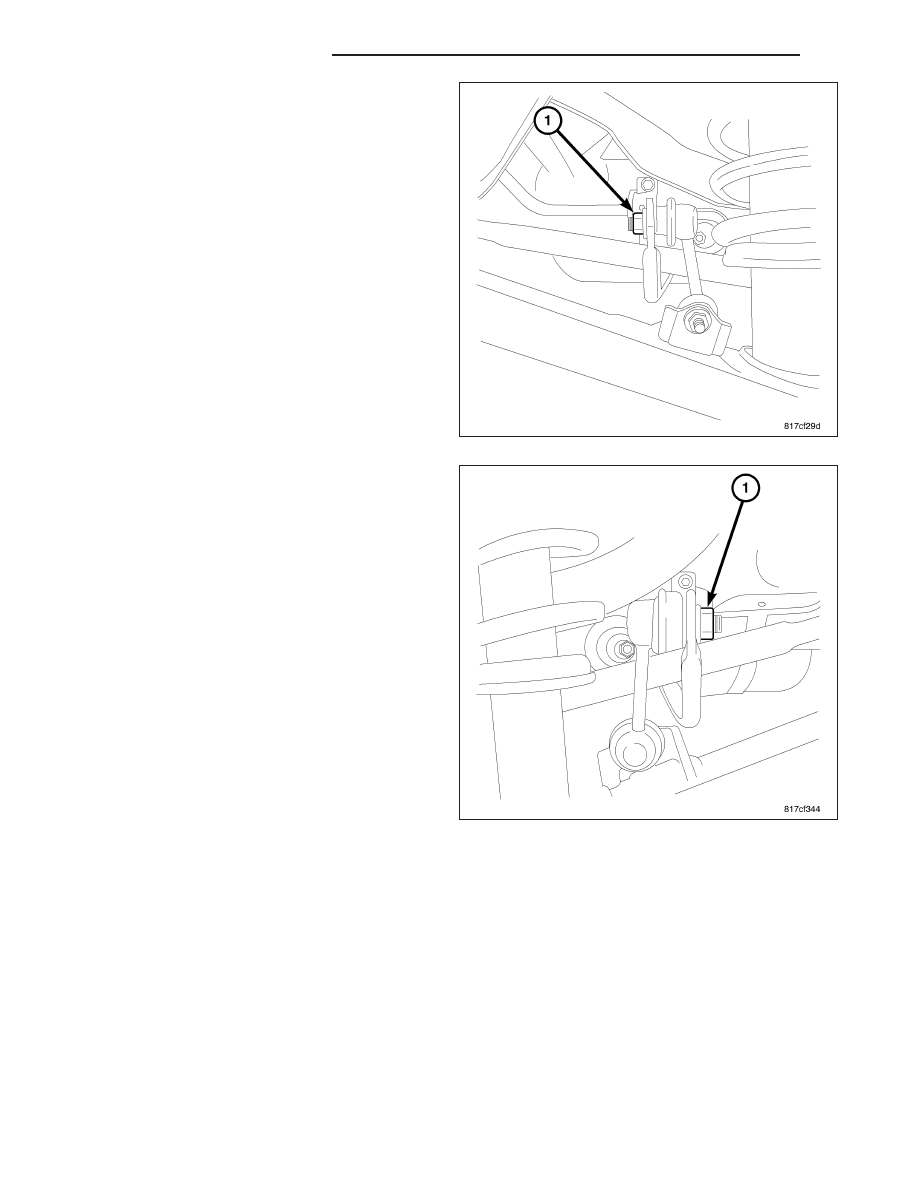

5. Remove right side sway bar nut (if equipped).

6. Remove left side sway bar nut (if equipped).

3 - 52

MODULE-REAR DRIVELINE

PM

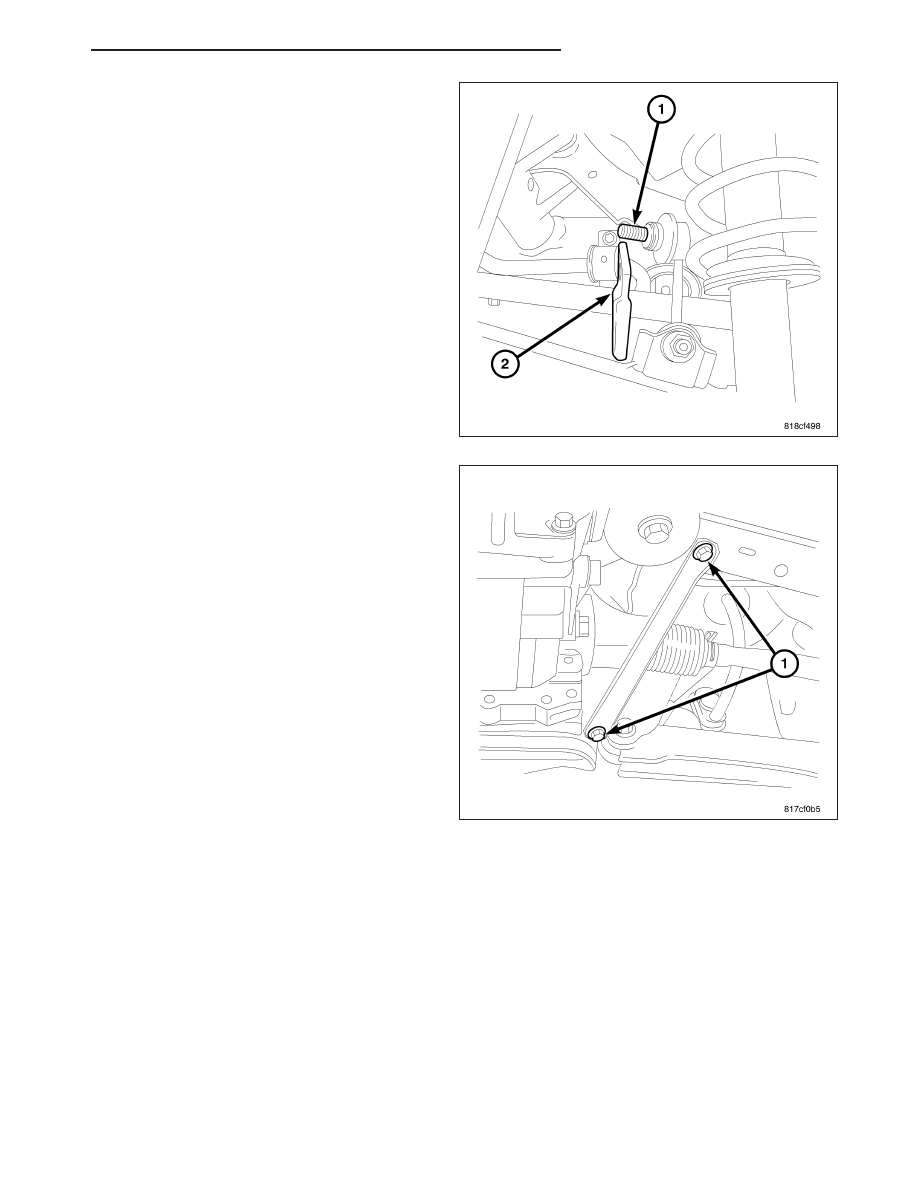

7. Roll sway bar down and out of the way (2) (if

equipped).

8. Remove the left side stay bracket bolts (1).

PM

MODULE-REAR DRIVELINE

3 - 53

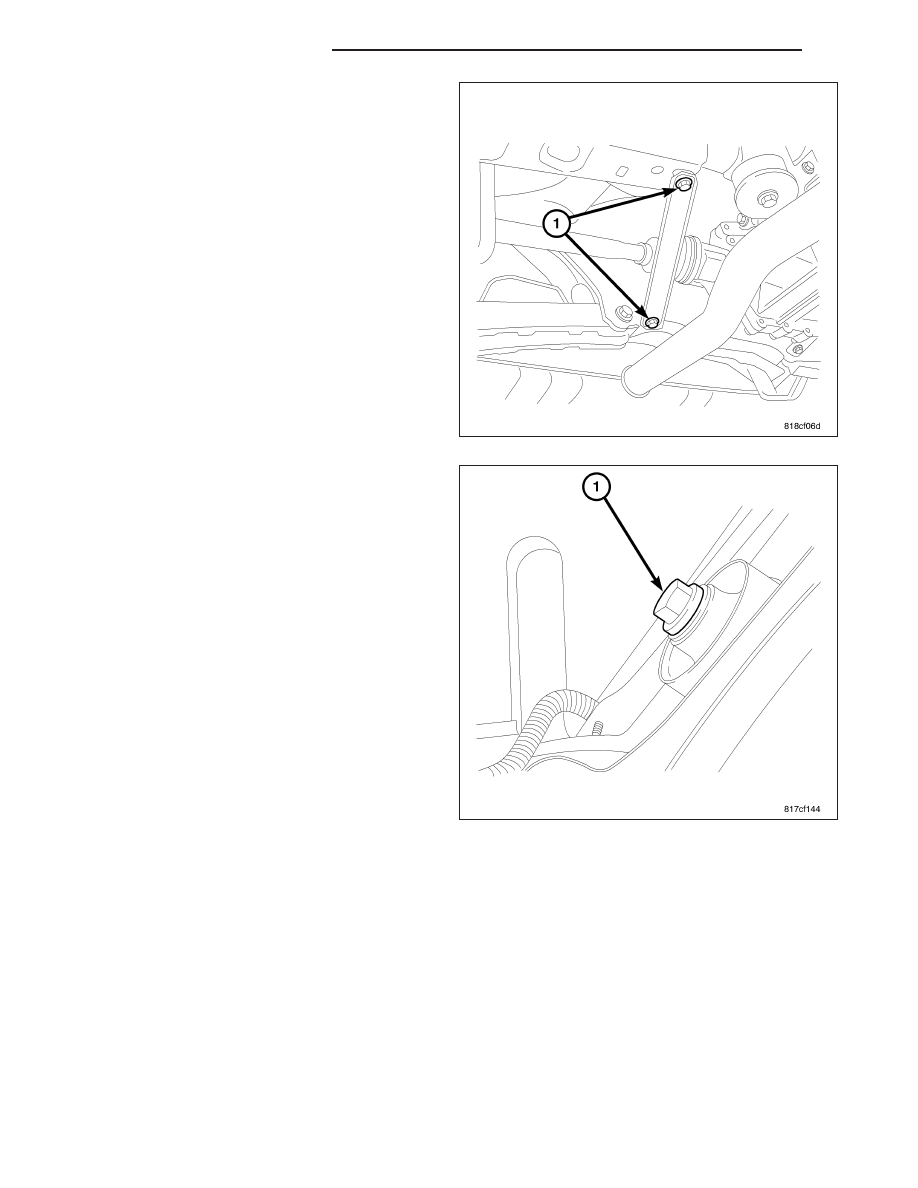

9. Remove the right side stay bracket bolts (1).

10. Remove the exhaust system up to the catalytic

converter. (Refer to 11 - EXHAUST SYSTEM/
MUFFLER - REMOVAL).

11. Support the rear driveline module with a transmis-

sion jack.

12. Remove the rear bolt (1) at the driveline module.

3 - 54

MODULE-REAR DRIVELINE

PM
