5. Distribute 1/2 the amount of grease provided in

seal boot service package (DO NOT USE ANY
OTHER TYPE OF GREASE) into outer CV joint
assembly housing. Put the remaining amount into
the sealing boot (4).

6. Install outer CV joint sealing boot to interconnecting

shaft clamp evenly on sealing boot.

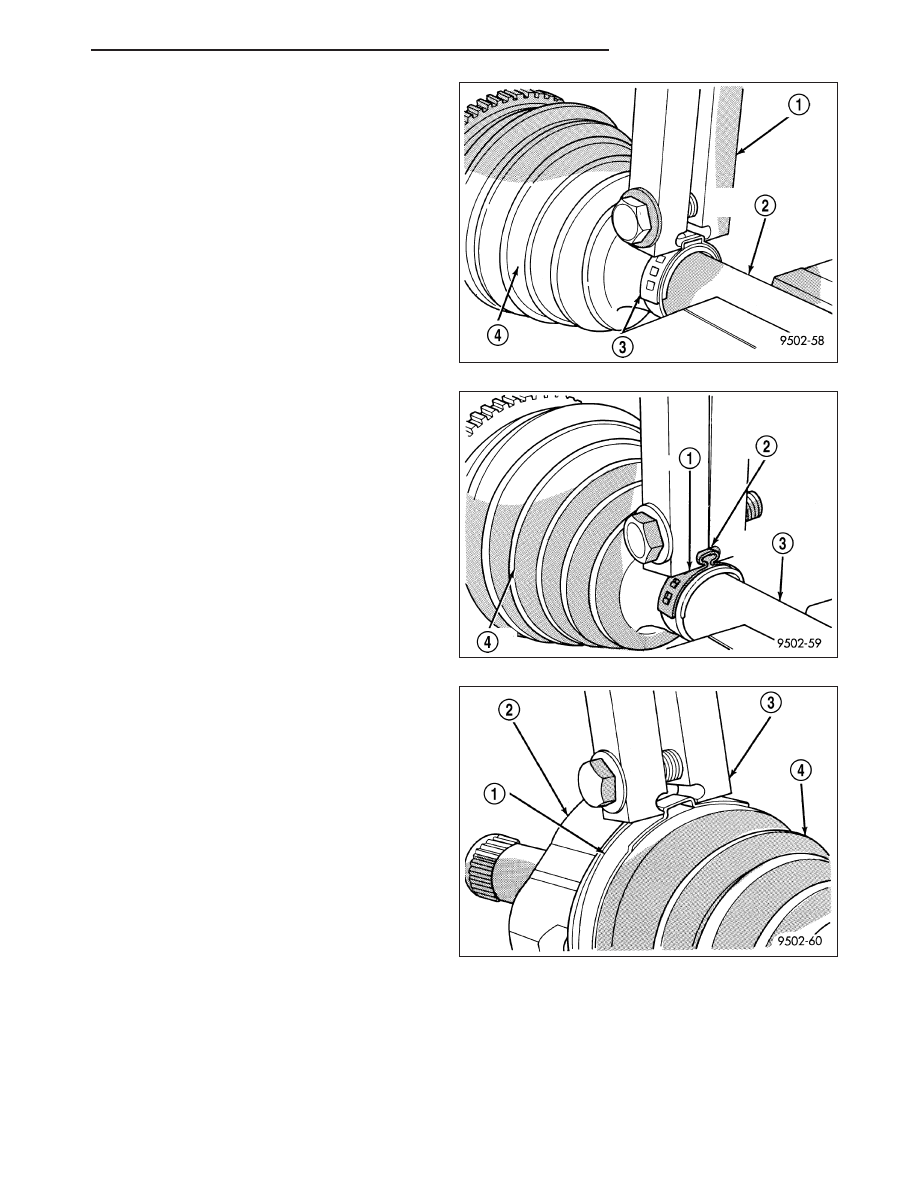

7. Clamp sealing boot onto interconnecting shaft (2)

using crimper, Crimping Tool C-4975-A and the fol-
lowing procedure. Place Crimping Tool C-4975-A
(1) over bridge of clamp (3).

8. Tighten nut on Crimping Tool C-4975-A until jaws

on tool (2) are closed completely together, face to
face.

CAUTION: Seal must not be dimpled, stretched, or
out–of–shape in any way. If seal is NOT shaped
correctly, equalize pressure in seal and shape it by
hand.

9. Position outer CV joint sealing boot (4) into its

retaining groove on outer CV joint housing. Install
sealing boot to outer CV joint retaining clamp (1)
evenly on sealing boot.

10. Clamp sealing boot onto outer CV joint housing

using Crimping Tool C-4975-A (3) and the follow-
ing procedure. Place Crimping Tool C-4975-A over
bridge of clamp (1).

PM

HALF SHAFT-FRONT

3 - 19

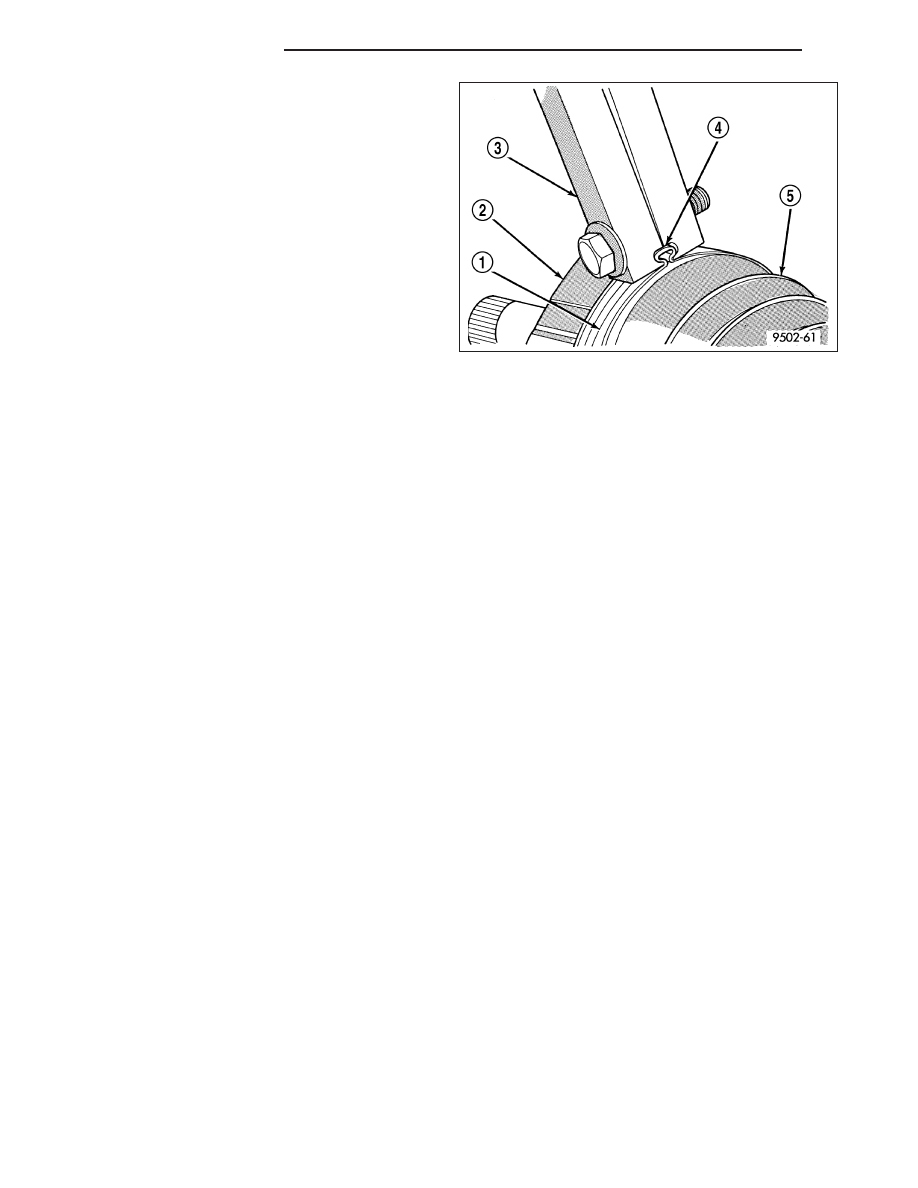

11. Tighten nut on Crimping Tool C-4975-A until jaws

on tool are closed completely together (4), face to
face.

12. Install the halfshaft requiring boot replacement

back on the vehicle. (Refer to 3 - DIFFERENTIAL
& DRIVELINE/HALF SHAFT - INSTALLATION)

3 - 20

HALF SHAFT-FRONT

PM

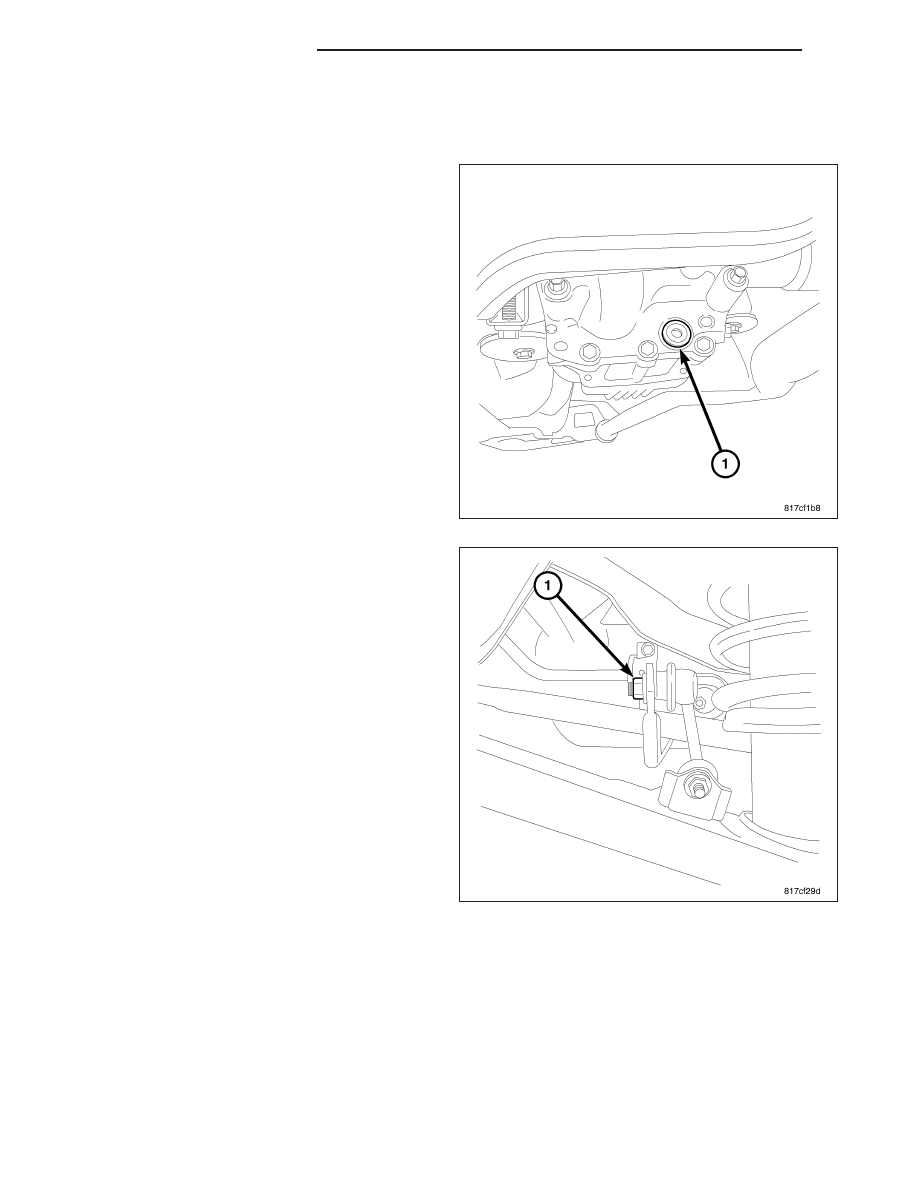

HALF SHAFT-LEFT REAR

REMOVAL

1. Raise vehicle on a hoist.

2. Remove the rear tires.

3. Drain the fluid from the rear drive line module.

4. Remove the rear propeller shaft. (Refer to 3 - DIF-

FERENTIAL & DRIVELINE/PROPELLER SHAFT -
REMOVAL)

5. Remove right side sway bar nut (if equipped).

3 - 22

HALF SHAFT-LEFT REAR

PM
