11. Release the tension from the coil spring by backing off the compressor drive completely. Push back the com-

pressor hooks and remove the coil spring.

12. Inspect the strut assembly components for the fol-

lowing and replace as necessary:

Inspect the strut (damper) (8) for shaft binding
over the full stroke of the shaft.

Inspect the jounce bumper (with dust shield) (6)
for cracks and signs of deterioration.

Check the upper mount (2) for cracks and distor-
tion and its retaining studs for any sign of dam-
age.

Check the bearing (3) for any binding.

Check the upper spring seat and isolator (4) for
cracks and distortion.

Inspect the upper and lower spring isolators (7)
for material deterioration and distortion.

Inspect the coil spring (5) for any sign of damage
to the coating.

NOTE: For reassembly, (Refer to 2 - SUSPENSION/FRONT/STRUT - ASSEMBLY).

ASSEMBLY

NOTE: If the coil spring has been removed from the spring compressor, proceed with the next step, other-
wise, proceed with step Step 3.

1. Place the coil spring in the spring compressor following the manufacturers instructions. Before compressing the

spring, rotate the spring so the end of the bottom coil is at approximately the 9 o’clock position as viewed above
(or to where the spring was when removed from the compressor). This action will allow the strut (damper) clevis
bracket to be positioned outward, away from the compressor once installed.

2. Slowly compress the coil spring until enough room is available for strut assembly reassembly.

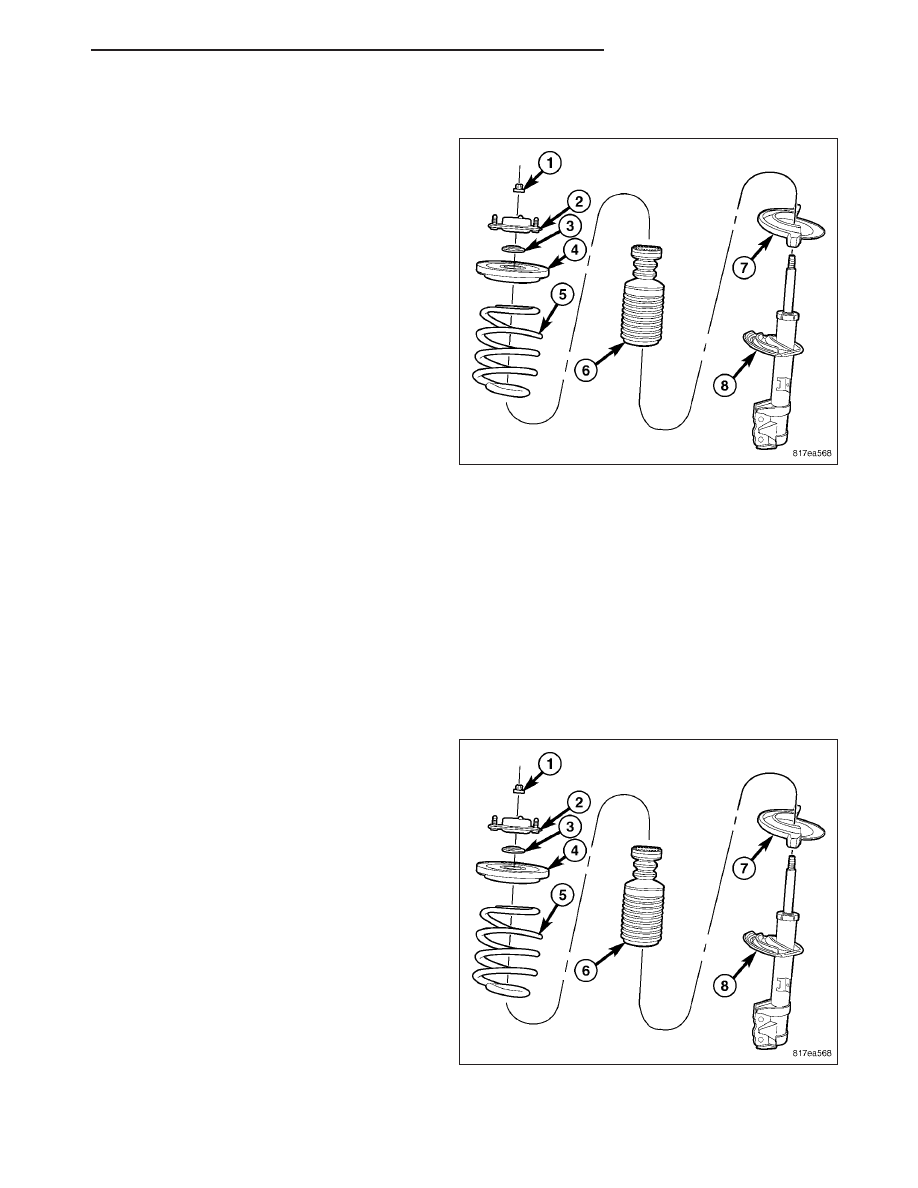

3. Install the upper spring seat and isolator (4) on top

of the coil spring (5).

4. Install the bearing (3) and upper mount (2) on top

of the upper spring seat and isolator (4).

5. Install the lower spring isolator (7) on the spring

seat on the strut (8).

6. Slide the dust shield and jounce bumper (6) onto

the strut rod.

PM

FRONT SUSPENSION

2 - 33

7. Install the strut (3) up through the bottom of the coil

spring and upper spring seat, mount, and bearing
until the lower spring seat contacts the lower end
of the coil spring. Rotate the strut as necessary
until the end of the bottom coil (2) comes in contact
with the stop (1) built into the lower spring isolator

8. While holding the strut in position, install the nut (1)

on the end of the strut rod.

CAUTION: Never use impact or high speed tools
to remove the strut rod nut. Damage to the strut
internal bearings can occur.

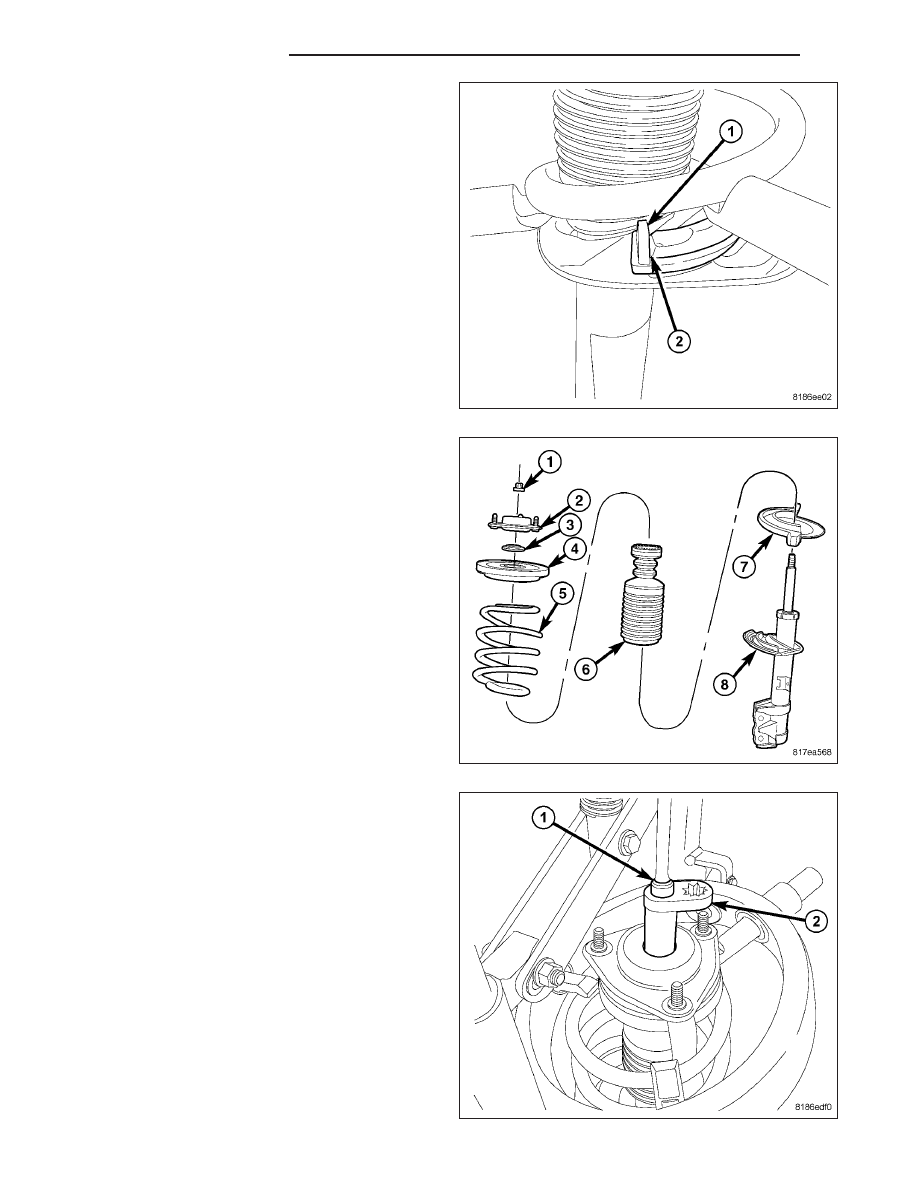

9. Install Strut Nut Wrench (2), Special Tool 9362, on

the strut rod nut. Next, install Strut Shaft Socket
(1), Special Tool 9894, on the end of the strut rod.
While holding the strut rod from turning, tighten the
strut rod nut to 60 N·m (44 ft. lbs.) using a torque
wrench on the end of Special Tool 9362.

2 - 34

FRONT SUSPENSION

PM

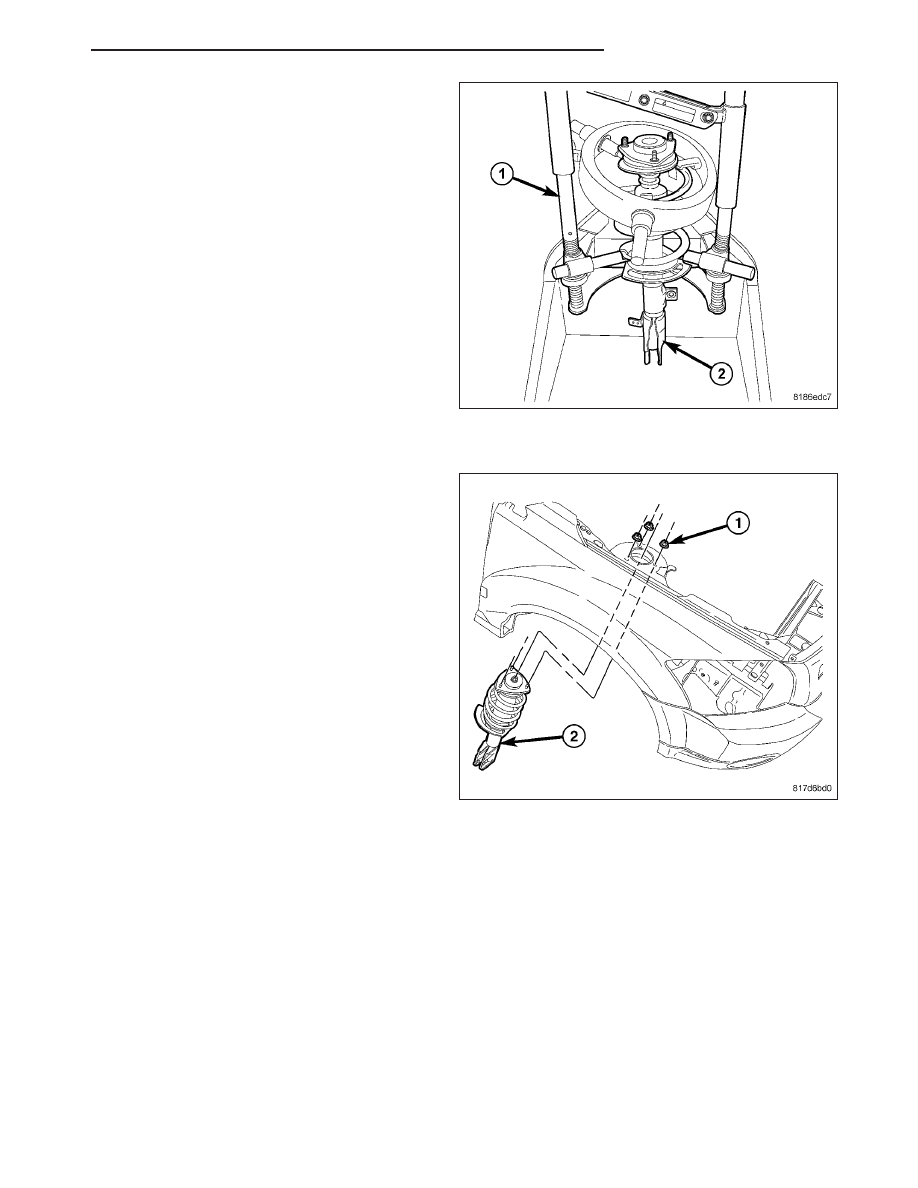

10. Slowly release the tension from the coil spring by

backing off the compressor (1) drive completely.
As the tension is relieved, make sure the upper
mount and bearing align properly. Verify the upper
mount does not bind when rotated.

11. Remove the strut assembly from the spring com-

pressor.

12. Install the strut assembly on the vehicle. (Refer to

2 - SUSPENSION/FRONT/STRUT - INSTALLA-
TION)

INSTALLATION

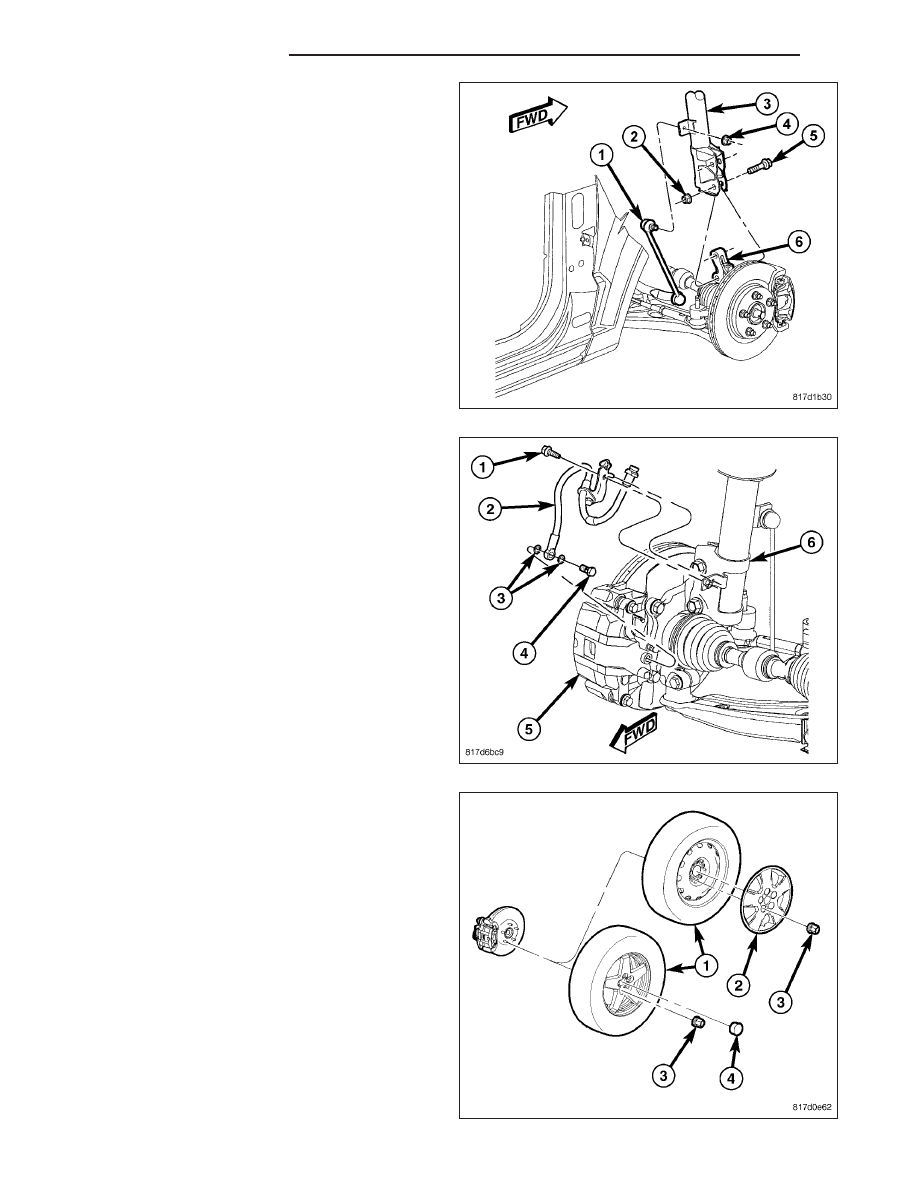

1. Raise the strut assembly (2) into the strut tower,

aligning the three studs on the strut assembly
upper mount with the holes in strut tower. Install
the three mounting nuts (1) on the studs. Tighten
the three nuts to 48 N·m (35 ft. lbs.).

PM

FRONT SUSPENSION

2 - 35

CAUTION: The strut assembly-to-knuckle attaching
bolts (5) are serrated and must not be turned dur-
ing installation. Install the nuts while holding the
bolts stationary in the knuckle.

2. Position the lower end of the strut assembly (3) in

line with the upper end of the knuckle (6), aligning
the mounting holes. Install the two attaching bolts
(5). Install the nuts (2). While holding the bolts in
place, tighten the nuts to 84 N·m (62 ft. lbs.).

3. Attach the stabilizer bar link (1) to the strut (3).

Install and tighten the nut (4) while holding the sta-
bilizer bar link stud stationary. Tighten the nut to 58
N·m (43 ft. lbs.).

4. Secure the flex hose (2) routing bracket to the strut

(6) with the mounting screw (1). Tighten the mount-
ing screw to 13 N·m (120 in. lbs.).

5. Install tire and wheel assembly (1) (Refer to 22 -

TIRES/WHEELS - INSTALLATION). Install and
tighten wheel mounting nuts (3) to 135 N·m (100 ft.
lbs.).

6. Lower the vehicle.

2 - 36

FRONT SUSPENSION

PM
