Dodge Nitro. Manual - part 934





2. Install the stabilizer links (3) to the bar (5). Tighten the nuts (3) to 88 N.m (65 ft. lbs.) with full vehicle

weight.

3. Remove support and lower the vehicle.

STABILIZER LINK

REMOVAL

STABILIZER LINK

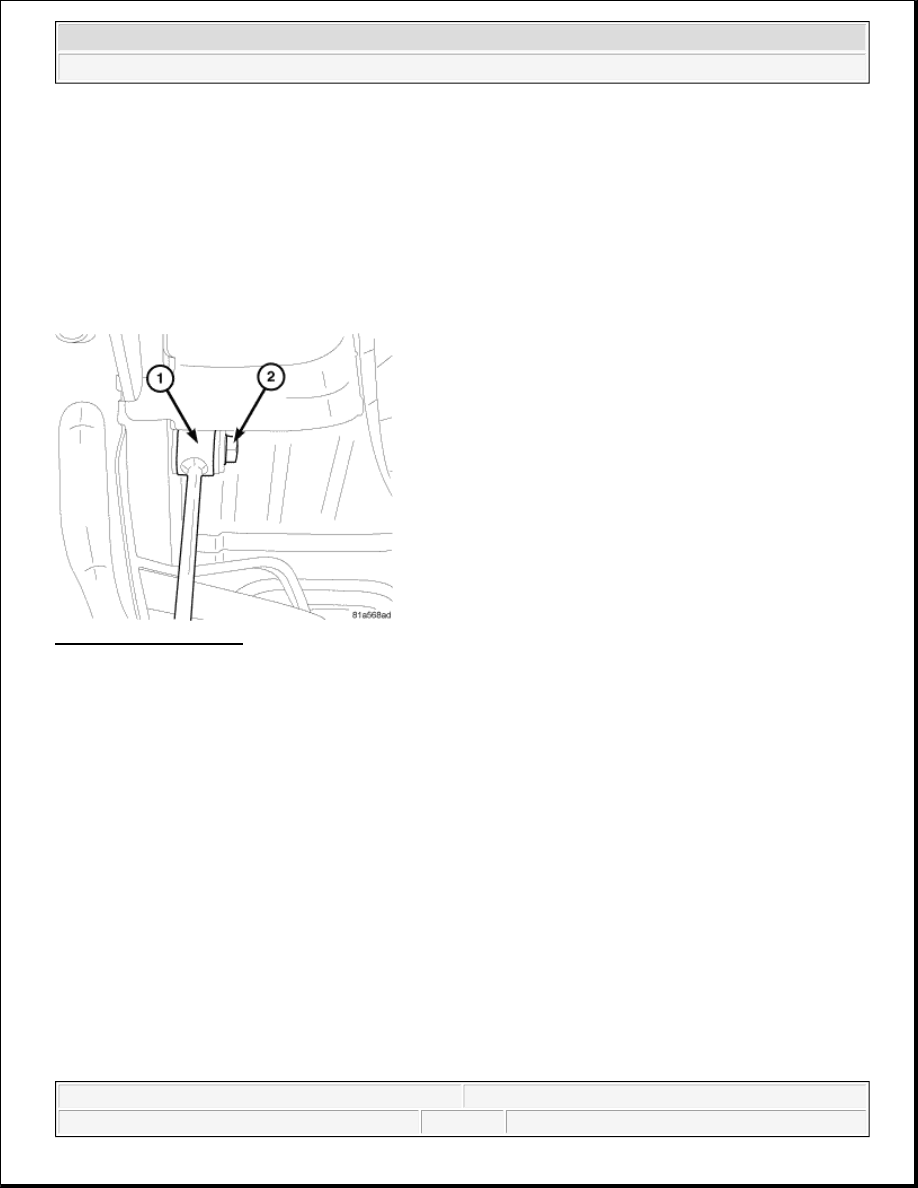

Fig. 91: Upper Stab Bolt
Courtesy of CHRYSLER LLC

1. Raise and support the vehicle.

2. Support the rear axle with a jack.

3. Remove the rear tire right side only .

4. Remove the upper link (2) bolt at the frame.



2007 Dodge Nitro R/T

2007 SUSPENSION Suspension - Nitro



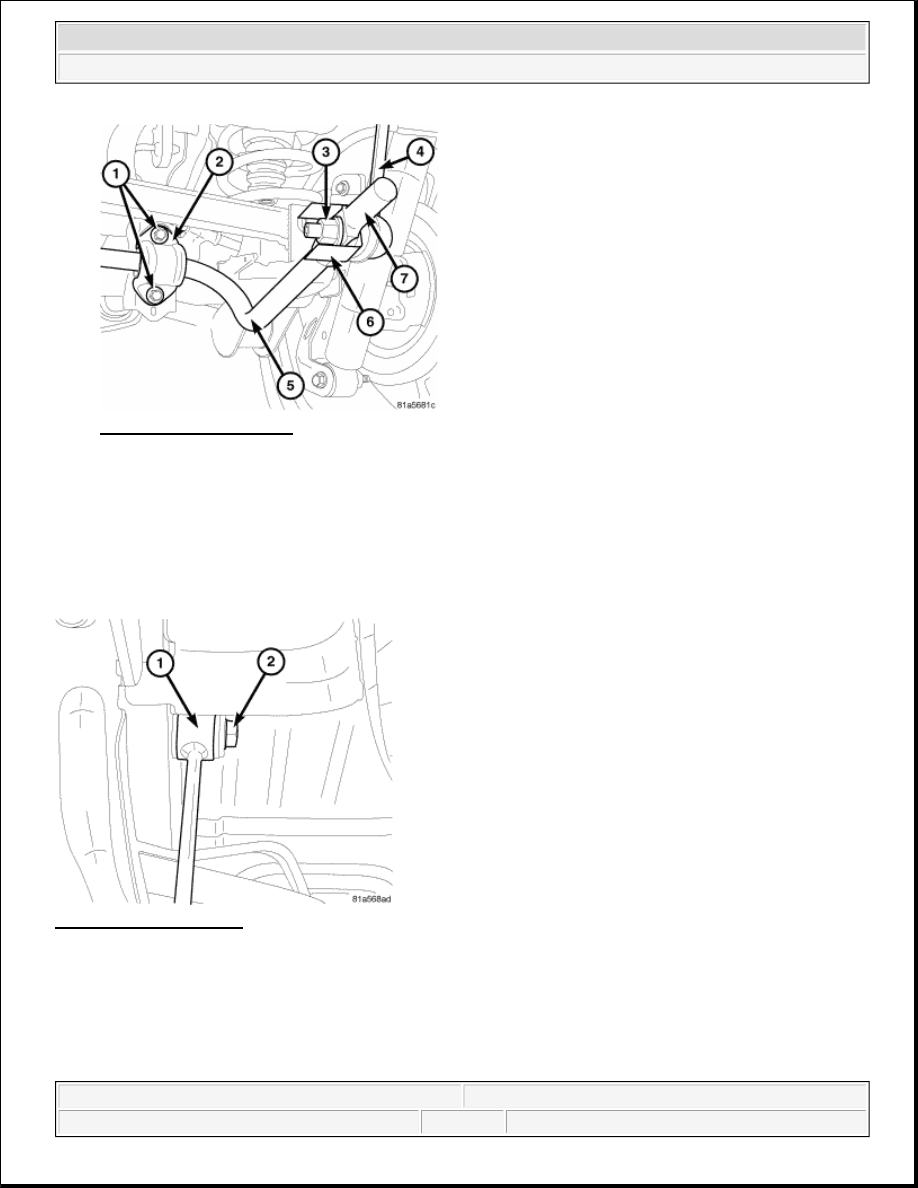

Fig. 92: Stab Bar & Link
Courtesy of CHRYSLER LLC

5. Remove the lower link nut (3) at the stabilizer bar (5).

6. Remove stabilizer link (4).

INSTALLATION

STABILIZER LINK

Fig. 93: Upper Stab Bolt
Courtesy of CHRYSLER LLC

1. Install the upper bolt (2) for the stabilizer link (1) to the frame and tighten to 102 N.m (75 ft. lbs.).



2007 Dodge Nitro R/T

2007 SUSPENSION Suspension - Nitro



Fig. 94: Stab Bar & Link
Courtesy of CHRYSLER LLC

2. Install the stabilizer link (4) to the stabilizer bar (5).

3. Install the nut (3) and tighten to 115 N.m (85 ft. lbs.) with full vehicle weight.

4. Install the spare tire right side only .

5. Remove the jack and lower the vehicle.

MASS DAMPER

REMOVAL

MASS DAMPER

1. Raise and support the vehicle.

2. Support the rear axle with a jack.



2007 Dodge Nitro R/T

2007 SUSPENSION Suspension - Nitro



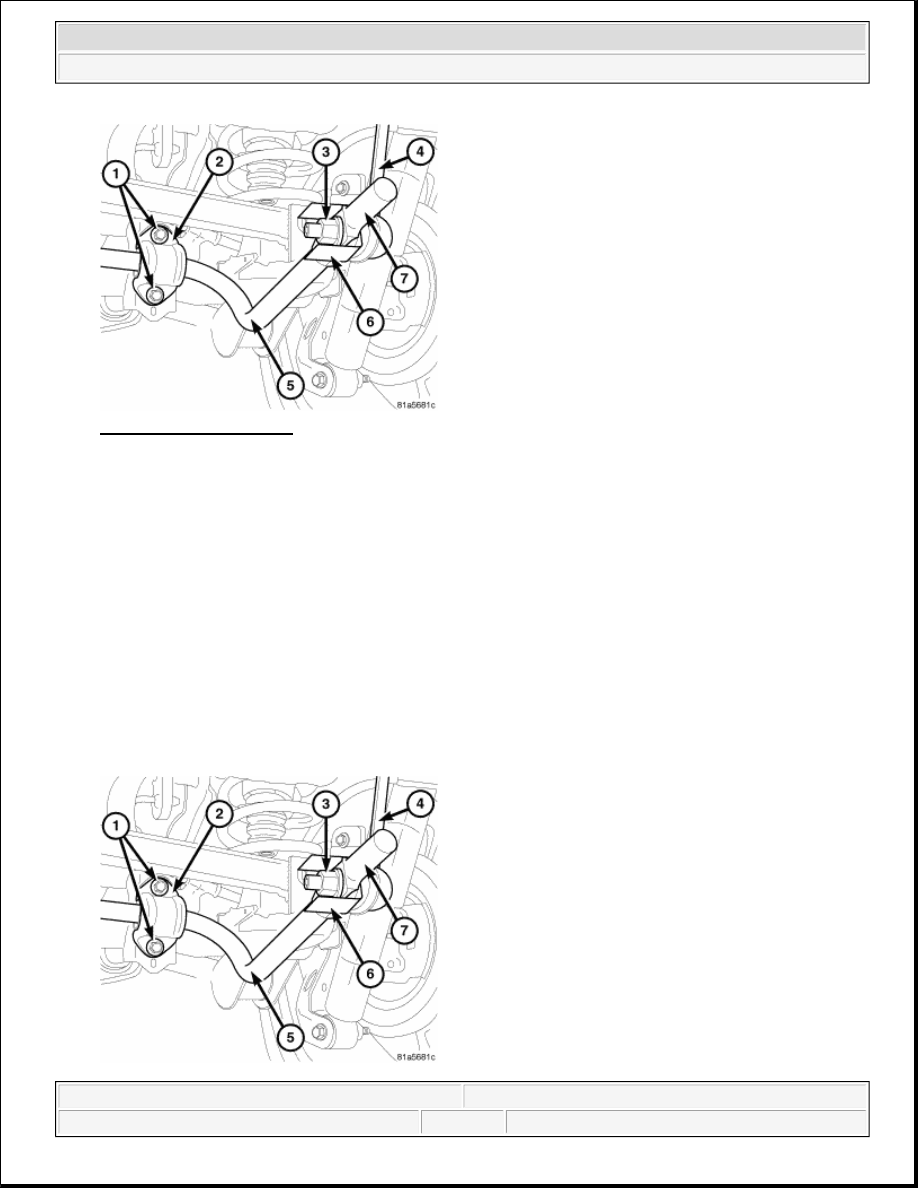

Fig. 95: Stab Bar & Link
Courtesy of CHRYSLER LLC

3. Remove the lower link nut (3) at the stabilizer bar (5).

4. Remove the mass damper (7).

5. Remove stabilizer bar (5) from the link (4).

6. Remove the retainer (6).

INSTALLATION

MASS DAMPER

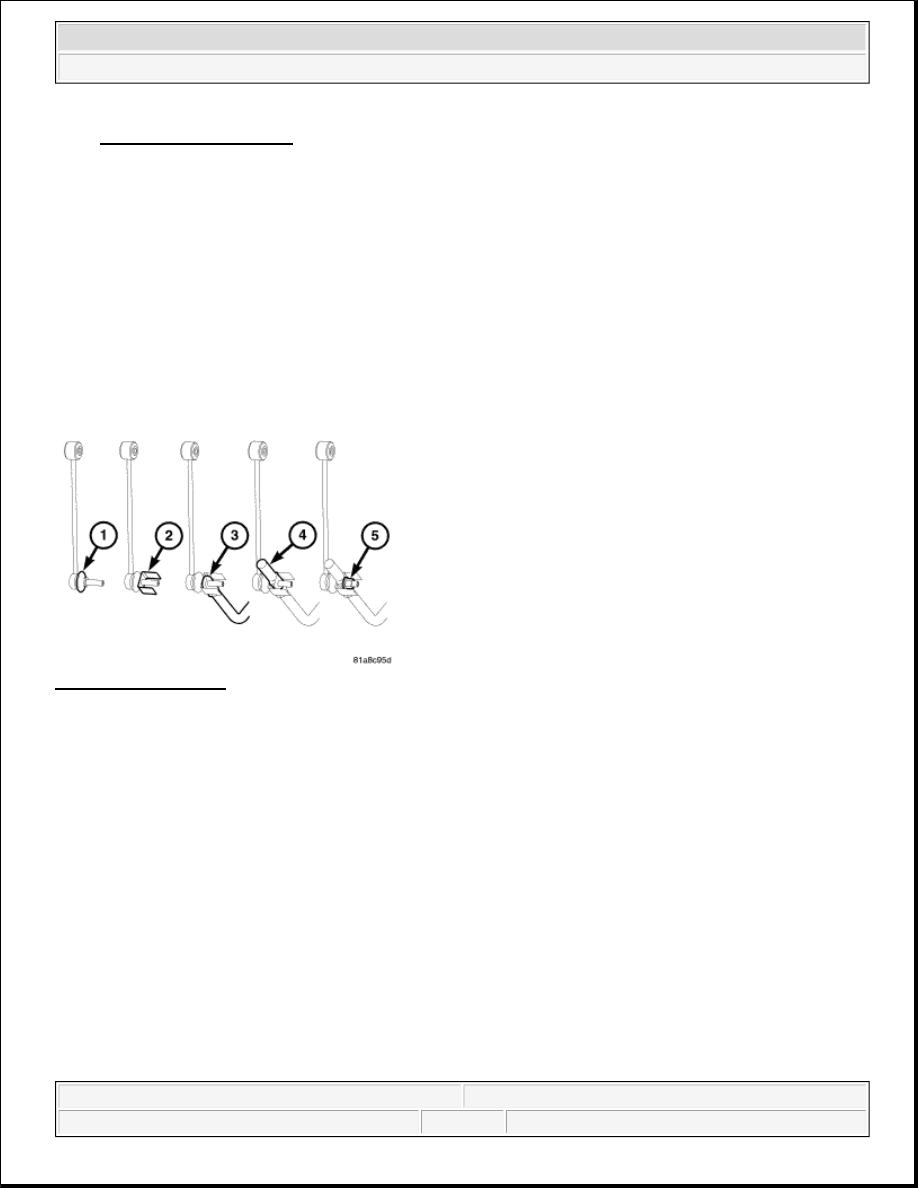

Fig. 96: Mass Damper
Courtesy of CHRYSLER LLC

1. Install the retainer (2) to the stabilizer link (1).

2. Install the stabilizer bar (3) over the retainer (2).

3. Install the mass damper (4) to the stabilizer link stud.

4. Install the nut (5) and tighten to 115 N.m (85 ft. lbs.) with full vehicle weight.

5. Remove the jack and lower the vehicle.

LOWER CONTROL ARM

DESCRIPTION

LOWER SUSPENSION ARMS AND BUSHINGS
