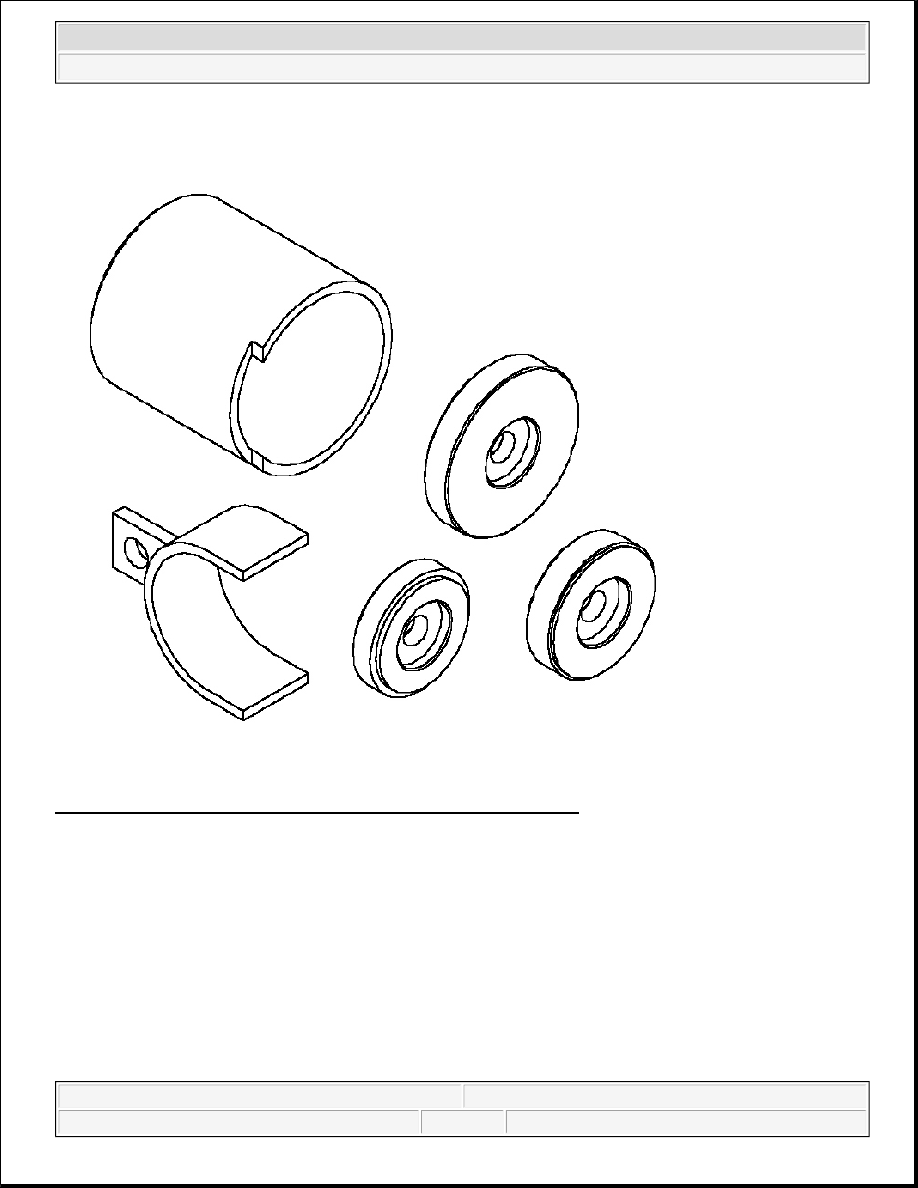

Fig. 81: Rear Lower Control Arm Bushing Remover/Installer - 8862
Courtesy of CHRYSLER LLC

BUSHINGS

REMOVAL

STABILIZER BAR BUSHINGS

1. Raise and support vehicle.

2. Remove the stabilizer bushing clamp.

3. Remove the bushing from the stabilizer bar.

INSTALLATION



2007 Dodge Nitro R/T

2007 SUSPENSION Suspension - Nitro



STABILIZER BAR BUSHINGS

1. Install the bushing to the stabilizer bar.

2. Install the stabilizer bar bushing retainer clamp and bolts. Tighten the bolts to 47 N.m (35 ft.lbs.) with

full vehicle weight.

3. Lower the vehicle.

SHOCK

DESCRIPTION

SHOCK ABSORBERS

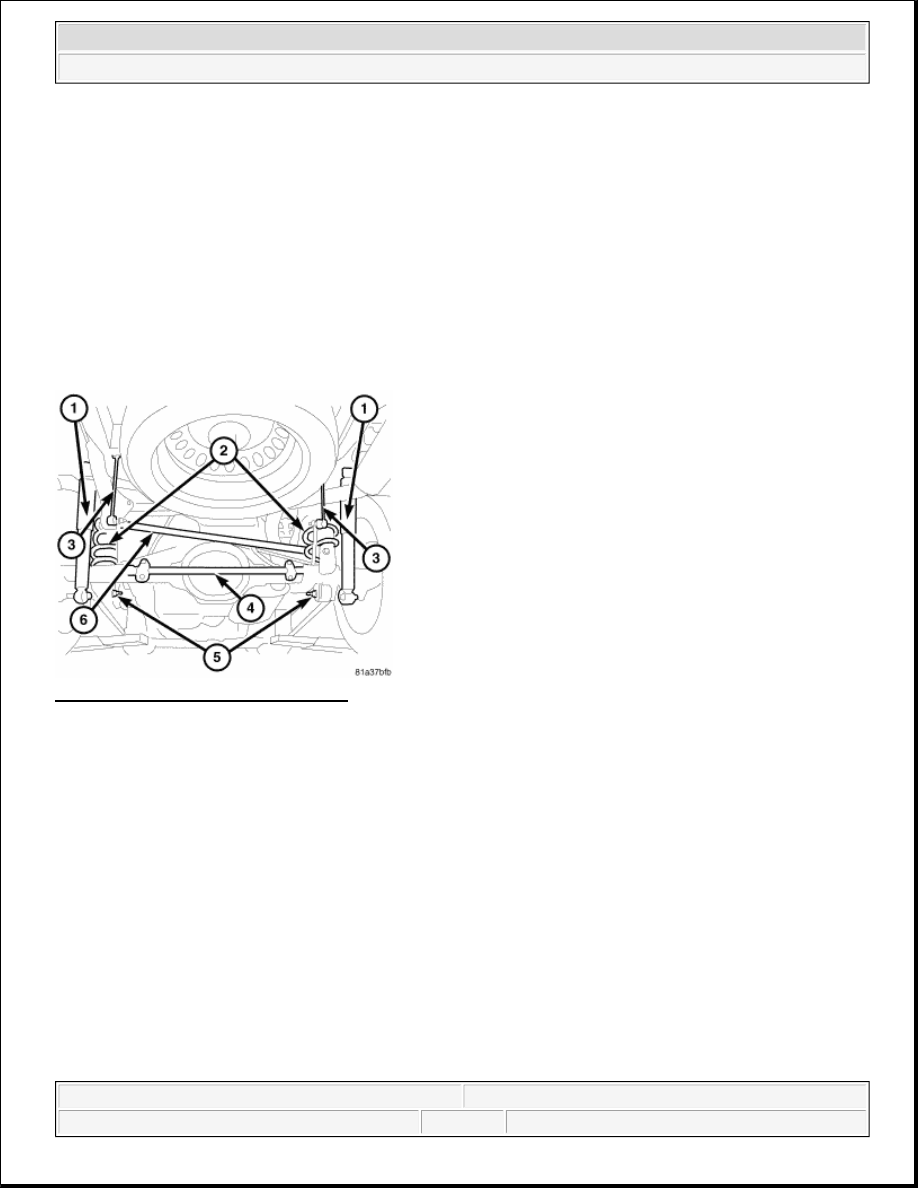

Fig. 82: Rear Suspension Components
Courtesy of CHRYSLER LLC

The top of the shock absorbers (1) are bolted to the body. The bottom of the shocks are bolted to the axle
brackets. The standard shocks have conventional twin tube construction and are low pressure gas charged. Gas
charging prevents cavitation during rough road operation.

OPERATION

SHOCK ABSORBERS

The shock absorbers dampen jounce and rebound motion of the vehicle over various road conditions and limit
rebound suspension travel.

REMOVAL

SHOCK ABSORBER



2007 Dodge Nitro R/T

2007 SUSPENSION Suspension - Nitro



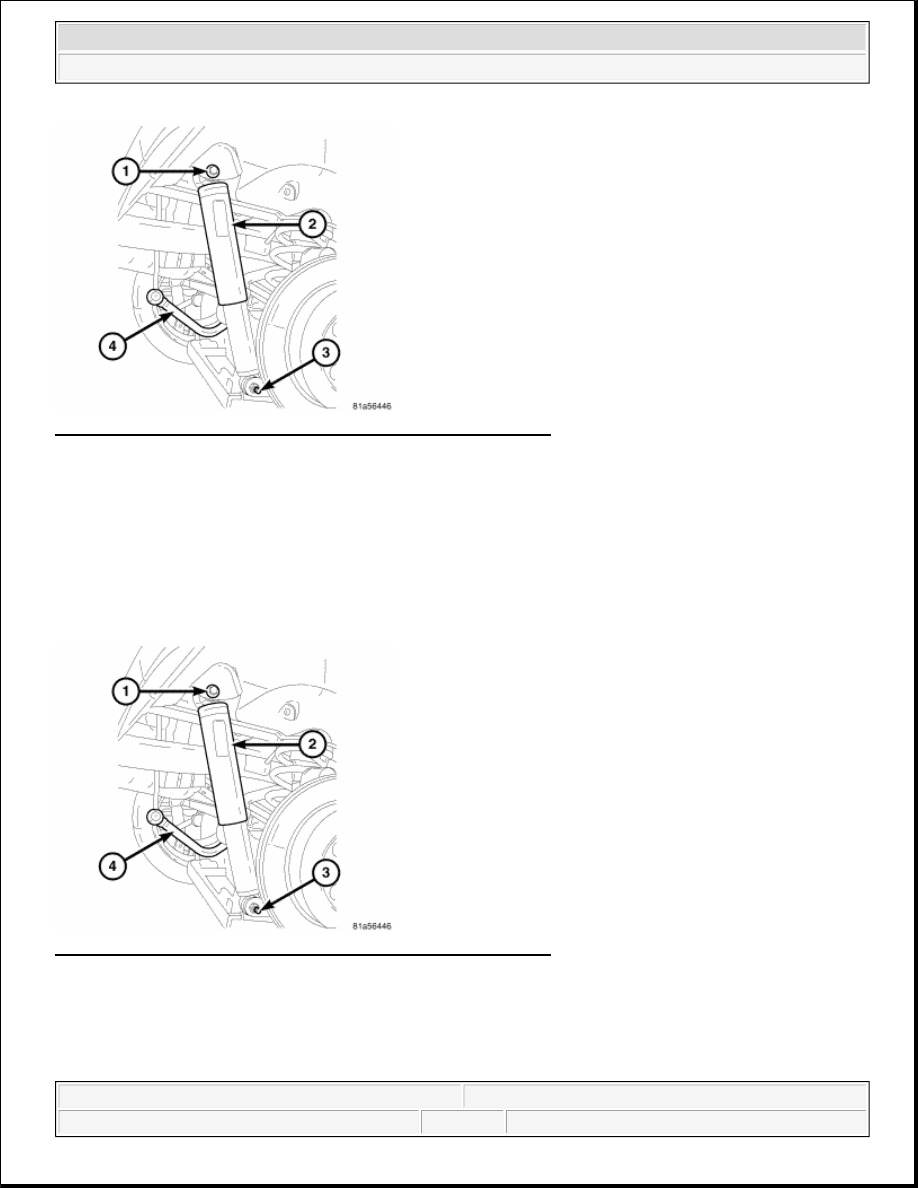

Fig. 83: Identifying Upper Bolt, Shock Absorber & Axle Bracket
Courtesy of CHRYSLER LLC

1. Raise and support the vehicle. Position a hydraulic jack under the axle to support the axle.

2. Remove the upper bolt (1) from the frame bracket.

3. Remove the lower bolt and nut from the axle bracket (3). Remove the shock absorber (2).

INSTALLATION

SHOCK ABSORBER

Fig. 84: Identifying Upper Bolt, Shock Absorber & Axle Bracket
Courtesy of CHRYSLER LLC

1. Install the shock absorber (2) in the frame bracket and install the bolt (1).

2. Install the shock absorber (2) in the axle bracket (3) and install the bolt.

3. Tighten the upper mounting bolt/nut to 108 N.m (80 ft. lbs.). Tighten the lower mounting bolt/nut to 115



2007 Dodge Nitro R/T

2007 SUSPENSION Suspension - Nitro



N.m (85 ft. lbs.) with full vehicle weight.

4. Remove the supports and lower the vehicle.

SPRING

REMOVAL

COIL SPRING

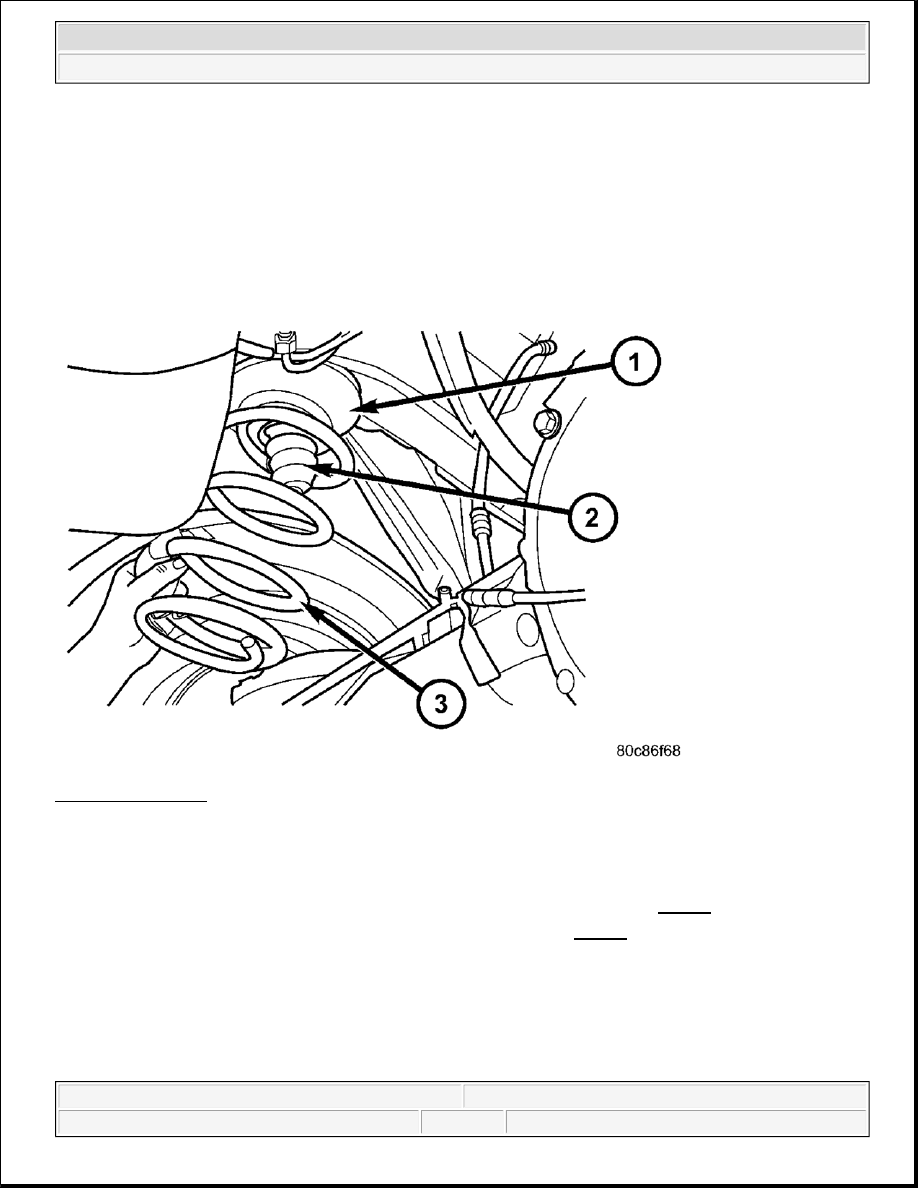

Fig. 85: Coil Spring
Courtesy of CHRYSLER LLC

1. Raise and support the vehicle. Position a hydraulic jack under the axle to support the axle.

2. Remove the shock absorber lower bolt from the axle bracket.

3. Lower the hydraulic jack and tilt the axle and remove the coil spring (3). See Fig. 85.

4. Remove and inspect the upper and lower spring isolators (1). See Fig. 85.

INSTALLATION

COIL SPRING



2007 Dodge Nitro R/T
