Dodge Nitro. Manual - part 899





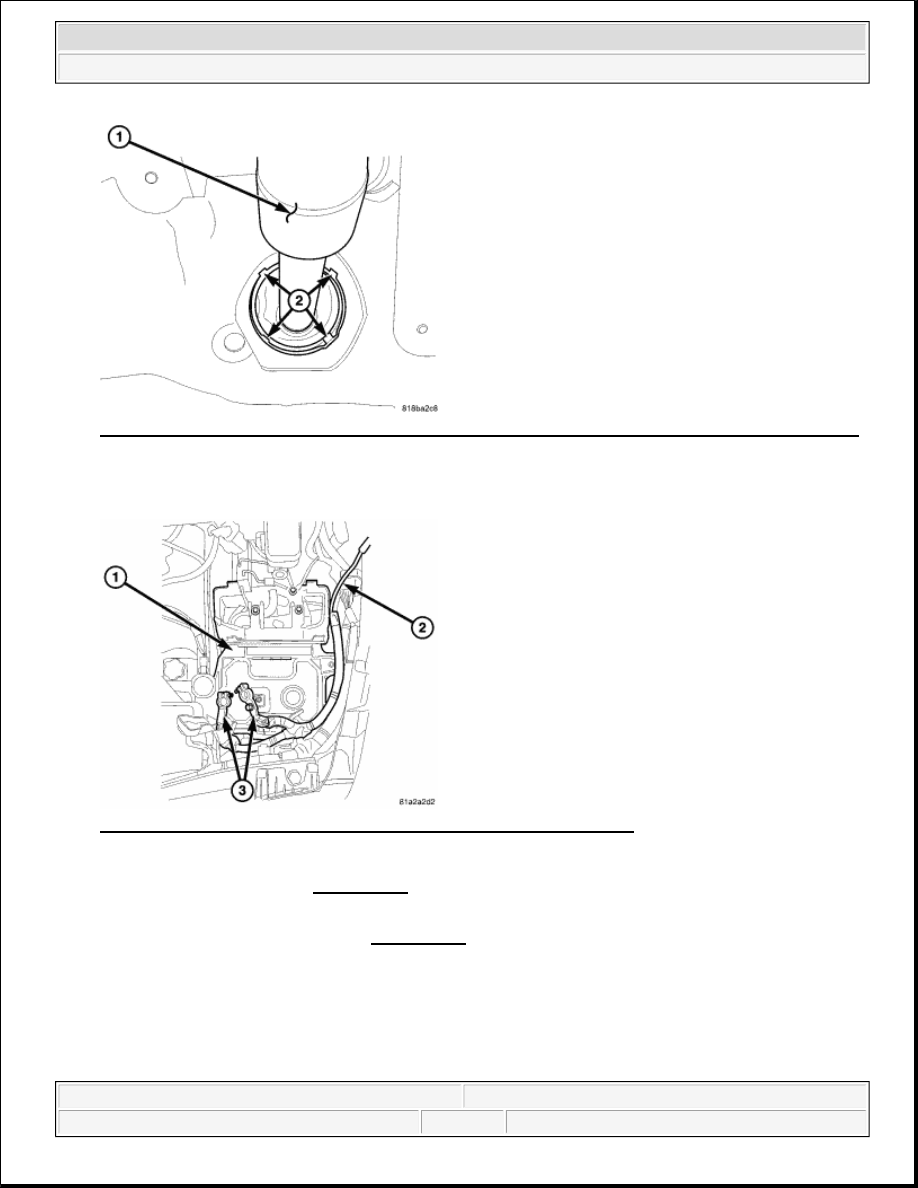

Fig. 36: Removing/Installing Intermediate Shaft Seal By Pushing In Four Tangs Securing To Panel
Courtesy of CHRYSLER LLC


6. Remove the intermediate shaft seal by pushing in the four tangs (2) securing it to the panel.

Fig. 37: Identifying Battery Tray, Power Center & Battery Terminals
Courtesy of CHRYSLER LLC

7. Remove the battery. Refer to REMOVAL .

8. Unclip the power center (2) and move it to the side out of the way to access the battery tray (1).

9. Remove the battery tray (1). Refer to REMOVAL



2007 Dodge Nitro R/T

2007 STEERING Steering System - Nitro



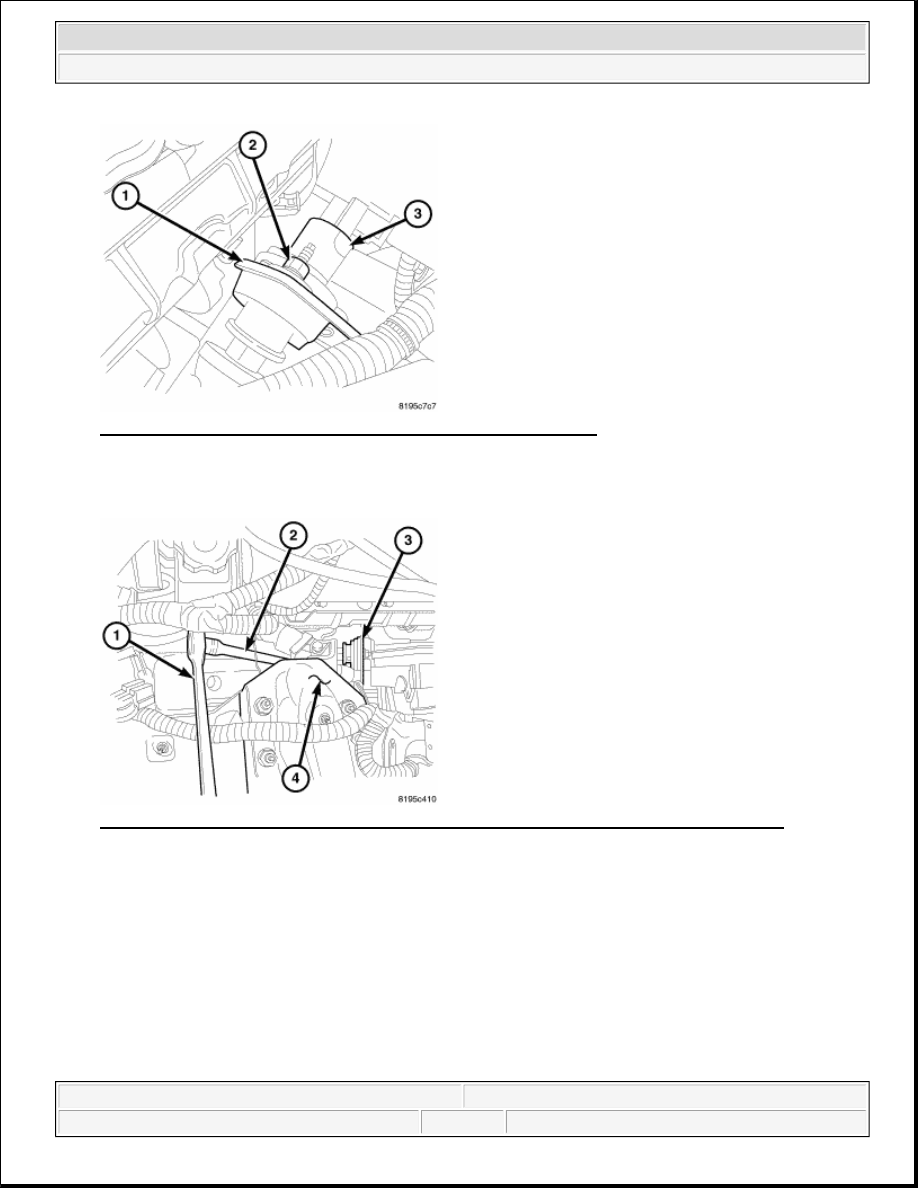

Fig. 38: Removing Nuts For Intermediate Shaft Support Bearing
Courtesy of CHRYSLER LLC

Remove the nuts (2) for the intermediate shaft support bearing (1).

Fig. 39: Identifying Ratchet, Extension, Center Support Bearing Bracket & Shock Tower
Courtesy of CHRYSLER LLC

10. Remove the center support bearing bracket (3) from the mount on the shock tower (4) using a ratchet (1)

with an extension (2).



2007 Dodge Nitro R/T

2007 STEERING Steering System - Nitro



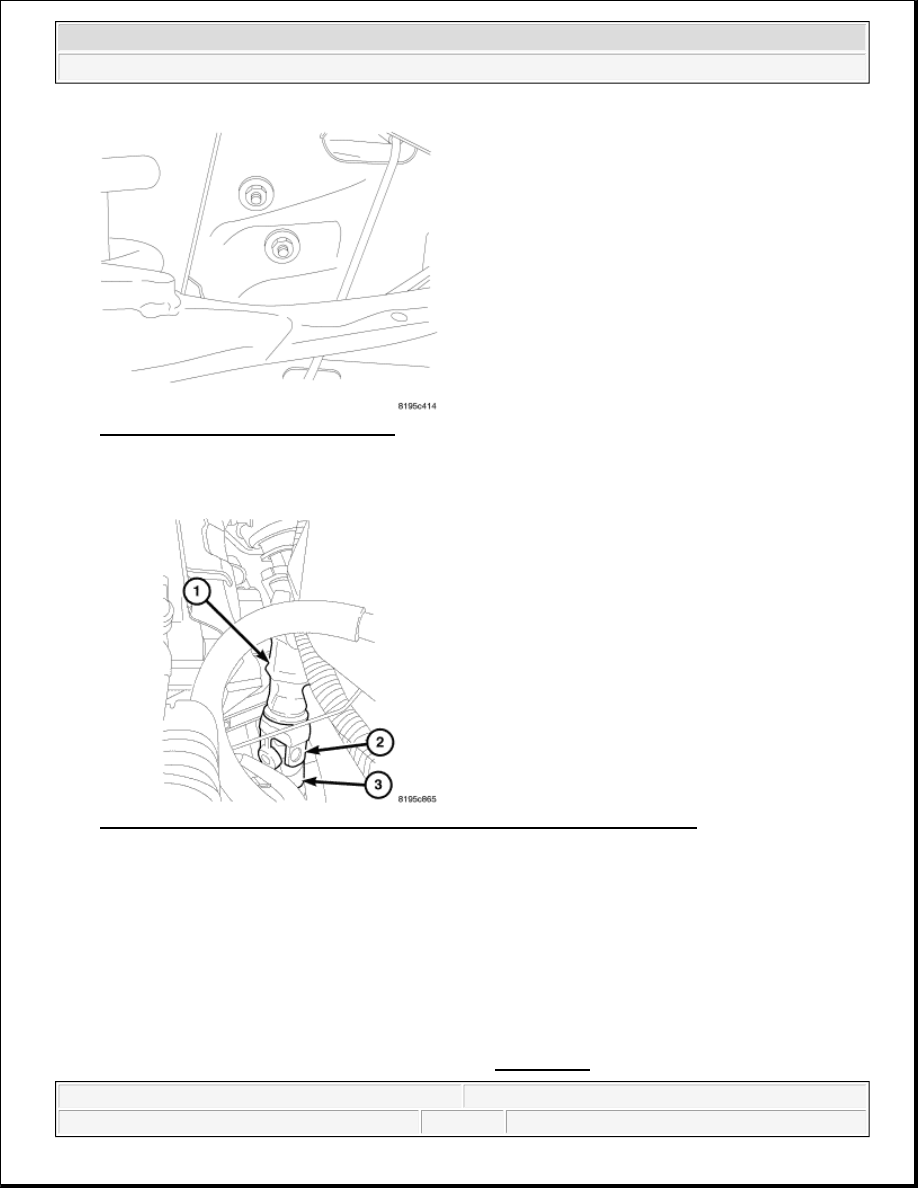

Fig. 40: Identifying Shock Tower Nuts
Courtesy of CHRYSLER LLC

11. Remove the nuts from the shock tower if removing the bracket.

Fig. 41: Identifying Intermediate Shaft, Coupler & Lower Coupler Pinch Bolt
Courtesy of CHRYSLER LLC

12. Remove the lower coupler pinch bolt (3) at the steering gear.

13. Remove the coupler (2) at the steering gear.

14. Remove the intermediate shaft (1) from the vehicle.

15. Remove the center support bearing from the steering shaft (if replacing the intermediate shaft).

STEERING INTERMEDIATE SHAFT - 3.7L & DIESEL

1. Disconnect the negative battery cable.

2. Remove knee blocker cover and knee blocker, refer to REMOVAL



2007 Dodge Nitro R/T

2007 STEERING Steering System - Nitro



3. Lock the steering wheel with the tires in the straight ahead position.

Fig. 42: Identifying Lower Column Pinch Bolt & Steering Coupler
Courtesy of CHRYSLER LLC

4. Remove the lower column pinch bolt (2).

5. Lower the steering coupler (1) shaft from the column.

Fig. 43: Removing/Installing Intermediate Shaft Seal By Pushing In Four Tangs Securing To Panel
Courtesy of CHRYSLER LLC


6. Remove the intermediate shaft seal by pushing in the four tangs (2) securing it to the panel.

NOTE:

The steering column on vehicles with an automatic transmission may not
be equipped with an internal locking shaft that allows the ignition key
cylinder to be locked with the key. Alternative methods of locking the
steering wheel for service will have to be used.



2007 Dodge Nitro R/T

2007 STEERING Steering System - Nitro
