Dodge Nitro. Manual - part 886

Courtesy of CHRYSLER LLC

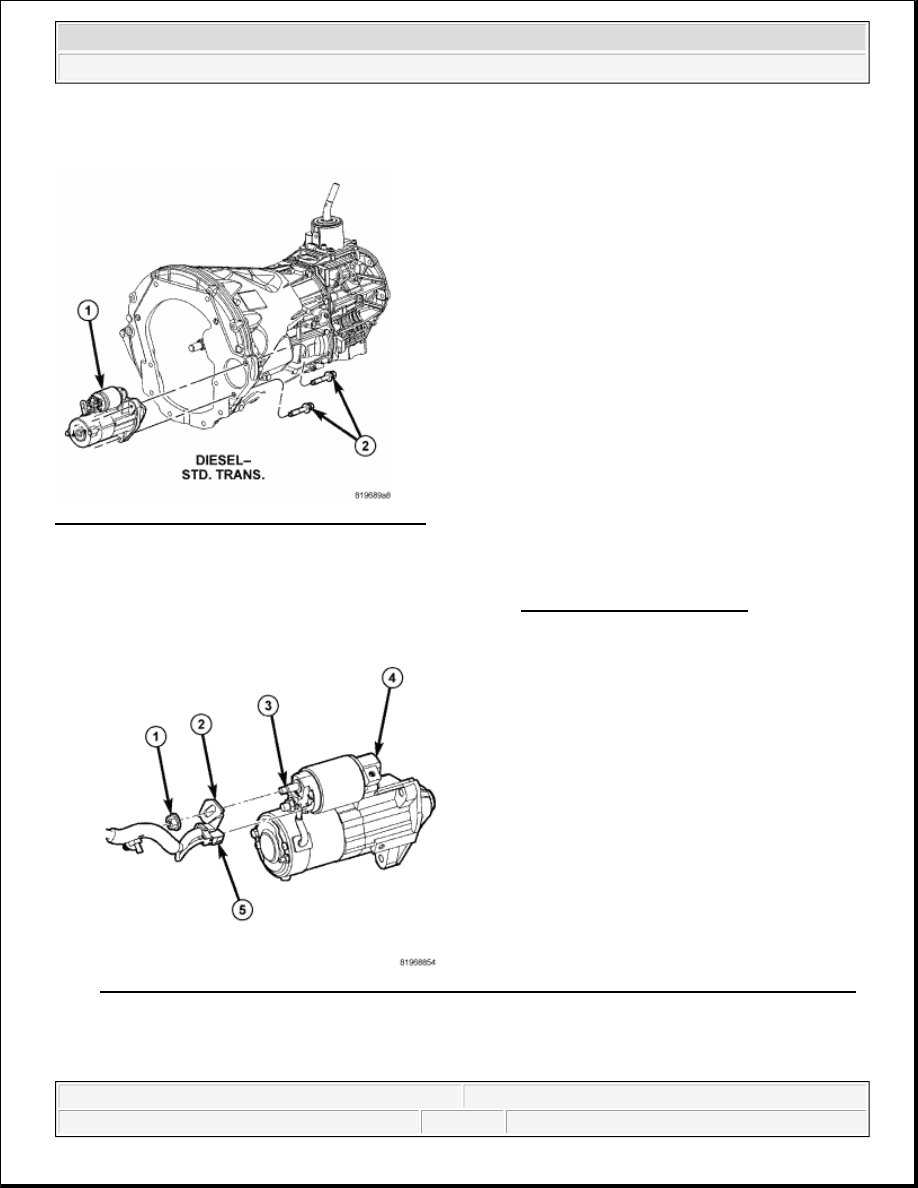

Fig. 19: Starter Motor - 2.8L Diesel STD. Trans.
Courtesy of CHRYSLER LLC

1. Rotate starter assembly (1) to allow positioning into transmission.

2. Install two starter mounting bolts (2) and tighten. Refer to TORQUE SPECIFICATION.

Fig. 20: Identifying Solenoid Nut, Mounting Stud, Electrical Connector & Battery Cable Assembly
Courtesy of CHRYSLER LLC

3. Position battery cable assembly (2) onto stud (3) while pushing solenoid connector (5) onto solenoid

terminal.



2007 Dodge Nitro R/T

2007 ENGINE Starting - Service Information - Nitro



4. Install nut (1) and tighten. Refer to Torque Specifications.

5. Four Wheel Drive Equipped: Install front propeller shaft.

6. Lower vehicle.

7. Connect negative battery cable.

INSTALLATION - 3.7L

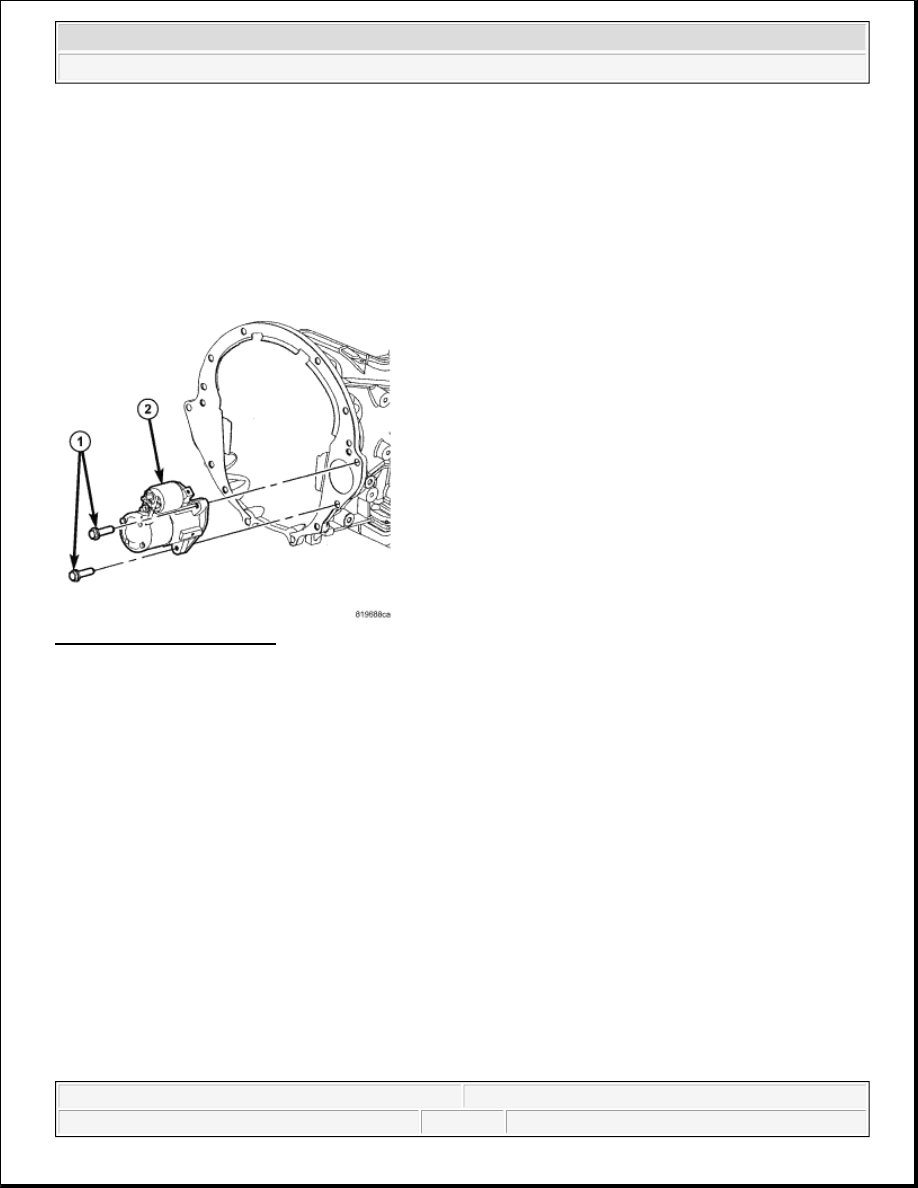

Fig. 21: Starter Motor - 3.7L
Courtesy of CHRYSLER LLC

1. Rotate starter assembly (2) to allow positioning into transmission.

2. Install two starter mounting bolts (1) and tighten. Refer to Torque Specifications.



2007 Dodge Nitro R/T

2007 ENGINE Starting - Service Information - Nitro



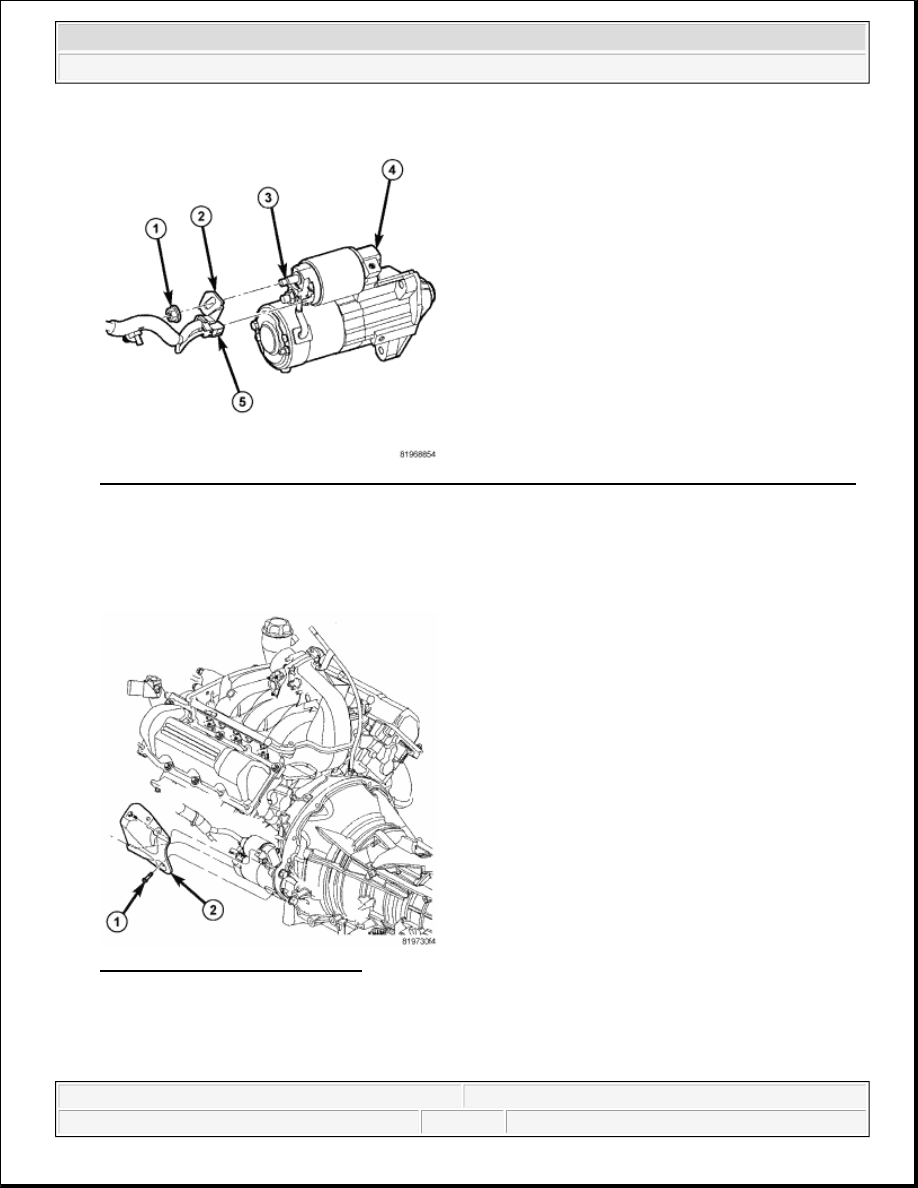

Fig. 22: Identifying Solenoid Nut, Mounting Stud, Electrical Connector & Battery Cable Assembly
Courtesy of CHRYSLER LLC

3. Position battery cable assembly (2) onto stud (3) while pushing solenoid connector (5) onto solenoid

terminal.

4. Install nut (1) and tighten. Refer to Torque Specifications.

Fig. 23: Starter Heat Shield - 3.7L
Courtesy of CHRYSLER LLC

5. Position starter heat shield (2) and install two bolts (1).

6. Four Wheel Drive Equipped: Install front propeller shaft.

7. Lower vehicle.



2007 Dodge Nitro R/T

2007 ENGINE Starting - Service Information - Nitro



8. Connect negative battery cable.

RELAY - STARTER MOTOR

DESCRIPTION

STARTER RELAY

The starter relay is an electromechanical device that switches battery current to the pull-in coil of the starter
solenoid when ignition switch is turned to Start position. The starter relay is located in the Power Distribution
Center (PDC) in the engine compartment. See PDC cover for relay identification and location.

The starter relay is an International Standards Organization (ISO) relay. Relays conforming to ISO
specifications have common physical dimensions, current capacities, terminal patterns, and terminal functions.

The starter relay cannot be repaired or adjusted and, if faulty or damaged, it must be replaced.

OPERATION

STARTER RELAY

The ISO relay consists of an electromagnetic coil, a resistor or diode, and three (two fixed and one movable)
electrical contacts. The movable (common feed) relay contact is held against one of the fixed contacts (normally
closed) by spring pressure. When electromagnetic coil is energized, it draws the movable contact away from
normally closed fixed contact, and holds it against the other (normally open) fixed contact.

When electromagnetic coil is de-energized, spring pressure returns movable contact to normally closed position.
The resistor or diode is connected in parallel with electromagnetic coil within relay, and helps to dissipate
voltage spikes produced when coil is de-energized.

REMOVAL

STARTER RELAY
