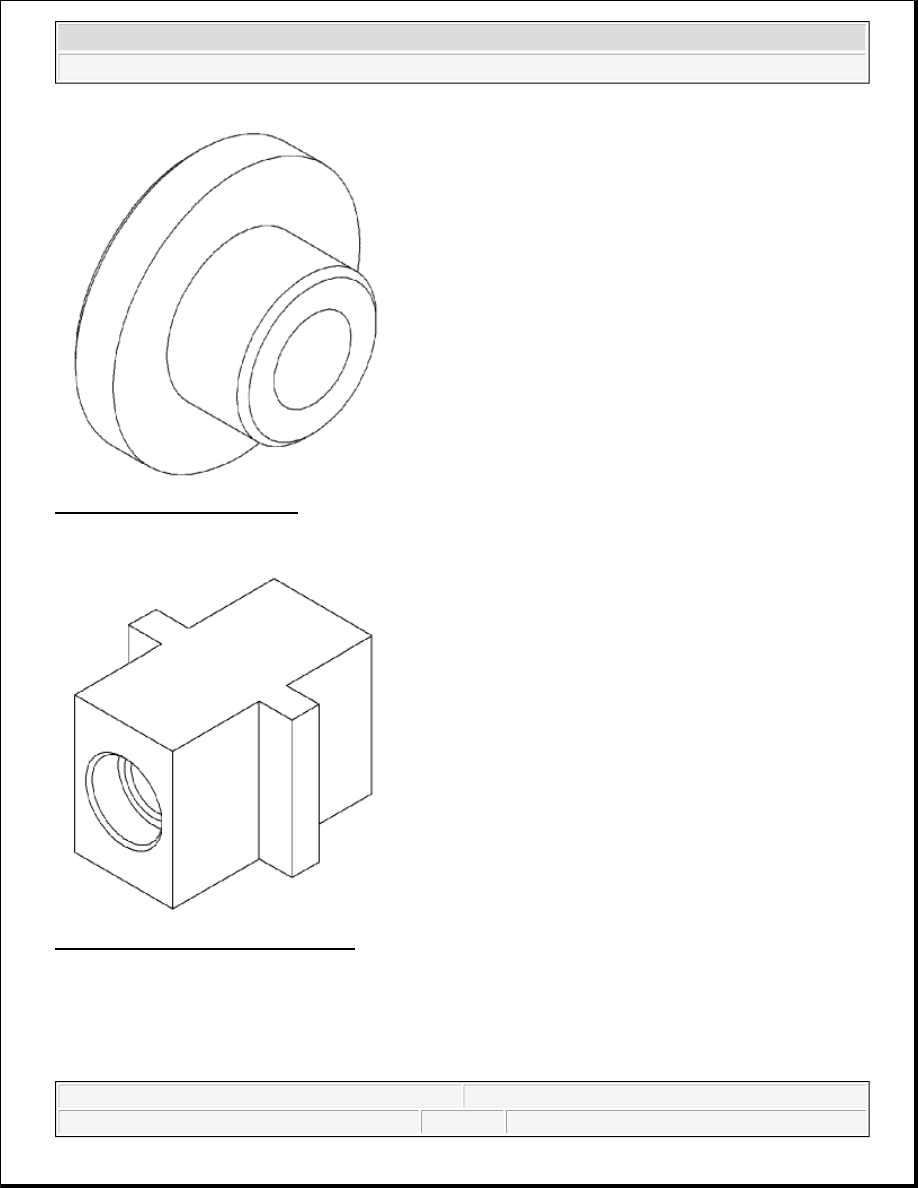

Fig. 148: Bearing Installer 9643
Courtesy of CHRYSLER LLC

Fig. 149: Mainshaft Build Fixture 9648
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro



2007 ACCESSORIES AND EQUIPMENT

Overhead Console - Service Information - Nitro

OVERHEAD CONSOLE-SERVICE INFORMATION

DESCRIPTION

OVERHEAD CONSOLE

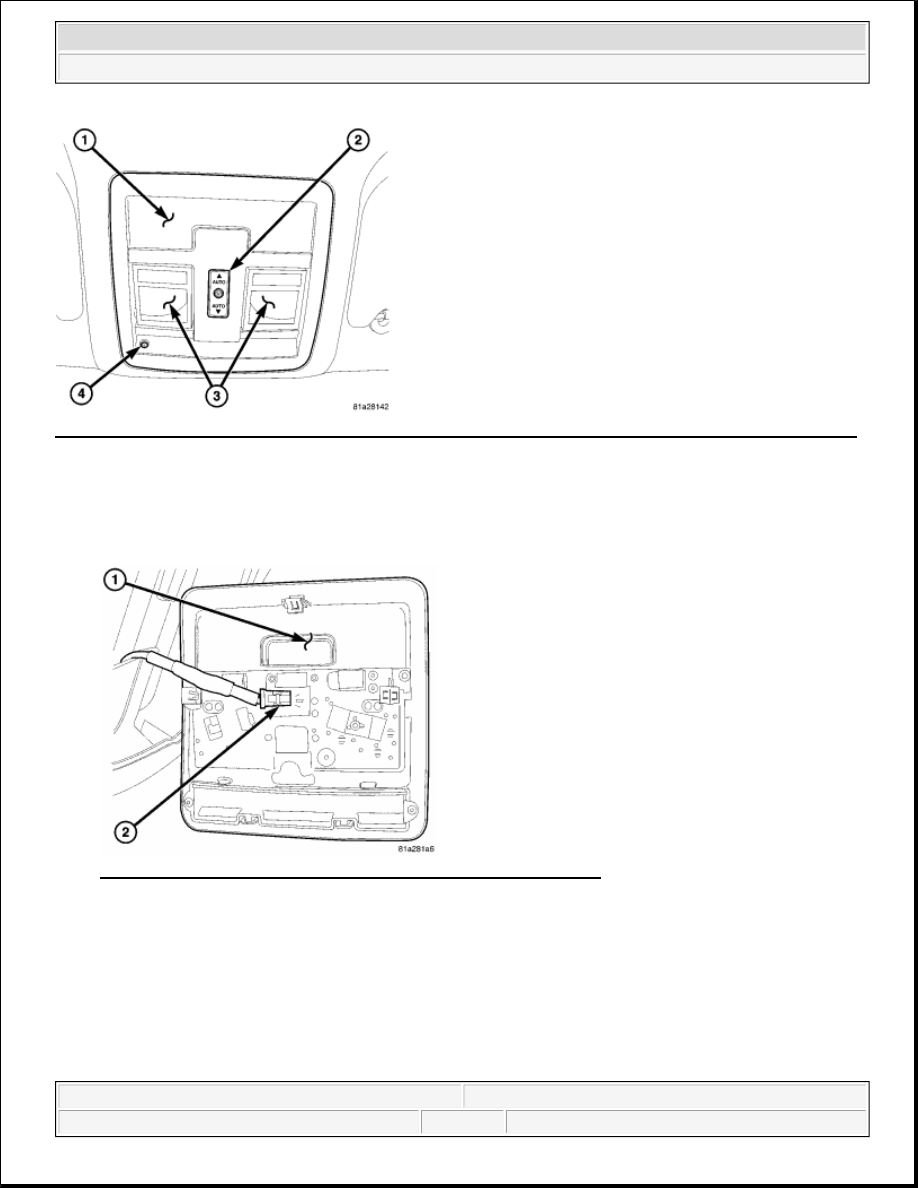

Fig. 1: Identifying Overhead Console, Sunroof Switch, Courtesy Lamps & Infrared Temperature Sensor
Courtesy of CHRYSLER LLC


An overhead console (1) is standard factory-installed equipment on this model. All overhead consoles are
equipped with two reading and courtesy lamps (3). On vehicles equipped with a power sunroof, the sunroof
switch (2) is located between the two reading and courtesy lamps. On vehicles equipped with automatic climate
control an infrared temperature sensor (4) is located on the front edge of the overhead console. The overhead
console is mounted with three snap clips into a molded plastic retainer bracket located above the headliner to
provide secure overhead console attachment.

REMOVAL

OVERHEAD CONSOLE



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Overhead Console - Service Information - Nitro





2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Overhead Console - Service Information - Nitro



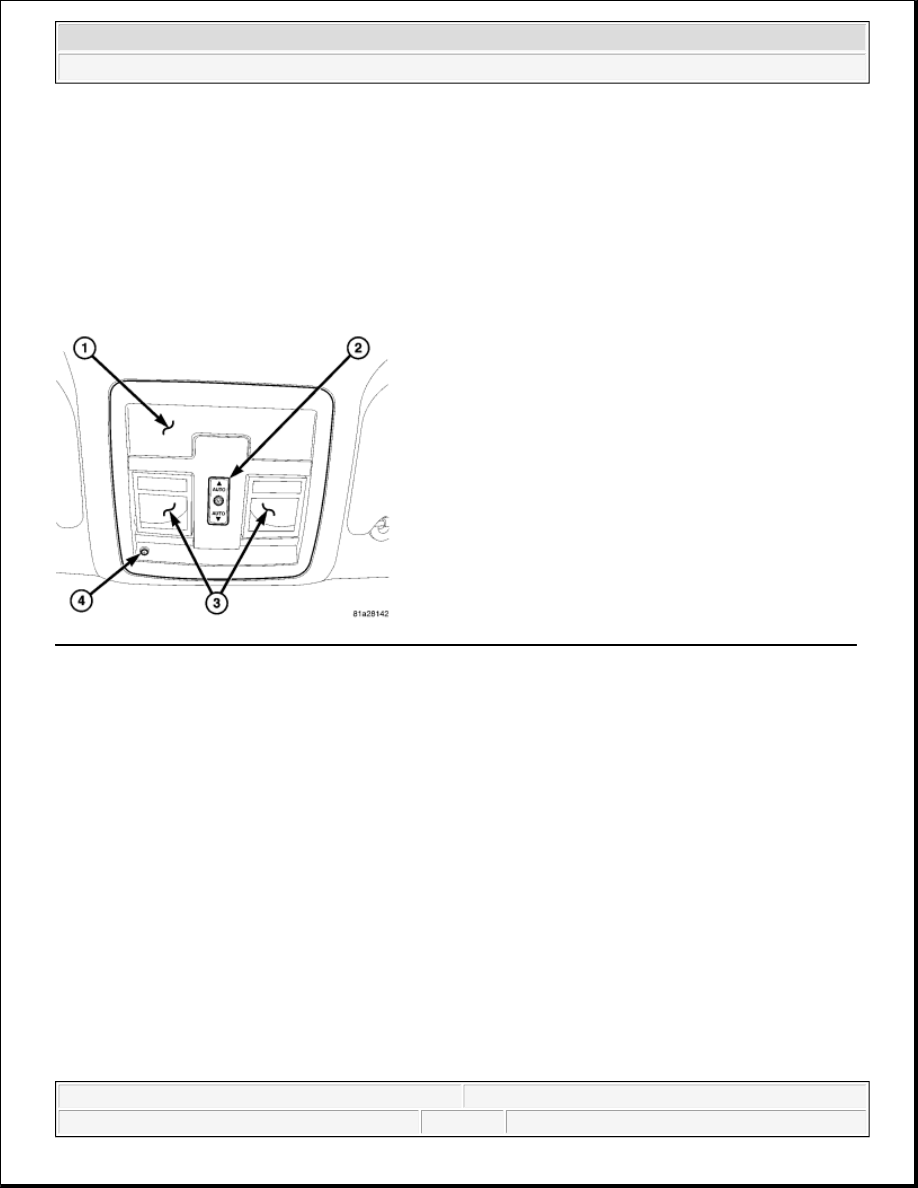

Fig. 2: Identifying Overhead Console, Sunroof Switch, Courtesy Lamps & Infrared Temperature Sensor
Courtesy of CHRYSLER LLC


1. Disconnect and isolate the battery negative cable.

2. Using your fingertips, grasp the sides of the overhead console (1) and pull straight down evenly to

disengage the three snap clips from the mounting bracket.

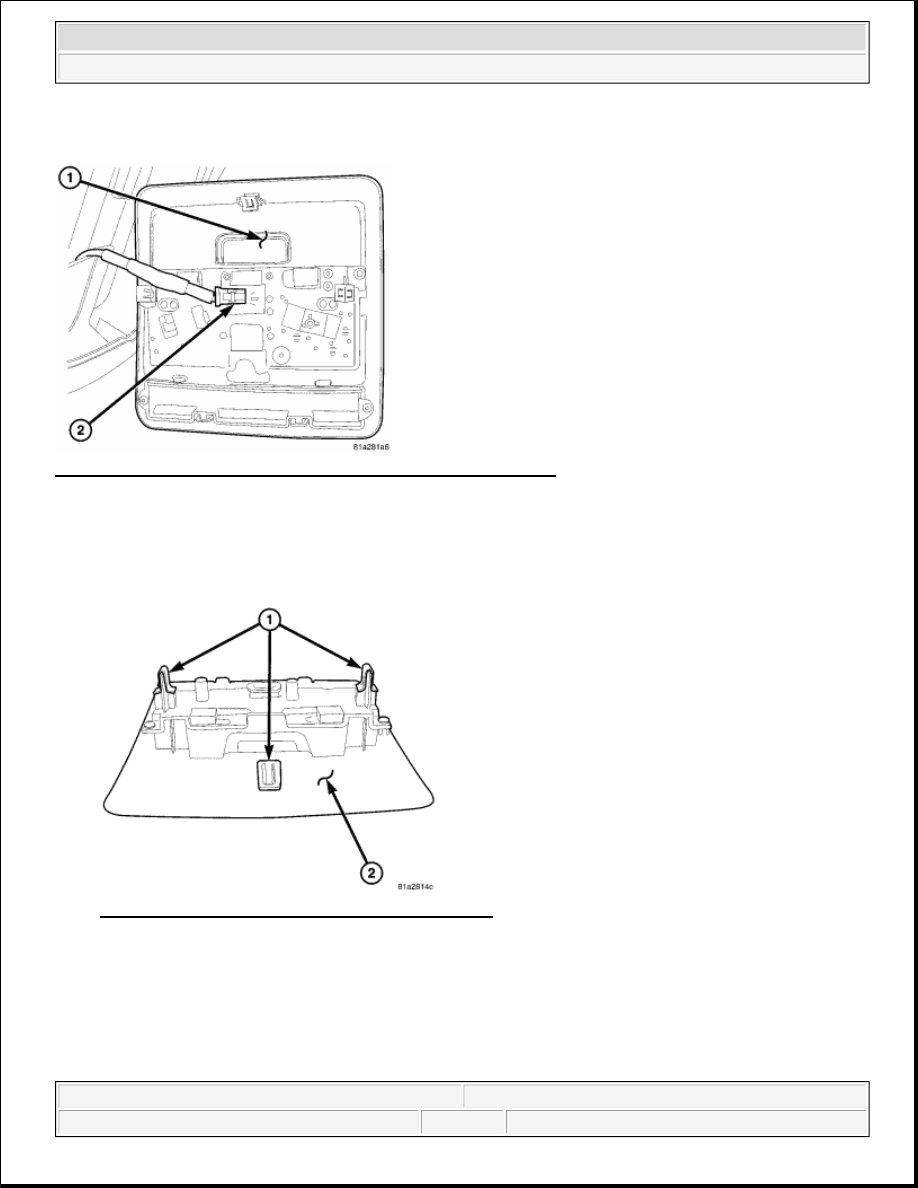

Fig. 3: Identifying Overhead Console & Wire Harness Connector
Courtesy of CHRYSLER LLC

3. Lower the overhead console (1) far enough to access the wire harness connector (2).

4. If equipped, disconnect the courtesy lamps, infrared temperature sensor and power sunroof switch

electrical connectors.

5. Remove the overhead console (1) assembly from the vehicle.

INSTALLATION



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Overhead Console - Service Information - Nitro



OVERHEAD CONSOLE

Fig. 4: Identifying Overhead Console & Wire Harness Connector
Courtesy of CHRYSLER LLC

1. Position the overhead console (1) in the vehicle near the headliner assembly.

2. If equipped, connect the courtesy lamps, infrared temperature sensor and power sunroof switch electrical

connectors (2).

Fig. 5: Identifying Snap Clips & Overhead Console
Courtesy of CHRYSLER LLC

3. Grasp the sides of the overhead console (2) and push straight up evenly to engage the three snap clips (1)

into the mounting bracket.

4. Connect the battery negative cable.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Overhead Console - Service Information - Nitro
