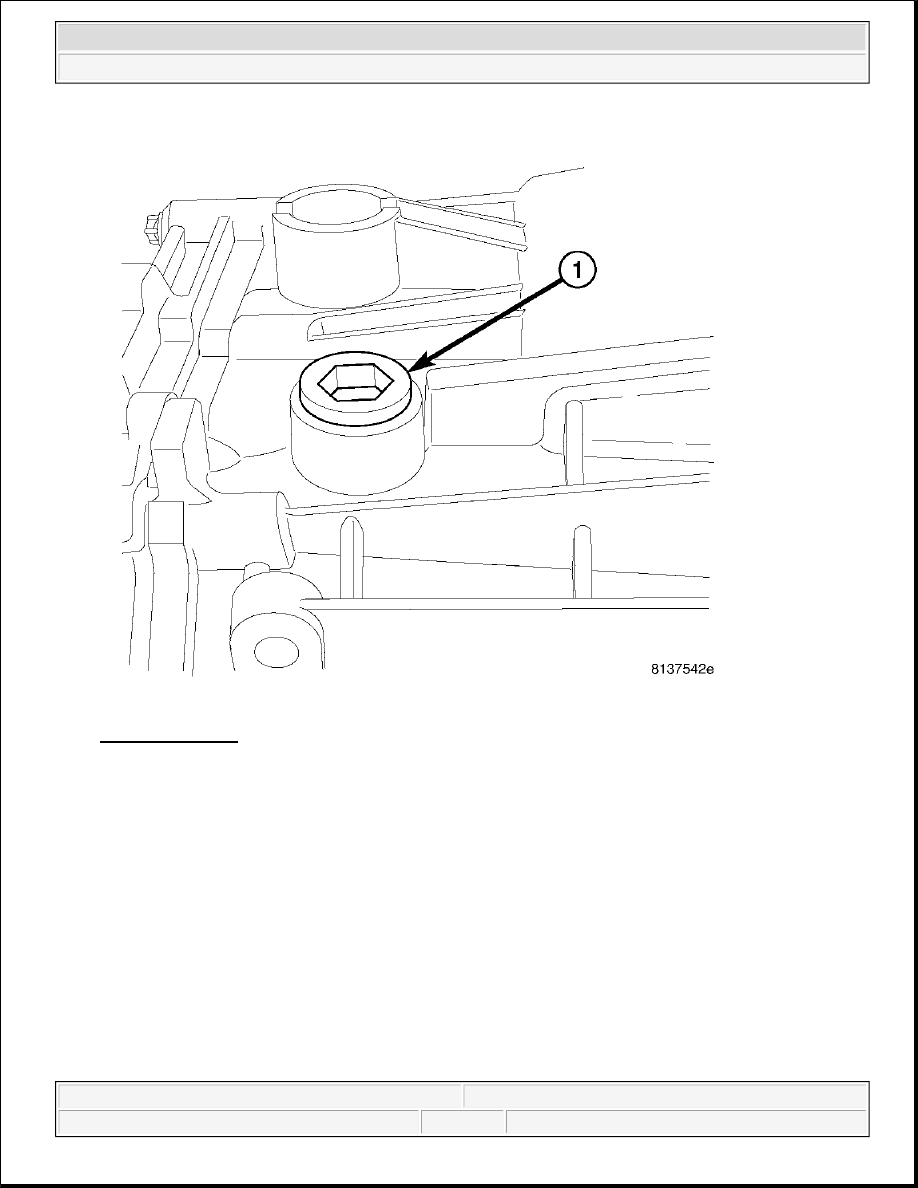

Fig. 133: Fill Plug
Courtesy of CHRYSLER LLC

10. Remove fill plug (1) and fill transmission to specifications.



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

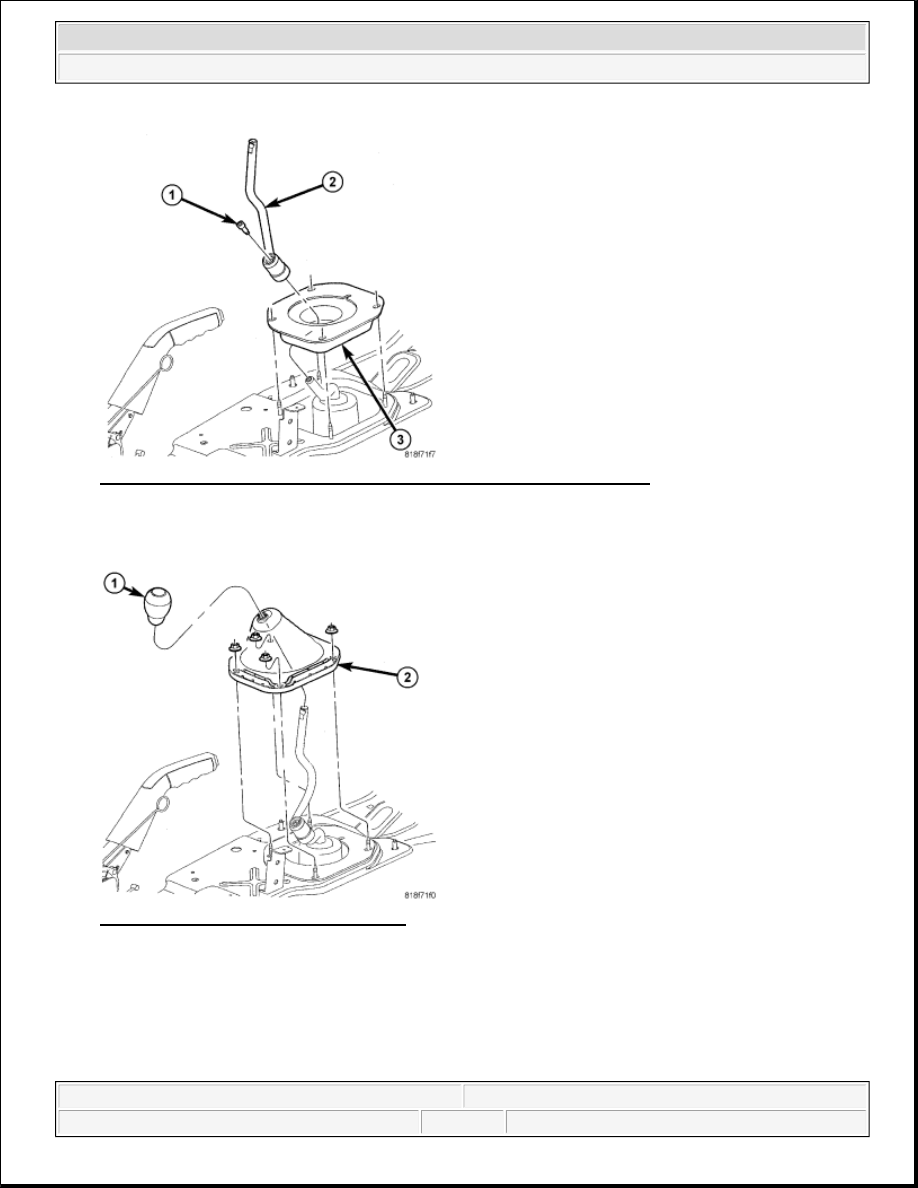

Fig. 134: Removing/Installing Shift Lever Screw, Lever And Inner Boot
Courtesy of CHRYSLER LLC

11. Install inner shift boot (3), shift lever (2) and lever screw (1).

Fig. 135: Identifying Shift Knob & Boot
Courtesy of CHRYSLER LLC

12. Install shift boot (2), shift knob (1) and counsel.

13. Connect battery.

SPECIFICATIONS



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro



NSG370

TORQUE SPECIFICATIONS

GEAR RATIO

SPECIAL TOOLS

NSG370

DESCRIPTION

N.m

Ft. Lbs.

In. Lbs.

Drain Plug

30

22

-

Fill Plug

30

22

-

Shift Tower Bolts

14

10

-

Housing Bolts

28

21

-

Input Shaft Retainer

Bolts

9

-

80

Bearing Retainer Bolts

10

-

88

Shift Rail Support Bolts

8

-

71

Idler Gear Shaft Bolt

20

15

-

Countershaft Bolt

100

74

-

Transmission Mount to

Transmission Bolts

47

35

-

Transmission Top Four

Bolts

40

30

-

Transmission Side Two

Bolts

68

50

-

Transmission Bottom

Four Bolts

54

40

-

2WD Transmission

Damper Bolts

175

130

-

GEAR

RATIO

FIRST

4.46

SECOND

2.61

THIRD

1.72

FOURTH

1.25

FIFTH

1.00

SIXTH

0.84

REVERSE

4.06



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro



Fig. 136: Handle C-4171
Courtesy of CHRYSLER LLC

Fig. 137: Slide Hammer C-637
Courtesy of CHRYSLER LLC

Fig. 138: Hub Installer W-262
Courtesy of CHRYSLER LLC
