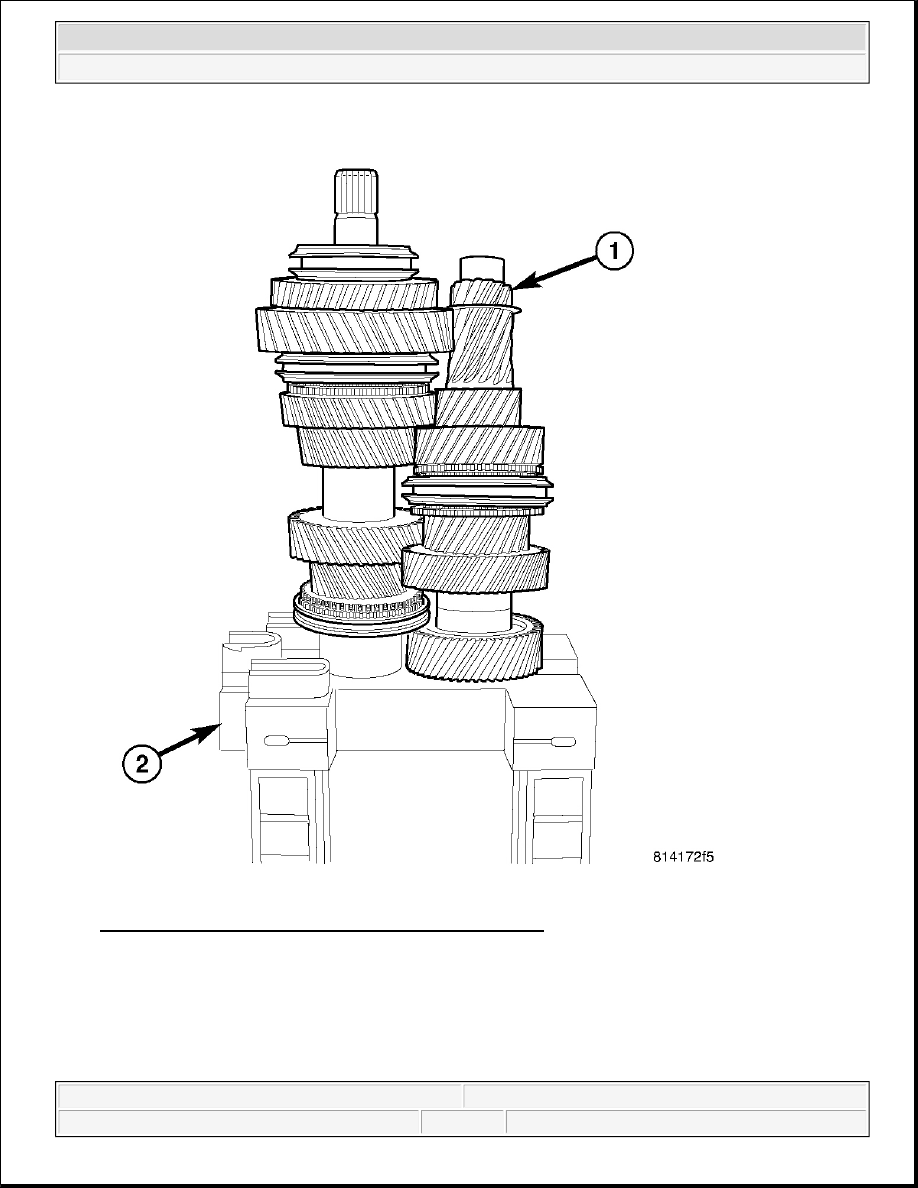

Fig. 109: Installing Countershaft Onto Build Fixture 9633
Courtesy of CHRYSLER LLC

2. Install countershaft (1) onto Build Fixture 9633 (2).



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

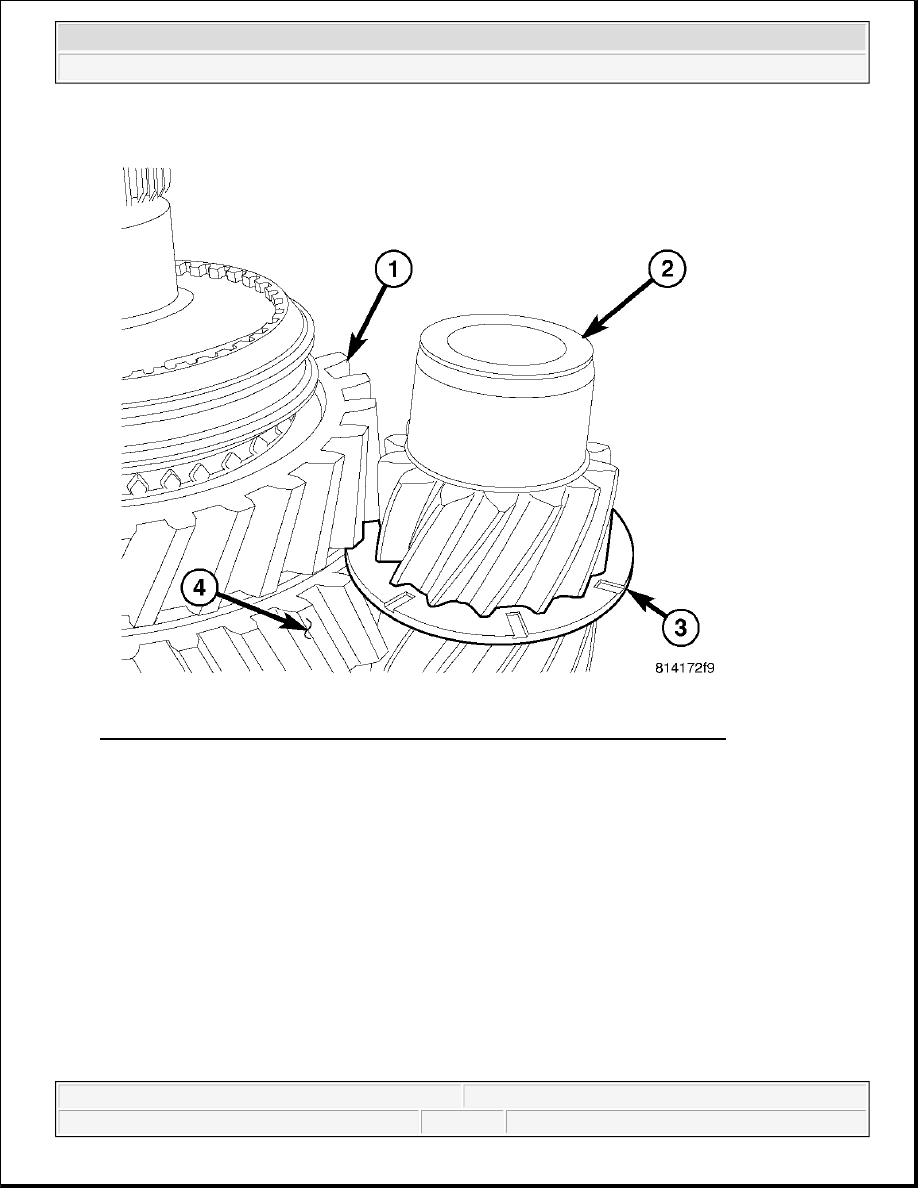

Fig. 110: Installing Oil Slinger On Countershaft Between Reverse And First Gear
Courtesy of CHRYSLER LLC

3. Install oil slinger (3) on countershaft (2) between reverse (1) and first gear (4).

CAUTION: Oil slinger is fragile and can crack during installation. Failure to

follow these instructions will result in cracking the oil slinger and
lack of oil to first/reverse bearing.



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

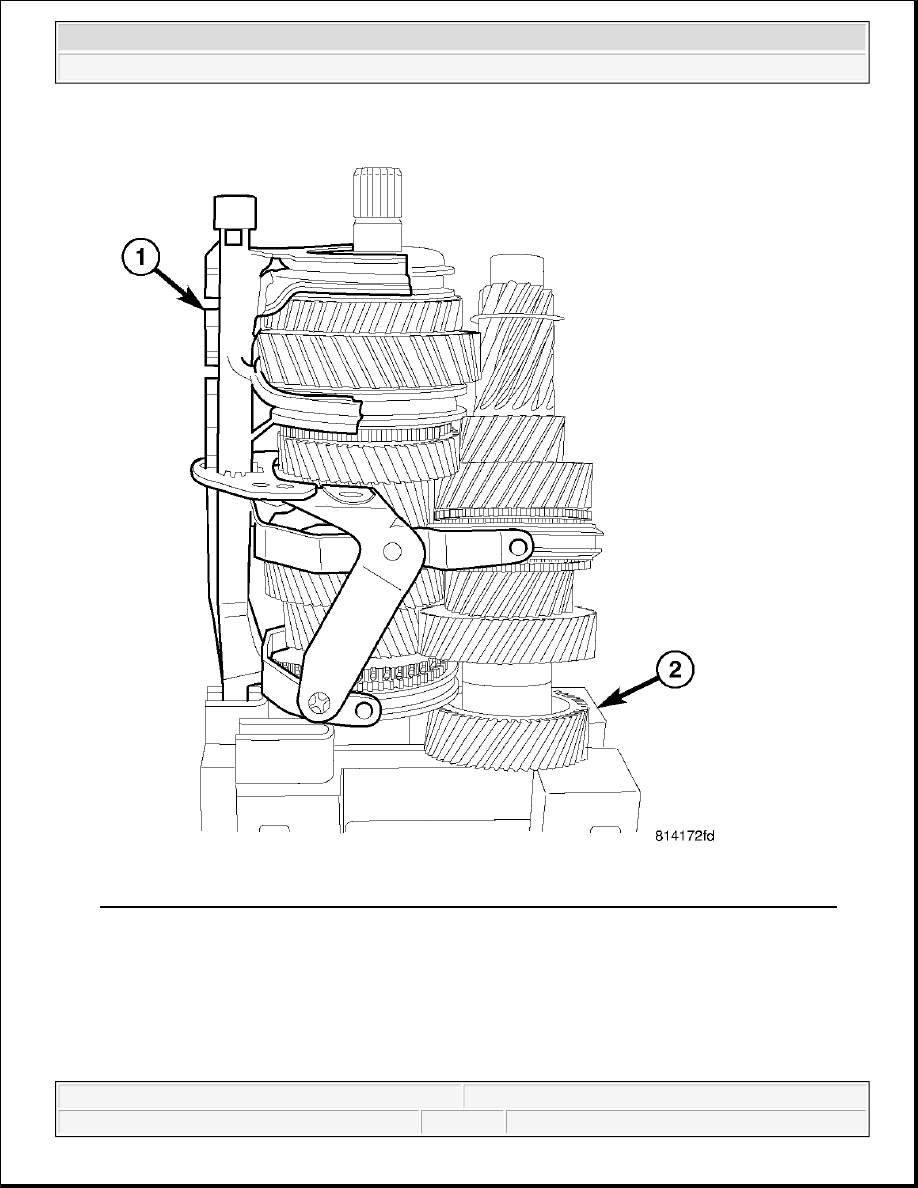

Fig. 111: Installing Shift Rails And Forks Onto Build Fixture 9633 And Countershaft/Mainshaft
Courtesy of CHRYSLER LLC

4. Install shift rails and forks (1) onto Build Fixture 9633 (2) and countershaft/mainshaft.



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

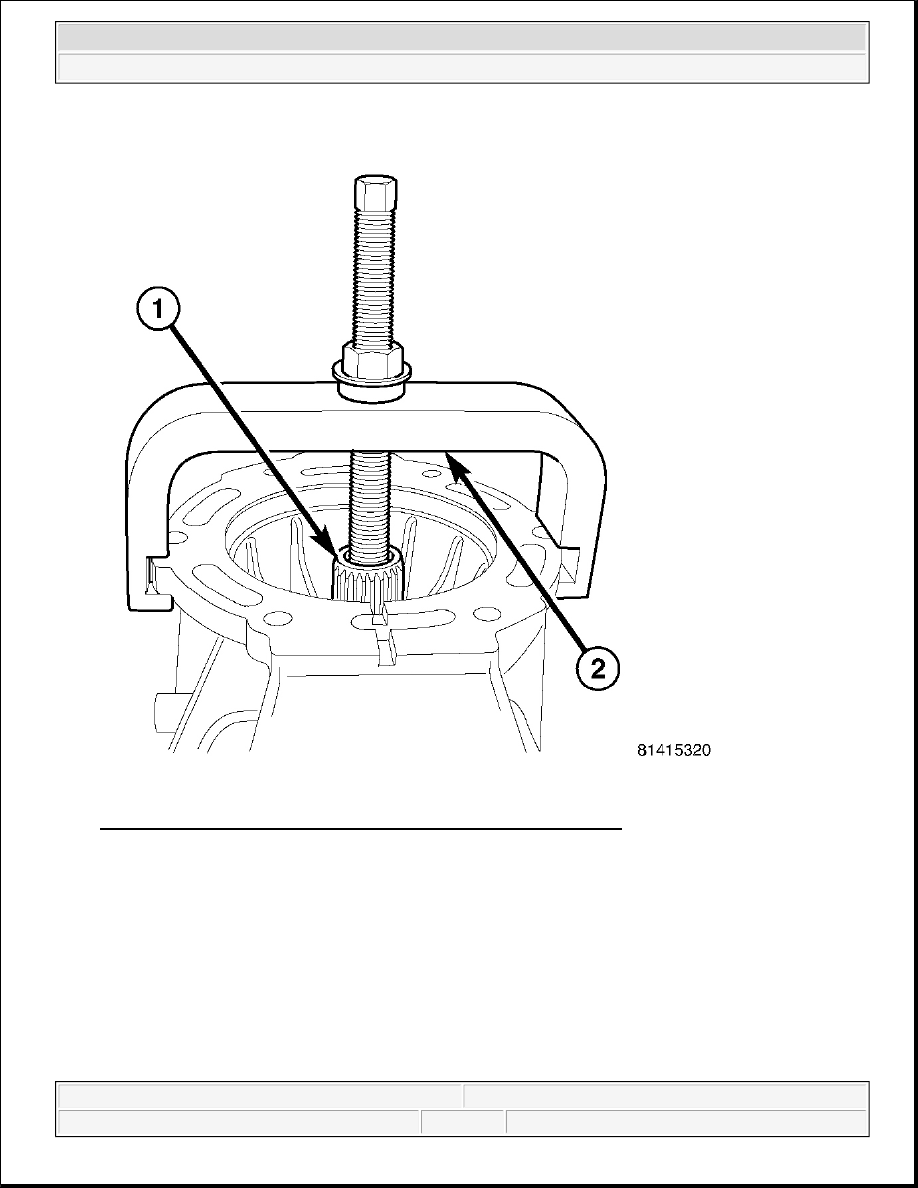

Fig. 112: Installing Rear Housing On Mainshaft With Installer 9636
Courtesy of CHRYSLER LLC

5. Install rear housing on mainshaft (1) with Installer 9636 (2).
