The front fog lamp indicator gives an indication to the vehicle operator whenever the front fog lamps are
illuminated. This indicator is controlled by a transistor on the instrument cluster circuit board based upon cluster
programming and electronic messages received by the cluster from the Totally Integrated Power Module
(TIPM) over the Controller Area Network (CAN) data bus.

The front fog lamp indicator Light Emitting Diode (LED) is completely controlled by the instrument cluster
logic circuit, and that logic will allow this indicator to operate whenever the instrument cluster receives a
battery current input on the fused B(+) circuit. Therefore, the LED can be illuminated regardless of the ignition
switch position. The LED only illuminates when it is provided a path to ground by the instrument cluster
transistor. The instrument cluster will turn ON the front fog lamp indicator for the following reasons:



Front Fog Indicator Lamp-On Message - Each time the cluster receives an electronic front fog
indicator lamp-ON message from the TIPM indicating the front fog lamps are turned ON, the front fog
lamp indicator will be illuminated. The indicator remains illuminated until the cluster receives a lamp-
OFF message from the TIPM, or until the exterior lamp load shedding (battery saver) timed interval
expires, whichever occurs first.



Actuator Test - Each time the cluster is put through the actuator test, the front fog lamp indicator will be
turned ON, then OFF again during the bulb check portion of the test to confirm the functionality of the
LED and the cluster control circuitry.

The TIPM continually monitors electronic exterior lighting request messages from the Electro Mechanical
Instrument Cluster (EMIC) (also known as the Cab Compartment Node/CCN) to determine the appropriate
outputs to the front fog lamps. The TIPM activates or deactivates the front fog lamps then sends the proper
lamp-ON or lamp-OFF message back to the EMIC.

For proper diagnosis of the front fog lamp system, the TIPM, the EMIC, the CAN data bus or the electronic
communication related to front fog lamp indicator operation a diagnostic scan tool is required. Refer to the
appropriate diagnostic information.

FUEL GAUGE

DESCRIPTION

FUEL GAUGE



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Instrument Cluster - Service Information - Nitro



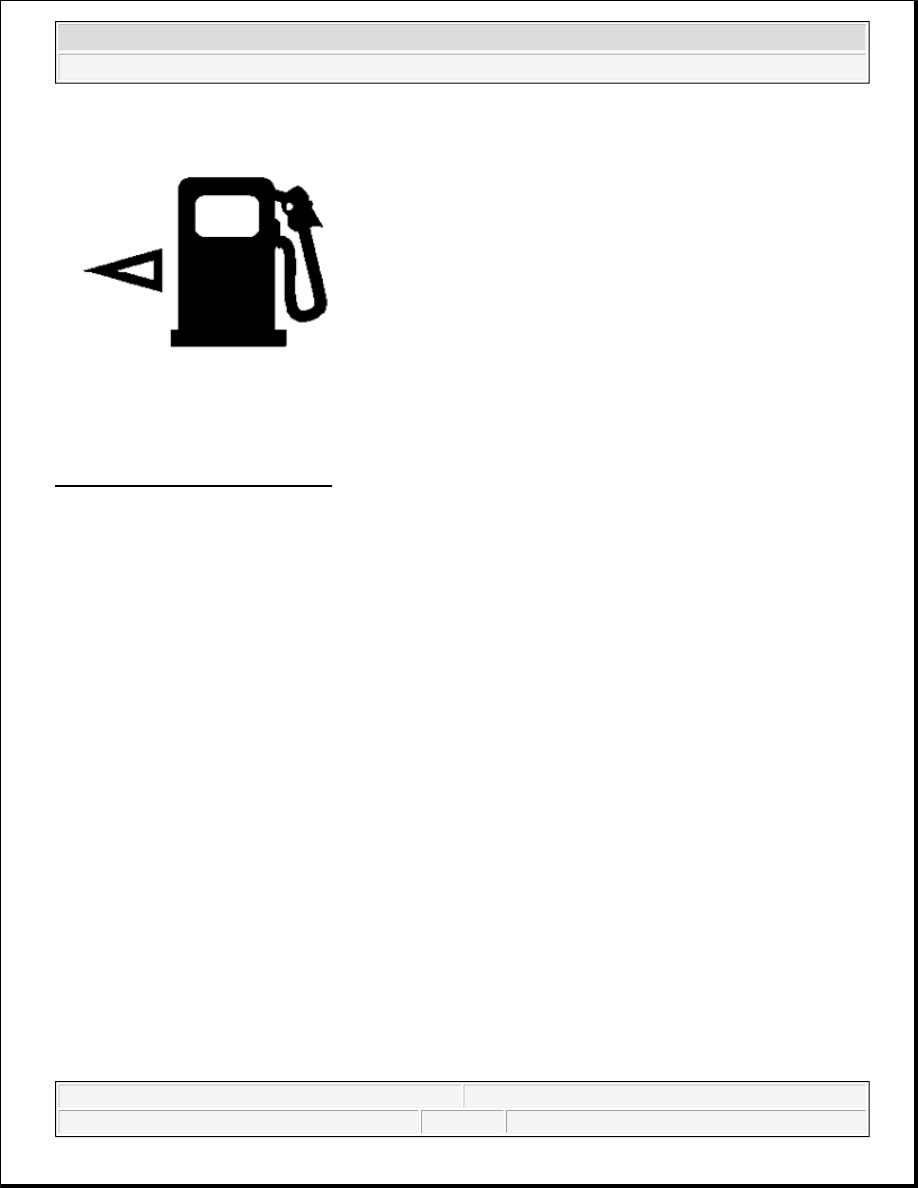

Fig. 20: Fuel Gauge Display Symbol
Courtesy of CHRYSLER LLC

A fuel gauge is standard equipment on all instrument clusters. This gauge is located on the left side of the
instrument cluster, left of the speedometer and the engine temperature gauge. The gauge consists of a movable
gauge needle or pointer controlled by the instrument cluster circuitry and a fixed 90 degree gauge scale on the
cluster overlay that reads bottom-to-top from E (or Empty) to F (or Full). An International Control and Display
Symbol icon for Fuel is located on the cluster overlay, adjacent to the hub of the gauge needle. An arrowhead
pointed to the left side of the vehicle is imprinted on the cluster overlay next to the Fuel icon on the gauge to
provide the driver with a reminder as to the location of the fuel filler access.

The fuel gauge graphics are white, gray and black against a black field except for a single red graduation at the
low end of the gauge scale, making them clearly visible within the instrument cluster in daylight. When
illuminated from behind by the panel lamps dimmer controlled cluster illumination lighting with the exterior
lamps turned ON, the graphics all retain their unilluminated colors and appearance. The orange gauge needle
has internal optical illumination. Gauge illumination is provided by Light Emitting Diode (LED) units soldered
onto the instrument cluster electronic circuit board.

The fuel gauge is serviced as a unit with the instrument cluster.

OPERATION

FUEL GAUGE

The fuel gauge gives an indication to the vehicle operator of the level of fuel in the fuel tank. This gauge is
controlled by the instrument cluster circuit board based upon cluster programming and electronic fuel level
messages received by the cluster from the Totally Integrated Power Module (TIPM) over the Controller Area
Network (CAN) data bus.

The fuel gauge is driven by an electronic stepper motor unit that receives battery current on the instrument
cluster electronic circuit board through the fused ignition switch output (run-start) circuit whenever the ignition



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Instrument Cluster - Service Information - Nitro



switch is in the ON or START positions. The cluster is programmed to move the gauge needle back to the low
end of the scale after the ignition switch is turned to the OFF position. The instrument cluster circuitry controls
the gauge needle position and provides the following features:



Fuel Level Message - The TIPM provides a constant current source to the fuel level sending unit and
monitors a return input on a fuel level sense circuit. The resistance through the fuel level sending unit
increases as the fuel level rises and decreases as the fuel level falls causing changes in the fuel level sense
input voltage. The TIPM then sends the appropriate electronic fuel level messages to the cluster. The
cluster programming applies an algorithm to calculate the proper fuel gauge needle position based upon
the fuel level message input, then moves the gauge needle to the proper relative position on the gauge
scale. This algorithm is used to dampen gauge needle movement against the negative effect that fuel
sloshing within the fuel tank can have on accurate inputs from the fuel tank sending unit to the TIPM.



Less Than 11 Percent Tank Full Message - Each time the fuel level message to the cluster indicates the
fuel tank is about 11 percent full or less for 10 consecutive seconds and the vehicle speed is zero, or for
60 consecutive seconds and the vehicle speed is greater than zero, the gauge needle is moved to about the
one-sixteenth graduation on the gauge scale, the low fuel indicator is illuminated, and a single chime tone
is sounded. The low fuel indicator remains illuminated until the fuel level message indicates that the fuel
tank is greater than about 14 percent full for 10 consecutive seconds and the vehicle speed is zero, or for
60 consecutive seconds and the vehicle speed is greater than zero, or until the ignition switch is turned to
the OFF position, whichever occurs first. The chime tone feature will only repeat during the same ignition
cycle if the low fuel indicator is cycled OFF and then ON again by the appropriate messages from the
TIPM.



Less Than Empty Stop Message - Each time the cluster receives a fuel level message indicating the fuel
level in the fuel tank is less than the E (or Empty) gauge needle stop position for five consecutive
seconds, the gauge needle is moved to the low end of the gauge scale and the low fuel indicator is
illuminated immediately. This input would indicate that the fuel level sense input to the TIPM is a short
circuit.



More Than Full Stop Message - Each time the cluster receives a fuel level message indicating the fuel
level in the fuel tank is more than the F (or Full) gauge needle stop position for five consecutive seconds,
the gauge needle is moved to the low end of the gauge scale and the low fuel indicator is illuminated
immediately. This input would indicate that the fuel level sense input to the TIPM is an open circuit.



Actuator Test - Each time the cluster is put through the actuator test, the fuel gauge needle will be swept
to several calibration points on the gauge scale in a prescribed sequence in order to confirm the
functionality of the gauge and the cluster control circuitry.

The TIPM continually monitors the fuel tank sending unit to determine the level of fuel in the fuel tank. The
TIPM then sends the proper electronic fuel level message to the Electro Mechanical Instrument Cluster (EMIC)
(also known as the Cab Compartment Node/CCN) and other electronic modules in the vehicle over the
Controller Area Network (CAN) data bus. The TIPM will store a Diagnostic Trouble Code (DTC) for any fault
detected in the fuel level sense circuit.

For proper diagnosis of the fuel tank sending unit, the TIPM, the EMIC, the CAN data bus or the electronic
communication related to fuel gauge operation or fuel level data processing a diagnostic scan tool is required.
Refer to the appropriate diagnostic information.

GAS CAP INDICATOR



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Instrument Cluster - Service Information - Nitro



DESCRIPTION

GAS CAP INDICATOR

A gas cap indicator is standard equipment on all instrument clusters. However, on vehicles equipped with the
optional diesel engine, as well as those manufactured for the Chinese market, this indicator is electronically
disabled. The gas cap indication appears within the odometer Vacuum Fluorescent Display (VFD) unit. The gas
cap indicator consists of a textual gas cap message which appears in place of the odometer information in the
odometer display.

The odometer VFD is soldered onto the cluster electronic circuit board, and is visible through a window with a
smoked clear lens located on the lower edge of the tachometer gauge dial face of the cluster overlay. The dark
lens over the VFD prevents it from being clearly visible when it is not illuminated. The gas cap textual message
appears in the same blue-green color and at the same lighting level as the odometer information when it is
illuminated by the instrument cluster electronic circuit board.

The gas cap indicator is serviced as a unit with the VFD in the instrument cluster.

OPERATION

GAS CAP INDICATOR

The gas cap indicator gives an indication to the vehicle operator when there is a gross leak detected in the on-
board fuel vapor recovery system. This indicator is controlled by the instrument cluster logic circuit based upon
cluster programming and electronic messages received over the Controller Area Network (CAN) data bus from
the Powertrain Control Module (PCM).

The gas cap indicator function of the odometer Vacuum Fluorescent Display (VFD) unit is completely
controlled by the instrument cluster logic circuit, and that logic will only allow this indicator to operate when
the instrument cluster receives a battery current input on the fused ignition switch output (run-start) circuit.
Therefore, the odometer VFD gas cap indication will always be OFF when the ignition switch is in any position
except ON or START. The instrument cluster will turn ON the gas cap indicator for the following reasons:



Gas Cap Indicator Lamp-On Message - Each time the cluster receives an electronic gas cap indicator
lamp-ON message from the PCM indicating there is a gross leak in the vapor recovery system, the gas
cap indicator will be illuminated. The indicator remains illuminated until the cluster receives a lamp-OFF
message from the PCM, or until the ignition switch is turned to the OFF position, whichever occurs first.

The PCM continually monitors the on board vapor recovery system to determine whether there are air leaks in
the system. The PCM then sends the proper lamp-ON or lamp-OFF message to the Electro Mechanical
Instrument Cluster (EMIC) (also known as the Cab Compartment Node/CCN). If the EMIC turns ON the gas
cap indicator due to a monitored gross leak in the vapor recovery system, it may indicate that the gas cap has
been removed or is improperly installed.

For proper diagnosis of the on board vapor recovery system, the PCM, the EMIC, the CAN data bus or the
electronic communication related to gas cap indicator operation a diagnostic scan tool is required. Refer to the
appropriate diagnostic information.
