Dodge Nitro. Manual - part 780





Courtesy of CHRYSLER LLC

An electric positive temperature coefficient (PTC) heater unit (1) is used on vehicles when equipped with the
2.8L diesel engine. The PTC heater unit aids in passenger compartment heating by compensating for the lower
engine coolant temperatures produced by the diesel engine. The PTC heater unit is mounted in the HVAC air
distribution housing, downstream of the heater core and is controlled by the diesel engine control module
(ECM) and the totally integrated power module (TIPM) through two relays in diesel accessory fuse/relay block
located below the left front fender.

The PTC heater consists of a molded plastic mounting plate (2) with an integral wire connector receptacle (3).
Concealed behind the mounting plate are four heating elements with fins (4) that transfer the heat produced by
the PTC heater to the conditioned air flowing within the air distribution housing. A positioning tab (5) is
molded onto the end of the heater unit to help support the heater unit inside the air distribution housing. The
PTC heater unit is connected to the vehicle electrical system through the instrument panel wire harness.

The PTC heater unit is accessed for service from underneath the instrument panel.

OPERATION

HEATER UNIT

The positive temperature coefficient (PTC) heater unit dissipates 1 kW of electrical power through 4 heating
bars. The totally integrated power module (TIPM) operates the two relays for the PTC heater unit. The PTC
heater unit is split into two "banks". Each bank is driven separately based on alternator load. This allows for
lower in-rush current and optimum battery charging. After a bank has been turned on, another bank can only be
turned on 10 seconds after the previous. On average, the PTC banks are not switched more than 25 times for
each vehicle start. Electrical power output is between 900-1050 W.

The control system for the PTC heater unit is diagnosed using a scan tool. Prior to replacing a PTC heater unit,
check for any diagnostic trouble codes (DTCs) related to the ECM, TIPM and heating-A/C system (refer to
HEATING & AIR CONDITIONING - ELECTRICAL DIAGNOSTICS for more information).

The PTC heater unit cannot be adjusted or repaired and, if faulty or damaged it must be replaced.

DIAGNOSIS AND TESTING

HEATER UNIT

NOTE:

LHD model shown. RHD model similar.

WARNING:

Disable the airbag system before attempting any steering wheel, steering
column, or instrument panel component diagnosis or service. Disconnect
and isolate the negative battery (ground) cable, then wait two minutes for
the airbag system capacitor to discharge before performing further
diagnosis or service. This is the only sure way to disable the airbag
system. Failure to take the proper precautions could result in accidental
airbag deployment and possible serious or fatal injury.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro



Prior to replacing the positive temperature coefficient (PTC) heater unit, check for any diagnostic trouble codes
(DTCs) related to the engine control module (ECM), totally integrated power module (TIPM) and the heating-
A/C system and repair as necessary (refer to HEATING & AIR CONDITIONING - ELECTRICAL
DIAGNOSTICS
 for more information).

1. Disconnect and isolate the negative battery cable.

2. Disconnect the wire harness connector from the PTC heater unit. See REMOVAL.

3. Using an ohmmeter, check for continuity between all of the PTC heater unit terminals. In each case there

should be continuity. If OK, repair the wire harness circuits between the PTC heater unit and the TIPM. If
NOT OK, replace the PTC heater unit.

REMOVAL

HEATER UNIT

NOTE:

For circuit descriptions and diagrams, refer to the appropriate wiring
information. The wiring information includes wiring diagrams, proper wire and
connector repair procedures, further details on wire harness routing and
retention, as well as pin-out and location views for the various wire harness
connectors, splices and grounds.

WARNING:

Disable the airbag system before attempting any steering wheel, steering
column, or instrument panel component diagnosis or service. Disconnect
and isolate the negative battery (ground) cable, then wait two minutes for
the airbag system capacitor to discharge before performing further
diagnosis or service. This is the only sure way to disable the airbag
system. Failure to take the proper precautions could result in accidental
airbag deployment and possible personal injury or death.

NOTE:

LHD model shown in illustrations. RHD model similar.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro



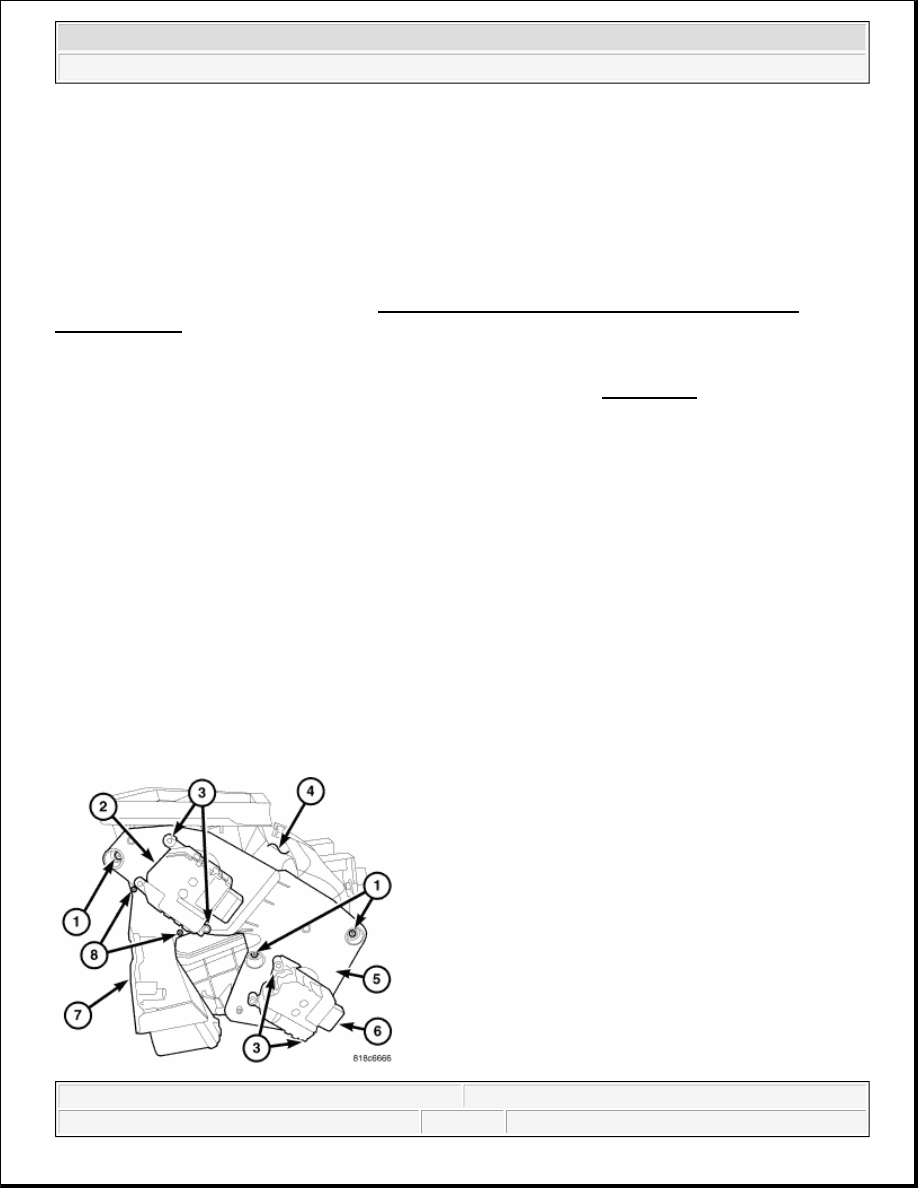

Fig. 207: HVAC Housing Assembly
Courtesy of CHRYSLER LLC

1. Disconnect and isolate the negative battery cable.

2. If equipped, remove the silencer from below the driver side of the instrument panel. Refer to

REMOVAL .

3. Disconnect the wire harness connector from the mode door actuator (2) and the blend door actuator (6)

located on the driver side of the air distribution housing. See REMOVAL for more information.

4. Carefully disengage the retaining tabs (3) that secure the mode door actuator and the blend door actuator

to the actuator mounting bracket (5) and remove the actuators.

5. Remove the three screws (1) that secure the actuator mounting bracket to the air distribution housing and

remove the bracket.

6. Remove the screw (8) that secures the driver side front floor duct (7) to the air distribution housing and

remove the duct

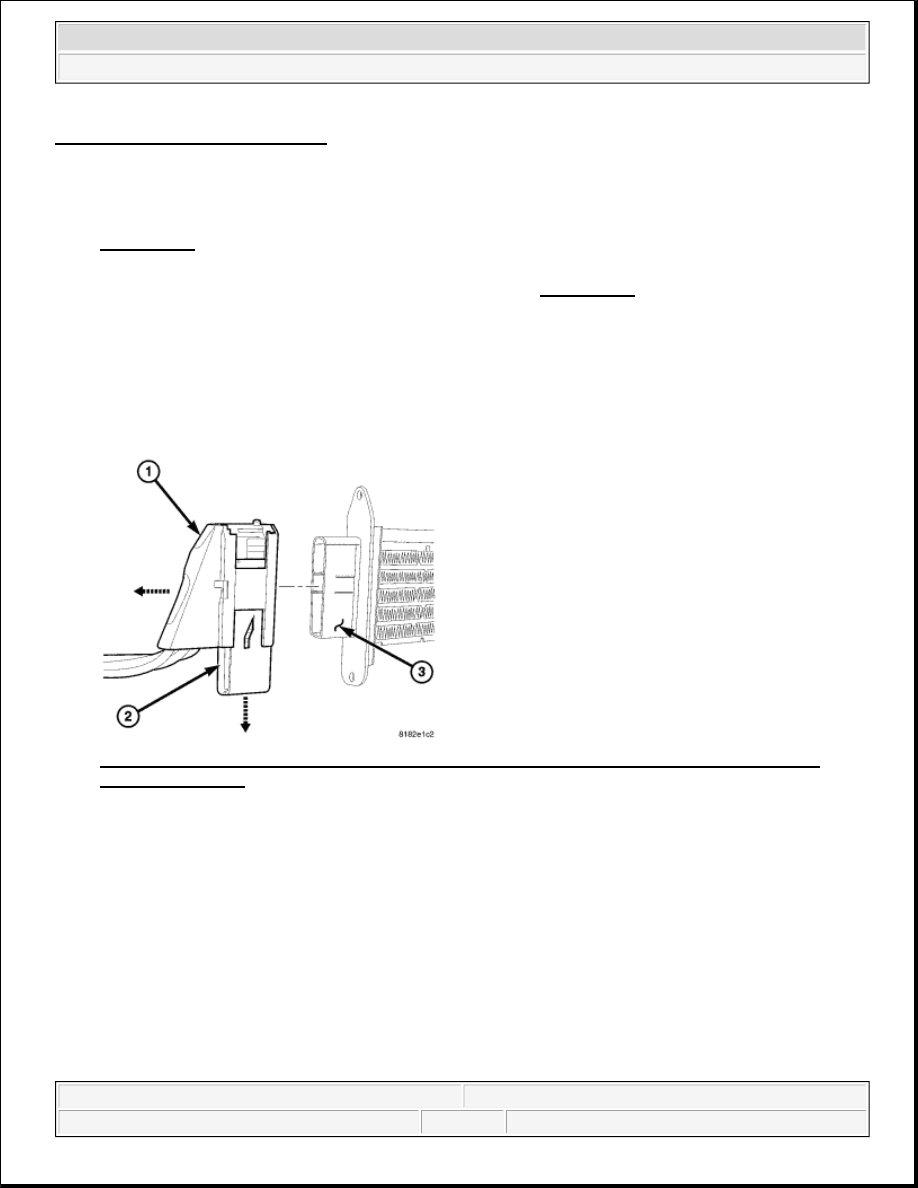

Fig. 208: Wire Harness Connector, Wire Connector Lock & Positive Temperature Coefficient
(PTC) Heater Unit

Courtesy of CHRYSLER LLC

7. Disengage the wire connector lock (2) that secures the wire harness connector (1) to the positive

temperature coefficient (PTC) heater unit (3) and disconnect the connector from the heater.

NOTE:

PTC heater shown removed from distribution housing for clarity.

NOTE:

To disconnect the wire harness connector from the PTC heater, disengage
the connector lock while pulling the connector away from the heater unit.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro



Fig. 209: Removing/Installing Screws That Secure PTC Heater Unit To Air Distribution Housing
Courtesy of CHRYSLER LLC

8. Remove the two screws (1) that secure the PTC heater unit (2) to the air distribution housing (3).

9. Carefully pull the PTC heater unit straight out of the air distribution housing.

INSTALLATION

HEATER UNIT

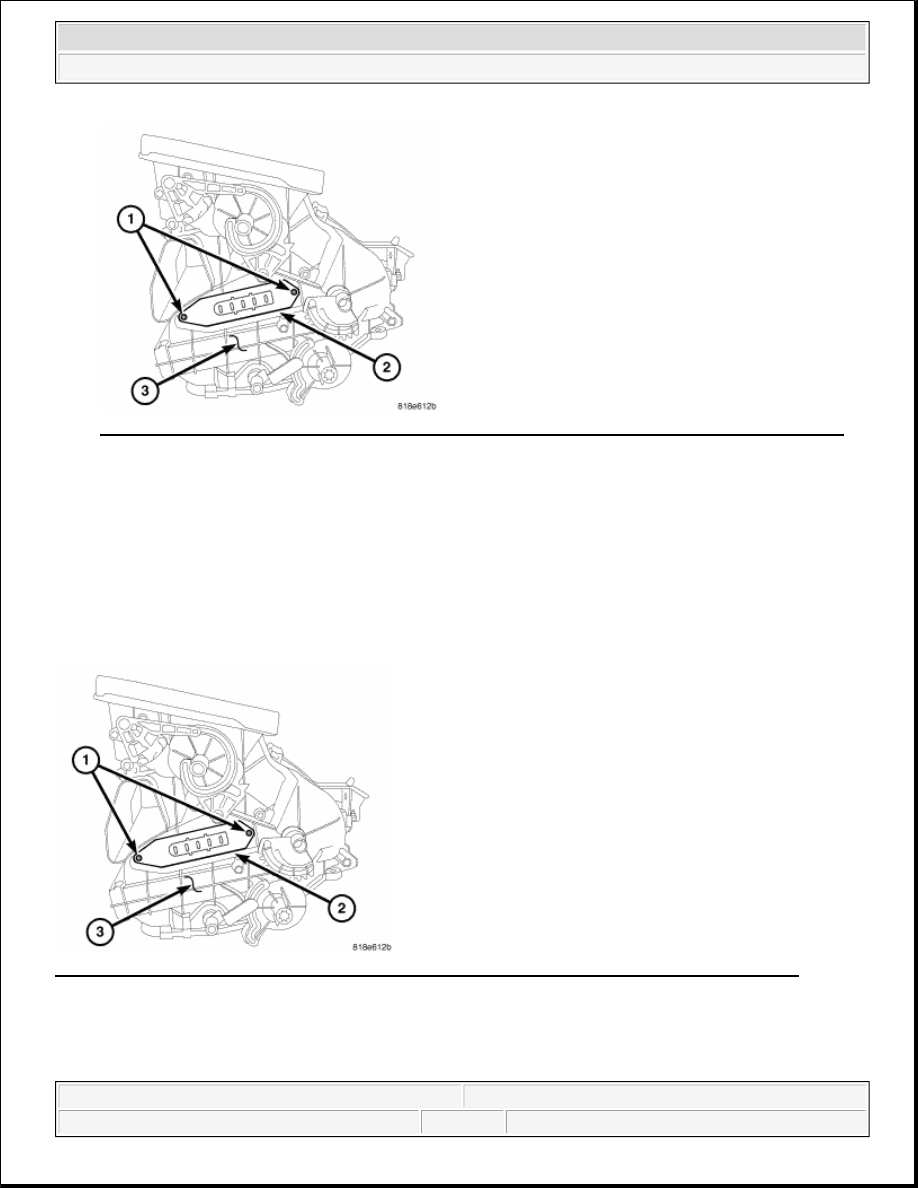

Fig. 210: Removing/Installing Screws That Secure PTC Heater Unit To Air Distribution Housing
Courtesy of CHRYSLER LLC

1. Carefully install the positive temperature coefficient (PTC) heater unit (2) into the driver side of the air

distribution housing (3). Make sure to position the two locator tabs on the end of the heater unit into the
molded locator indentations on the right side of the air distribution housing.

NOTE:

LHD model shown. RHD model similar.
