Dodge Nitro. Manual - part 731





SPECIAL TOOLS

HEATING-A/C SYSTEM

A/C Compressor Front
Outboard Bolt (3.7L
Engine)

55

-

41

A/C Compressor Bracket
to Front Cover Bolt (3.7L
Engine)

40

-

30

A/C Compressor Field
Coil Connector Bracket
Screw (3.7L Engine)

4.3

-

38

A/C Compressor Clutch
Hub Bolt (2.8L and 4.0L
Engines)

15

-

133

A/C Compressor Clutch
Hub Bolt (3.7L Engine)

20

-

177

A/C Condenser to
Radiator Bolt

5

-

44

A/C Expansion Valve to
Evaporator Tube Tapping
Block Bolts

11

-

97

Discharge Line to A/C
Condenser Nut

22.5

-

200

HVAC Housing to
Engine Side of Dash
Panel Nut

4.5

-

40

HVAC Housing to
Passenger Side of Dash
Panel Nuts

4.5

-

40

Suction Line Brackets to
Engine Nuts (LHD 2.8L
model)

4.5

-

40

Receiver/drier to A/C
Condenser Bolt

22

16

-

Refrigerant Lines to A/C
Expansion Valve Nut

23

17

-

Refrigerant Lines to A/C
Compressor Nuts

12

-

105



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro



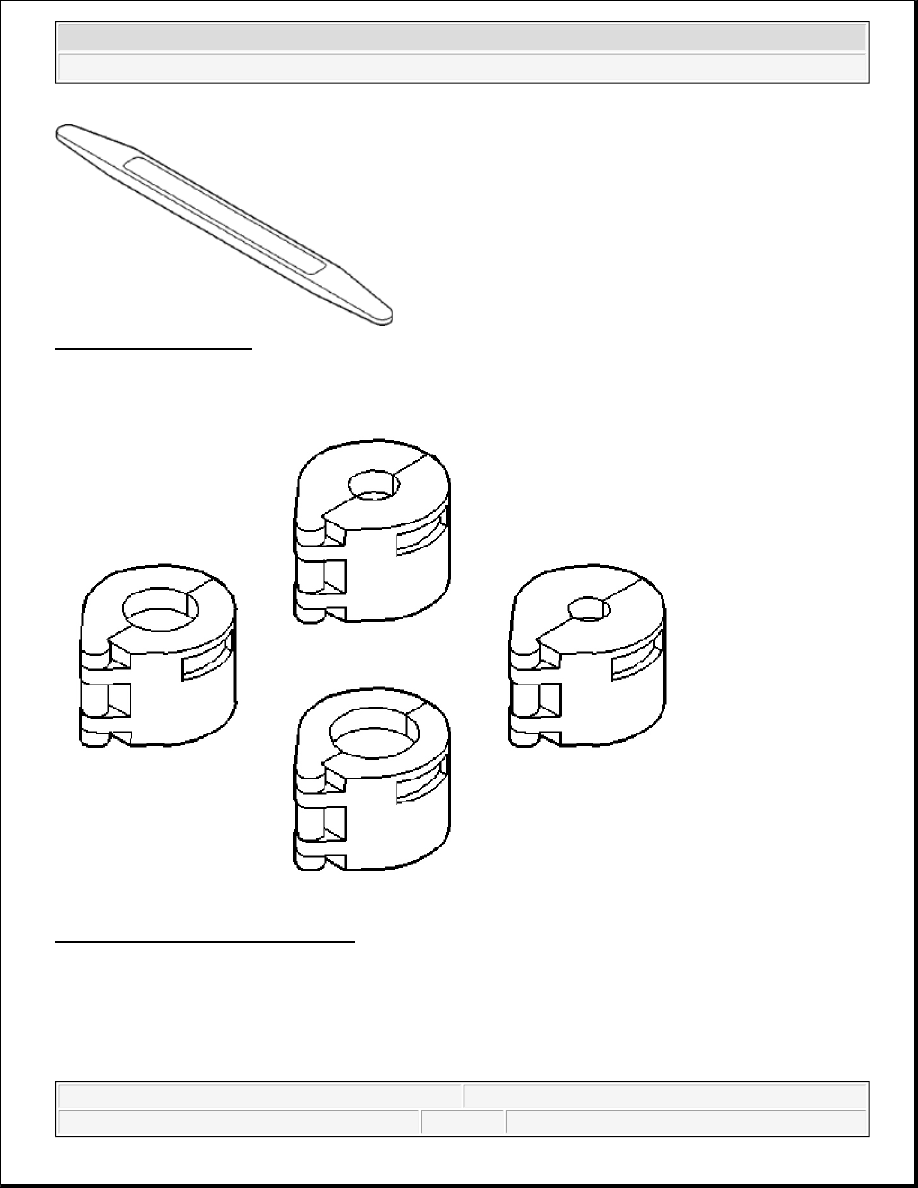

Fig. 3: Trim Stick C-4755
Courtesy of CHRYSLER LLC

Fig. 4: A/C Line Disconnect Tools 7193
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro



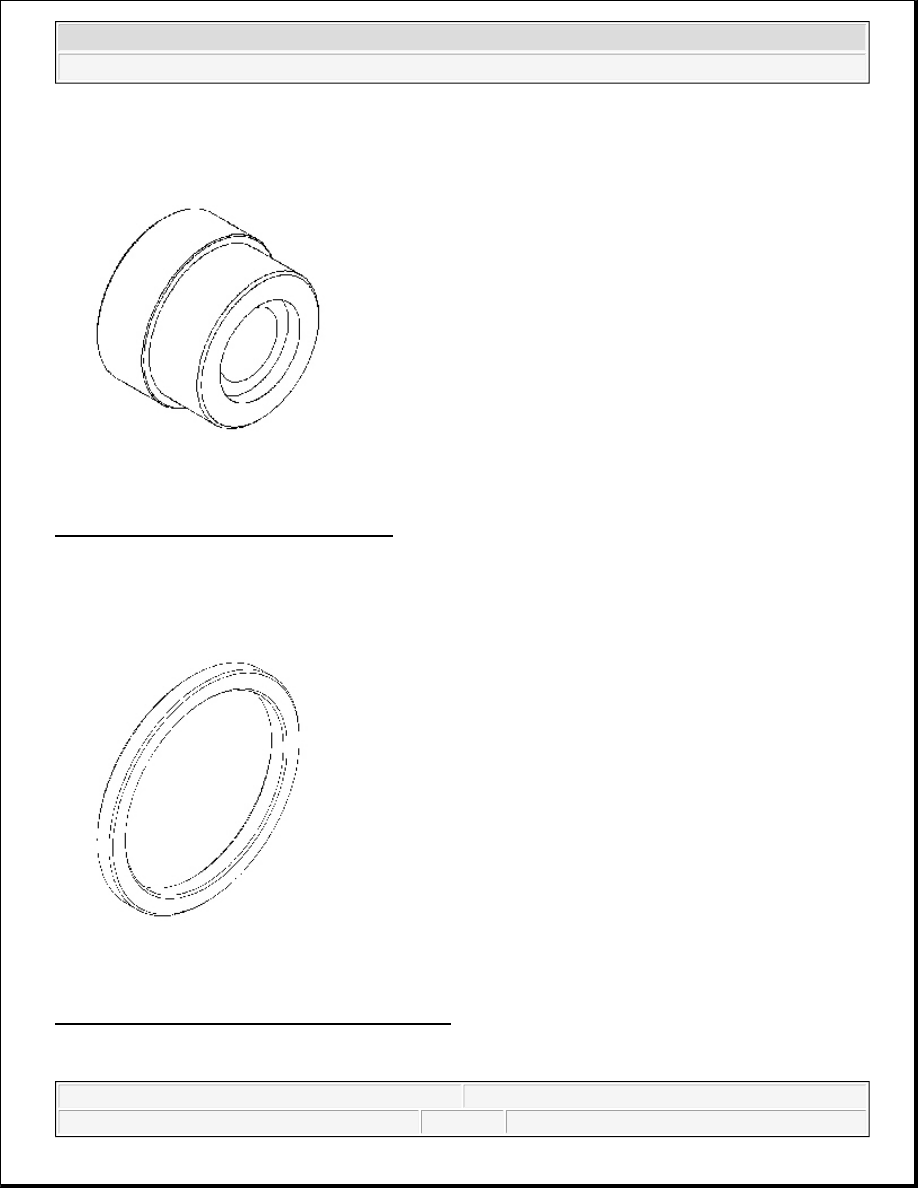

Fig. 5: Compressor Field Coil Installer 9352
Courtesy of CHRYSLER LLC

Fig. 6: Compressor Field Coil Installer Spacer 9353
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro



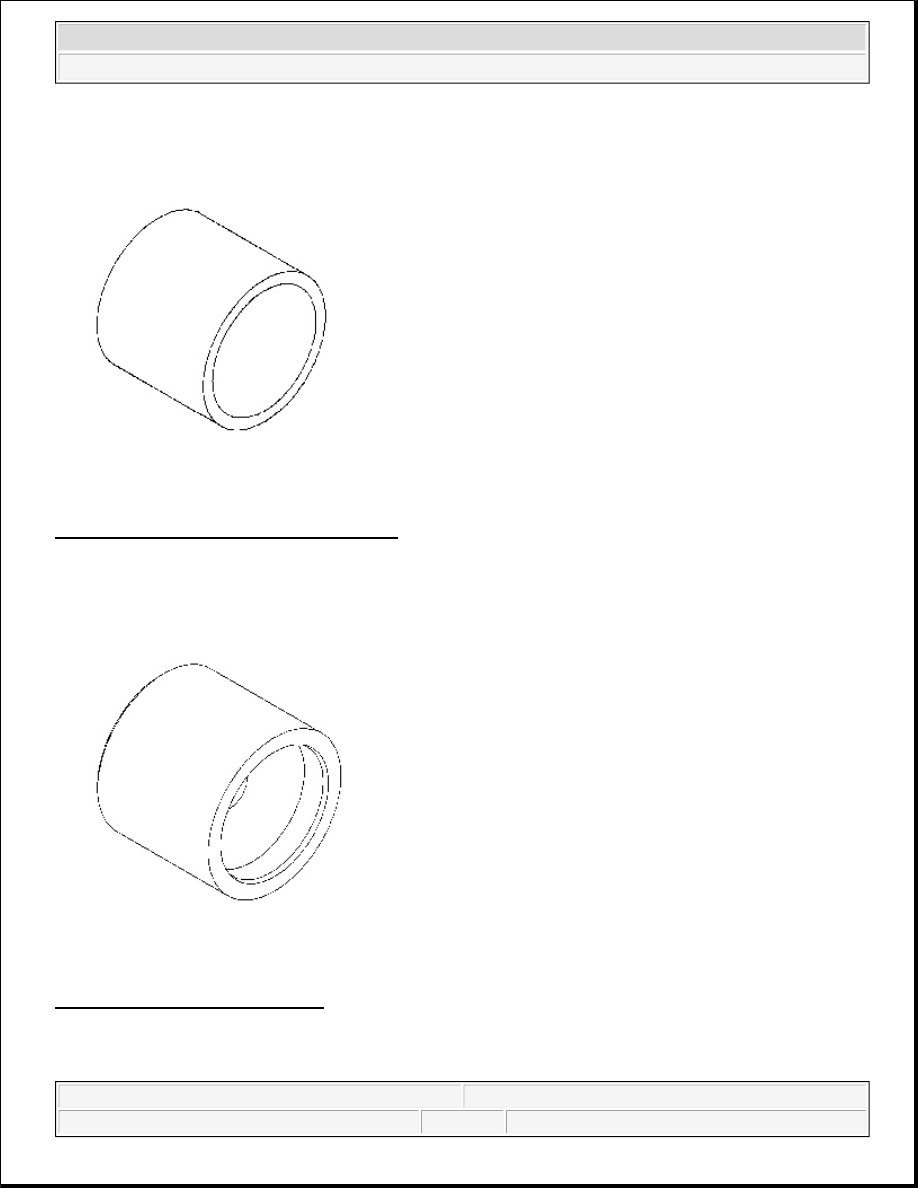

Fig. 7: Compressor Field Coil Remover 9354
Courtesy of CHRYSLER LLC

Fig. 8: Clutch Pulley Installer 9355
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro
