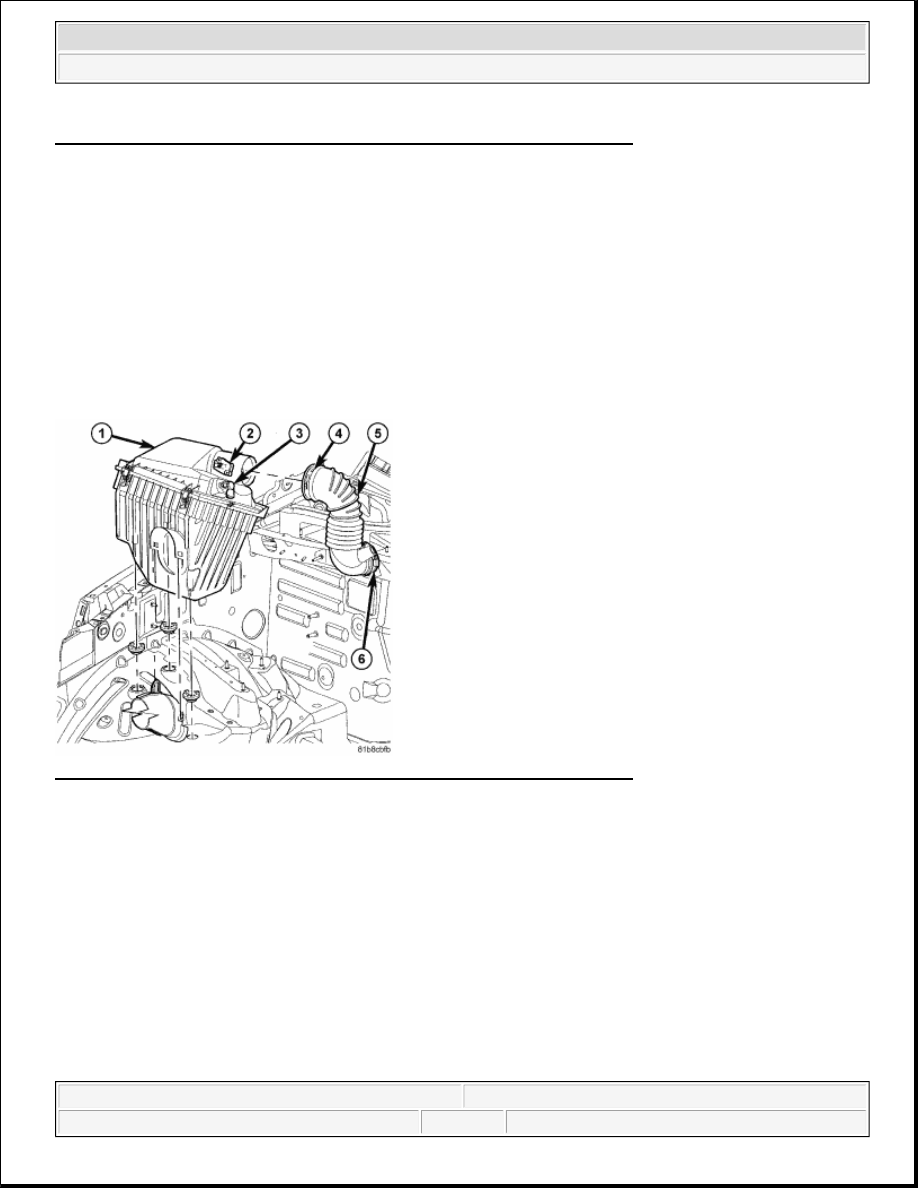

Fig. 144: Removing/Installing Intake Air Pressure & Mass Air Flow Sensor
Courtesy of CHRYSLER LLC

The Inlet Pressure Sensor (3) is located on the air cleaner cover (1).

1. Disconnect electrical connector at sensor.

2. Remove mounting screws.

3. Remove sensor from air cleaner cover.

INSTALLATION

INSTALLATION



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



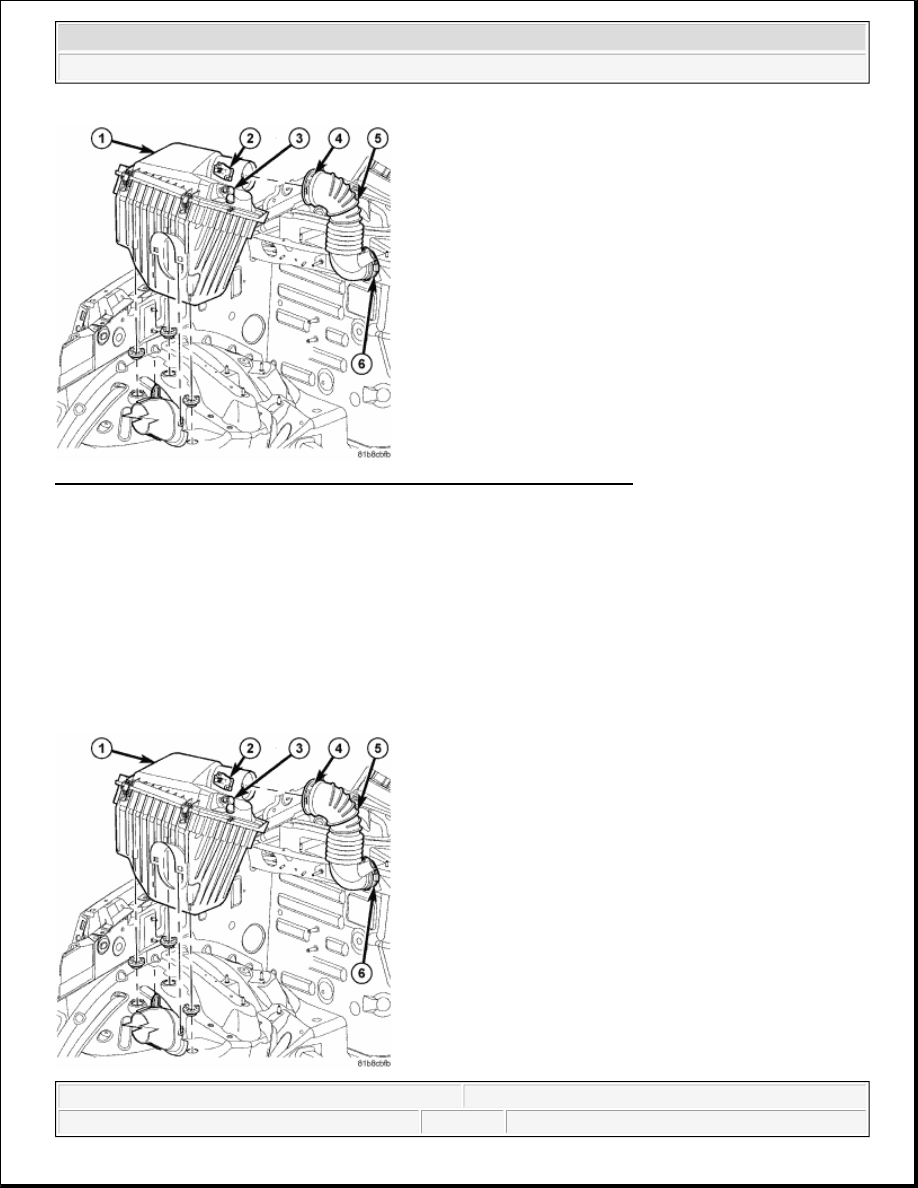

Fig. 145: Removing/Installing Intake Air Pressure & Mass Air Flow Sensor
Courtesy of CHRYSLER LLC

1. Check condition of sensor O-ring.

2. Position Inlet Pressure Sensor (3) into top of air cleaner cover (1) with a slight twisting action.

3. Install mounting screws.

4. Install Inlet Pressure Sensor electrical connector.

SENSOR-MASS AIR FLOW

REMOVAL

REMOVAL

Fig. 146: Removing/Installing Intake Air Pressure & Mass Air Flow Sensor
Courtesy of CHRYSLER LLC

The Mass Airflow Sensor (2) is located on the air cleaner cover (1).

1. Disconnect electrical connector at sensor.

2. Remove mounting screws.

3. Remove sensor from air cleaner cover.

INSTALLATION

INSTALLATION



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro

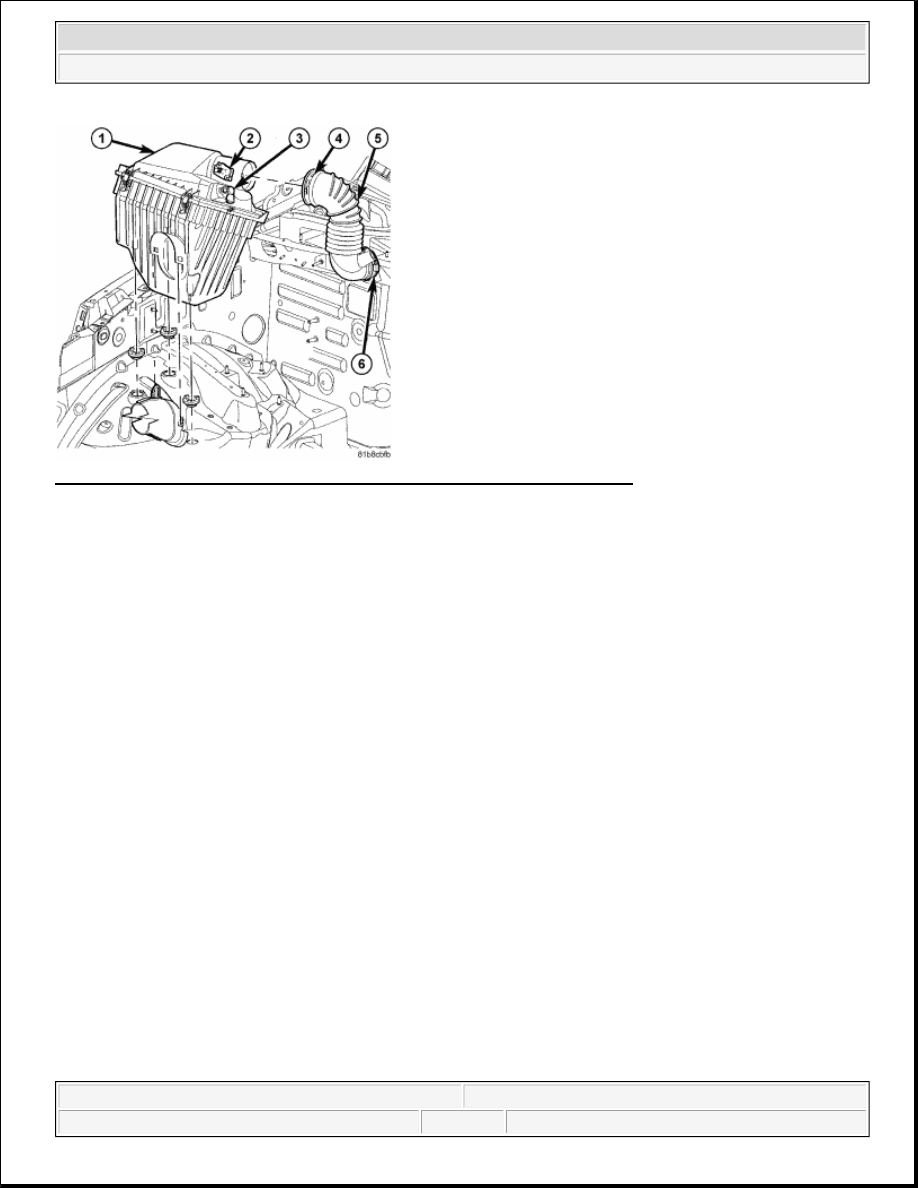

Fig. 147: Removing/Installing Intake Air Pressure & Mass Air Flow Sensor
Courtesy of CHRYSLER LLC

1. Check condition of sensor O-ring.

2. Position MAF sensor (2) into top of air cleaner cover (1) with a slight twisting action.

3. Install mounting screws.

4. Install MAF electrical connector.

SENSOR-TEMPERATURE/PRESSURE-MAP

OPERATION

INTAKE MANIFOLD AIR TEMPERATURE (IAT) SENSOR - ECM INPUT

The combination, dual function Intake Manifold Air Temperature Sensor/MAP Sensor is installed into the top
of the intake manifold with the sensor element extending into the air stream.

The IAT portion of the sensor provides an input voltage to the Engine Control Module (ECM) indicating intake
manifold air temperature. The MAP portion of the sensor provides an input voltage to the ECM indicating
turbocharger boost pressure.

REMOVAL

INTAKE MANIFOLD AIR TEMPERATURE (IAT) SENSOR



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro

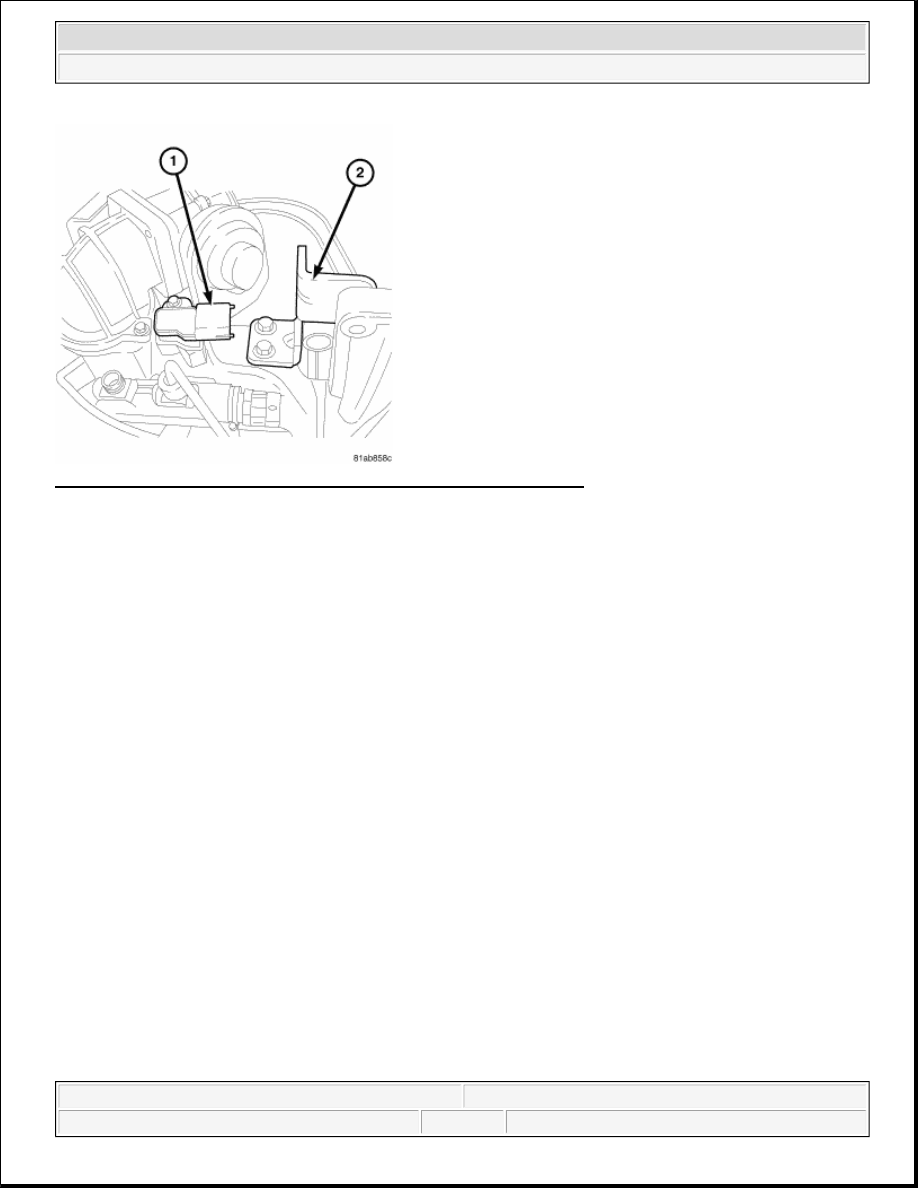

Fig. 148: Identifying Intake Manifold Air Temperature (IAT) Sensor
Courtesy of CHRYSLER LLC

The combination, dual function Intake Manifold Air Temperature Sensor/MAP (IAT/MAP) sensor (1) is
installed into the top of the intake manifold near the fuel rail.

1. Clean area around sensor.

2. Disconnect electrical connector from IAT/MAP sensor.

3. Remove mounting screw.

4. Remove sensor from intake manifold by twisting.

5. Check condition of sensor O-ring.

INSTALLATION

INTAKE MANIFOLD AIR TEMPERATURE (IAT) SENSOR



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro
