Fig. 133: Fuel Injectors - 2.8L Diesel
Courtesy of CHRYSLER LLC

4. Locate common fuel return line (1).

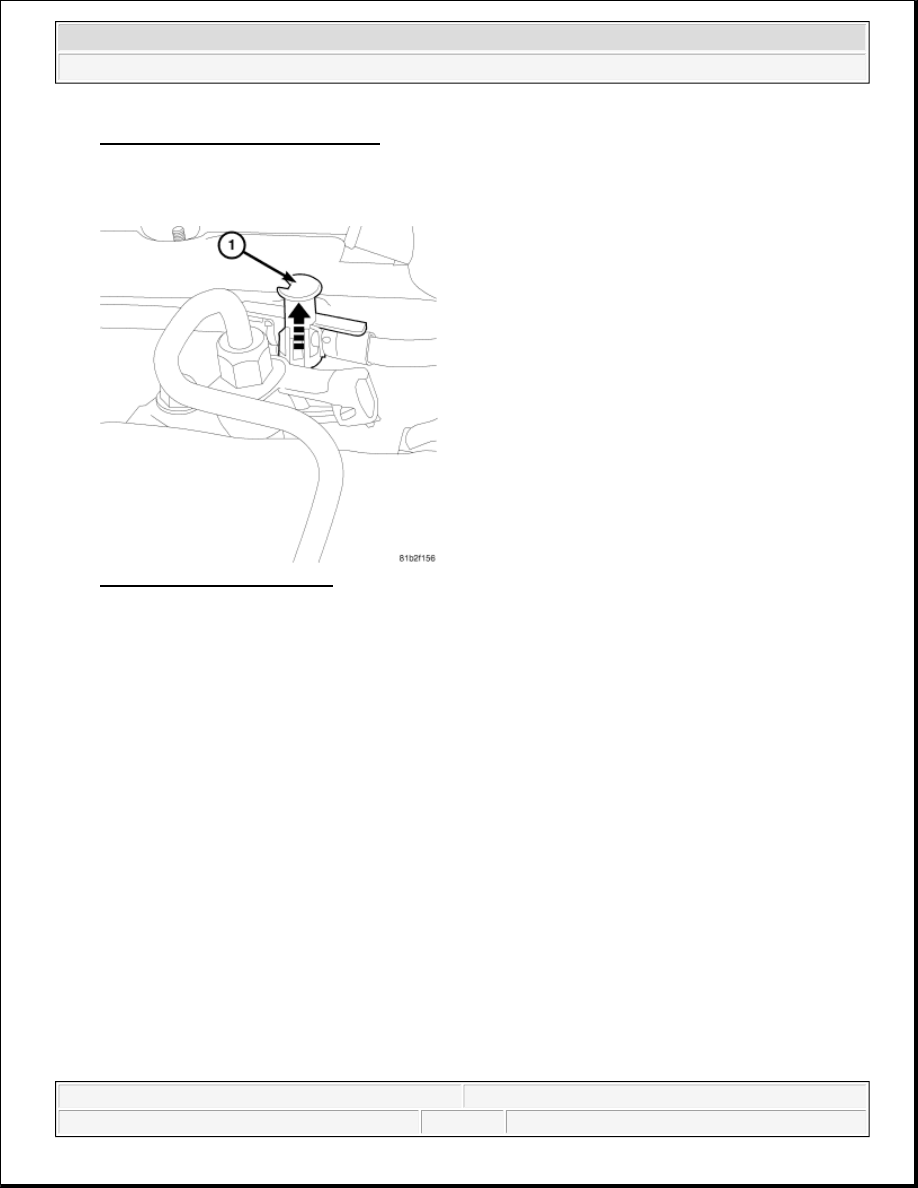

Fig. 134: Lifting Lock Buttons
Courtesy of CHRYSLER LLC

5. Disconnect electrical connector at top of injector(s).

6. A lock button (1) is used to secure the common fuel return line to each fuel injector. Use your fingers to

lift all four lock buttons (1) up. After unlocking all four buttons, lift fuel return line assembly up for
removal.

NOTE:

The injector common fuel return line is connected to the low pressure fuel
circuit (5 bar/72 psi).



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



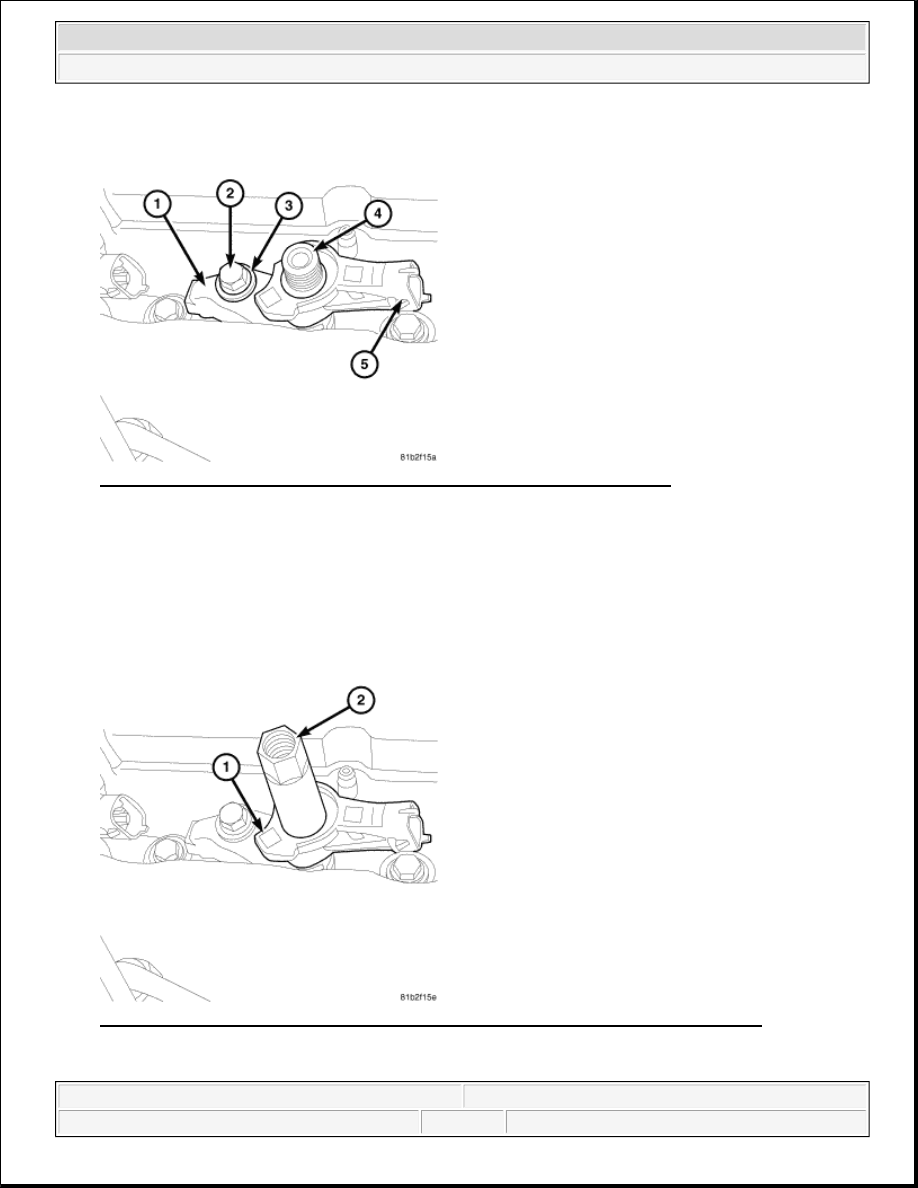

Fig. 135: Identifying Injector, Mounting Clamp, Mounting Bolt & Washer
Courtesy of CHRYSLER LLC

7. Remove injector mounting bolt (2) and washer (3).

8. Remove injector mounting clamp (1).

9. Using compressed air, thoroughly clean surface area in and around injector bore to prevent foreign

material from falling into the injector bore after injector removal.

10. Using your hand, pull fuel injector straight up from cylinder head for removal.

Fig. 136: Installing Special Fuel Injector Removal Tool #9552 To Top Of Fuel Injector
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



11. If injector can't be removed by hand, install special fuel injector removal tool #9552 (2) to top of fuel

injector.

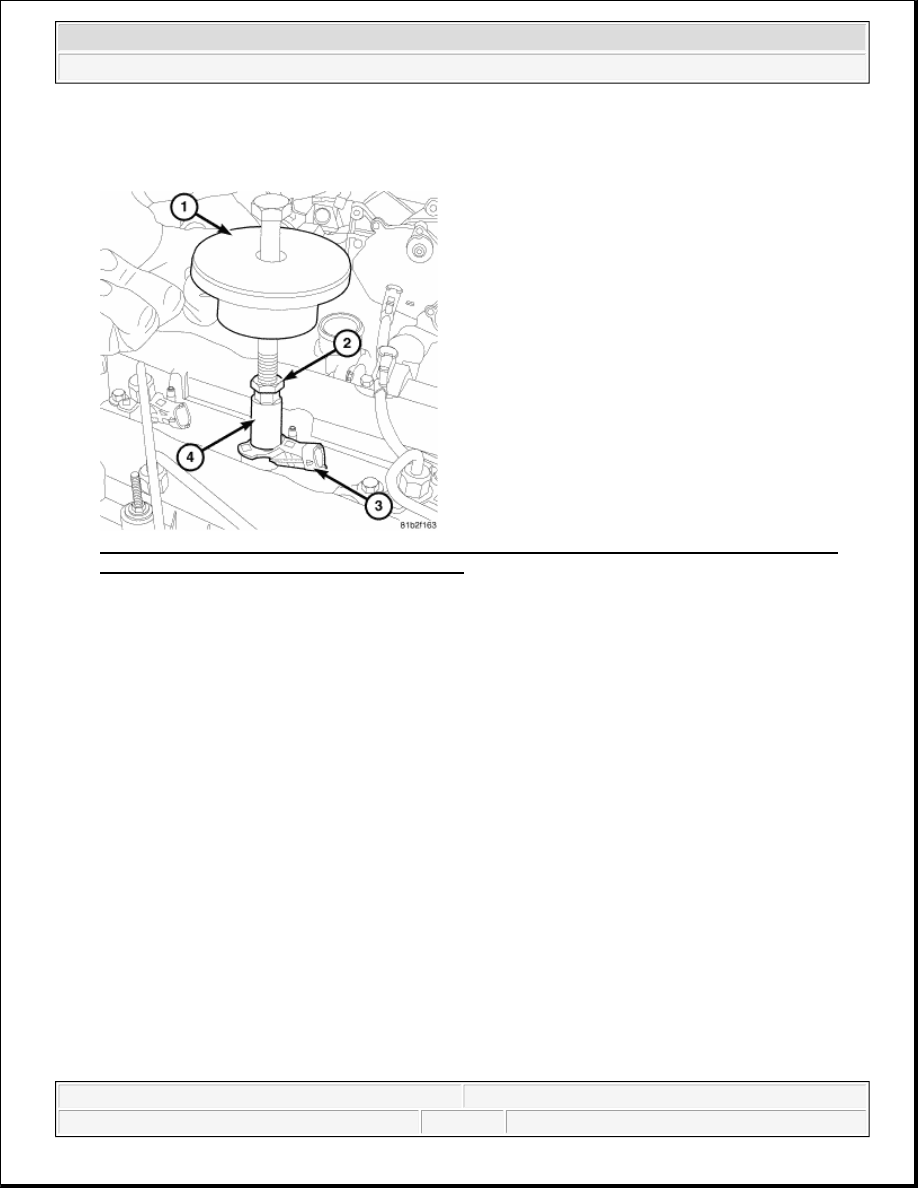

Fig. 137: Installing Special Slide Hammer Tool #8941 Onto Special Tool #9552, Tightening Lock
Nut & Removing Injector From Cylinder Head
Courtesy of CHRYSLER LLC

12. Install special slide hammer tool #8941 (1) onto special tool #9552 (4). Tighten lock nut (2). Remove

injector from cylinder head.

INSTALLATION

INSTALLATION

NOTE:

DO NOT use a wire brush to clean the fuel injector or nozzle. Possible
restriction of the injector needle may result.

CAUTION: Due to the complexity of the fuel injection system used on this engine,

refer to the Diesel Engine Diagnostics, and service any fuel system DTCs
prior to replacing any fuel injectors. If no DTCs are present, refer to the
Diesel Engine Diagnostic Test for Lack of Engine Power, and perform all
steps as directed prior to replacing any fuel injectors.

CAUTION: Cleanliness cannot be overemphasized when handling or replacing diesel

fuel system components. This especially includes the fuel injectors, high-
pressure fuel lines and fuel injection pump. Very tight tolerances are used
with these parts. Dirt contamination could cause rapid part wear and
possible plugging of fuel injector nozzle tip holes. This in turn could lead
to possible engine misfire. Always wash/clean any fuel system component



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



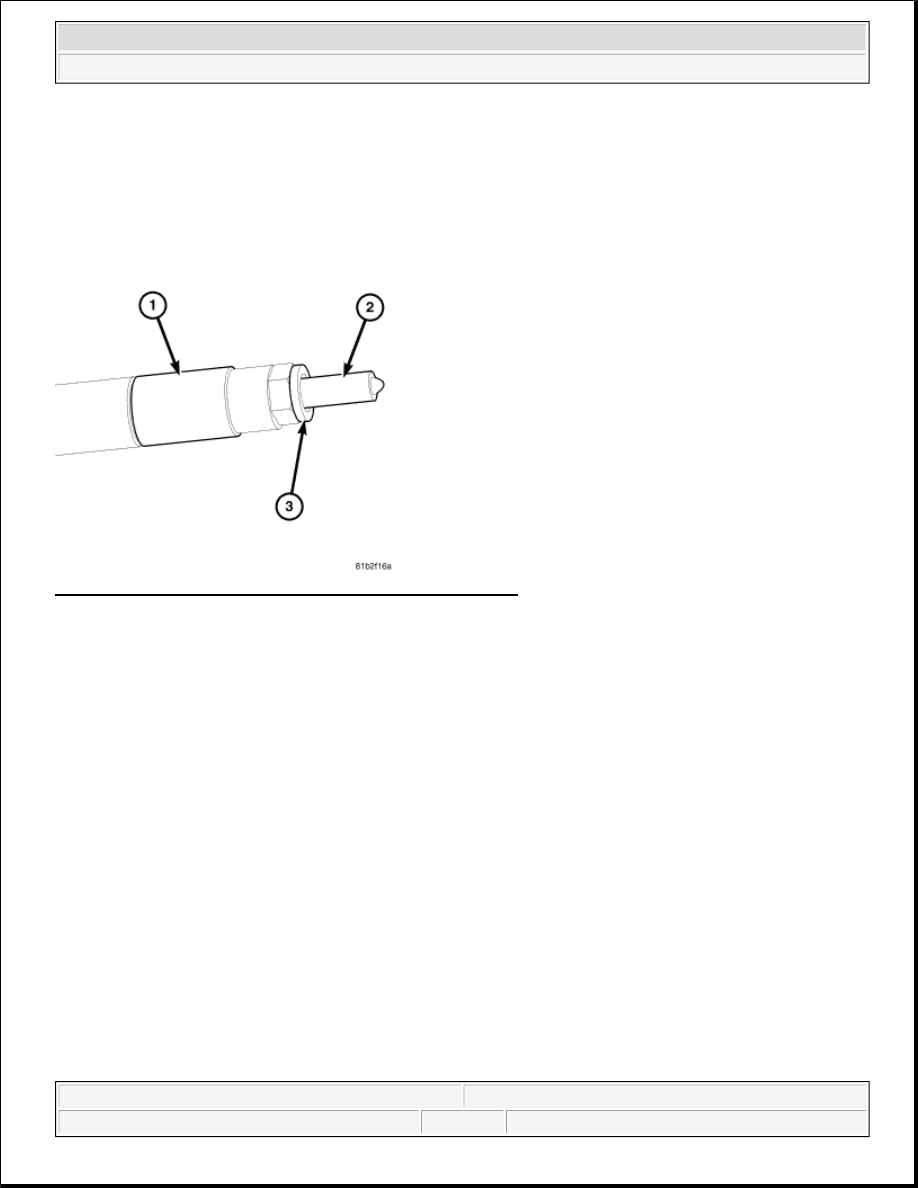

Fig. 138: Identifying Injector Nozzle & Copper Washer/Seal
Courtesy of CHRYSLER LLC

1. Install fuel injector into cylinder head with new seal.

thoroughly before disassembly and then air dry. Cap or cover any open
part after disassembly. Before assembly, examine each part for dirt,
grease or other contaminants and clean if necessary. When installing new
parts, lubricate them with clean engine oil or clean diesel fuel only.

NOTE:

DO NOT use a brush to clean around the injector nozzle (2). DO NOT lubricate
area around injector nozzle. The injector may become restricted with debris.

NOTE:

Be sure a new copper washer/seal (3) is installed on end of injector and the old
seal is removed, before installing in cylinder head.
