Dodge Nitro. Manual - part 670

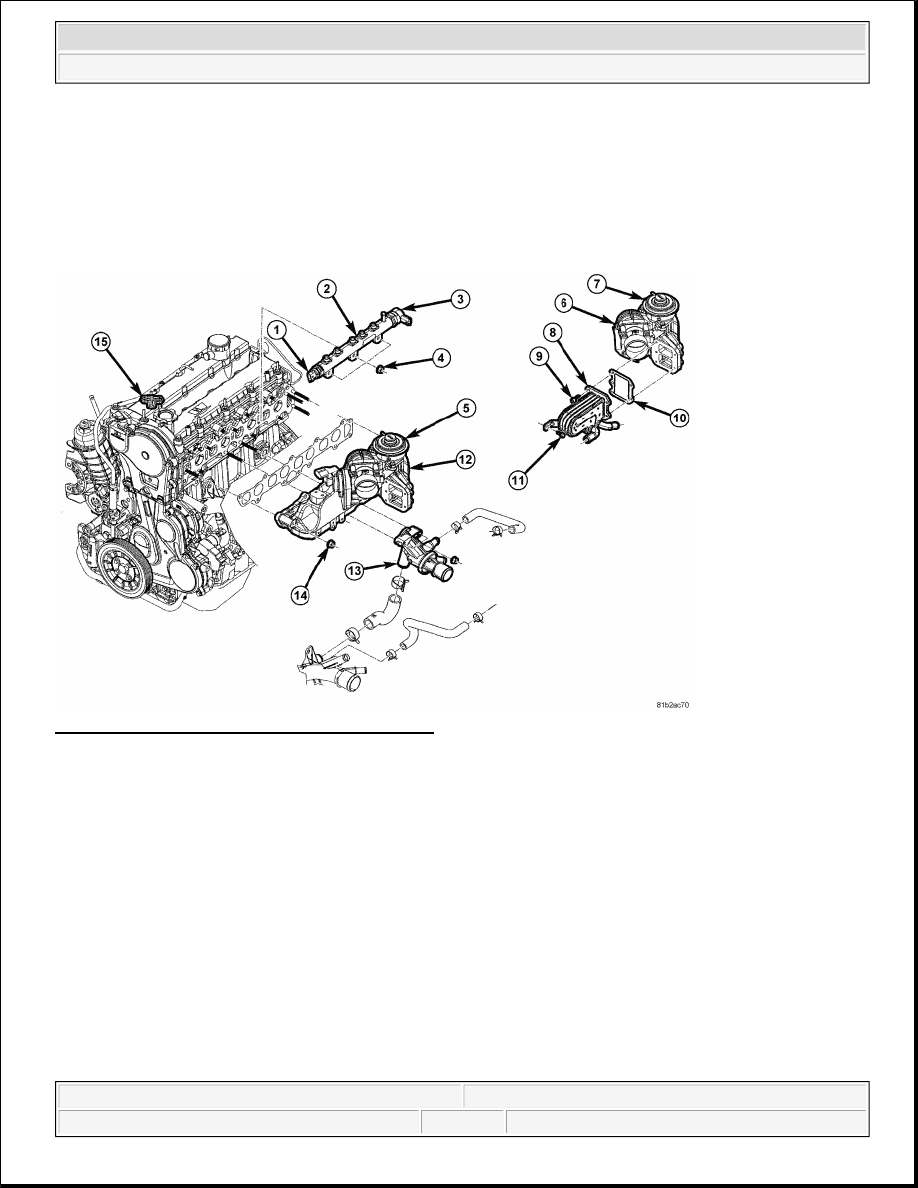

Fig. 57: Exploded View Of Fuel Rail - 2.8L Diesel
Courtesy of CHRYSLER LLC

1. Disconnect negative battery cable at battery. Isolate end of cable.

2. Remove dress-up cover from top of engine.

3. Disconnect electrical connector at fuel pressure sensor (1).

4. Disconnect electrical connector at fuel pressure solenoid (3).

possible plugging of fuel injector nozzle tip holes. This in turn could lead
to possible engine misfire. Always wash/clean any fuel system component
thoroughly before disassembly and then air dry. Cap or cover any open
part after disassembly. Before assembly, examine each part for dirt,
grease or other contaminants and clean if necessary. When installing new
parts, lubricate them with clean engine oil or clean diesel fuel only.



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro

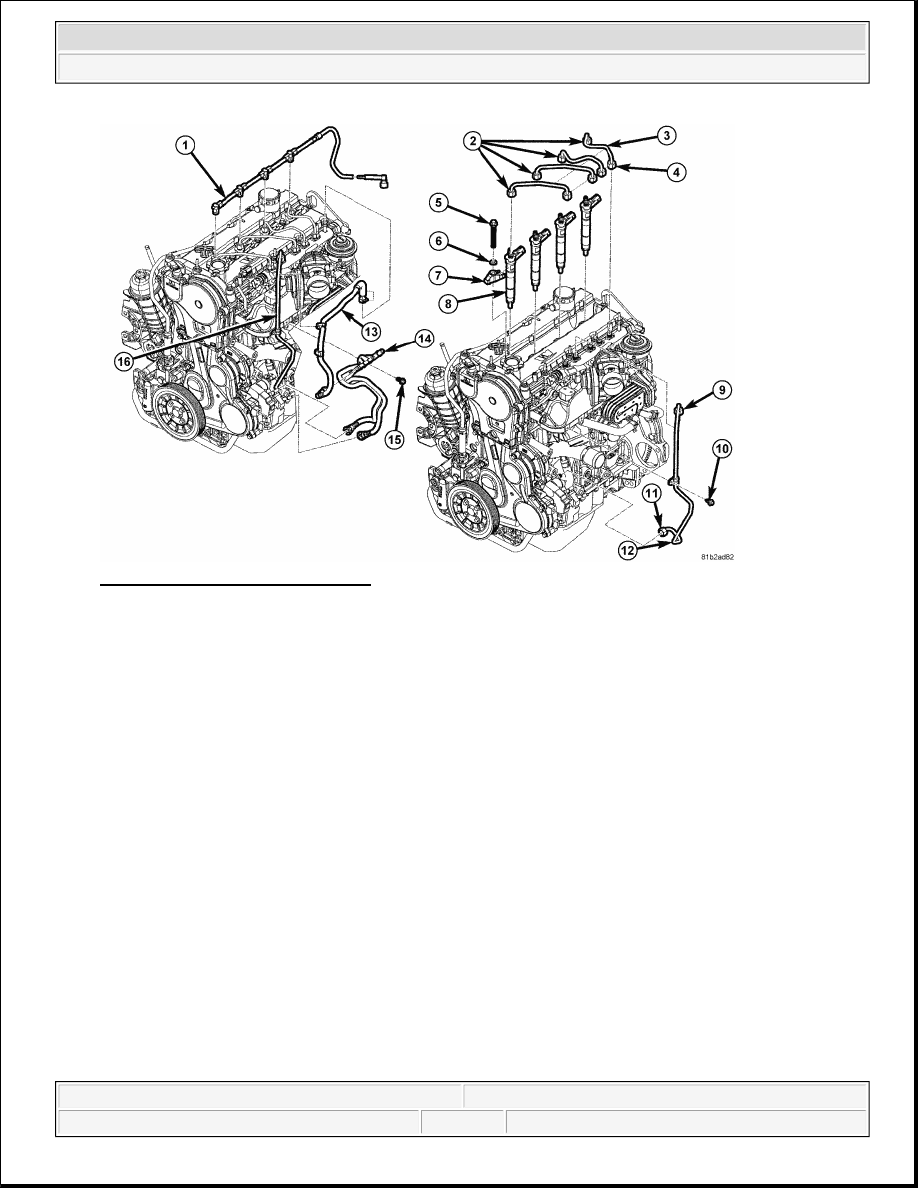

Fig. 58: Fuel Injectors - 2.8L Diesel
Courtesy of CHRYSLER LLC

5. Disconnect fuel line fittings (2) and (4) and remove four fuel lines (3). Note and mark position of each

fuel line while removing.

6. Remove fuel line clamp bolt (10).

7. Disconnect rail-to-injection pump high-pressure fuel line fittings (9) and (11) and remove fuel line (12).

Note and mark position of fuel line while removing.

CAUTION: WHEN LOOSENING OR TIGHTENING HIGH-PRESSURE LINE

FITTINGS ATTACHED TO A SEPARATE FITTING, USE A BACK-UP
WRENCH ON FITTING. DO NOT ALLOW FITTING TO ROTATE.
DAMAGE TO BOTH FUEL LINE AND FITTING WILL RESULT.



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



Fig. 59: Exploded View Of Fuel Rail - 2.8L Diesel
Courtesy of CHRYSLER LLC

8. Remove three fuel rail mounting nuts (4).

9. Remove rail (2) from cylinder head.

INSTALLATION

INSTALLATION

NOTE:

New High Pressure Fuel Line must be used any time the High Pressure Fuel
Lines have been removed.

CAUTION: Cleanliness cannot be overemphasized when handling or replacing diesel

fuel system components. This especially includes the fuel injectors, high-
pressure fuel lines and fuel injection pump. Very tight tolerances are used
with these parts. Dirt contamination could cause rapid part wear and
possible plugging of fuel injector nozzle tip holes. This in turn could lead
to possible engine misfire. Always wash/clean any fuel system component
thoroughly before disassembly and then air dry. Cap or cover any open
part after disassembly. Before assembly, examine each part for dirt,
grease or other contaminants and clean if necessary. When installing new
parts, lubricate them with clean engine oil or clean diesel fuel only.



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro

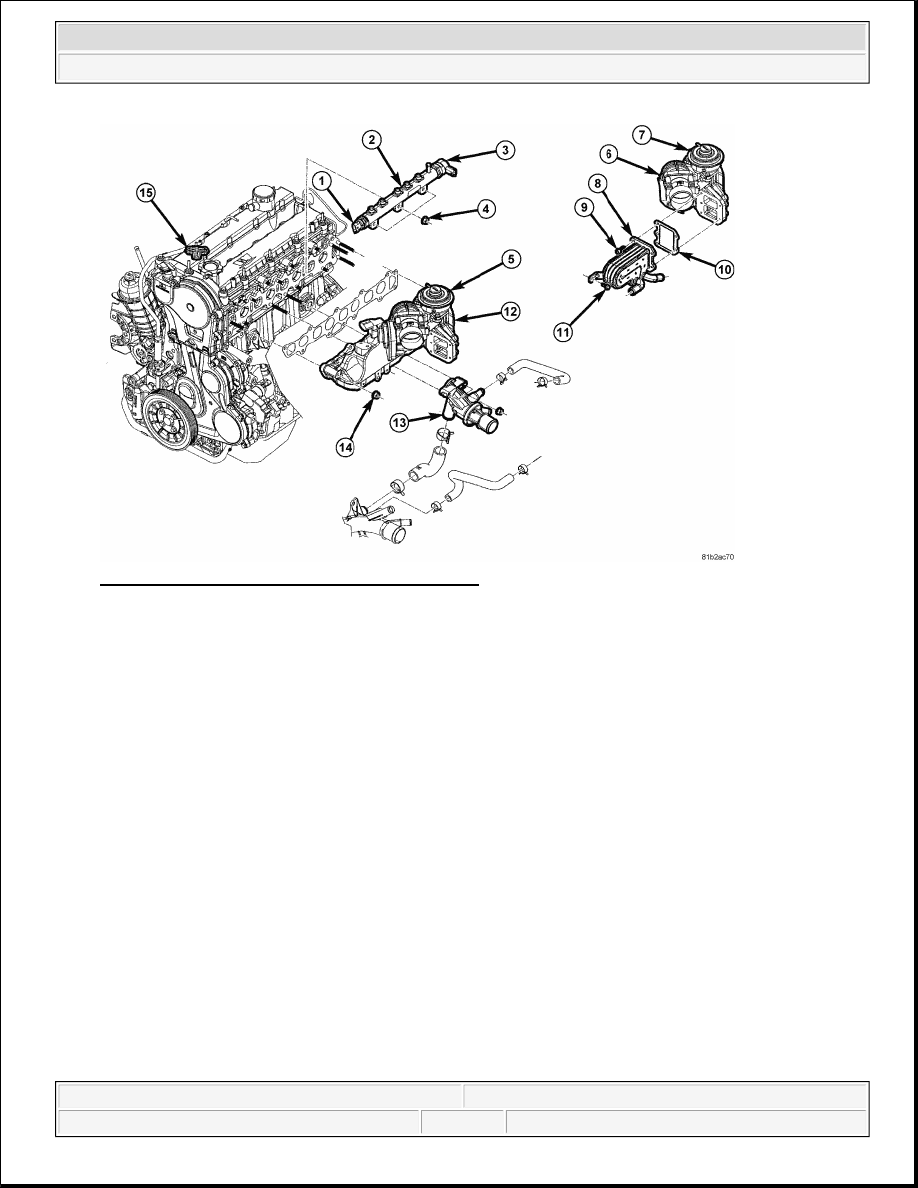

Fig. 60: Exploded View Of Fuel Rail - 2.8L Diesel
Courtesy of CHRYSLER LLC

1. Position fuel rail (2) to cylinder head.

2. Install three fuel rail mounting nuts (4). Tighten nuts (alternately) to 24 N.m (18 ft. lbs.) torque.
